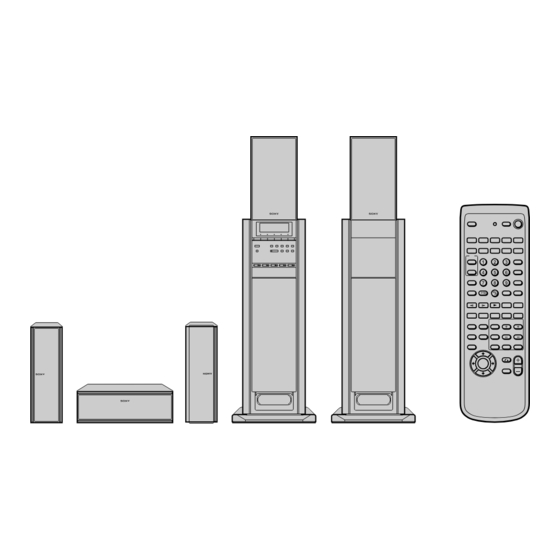

DVD Home Theater

Active Speaker System

Operating Instructions
SAVA-D900
2000 Sony Corporation
4-229-802-12(1)
1
2
3
4
5
6
7
8
9
>
10
10
0
E
S
®
NERGY
TAR
is a U.S. registered mark.
E
S
As an
NERGY
TAR Partner, Sony
Corporation has determined that this product
E
S
meets the
NERGY
TAR guidelines for
energy efficiency.

Advertisement

Table of Contents
loading

Related Manuals for Sony SAVA-D900 Operating Instructions (primary manual)

Summary of Contents for Sony SAVA-D900 Operating Instructions (primary manual)

  • Page 1: Active Speaker System

    DVD Home Theater Active Speaker System Operating Instructions SAVA-D900 2000 Sony Corporation 4-229-802-12(1) > ® NERGY is a U.S. registered mark. As an NERGY TAR Partner, Sony Corporation has determined that this product meets the NERGY TAR guidelines for energy efficiency.
  • Page 2 The model and serial numbers are located at the rear of the main unit (left). Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. SAVA-D900 Serial No.______________...

  • Page 3: Table Of Contents

    Settings for Sound (AUDIO SETUP)... 57 Settings for Speakers (SPEAKER SETUP) ... 57 Other Operations ... 59 Operating Sony Components ... 59 Operating Non-Sony Components ... 60 The Numeric Codes Corresponding to the Component and the Make of the Component .. 61 Table of Buttons that You Can Use to Control Each Component ...

  • Page 4: About This Manual

    About This Manual Conventions • Instructions in this manual describe the controls on the system. You can also use the controls on the remote if they have the same or similar names as those on the system. • The icons on the right are used in this manual: This System Can Play the Following Discs Disc logo Contents...
  • Page 5 Terms for discs • Title The longest sections of a picture or a music piece on a DVD; a movie, etc., for a picture piece on a video software; or an album, etc., for a music piece on an audio software. Each title is assigned a title number enabling you to locate the title you want.

  • Page 6: Precautions

    If you have any questions or problems concerning your system, please consult your nearest Sony dealer. IMPORTANT NOTICE Caution: The enclosed system is capable of holding a still video image or On screen display image on your television screen indefinitely.

  • Page 7: Notes On Discs

    Notes on Discs On handling discs • To keep the disc clean, handle the disc by its edge. Do not touch the surface. • Do not stick paper or tape on the disc. If there is glue (or a similar substance) on the disc, remove the glue completely before using the disc.

  • Page 8: Getting Started

    Getting Started This section describes how to hook up the system to the speakers, a TV monitor with audio/video input jacks and other video component. You cannot connect this system to a TV monitor which does not have a video input connector.

  • Page 9: Assembling Main Units

    Inserting batteries into the remote You can control the system using the supplied remote. Insert two size AA (R6) batteries by matching the + and – on the batteries. When using the remote, point it at the remote sensor on the system. You can control TVs, VCRs, LD players, digital satellite receivers, and MD decks using the supplied remote See page 59.

  • Page 10: Speaker System Hookup

    Speaker System Hookup Connect the supplied speaker system using the supplied speaker cords . To obtain the best possible surround sound, specify the speaker parameters (distance, level, etc.) on page 16. Rear speaker (right) STEP 3 Main unit (right) Center speaker STEP 1 TV set * If you use an SA-IF70 Wireless Speaker System (not supplied)
  • Page 11 Turning down the volume on the TV set reduces the AUDIO OUT signal level and may cause a loss in sound quality. If you have a Sony XBR Rear speaker Projection TV equipped with a speaker switch...
  • Page 12 Speaker System Hookup 1 Use an optional CONTROL S cord to connect the CONTROL S IN jack on the left main unit to the CONTROL S OUT jack on the back of the TV. series TV set or Projection TV Main unit (left) CONTROL S ç...
  • Page 13 If you connect an MD deck Connect the MD deck to the DIGITAL OPTICAL jack besides the AUDIO L/R jacks of AUX of the system. MD deck Main unit (left) D I G I T A L OPTICAL AUDIO VIDEO S-VIDEO I N P U T If you connect a digital satellite receiver with the...

  • Page 14: Turning The Speaker System On And Off

    Speaker System Hookup Mounting brackets If you wish to hang the rear speakers on a wall with hooks (not supplied), use the supplied black wood screws to attach the supplied mounting brackets to the upper part of the back panel of each rear speaker. Mounting bracket Black wood screw Rear speaker...

  • Page 15: Selecting The Language For On-Screen Display

    Selecting the Language for On-Screen Display You can select the language for the setup display, the Control Menu display or the messages displayed on the screen. The default setting is “ENGLISH.” DVD SETUP > ENTER </M/m/, While in stop mode, press DVD SETUP on the remote and select “LANGUAGE SETUP”...

  • Page 16: Speaker Setup

    Each rear speaker should be placed as its tweeter is on the inner side. The grille can be detached to visually verify the orientation. The “SONY” logo on each satellite speakers can be rotated to match the speaker’s orientation. Rear speaker (right)
  • Page 17 Specifying the speaker parameters To obtain the best possible surround sound, first specify the distance of the speakers from your listening position, then set the balance and level. Use the test tone to adjust the speaker volumes to the same level. Details of each item will follow the description of the operation.
  • Page 18 Speaker Setup Height diagram Press to change between R.HEIGHT LOW and </, R.HEIGHT HIGH. • R.HEIGHT LOW Select this if the rear speakers are located in the section • R.HEIGHT HIGH Select this if the rear speakers are located in the section To specify the balance and level of the speakers Press TEST TONE on the remote.

  • Page 19: Presetting Radio Stations

    Presetting Radio Stations You can preset 20 stations for FM and 10 stations for AM. Before tuning, make sure that you have turned down the volume to the minimum. MEMORY > TUNE +/– PRESET +/– BAND ENTER Press BAND repeatedly on the remote until the band you want appears on the front panel display.

  • Page 20: Playing Discs

    Playing Discs This chapter describes how to play a DVD/CD/VIDEO CD. You can playback all the discs (up to 5 discs) placed on the disc tray. Press ?/1 (power switch) to turn the system on. Playing Discs Depending on the DVD or VIDEO CD, some operations may be different or restricted.
  • Page 21 Press H. The system starts playback (continuous play) of the disc whose disc tray indicator is green. To start playback of another disc, press DISC 1– DISC 5 of the disc tray you want to playback. After following Step 4 xWhen playing a DVD A DVD menu or title menu may appear on the TV screen (see page 29).

  • Page 22: Selecting A Sound Field

    Software with 2 channel audio signals, is decoded with Dolby Pro Logic to create surround effects. Reproduces the sound characteristics of the Sony C. STUDIO A Pictures Entertainment “Cary Grant Theater” cinema (CINEMA STUDIO A) production studio.
  • Page 23 Sound field Effect V. MULTI. D. Uses 3D sound imaging to create an array of virtual rear (VIRTUAL MULTI DIMENSION*) speakers positioned higher than the listener from a single pair of actual rear speakers. This mode creates 5 sets of virtual speakers surrounding the listener at approximately a 30°...

  • Page 24: Understanding The Multi-Channel Surround Displays

    Understanding the Multi-Channel Surround Displays Source sound displays The letters (L, C, R, etc.) indicate the source sound. The boxes around the letters vary to show how the system downmixes the source sound (based on the speaker settings). When using music sound modes like HALL, the system adds reverberation based on the source sound.

  • Page 25: Customizing Sound Fields

    Customizing Sound Fields By adjusting the surround parameters of the front, rear and center speakers, you can customize the sound fields to suit your particular listening situations. Once you customize a sound field, the changes are stored in memory indefinitely (unless the system is unplugged for about a day).
  • Page 26 Customizing Sound Fields x dts LFE MIX (dts Low Frequency Effect mix level) Initial setting: 0 dB This parameter lets you attenuate the level of the LFE (Low Frequency Effect) channel output from the subwoofer without effecting the level of the bass frequencies sent to the subwoofer from the front, center, or rear channels via the “dts”...
  • Page 27 Adjusting the equalizing parameters You can adjust the bass and treble levels and select the subwoofer mode. The settings available here are stored individually for each sound field. To adjust the bass and treble levels Press BASS +/– or TREBLE +/– repeatedly on the remote. The levels change between –5 and +5.
  • Page 28 Customizing Sound Fields Adjustable parameters for each sound field <<LEVEL>>* FRONT REAR REAR CENTER BAL. BAL. LEVEL LEVEL AUTO FORMAT DECODE NORMAL SURROUND CINEMA STUDIO A CINEMA STUDIO B CINEMA STUDIO C VIRTUAL MULTI DIMENSION HALL JAZZ CLUB LIVE HOUSE GAME * If you change an item in <<LEVEL>>, the changes apply to all sound fields.

  • Page 29: Resuming Playback From The Point Where You Stopped The Disc (Resume Play)

    Resuming Playback from the Point Where You Stopped the Disc (Resume Play) The system stores the point where you stopped the disc, and when “RESUME” appears on the front panel display, you can resume playback from that point. As long as you do not open the disc tray, Resume Play is available even if you turn the power off.

  • Page 30: Playing Video Cds With Pbc Functions (Pbc Playback)

    Using the Menu for Each DVD Using the DVD menu Some DVDs allow you to select the disc contents using the menu. When you play these DVDs, you can select the language for the subtitles, the language for the sound, etc., using the DVD menu.

  • Page 31: Creating Your Own Program (Program Play)

    Going back to the menu screen Press ORETURN on the remote. When playing VIDEO CDs with PBC functions PBC playback starts automatically. To cancel PBC playback of a VIDEO CD with PBC functions and play the disc in Continuous Play mode There are two ways.
  • Page 32 Creating Your Own Program (Program Play) Press the number buttons or M/m buttons to select the disc, then press ENTER. Disc type* PROGRAM 3 : DVD ALL CLEAR 1. – – – – 2. – – – – 3. – – – – 4.

  • Page 33: Playing In Random Order (Shuffle Play)

    Playing in Random Order (Shuffle Play) The system ”shuffles” titles or tracks and plays them in a random order. The playing order may differ from the previous “shuffling.” > P. MODE While in stop mode, press P. MODE on the remote repeatedly until “SHUF”...
  • Page 34 Using the Front Panel Display Checking the remaining time Press DISPLAY. Each time you press the DISPLAY button while playing the disc, the display changes as shown in the following chart. Playing time and number of the current chapter Press DISPLAY. Remaining time of the current chapter Press DISPLAY.
  • Page 35 Checking the remaining time Press DISPLAY on the remote. Each time you press the DISPLAY button while playing a disc, the display changes as shown in the following chart. Playing time and number of the current track Press DISPLAY. Remaining time of the current track Press DISPLAY.

  • Page 36: Using Various Functions With The Control Menu

    Using Various Functions with the Control Menu This chapter describes how to play discs in various modes and how to use the convenient features of the on- screen menu (Control Menu). Using the Control Menu Display Using the Control Menu display, you can select the start point, change the angles, etc.
  • Page 37 Select the item you want using the M/m buttons, then press , or ENTER. 1 2 ( 2 7 ) 1 8 ( 3 4 ) C 0 1 : 3 2 : 5 5 Items 1 : ENGLISH To select, press , then ENTER 1 2 ( 2 7 )

  • Page 38: Control Menu Item List

    Control Menu Item List (DVD only) (page 39) TITLE (DVD only) (page 39) CHAPTER (VIDEO CD/CD only) (page 39) TRACK (VIDEO CD during PBC playback only) SCENE (page 39) (VIDEO CD/CD only) (page 39) INDEX You can search by selecting the title/chapter/track/ index/scene.

  • Page 39: Searching For The Title/Chapter/Track/Index/Scene

    Searching for the Title/Chapter/Track/Index/Scene You can search by selecting the title/chapter/track/ index/scene. Select “TITLE,” “CHAPTER,” “ TRACK”, “INDEX” or “SCENE” after pressing the DVD DISPLAY button on the remote. When you play back a DVD, “TITLE” and “CHAPTER” are displayed. When you play back a VIDEO CD/CD, “TRACK”...

  • Page 40: Checking The Playing Time And Remaining Time

    Checking the Playing Time and Remaining Time You can check the playing time and remaining time of the current title/chapter/track and the total remaining time of the disc. Select “TIME/TEXT” after pressing the DVD DISPLAY button on the remote to change the time information. You can also check the DVD TEXT and CD TEXT (see page 41).

  • Page 41: Checking The Information Of The Disc

    Checking the Information of the Disc You can check the DVD TEXT or CD TEXT of the disc on the TV screen and the front panel display. DVD TEXT and CD TEXT are information recorded on the disc which you cannot change. Press DISPLAY repeatedly on the remote to display the DVD/CD TEXT.
  • Page 42 Changing the Sounds Displaying the audio information of the disc When you select “AUDIO,” the playing channels are displayed on the screen. In Dolby Digital format, the signals from monaural to 5.1 channels can be recorded on a DVD. Depending on the DVD the number of the recorded channels may be different.

  • Page 43: Displaying The Subtitles

    Displaying the Subtitles With DVDs on which subtitles are recorded, you can turn the subtitles on and off whenever you want while playing the DVD. With DVDs on which multilingual subtitles are recorded, you can change the subtitle language whenever you want while playing the DVD, and turn it on or off whenever you want.

  • Page 44: Selecting The Disc Mode (1 Disc Or All Discs)

    Changing the Angles Select the number of the angles using the number buttons or the M/m buttons, then press ENTER. The angle is changed to the selected angle. 1 2 ( 2 7 ) PLAY 1 8 ( 3 4 ) C 0 1 : 3 2 : 5 5 5 ( 9 ) To select, press...

  • Page 45: Playing Repeatedly (Repeat Play)

    Playing Repeatedly (Repeat Play) You can play all the titles/tracks on a disc or a single title/ chapter/track. In Shuffle or Program Play mode, the system repeats the titles or tracks in the shuffled or programmed order. You cannot do Repeat Play during PBC playback of VIDEO CDs (page 30).

  • Page 46: Checking The Play Information

    Repeating a Specific Portion (AyB Repeat) During playback, when you find the starting point (point A) of the portion to be played repeatedly, press ENTER on the remote. The starting point (point A) is set. C 0 1 : 3 2 : 5 5 A–B REPEAT Set point B with ENTER...

  • Page 47: Displaying Different Angles Simultaneously

    BIT RATE HISTORY Bit rate range Min. Max. Newest bit rate range Indicates the transition of bit rate of the playback picture for a period up to the present. LAYER Appears when the DVD has dural layers Indicates the approximate point where the disc is playing. If it is a dual-layer DVD, the system indicates which layer is being read.

  • Page 48: Dividing A Track Into 9 Sections (Strobe Play)

    Dividing a Track into 9 Sections (Strobe Play) You can display 9 consecutive sections of the disc on the screen. In this case, the sections show still images. Select “STROBE PLAYBACK” after pressing the DVD DISPLAY button on the remote. 1 2 ( 2 7 ) 1 8 ( 3 4 ) C 0 1 : 3 2 : 5 5...

  • Page 49: Settings And Adjustments

    Settings and Adjustments This chapter describes how to set and how to adjust using the on-screen SETUP menu. Most settings and adjustments are required to be set when you first use the system. Using the Setup Display Using the setup display, you can do the initial setup, adjusting the picture, etc.
  • Page 50 Using the Setup Display Select the main item you want using the M/m buttons, and then press ENTER on the remote. The selected main item is highlighted. LANGUAGE SETUP OSD: DVD MENU: AUDIO: SUBTITLE: Main item To set, press , then To quit, press DVD SETUP SETUP...

  • Page 51: Setup Display Item List

    Setup Display Item List The default settings are underlined. LANGUAGE SETUP (page 52) ENGLISH FRENCH SPANISH PORTUGUESE DVD MENU ENGLISH FRENCH SPANISH PORTUGUESE GERMAN ITALIAN DUTCH CHINESE JAPANESE DANISH SWEDISH FINNISH NORWEGIAN RUSSIAN OTHERS / AUDIO ORIGINAL (same as DVD MENU) SUBTITLE AUDIO FOLLOW (same as DVD MENU)

  • Page 52: Setting The Language For Display And Sound (Language Setup)

    Setting the Language for Display and Sound (LANGUAGE SETUP) Z Select “LANGUAGE SETUP” after pressing the DVD SETUP button on the remote. “LANGUAGE SETUP” allows you to set various languages for on-screen display or sound. The default settings are underlined. Note When you select a language that is not recorded on the DVD, one of the recorded languages is automatically selected except for the...

  • Page 53: Settings For Display (Screen Setup)

    Settings for Display (SCREEN SETUP) Select “SCREEN SETUP” after pressing the DVD SETUP button on the remote. “SCREEN SETUP” allows you to set the display according to the playback conditions. The default settings are underlined. SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: JACKET PICTURE To set, press...

  • Page 54: Custom Settings (Custom Setup)

    Custom Settings (CUSTOM SETUP) Select “CUSTOM SETUP” after pressing the DVD SETUP button on the remote. “CUSTOM SETUP” allows you to set the playback conditions. The default settings are underlined. CUSTOM SETUP PAUSE MODE: PARENTAL CONTROL To set, press , then ENTER To quit, press SETUP...
  • Page 55 Enter a password in 4 digits using the number buttons, then press ENTER. The digits change to asterisks ( ), and the display for confirming the password appears. CUSTOM SETUP PARENTAL CONTROL To confirm,enter password again, then press ENTER To return, press RETURN To cancel, press SETUP...
  • Page 56 Custom Settings (CUSTOM SETUP) To return to the normal screen Press DVD SETUP on the remote. To turn off the Parental Control function and play the DVD after entering your password Set “LEVEL” to “OFF” in Step 7, then press N on the remote.

  • Page 57: Settings For Sound (Audio Setup)

    Settings for Sound (AUDIO SETUP) Select “AUDIO SETUP” after pressing the DVD SETUP button on the remote. “AUDIO SETUP” allows you to select the sound track. The default settings are underlined. AUDIO SETUP TRACK SELECTION: To set, press , then ENTER To quit, press SETUP...
  • Page 58 Settings for Speakers (SPEAKER SETUP) Specifying the rear speaker position and height Specify the position and height of the rear speakers, referring to the diagram on page 17. The default setting is underlined. • BEHIND (LOW) Select this if the rear speakers are located in the section B and D.

  • Page 59: Other Operations

    You can change the factory settings of the function buttons to suit the Sony components in your system. For example, if you connect a Sony LD player to the AUX jacks on the left main unit, you can set the AUX function button on this remote to control the LD player.

  • Page 60: Operating Non-Sony Components

    Operating Non-Sony Components You can program the remote to control non-Sony components. Once the control signals have been memorized, you can use those components as part of your system.

  • Page 61: The Numeric Codes Corresponding To The Component And The Make Of The Component

    Component Use the numeric codes in the tables below to control non- Sony components. Since the remote signal that a component accepts differs depending on the model and year of the component, more than one numeric code may be assigned to a component.
  • Page 62 The Numeric Codes Corresponding to the Component and the Make of the Component To control a VCR (the VIDEO and AUX function buttons only) Make Code(s) AIWA 100, 101 AKAI 102, 103, 104 BLAUPUNKT 105, 106 EMERSON 107, 108, 109, 110, 111, 112 FISHER 113, 114, 115, 116, 117 GENERAL ELECTRIC 118, 119, 120...

  • Page 63: Table Of Buttons That You Can Use To Control Each Component

    – the TV when you press TV CONTROL. – the system when you select any function using anything but the TV CONTROL button. ** Only for Sony TVs. *** This button changes the input source of the TV regardless of the selected function.

  • Page 64: Naming Preset Stations

    Listening to the Radio To check the frequency or sound field Press DISPLAY repeatedly on the remote. Each time you press the DISPLAY button, the front panel display changes: index name of the station* t frequency t sound field t index name of the station* * Only when the name of the station has been assigned.

  • Page 65: Using The Sleep Timer

    Using the Sleep Timer You can set the system to turn off automatically at a specified time. SLEEP > Press SLEEP on the remote while the power is on. Each time you press the SLEEP button, the time changes as shown below. n 2:00:00 n 1:30:00n 1:00:00 n 0:30:00 n OFF The display dims after you have specified the time.

  • Page 66: Additional Information

    If you experience any of the following difficulties while using the system, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer. Power The power is not turned on. , Check that the AC power cord is connected securely.
  • Page 67 , The protective device on the system has been activated because of a short circuit. Turn off the system, eliminate the short-circuit problem and turn on the power again. , The audio connecting cord is damaged. Replace it with a new one. , The system is in pause mode or in Slow-motion Play mode.
  • Page 68 Troubleshooting The remote does not function. , Make sure you select the correct function on the remote. , Pressing the TV CONTROL button sets the remote to operate the TV only. The ?/1 switch does not turns on/ off the system. If this mode is on, press a function button on the remote before operating the system or another component.

  • Page 69: Self-Diagnosis Function

    ,Open the disc tray and insert the disc correctly. •To prevent the system from malfunctioning, the self-diagnosis function has worked. ,When you contact your Sony dealer or local authorized Sony service facility, give the 5-character service number. (example: E 61 10)

  • Page 70: Specifications

    Projection TV Output Center speaker Accepts only supplied SS-T900 Rear speaker Accepts only supplied SS-T900 Wireless rear speaker Accepts only Sony model, SA-IF70 R-ch speaker Accepts only the supplied main unit (right) with supplied exclusive speaker cord Tone control Bass: ±8 dB at 100 Hz Treble: ±8 dB at 10 kHz...

  • Page 71: Glossary

    This is the generic name of the surround sound produced by digital signal processing technology developed by Sony. Unlike previous surround sound fields mainly directed at the reproduction of music, Digital Cinema Sound is designed specifically for the enjoyment of movies.
  • Page 72 Glossary Digital audio compression technology that the Digital Theater Systems, Inc. developed. This technology conforms to 5.1-channel surround. The rear channel is stereo and there is discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio.

  • Page 73: Language Code List

    Language Code List For details, see pages 41 and 43. Code Language Code Language 1027 Afar 1186 Scots Gaelic 1028 Abkhazian 1194 Galician 1032 Afrikaans 1196 Guarani 1039 Amharic 1203 Gujarati 1044 Arabic 1209 Hausa 1045 Assamese 1217 Hindi 1051 Aymara 1226 Croatian...

  • Page 74: Index To Parts And Controls

    Index to Parts and Controls Refer to the pages indicated in parentheses for details. Front Panel TUNER VIDEO SUBWOOFER FUNCTION MODE SOUND FIELD MASTER VOLUME BAND MULTI CHANNEL DECODING DISC 1 DISC 2 DISC 3 DISC 4 1 Front Panel Display (33) Indicates the playing time, etc.
  • Page 75 2 TV jacks (11) Connect to a TV. 3 CONTROL S IN jack (12) Connects to Sony XBR series TV or Sony Projection TV equipped with a speaker switch. 4 WIRELESS REAR SPEAKER connector (10) Connects to an optional wireless rear speaker transmitter.
  • Page 76 VCR, MD deck, LD player, AUX*** digital satellite receiver Factory setting: Sony TV ** Factory setting: Sony VCR mode 3 (VHS) *** Factory setting: no setting See the table on page 63 for information on the buttons you can use to control each component.
  • Page 77 7 DISPLAY button (33) Switches the item displayed on the front panel display. remaining or playing time t DVD or CD TEXT t sound field 8 CLEAR button Aborts the previous selection. 9 NPLAY, SELECT button NPLAY: Plays a disc (20). /y buttons (21) Play back the disc in slow motion.

  • Page 80: Index

    Dolby Digital 5, 22, 71 DTS 22, 72 Dummy disc 6, 13 DVD 21 DVD MENU 29 EXCHANGE Sony Corporation Printed in Korea F, G Fast Forward 21 Fast Reverse 21 FM antenna 10, 12 Front panel display 33 Handling discs 7...
