Huawei SUN2000 USL0 Series Quick Manual page 4

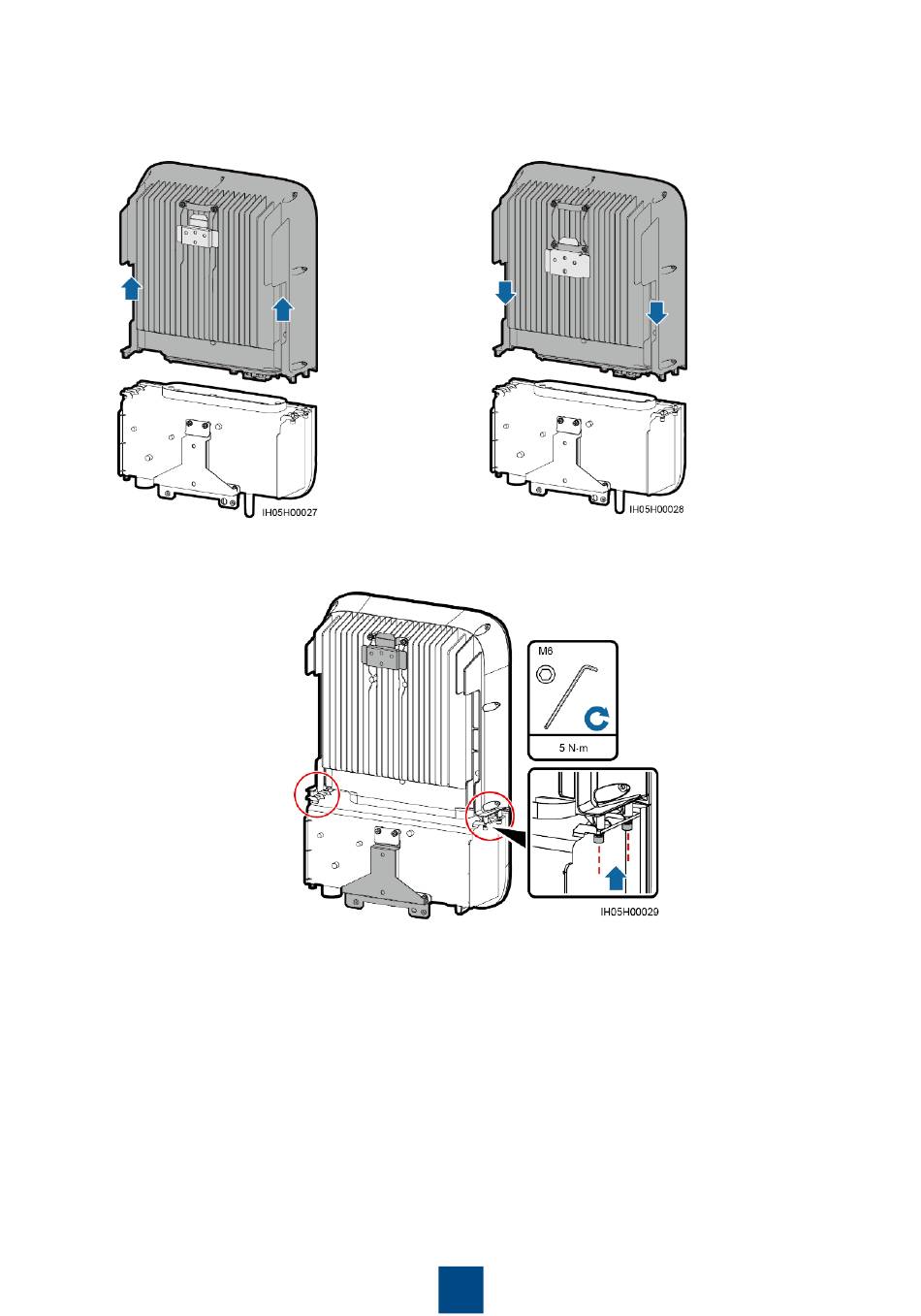

10. Remove the power compartment.
12.After cables are routed, install the upper mounting kit of the new power compartment onto the
mounting bracket. Reinstall the four M6 screws to secure the power and maintenance
compartments.
13.Reinstall the ground, fuse, AC and DC cables in sequence.
14.Reinstall the USB cable (only for the 4G model), or reinstall the WLAN cable (only for the WLAN
model).
15.Reinstall the 10-pin signal terminal and 2-pin enable terminal.
16.Reinstall the maintenance compartment cover.
11.Install the lower mounting kit of the new
power compartment onto the mounting
bracket and route cables.
