Specifications - Emerson Rosemount 304 Product Data Sheet

Rosemount Manifolds

Specifications

Material selection
™
Emerson Process Management provides a variety of Rosemount product with various product options and configurations including
materials of construction that can be expected to perform well in a wide range of applications. The Rosemount product information
presented is intended as a guide for the purchaser to make an appropriate selection for the application. It is the purchaser's sole
responsibility to make a careful analysis of all process parameters (e.g. all chemical components, temperature, pressure, flow rate,
abrasives, contaminants), when specifying product, materials, options and components for the particular application. Emerson is not in a
position to evaluate or guarantee the compatibility of the process fluid or other process parameters with the product, options,
configuration or materials of construction selected. For more information on material compatibility, refer to the Material Selection
Technical Note.
Pressure and temperature ratings

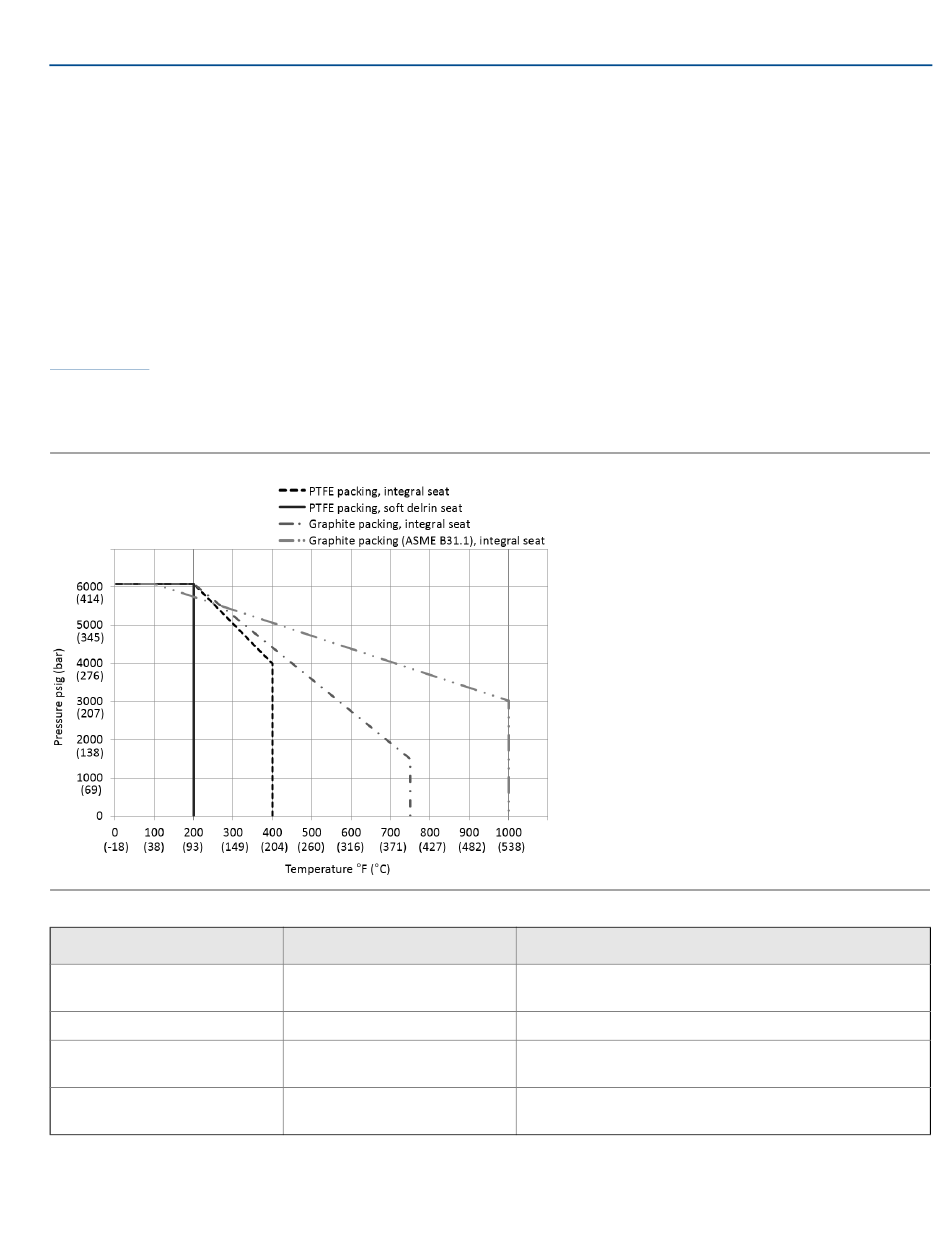

Figure 1. Rosemount 305 Integral Manifolds
Table 5. Rosemount 305 Integral Manifolds
Packing
PTFE
PTFE
Graphite
Graphite (ASME B31.1)
1. Except option HK:
PTFE, integral seat: 2324 psi @ 200 °F (160 bar @ 93 °C), 1680 psi @ 400 °F (116 bar @ 204 °C)
Graphite, integral seat: 2324 psi @ 200 °F (160 bar @ 93 °C), 1125 psi @ 750 °F (78 bar @ 399 °C)
12
(1)
Seat
Integral
Soft POM
Integral
Integral
Pressure and temperature ratings
6092 psi @ 200 °F (420 bar @ 93 °C)
4000 psi @ 400 °F (276 bar @ 204 °C)
6092 psi @ 200 °F (420 bar @ 93 °C)
6092 psi @ 200 °F (420 bar @ 93 °C)
1500 psi @ 750 °F (103 bar @ 399 °C)
6092 psi @ 100 °F (420 bar @ 38 °C)
3030 psi @ 1000 °F (201 bar @ 538 °C)
