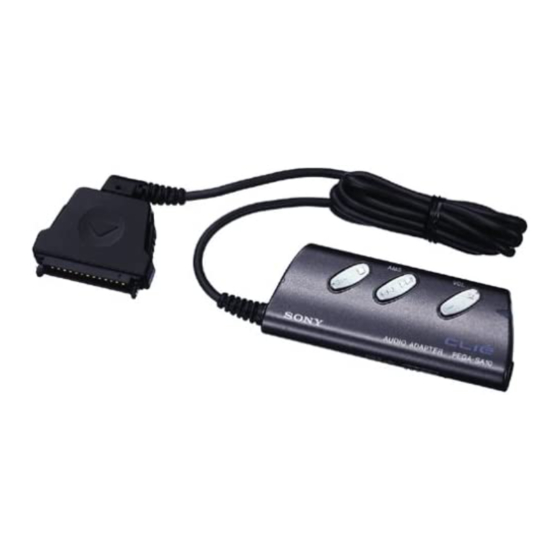

Sony PEGA SA10 Operating Instructions Manual

Sony PEGA SA10 Operating Instructions Manual

Sony operating instructions audio adapter pega-sa10
Hide thumbs Also See for PEGA SA10:

Advertisement

Quick Links

4-659-902-11 (1)

Audio Adapter

Operating Instructions
PEGA-SA10
2001 Sony Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEGA SA10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sony PEGA SA10

  • Page 1: Audio Adapter

    4-659-902-11 (1) Audio Adapter Operating Instructions PEGA-SA10 2001 Sony Corporation...
  • Page 2: Declaration Of Conformity

    The model number and serial number are located at the rear of the product. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. PEGA-SA10 Serial No.______________...
  • Page 3 • In no event will SONY be liable for any financial damage or loss of profits, including claims made by third parties, arising out of the use of the software supplied with this player.
  • Page 4: Table Of Contents

    Contents Welcome ... 5 What you can do with the Audio Adapter ... 5 CLIÉ handheld models that support the Audio Adapter... 5 Unpacking Your Audio Adapter ... 6 What is on the supplied CD-ROM? ... 6 Controls and Connectors ... 7 Installing the Software ...
  • Page 5: Welcome

    Welcome What you can do with the Audio Adapter Plugging the Audio Adapter into the interface connector of a CLIÉ handheld allows you to play back audio on CLIÉ handheld models that have no audio capabilities built in. If you connect the Audio Adapter to a CLIÉ handheld with gMovie Ver.1.4 or above installed, you can also play back movies with sound.
  • Page 6: Unpacking Your Audio Adapter

    END-USER LICENSE AGREEMENT (1) What is on the supplied CD-ROM? • Software and application for playing MP3 audio files RealJukebox 2 Basic for Sony (The rest is omitted as “RealJukebox for Sony”) Audio Player for Adapter • Software for displaying the online manual of Audio Player...
  • Page 7: Controls And Connectors

    Controls and Connectors 1 Interface connector 2 B/x button Starts or stops playback. 3 ./> button Searches for the beginning of the current or next track. 4 Volume adjustment button Adjusts the headphone volume. 5 Power ON LED Lights when the Audio Adapter is running. 6 Lock release button Press and hold this button to connect/disconnect the interface connector to/from your CLIÉ...
  • Page 8: Installing The Software

    To play back MP3-format audio files and movies with audio on your CLIÉ handheld using the Audio Adapter, you need to install Audio Player for Adapter, etc., onto your CLIÉ handheld from the supplied CD-ROM. You also need to install RealJukebox for Sony onto your computer from the CD-ROM. Notes •...
  • Page 9 Your computer is now ready for the installation of the application software for the Audio Adapter. The Installation Menu screen appears on the monitor of your computer. Click “Install RealJukebox 2 Basic for Sony” Follow the on-screen instructions to proceed. Click “Install gMovie sample files”...
  • Page 10: Listening To Audio Files

    How to convert audio CD data to MP3-format data using the supplied RealJukebox for Sony software. Use RealJukebox for Sony software to convert data on an audio CD to the MP3-format and register the data to a playlist on the...
  • Page 11 Double-click the RealJukebox icon on your Windows desktop, or click [Start], point to “Programs”, “Real”, “RealJukebox”, then click “RealJukebox”. RealJukebox starts up. When you start up the RealJukebox software for the first time, the Settings screen appears. Follow the procedure for setup. For more information, refer to the online manual for Audio Player for Adapter.
  • Page 12: Transferring Audio Files To

    Transferring audio files to the Memory Stick in your CLIÉ handheld from your computer To transfer audio files, MS Export Software in the CD-ROM that comes with the CLIÉ handheld needs to be installed on your computer. Make sure the write-protect tab on the Memory Stick media is not in the LOCK position, and insert the media into the Memory Stick slot on your CLIÉ...
  • Page 13 Notes • Do not exit Transfer mode or operate HotSync while transferring music data (while the Memory Stick indicator is flashing). • For additional information on transferring MP3-format audio files to your CLIÉ handheld, see the online manual for Audio Player for Adapter.
  • Page 14: Connecting The Audio Adapter

    Connecting the Audio Adapter Connect the headphone to the headphone jack on the adapter. Connect the Audio Adapter to the Interface connector on your CLIÉ handheld. Notes Do not apply strong shock to the connector while using. This action may cause malfunction.
  • Page 15: Wearing The Headphones

    Disconnecting the Audio Adapter Press and hold the lock release button on the Audio Adapter to remove the adapter. Wearing the headphones Insert the earpiece marked “R” into your right ear and the earpiece marked “L” into your left ear.
  • Page 16: Using Audio Player For Adapter Application On Your Clié Handheld

    Using Audio Player for Adapter application on your CLIÉ handheld Audio Player for Adapter allows you to play back audio files. Before starting playback, be sure the CLIÉ handheld’s battery is fully charged. Notes • The automatic shut-off function of your CLIÉ handheld is disabled during playback.
  • Page 17: To Stop Playback

    Playback starts from the first music selection. During playback, the music data that you loaded into the Memory Stick media with RealJukebox for Sony software or your MP3-compatible audio management software is displayed. Playback automatically stops at the end of the last music selection.
  • Page 18: To Adjust The Volume

    AVLS*) to change it to * AVLS, which stands for “Automatic Volume Limiter System”, limits the volume, to minimize sound leaking from the headphones, damage to your hearing, and potential danger caused by your inability to hear surrounding sounds. Playing audio files with the Audio Adapter If you turn off your CLIÉ...
  • Page 19 To stop playback Press x on the Audio Adapter. Note If playback does not start even when you press N on the Audio Adapter, hold N down again for a few seconds. To perform the following operations To pause Go to the beginning of the current track Go to previous tracks Go to the beginning of...
  • Page 20: Locking The Controls (Hold)

    Locking the controls (Hold) To prevent the controls from being accidentally operated when you carry the player, use the HOLD function. Slide the HOLD switch of the Audio Adapter to the HOLD position. (See the illustration below.) None of the controls on the Audio Adapter will operate. Even if you set the HOLD switch on the Audio Adapter, you can still control your CLIÉ...
  • Page 21: Using The Online Manual For Audio Player For Adapter

    Using the online manual for Audio Player for Adapter Detailed information on Audio Player for Adapter is available in the online manual provided on the supplied CD-ROM. To view the online manual, Acrobat Reader must be installed on your computer. Insert the supplied CD-ROM into the CD-ROM drive of your computer.
  • Page 22: Watching Movies With Audio

    Watching Movies with Audio If you connect the Audio Adapter to a CLIÉ handheld with gMovie installed, you can play back movies with audio. Using the online manual for gMovie Detailed information on gMovie Ver. 1.4 is available in the online manual provided on the supplied CD-ROM.
  • Page 23: Others

    2 hours after the remaining battery charge indication on the Home screen shows full charge. Maximum dimensions (W/H/D): Approx. 30 74 Weight: Approx. 40 g (1.4 oz.) (excluding headphones) Operating temperature: 5 to 35 °C Accessories: See page 6.
  • Page 24: Notes On Use

    Notes on use Placement limitations • To prevent malfunction, do not use or store the adapter in locations subject to: – Extremely high temperatures The temperature becomes extremely high in a car that is parked in the sun or in car with its windows closed during the summer.
  • Page 25: Moisture Condensation

    Moisture condensation If the adapter is brought directly from a cold to a warm location, moisture may condense inside the adapter. Use of the adapter in such a condition may cause a fire or malfunction within the adapter. When moisture has condensed, allow the adapter to sit at least an hour before using it.
  • Page 26 Connection with your computer • Connection abruptly drops. Connect the AC power adapter to the cradle. Check the cradle or USB cable and your computer for appropriate connection. Make sure the CLIÉ handheld is correctly seated in the cradle or attached with the USB cable. •...
  • Page 27 Others • I hear no operation sounds from my CLIÉ handheld. You will hear no operation sounds (clicking sounds) from your CLIÉ handheld while Audio Player for Adapter or gMovie is running. However, you will hear warning and error sounds from your CLIÉ handheld. •...
  • Page 28 For the latest support information, check our official Sony CLIÉ Web site http://www.sony.com/clie Printed in Japan...
