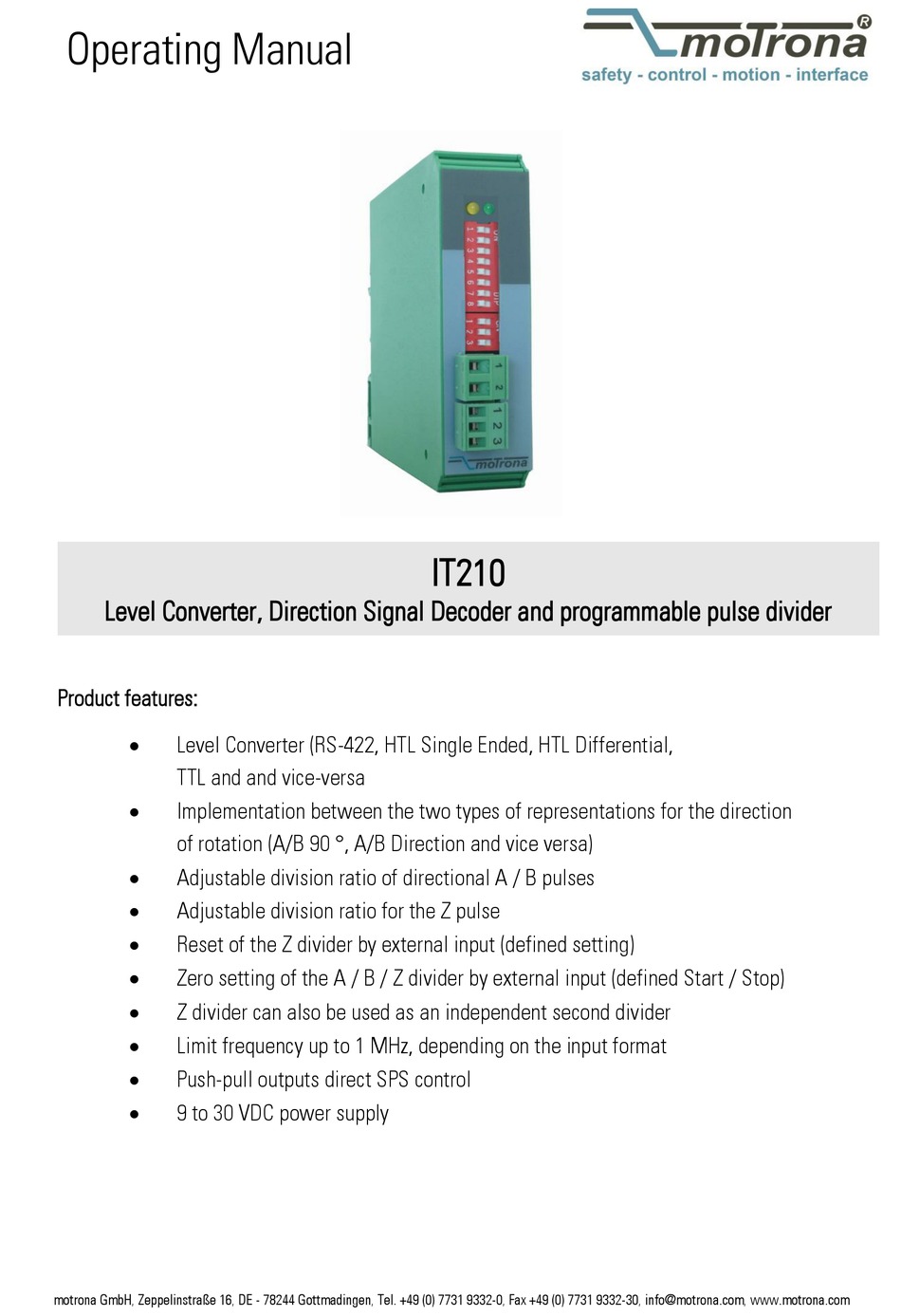

Operating Manual
Level Converter, Direction Signal Decoder and programmable pulse divider
Product features:
Level Converter (RS-422, HTL Single Ended, HTL Differential,
TTL and and vice-versa
Implementation between the two types of representations for the direction
of rotation (A/B 90 °, A/B Direction and vice versa)
Adjustable division ratio of directional A / B pulses
Adjustable division ratio for the Z pulse
Reset of the Z divider by external input (defined setting)
Zero setting of the A / B / Z divider by external input (defined Start / Stop)
Z divider can also be used as an independent second divider
Limit frequency up to 1 MHz, depending on the input format
Push-pull outputs direct SPS control
9 to 30 VDC power supply
motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com
IT210

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Motrona IT210

Summary of Contents for Motrona IT210

  • Page 1 Limit frequency up to 1 MHz, depending on the input format  Push-pull outputs direct SPS control  9 to 30 VDC power supply motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com...

  • Page 2: Table Of Contents

    Legal notices: All contents included in this manual are protected by the terms of use and copyrights of motrona GmbH. Any reproduction, modification, usage or publication in other electronic and printed media as well as in the internet requires prior written authorization by motrona GmbH.

  • Page 3: Safety Instructions And Responsibility

    1. Safety Instructions and Responsibility 1.1 General Safety Instructions This operation manual is a significant component of the unit and includes important rules and hints about the installation, function and usage. Non-observance can result in damage and/or impairment of the functions to the unit or the machine or even in injury to persons using the equipment! Please read the following instructions carefully before operating the device and observe all safety and warning instructions! Keep the manual for later use.

  • Page 4: Installation

    For placement, wiring, environmental conditions as well as shielding and earthing/grounding of the supply lines the general standards of industrial automation industry and the specific shielding instructions of the manufacturer are valid. Please find all respective hints and rules on www.motrona.com/download.html --> “[General EMC Rules for Wiring, Screening and Earthing]”.

  • Page 5: Introduction

    2. Introduction The IT210 is a universal interface using with incremental measuring systems. The device allows the solution of the following problems: • Level conversion (RS-422, HTL single ended, HTL differential, TTL and vice versa) • Division of two-track A / B pulses with adjustable ratio 1: 1 to 1: 2048 •...

  • Page 6: Terminal Assignments And Connections

    4. Terminal Assignments and Connections The input pulses are connected to the screw terminals X4. The unused inputs must remain open (HTL Single Ended as opposed to HTL Differential), or possibly be completed (unused Z-track in RS-422 or HTL Differential format). On the X4 screw terminal 9, 8, an auxiliary voltage of + 5.5 V / 250 mA is available for the encoder supply.
  • Page 7 The green LED signals operational readiness (power switched on). The yellow LED signals an input error. (RS-422 or HTL Differential only) An HTL Error Signal (input error, only for RS-422 or HTL differential) is available on the X3 screw terminal 1. (Error = low) Basic settings: At the front DIL switches DIL1 and DIL2, some basic presets have to be made when commissioning.

  • Page 8: Progarmmable A/B Divider

    5. Progarmmable A/B Divider 5.1. Level converter A/B Pulse (A/B Divider: All OFF) If the A/B pulse have to be switched unchanged from the input to the output (no division, no change in length and position), then the DIL switch position listed below must be chosen. A level conversion is only possible if the input mode (A/B 90 °...

  • Page 9: Setting The A/B Divider (At A/B Dir To A/B 90°)

    5.3. Setting the A/B Divider (at A/B Dir to A/B 90°) The division ratio for the A/B pulses is set at the DIL switches DIL5 and DIL6. The switch positions use a binary code like shown in the subsequent list. (DIL1/6 = ON, DIL1/7 = OFF). Divider [A/B] DIL5 DIL6...

  • Page 10: Setting The A/B Divider (For All Other Modes)

    5.4. Setting the A/B divider (for all other modes) The division ratio for the A/B pulses is set at the DIL switches DIL5 and DIL6. The switch positions use a binary code like shown in the subsequent list. (DIL1/6 = OFF, DIL1/7 = X). Divider [A/B] DIL5 DIL6...

  • Page 11: Setting To Zero The A/B Divider With Zero_A Signal

    5.5. Setting to zero the A/B divider with ZERO_A Signal If the DIL switch DIL1/8 is set to OFF, the divider is reset immediately and remains as long as a high level at the ZERO_A control input is applied. The A/B pulse can be trimmed by switching. A/B, 90 °...

  • Page 12: Programmable Z Divider

    6. Programmable Z Divider 6.1. Pegel conversion Z Puls (Z Divider: all OFF) If the Z pulse have to be switched unchanged from the input to the output (no division, no change in length and position), then the DIL switch position listed below must be chosen. Divider [Z] DIL4 (right 8-pole) Comment...

  • Page 13: Location And Width Of The Z Pulse

    6.3. Location and width of the Z pulse If the DIL switch DIL4 of the Z divider is completely set to OFF, the Z Pulse is forwarded from the input directly to the output (see pegel converstion Z Puls). All pictures in this section assume that the A/B divider is set to 8. The Z Pulse is divided according to its divider (additionally DIL2/1 on OFF, ZIN is used, Z dividers not complete on OFF).

  • Page 14: Independent Z Divider

    DIL1 Front Narrow Z pulse (1/4 output-periode) 8-pole (Only applicable to output signals A/B 90°, DIL1/7 = OFF) ON OFF The pulse width at the output corresponds to ¼ period of pulse width at the output. In this operation mode, only division ratios may be used, which together with the A/B divisor deliver clear and completely results.

  • Page 15: Automatic Generation Of A Z Pulse

    6.5. Automatic generation of a Z pulse If the DIL switch DIL2/1 is set to ON, a Z pulse can be automatically generated. The Z input is ineffective and does not need to be connected (Z divider not completely set on OFF).

  • Page 16: Dimensions

    8. Dimensions It210_01a_oi_e.docx / Jan-19 Page 16 / 17...

  • Page 17: Technical Specifications

    9. Technical Specifications Technical Specifications Power supply: Input voltage: 9 … 30 VDC Protection circuit: reverse polarity protection Ripple: ≤ 10 % Consumption: approx. 40 mA (at 9 V, unloaded) approx. 30 mA (at 30 V, unloaded) Connections: screw terminal, 1.5 mm² / AWG 16 Sensor supply: Output voltage: + 5,5 VDC +/- 5 %...
