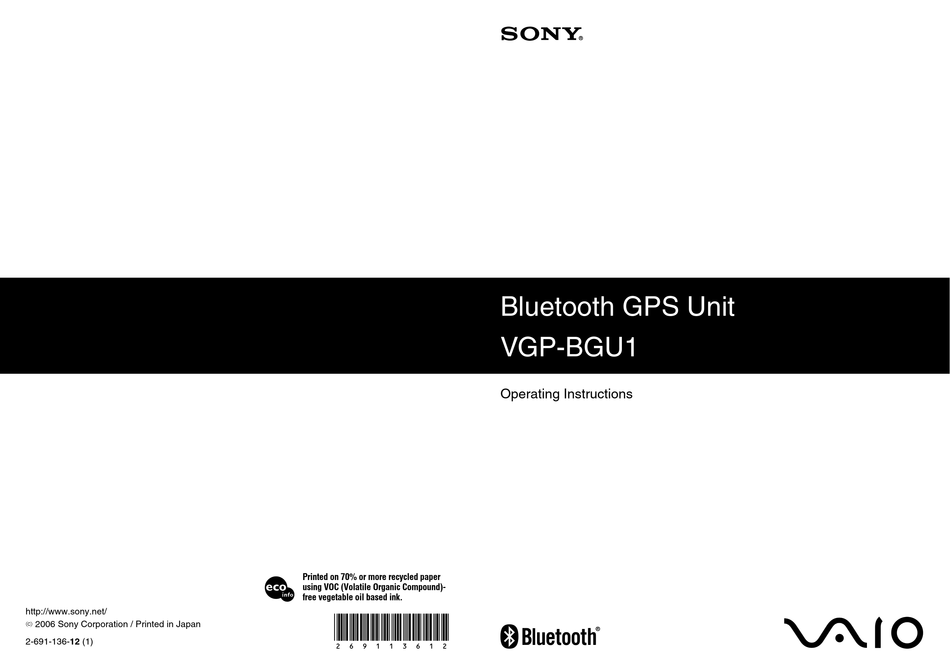

- Page 1 2006 Sony Corporation / Printed in Japan 2-691-136-12 (1) Bluetooth GPS Unit VGP-BGU1 Operating Instructions Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)- free vegetable oil based ink.
- Page 2 You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. For questions regarding your product or for the Sony Service Center nearest you, call 1-888-476-6972 in the United States or 1-800-961-7669 in Canada.
-
Page 3: Table Of Contents
Caution: Do not handle damaged or leaking Lithium-Ion batteries. • Sony, VAIO, , and the Eco Info logo are trademarks of Sony Corporation. • Microsoft, Windows, and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. -
Page 4: Overview
For details, see the manuals provided with your personal computer. Compatible personal computers Sony VAIO personal computer VGN-UX** series only (“**” is the model number.) (As of January, 2007) For details on computers other than the above Sony VAIO personal... -
Page 5: Supplied Accessories
Supplied Accessories After unpacking the unit, make sure that the accessories listed below are present. If anything is missing, contact the Sony dealer where you purchased this product, or a Sony service representative in your area. • Bluetooth GPS unit (1) •... -
Page 6: Location
Location VGP-BGU1_2-691-136-12(1) 1 GPS status indicator Lights up green depending on status. Lights up: While receiving the positioning data Flashing: While measuring Off: GPS functionality is not activated. 2 Battery status indicator Lights up red depending on status. Lights up: While charging the battery. When charging completes, this indicator goes off. -
Page 7: To Use The Strap Belt
To use the strap belt You can attach the unit the following illustration as below. Clasp Attach the unit to the belt loop of the bag as follows. Remove the clasp from the strap belt. Attach the unit to the strap belt with touch fastening tape. Put the belt strap with button face up through the belt loop ( 1 ) and fasten the button ( 2 ). -
Page 8: Charging The Battery
Charging the Battery You need to charge the battery of the unit when you use the unit at the first time, or when the battery status indicator flashes. Connect the AC adapter to the DC IN (!) connector of the unit, connect the AC power cord to the AC adapter, and then plug the AC power cord into an AC outlet. -
Page 9: Connecting The Unit To A Personal Computer
Connecting the Unit to a Personal Computer Notes • Do not use the unit in an airplane as it may interfere with aircraft functions. • This unit cannot receive GPS satellite signals indoors or in a tunnel. • GPS satellite reception is more effective in open areas free of obstructions. - Page 10 Click “New Connection”. The “Add New Connection Wizard” screen appears. Click “Next”. The personal computer starts searching for the Bluetooth devices. When searching has finished, the “Select a device” screen appears and “VGP-BGU1” appears in the device list. If “VGP-BGU1” does not appear, click “Refresh” to perform the search again.
- Page 11 Select “VGP-BGU1” and click “Next”. The personal computer starts connecting the unit, and then the “COM port setting” screen appears. COM port, which is set to the unit, appears on the “COM port setting” screen. Hint When you use the “Street & Trips” software or the “VAIO Camera Capture Utility”...
- Page 12 Click “Finish”. The “Add New Connection Wizard” screen closes and “VGP-BGU1” is registered to the “Bluetooth Settings” screen. Right-click “VGP-BGU1” and click “Connect”. The Bluetooth status indicator and battery status indicator of the unit blink together twice. VGP-BGU1_2-691-136-12(1)
-
Page 13: Checking The Current Position
Checking the Current Position You can check your current position using the “Street & Trips” software on your computer. Click “Start”, "All Programs" and then select “Microsoft Street & Trips”. The “Street & Trips” main screen appears. Click “Tools”, “GPS” , and then select “Configure GPS Receiver”. -
Page 14: Gps
What is a GPS? GPS (Global Positioning System) is a satellite system for navigational positioning anywhere on the earth. GPS information is derived from 24 satellites (4 satellites in 6 orbits) at approximately 20,000 km. At least 3 satellites receive a signal all the time from anywhere (although the actual number of satellites in use at any one time varies). - Page 15 When using the unit for the first time When you use the unit for the first time, a search for all GPS satellites will be performed in order for the unit to recognize available GPS satellites and positioning takes time for the first time. When the unit cannot receive satellite signals If you are in the tunnel or basement and therefore out of the reception area for GPS satellites, or near high buildings, trees or other obstructions, no...
- Page 16 Charging the built-in battery To shorten the time to position, almanac data or other required data can be stored in the built-in memory. When you use the unit for the first time, or have not used the unit for a long time, the memory data may be deleted due to the battery discharging.
-
Page 17: System Accuracy
System accuracy Accuracy of GPS satellites The unit positions automatically when the unit receives the signals from 3 or more GPS satellites. An error margin of ± 10 meters is typical, but possibly as much as two or three hundred meters, depending on circumstances. -
Page 18: Precautions
Precautions Notes on the unit • Do not place any objects on top of the unit. • Do not allow objects such as clips to get inside the unit. • Do not place the unit in locations subject to strong vibration or instability. •... -
Page 19: To Remove The Built-In Battery
To remove the built-in battery Remove the built-in battery in the following way: Remove the rubber from the bottom of the unit. Remove the screws from the bottom using a Phillips screwdriver. Remove the cover from the bottom. Remove the battery. For details on the battery after removing from the unit or recycle, see page on 3. -
Page 20: Getting Help
Getting Help This section provides information on how to get help and support from Sony, and on troubleshooting tips for your Bluetooth GPS Unit. About Sony’s support options Sony provides several support options for your Bluetooth GPS Unit. When you have... -
Page 21: Specifications
Specifications GPS unit Reception frequency 1575.42 MHz (L1 frequency, C/A cord) Reception method 12-channel all in view Reception sensitivity Tracking: -155 dBm Acquisition: Approx. 1 second Wireless communication Communication method Bluetooth standard Ver. 1.2 Output Bluetooth standard Power Class 2 Communication distance 10 m (open view), maximum Bluetooth profile... -
Page 22: Troubleshooting
If a problem occurs during operation, refer to the information provided in this section and in your Sony personal computer documentation. If the problem persists, consult your nearest Sony dealer. For contact information, see “Getting Help” on page 20. Also refer to the manuals provided with your personal computer. - Page 23 Symptom Cause/Remedy The unit cannot communicate • The maximum Bluetooth communication distance with a personal computer via Bluetooth connection. • The unit may not be registered into the personal • Communication may not activate if the unit is close Communication is disconnected.
