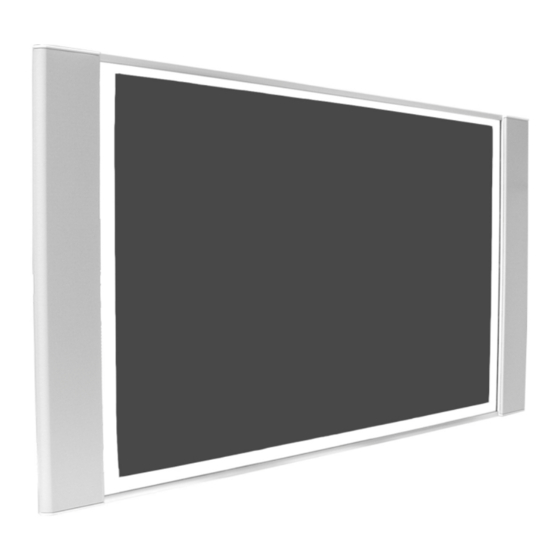

Sony KE-P42MRX1 Quick Start Manual

KE-P42MRX1,
KE-P50MRX1,
Checking the
KE-P61MRX1,
KLV-L32MRX1, Accessories Supplied
KLV-L42MRX1
Thank you for purchasing this Sony 1 Remote control (RM-Y1012):
product.
After following this step by step guide 1 "Notes on Plasma" book.
you will be able to:
1 Display Interface Cable:
Insert Batteries into the Remote
Control.
Connect the Display Unit to the
2 Mains Leads (Type C-4):
Media Receiver Unit.
Connect the AC Cable, Aerial and
VCR to your TV.
Do not remove ferrite cores.
Select the language of the menu
screens.
Select the country in which you wish
1 Mains Plug holder:
to operate the set.
Set the current time.
Tune your TV.
Inserting Batteries into
Change the broadcast channels into the Remote Control
a different order.
View TV Programmes.
GB
4-101-936-11 (1)
©2004 by Sony Corporation Printed in Spain
Ecological Paper - Totally Chlorine Free
1
2 Batteries (AA size): 1 Coaxial Cable:
Only for KE-P61MRX1: Only for KLV-L42MRX1:
(supplied with the display unit:
(supplied with the display unit:
PDM-6110)
LDM:4210)
• 2 Frame Bars
• 2 Speaker jack covers
• 4 Screws
One Cleaning Cloth: One AV Mouse:
2 Mains Leads (Type BF): 2 Mains Leads (Type C-5):
Do not remove ferrite cores.
Do not remove ferrite cores.
• Use these mains leads
Use these mains leads • Use these mains leads (with
(with safety earth) if you
(with safety earth) if safety earth) if you use the
use the set in the United
you use the set set in the Swiss
Kingdom.
outside the United Confederation.
• See "NOTICE FOR • These mains leads may not
Kingdom and Ireland.
CUSTOMERS IN THE be supplied depending on
the country.
UNITED KINGDOM
and IRELAND" on
1 PC Input Cable
page 2 GB of the
instruction manual when
using these mains leads.
• These mains leads may not
be supplied depending on
the country.
2
Make sure you insert the supplied batteries using the correct polarities.
Always remember to dispose of used batteries in an environmentally friendly way.
Connecting the
3
Display Unit to the
Media Receiver Unit
• Use the supplied display interface cable.
• Use the supplied mains lead for the display unit (Type C-4, Type BF or Type C-5, see step 1).
1
Connect the supplied interface cable to the display unit and to the media receiver unit.
Location of the interface
connections may differ
depending on the model.
2
Connect the supplied mains lead to the display unit.
Location of the mains lead
connection may be separated from
the interface connections
depending on the model.
3
Only for KE-P42MRX1, KE-P50MRX1 and KE-P61MRX1:
Attach the mains plug holder
(supplied) to the mains lead.
To unplug the mains lead pull down the mains plug holder by pushing in both sides of the holder,
then pull out the plug.
4
Install the display unit using the specified wall-mount bracket or stand.
Before installing the display unit, check the installation instructions of your wall-mount bracket
or stand.
Connecting the AC
Cable, Aerial and VCR
• Use the supplied mains lead for the media receiver unit (Type C-4, Type
BF or Type C-5, see step 1).
• Use the supplied coaxial cable for aerial connection.
Connecting an aerial
Connecting a VCR with an aerial
Do not connect to
3/
the mains before
OUT IN
all connections
are completed.
For more details regarding VCR connection, refer to
"Connecting Optional Equipment to the TV" on page 50
Clip on the of the instruction manual.
AC IN jack
until you
hear
clicking.
• The Scart lead is optional, however if you use a Scart lead to connect your VCR it can
improve picture and sound quality when using it.
• For more details of VCR connection, please refer to the section "Connecting Optional
Equipment" on page 50 of the instruction manual.
If you do not have a Scart lead, after automatically tuning the TV, tune in the VCR test signal
to the TV programme number "0" by using the "Manual Programme Preset" option. (for
details of how to manually programme these presets, see page 35, step A of the instruction
manual).
Refer to your VCR instruction manual to find out how to find the output channel of your
VCR.
4
