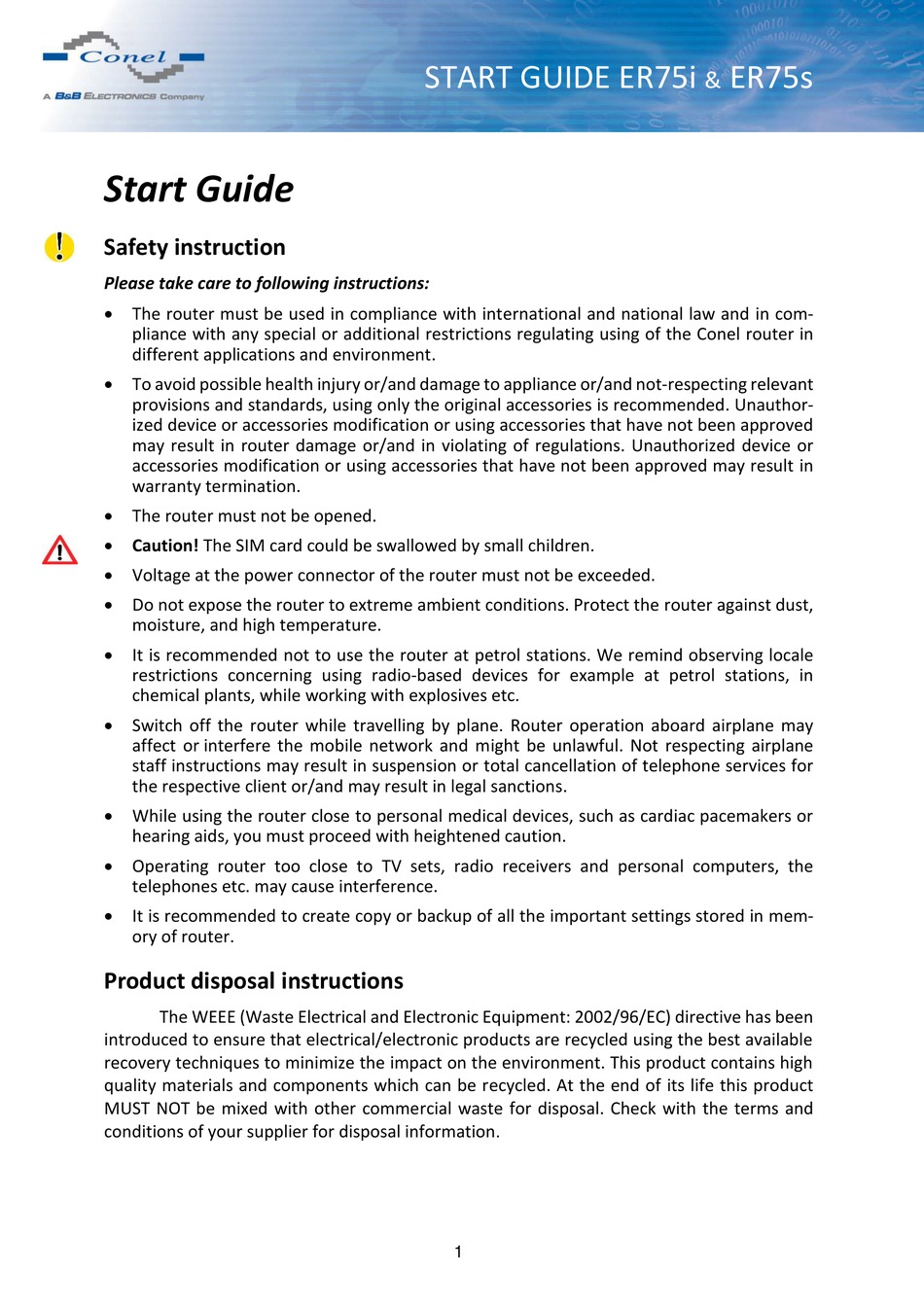

Start Guide

Safety instruction

Please take care to following instructions:
 The router must be used in compliance with international and national law and in com-
pliance with any special or additional restrictions regulating using of the Conel router in
different applications and environment.
 To avoid possible health injury or/and damage to appliance or/and not-respecting relevant
provisions and standards, using only the original accessories is recommended. Unauthor-
ized device or accessories modification or using accessories that have not been approved
may result in router damage or/and in violating of regulations. Unauthorized device or
accessories modification or using accessories that have not been approved may result in
warranty termination.
 The router must not be opened.
 Caution! The SIM card could be swallowed by small children.
 Voltage at the power connector of the router must not be exceeded.
 Do not expose the router to extreme ambient conditions. Protect the router against dust,
moisture, and high temperature.
 It is recommended not to use the router at petrol stations. We remind observing locale
restrictions concerning using radio-based devices for example at petrol stations, in
chemical plants, while working with explosives etc.
 Switch off the router while travelling by plane. Router operation aboard airplane may
affect or interfere the mobile network and might be unlawful. Not respecting airplane
staff instructions may result in suspension or total cancellation of telephone services for
the respective client or/and may result in legal sanctions.
 While using the router close to personal medical devices, such as cardiac pacemakers or
hearing aids, you must proceed with heightened caution.
 Operating router too close to TV sets, radio receivers and personal computers, the
telephones etc. may cause interference.
 It is recommended to create copy or backup of all the important settings stored in mem-
ory of router.

Product disposal instructions

The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been
introduced to ensure that electrical/electronic products are recycled using the best available
recovery techniques to minimize the impact on the environment. This product contains high
quality materials and components which can be recycled. At the end of its life this product
MUST NOT be mixed with other commercial waste for disposal. Check with the terms and
conditions of your supplier for disposal information
START GUIDE ER75i
.
1
ER75s
&

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Conel ER75i and is the answer not in the manual?

Questions and answers

Summary of Contents for B&B Electronics Conel ER75i

  • Page 1: Safety Instruction

    START GUIDE ER75i ER75s & Start Guide Safety instruction Please take care to following instructions:  The router must be used in compliance with international and national law and in com- pliance with any special or additional restrictions regulating using of the Conel router in different applications and environment.
  • Page 2: First Use

    START GUIDE ER75i ER75s & First use Before putting the router into operation it is necessary to connect all the components that are required to run your applications. The router cannot be operated without connected antenna, inserted SIM card and connected power supply.

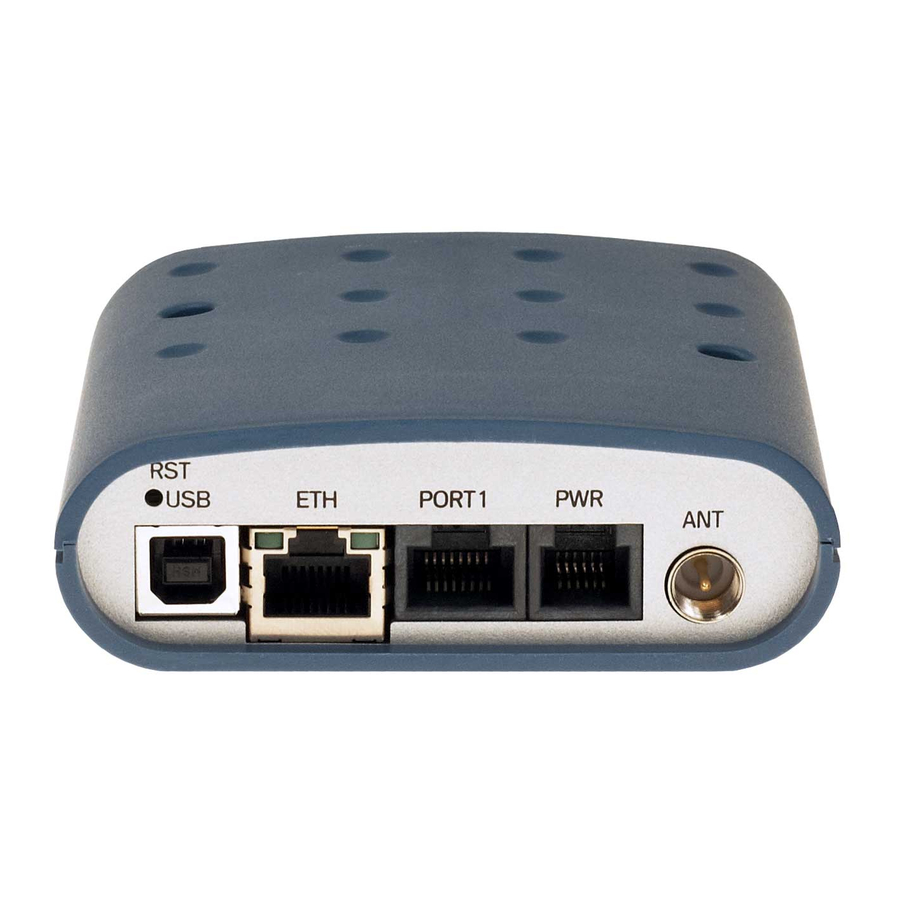

  • Page 3 START GUIDE ER75i ER75s & Power cable connection The router requires DC power supply from +10 to +30 V DC. The router has a built-in protection against reverse polarity without signaling. Connect power cable to PWR connector on the front panel of the (see figure below). Ethernet cable connection Ethernet cable is connected to ETH connector (see figure below).
  • Page 4: Configuration Settings Over Web Browser

    START GUIDE ER75i ER75s & Configuration settings over web browser Status monitoring, configuration and administration of router can be done through web interface available after inserting IP address of router into web browser. Default router IP address is 192.168.1.1. Configuration is allowed for user "root" with initial password "root".
