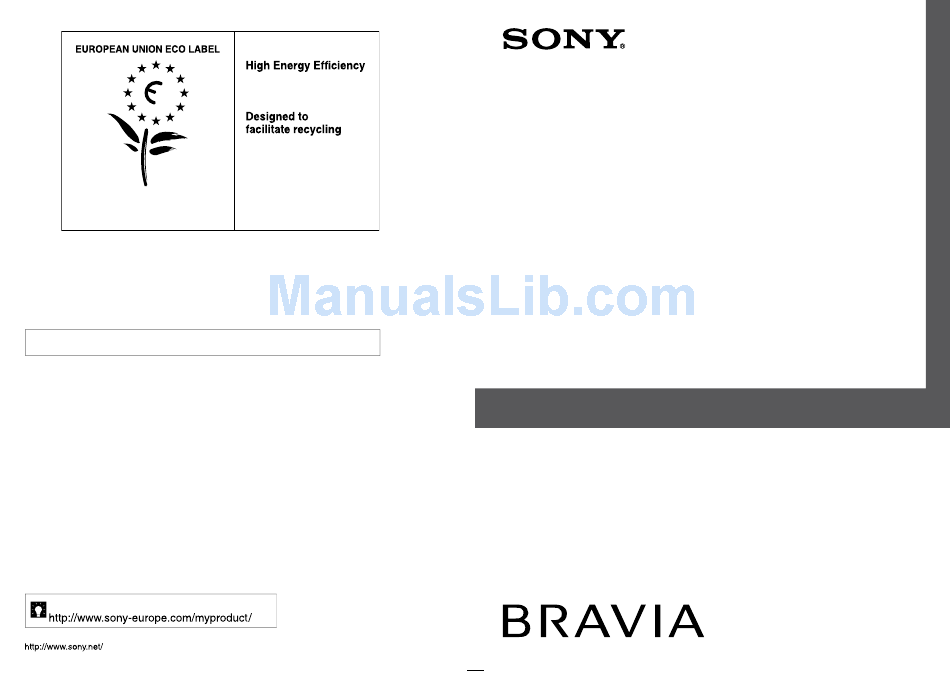

Award to goods or services which meet the environmental
requirements of the EU ecolabelling scheme
ES-CAT/022/002
At Sony we are constantly rethinking and redesigning in order to create innovative digital
entertainment products. And we are also constantly rethinking and re-evaluating our
products, processes and our potential impact on the planet.
Thanks to our results in that direction, this product achieved the European Eco label
award issued by the European Comission. You can get more information in following link:
http://europa.eu.int/comm/environment/ecolabel
Sony gives a minimum of 2 years guarantee for this LCD TV and 7 years availability for
replacement of electronic parts.
Instructions about "Installing Wall Mount Bracket" are included within
this TV's instructions manual
For useful information about Sony products
Printed in Spain
KDL-40P55xx
KDL-40S55xx
KDL-37P55xx
KDL-37S55xx
4-141-451-E1(2)
© 2009 Sony Corporation
LCD Digital Colour TV
Operating Instructions
4-141-451-E1(2)

Advertisement

   Related Manuals for Sony BRAVIA 4-141-451-E1(2)

   Summary of Contents for Sony BRAVIA 4-141-451-E1(2)

  • Page 1 European Comission. You can get more information in following link: http://europa.eu.int/comm/environment/ecolabel Sony gives a minimum of 2 years guarantee for this LCD TV and 7 years availability for replacement of electronic parts. Instructions about “Installing Wall Mount Bracket” are included within this TV’s instructions manual...
  • Page 2: Trademark Information

    Introduction Trademark information Thank you for choosing this Sony product. • Before operating the TV, please read this manual • HDMI, the HDMI logo and High-Definition Multimedia thoroughly and retain it for future reference. Interface are trademarks or registered trademarks of HDMI Licensing LLC.
  • Page 3: Table Of Contents

    Table of Contents Start-up Guide Safety information...8 Precautions...9 Overview of the remote ...10 Overview of the TV buttons and indicators ...11 Watching TV Watching TV ...12 Using the Digital Electronic Programme Guide (EPG) Using the Digital Favourite list Using Optional Equipment Connecting optional equipment ...16 Viewing pictures from connected equipment ...17 Playing Back Photo/Music via USB...18...
  • Page 4: Start-up Guide

    Start-up Guide 1: Checking the accessories Remote RM-ED017 (1) Mains lead (Type C-6) (1) (except for 37 inches) Size AA batteries (R6 type) (2) Stand (1) Screws for stand (4) To insert batteries into the remote Push and slide to open. •...
  • Page 5 3: Connecting an aerial/VCR/DVD recorder • This product has been tested and found to compliant with the limits set out in the EMC Directive for using connection cables not longer than 3 meters (9.8 feet). Connecting an aerial only Coaxial cable Connecting an aerial/VCR/DVD recorder with SCART Coaxial cable Scart lead...
  • Page 6 Tie the wood screw and the machine screw with a strong cord. • An optional Sony support belt kit is used to secure the TV. Contact your nearest Sony Service Centre to purchase a kit. Have your TV model name ready for reference.
  • Page 7: Auto-tuning The Tv

    In Shop mode, some settings will be periodically reset for Shop usage. This option selects the initial picture mode appropriate for the typical lighting condition in these environments. 7: Auto-tuning the TV Press Auto Tuning Do you want to start Auto Tuning? Back: Start: The TV starts searching for all available digital...
  • Page 8: Safety Information

    • Leave space around the TV set as shown below. • It is strongly recommended that you use a Sony wall-mount bracket in order to provide adequate air-circulation. Installed on the wall 30 cm 10 cm...
  • Page 9: Precautions

    If the following problems occur... Turn off the TV set and unplug the mains lead immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel. When: –...
  • Page 10: Overview Of The Remote

    Overview of the remote DIGITAL ANALOG SCENE AUDIO GUIDE RETURN TOOLS MENU PROG 1 "/1 – TV standby Turns the TV on and off from standby mode. 2 AUDIO Press to change the dual sound mode (page 21). 3 SCENE – Scene Select (page 13) 4 Coloured buttons (page 13, 15) –...
  • Page 11: Overview Of The Tv Buttons And Indicators

    Overview of the TV buttons and indicators PROG 1 1 – Power Turns the TV on or off. • To disconnect the TV completely, pull the plug from the mains. • When you turn on the TV, the power indicator lights in green.
  • Page 12: Watching Tv

    Watching TV Watching TV DIGITAL ANALOG SCENE AUDIO GUIDE RETURN TOOLS MENU PROG Press 1 on the side of the TV to turn on the TV. When the TV is in standby mode (the 1 (standby) indicator on the TV front panel is red), press "/1 on the remote to turn on the TV.
  • Page 13 To access Text Press /. Each time you press /, the display changes cyclically as follows: Text t Text over the TV picture (mix mode) t No Text (exit the Text service) To select a page, press the number buttons or To reveal hidden information, press •...
  • Page 14: Using The Digital Electronic Programme Guide (epg)

    Using the Digital Electronic Programme Guide (EPG) Fri 3 Nov 15:39 Today 15:30 16:00 BBC ONE BBC TWO ITV 1 Channel 4 five ITV 2 BBC THREE Teletext BBC FOUR Sky Travel UKTV History More 4 Previous Next Select: Tune: Options: Digital Electronic Programme Guide (EPG) * This function may not be available in some countries/regions.
  • Page 15: Using The Digital Favourite List

    Using the Digital Favourite list Favourite Set-up Enter Programme number Favourites 1 SETenVEO Tienda en VEO 3/24 NET TV K3/300 CUATRO TVE1 CNN+ TVE2 40 LATINO 24H TVE la Sexta CLAN TVE Telecinco TELEDEPORTE T5 Estrellas T5 Sport Previous Next Favourites 2 Clear List Back:...
  • Page 16: Using Optional Equipment

    Using Optional Equipment Connecting optional equipment You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied. Hi-Fi audio equipment Video game equipment DVD player Decoder DVD recorder Decoder DVD player with component output Digital video camera/Digital camera/USB storage CAM card...
  • Page 17: Viewing Pictures From Connected Equipment

    When connecting mono equipment, connect to the • Be sure to use only an authorised HDMI cable bearing the HDMI logo. We recommend that you use a Sony HDMI cable. • When HDMI control compatible equipment is connected, communication with the connected equipment is supported.
  • Page 18: Playing Back Photo/music Via Usb

    – Do not remove the USB device. The data on the USB device may be damaged. • Sony will not be held liable for any damage to, or loss of, data on the recording media due to a malfunction of any connected devices or the TV.
  • Page 19: Using Menu Functions

    Using MENU Functions Navigating through menus “MENU” allows you to enjoy various convenient features of this TV. You can easily select channels or inputs sources and change the settings for your TV. DIGITAL ANALOG SCENE AUDIO GUIDE RETURN TOOLS MENU Press MENU.
  • Page 20: Settings

    Settings Picture Adjustment Picture Mode Selects the picture mode except for PC input source. “Vivid”: For enhanced picture contrast and sharpness. “Standard”: For standard picture. Recommended for home entertainment. “Cinema”: For viewing film-based content. Most suitable for viewing in a theatre- like environment.
  • Page 21: Sound Adjustment

    Reset Resets all “Picture Adjustment” settings except “Picture Mode” and “Display Mode” (only in PC mode) to the factory settings. • “Brightness”, “Colour”, “Hue” and “Sharpness” are not available when “Picture Mode” is set to “Vivid” or when “Display Mode” is set to “Text”. •...
  • Page 22 Power Saving Selects the power saving mode to reduce the power consumption of the TV. “Standard”: Default settings. “Reduce”: Reduces the power consumption of the TV. “Picture Off”: Switches off the picture. You can listen to the sound with the picture off.
  • Page 23 Set-up Auto Start-up Starts the initial set-up to select the language, country/region and location, and tune in all available digital and analogue channels. Usually, you do not need to do this operation because the language and country/region will have been selected and channels already tuned when the TV was first installed (page 7).
  • Page 24 Sound Offset Sets an independent volume level to each equipment connected to the TV. PC Audio Input Selects the sound from the connected equipment HDMI 1 (DVI-HDMI) or PC (page 17). Manual Programme Changes the available analogue channel setting. Press F/f to select the programme number you want to modify. Then, press Preset (Only in analogue System...
  • Page 25: Digital Set-up

    Digital Set-up Digital Tuning Digital Auto Tuning Tunes in the available digital channels. This option allows you to retune the TV after moving house, or to search for new channels that have been launched by broadcasters. Press Programme List Edit Removes any unwanted digital channels stored on the TV, and changes the order of the digital channels stored on the TV.
  • Page 26 3 Press RETURN. PIN Code To set your PIN for the first time 1 Press the number buttons to enter the new PIN code. 2 Press RETURN. To change your PIN 1 Press the number buttons to enter your existing PIN code. 2 Press the number buttons to enter the new PIN code.
  • Page 27: Additional Information

    Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
  • Page 28: Tv Installation Dimensions Table

    TV installation dimensions table Screen centre point Model Name KDL-40S55/P55xx KDL-37S55/P55xx Figures in the above table may differ slightly depending on the installation. WARNING The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV.
  • Page 29: Specifications

    Specifications Model name System Panel System TV System Colour/Video System Channel Coverage Sound Output Input/Output jacks Aerial AV1* AV2* COMPONENT IN COMPONENT IN HDMI IN 1, 2, 3 PC IN Power and others Power Requirements Screen Size Display Resolution Power in “Home”/ consumption “Standard”...
  • Page 30 PC Input Signal Reference Chart for PC IN Signals Horizontal (Pixel) Vertical (Line) SVGA 1024 WXGA 1280 WXGA 1280 WXGA 1360 SXGA 1280 UXGA 1600 HDTV 1920 • This TV’s PC input does not support Sync on Green or Composite Sync. •...
  • Page 31: Troubleshooting

    Press 1 on the side of the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony service centre. If the red LED flashes 19 times, please switch off the set and remove the faulty USB device.
