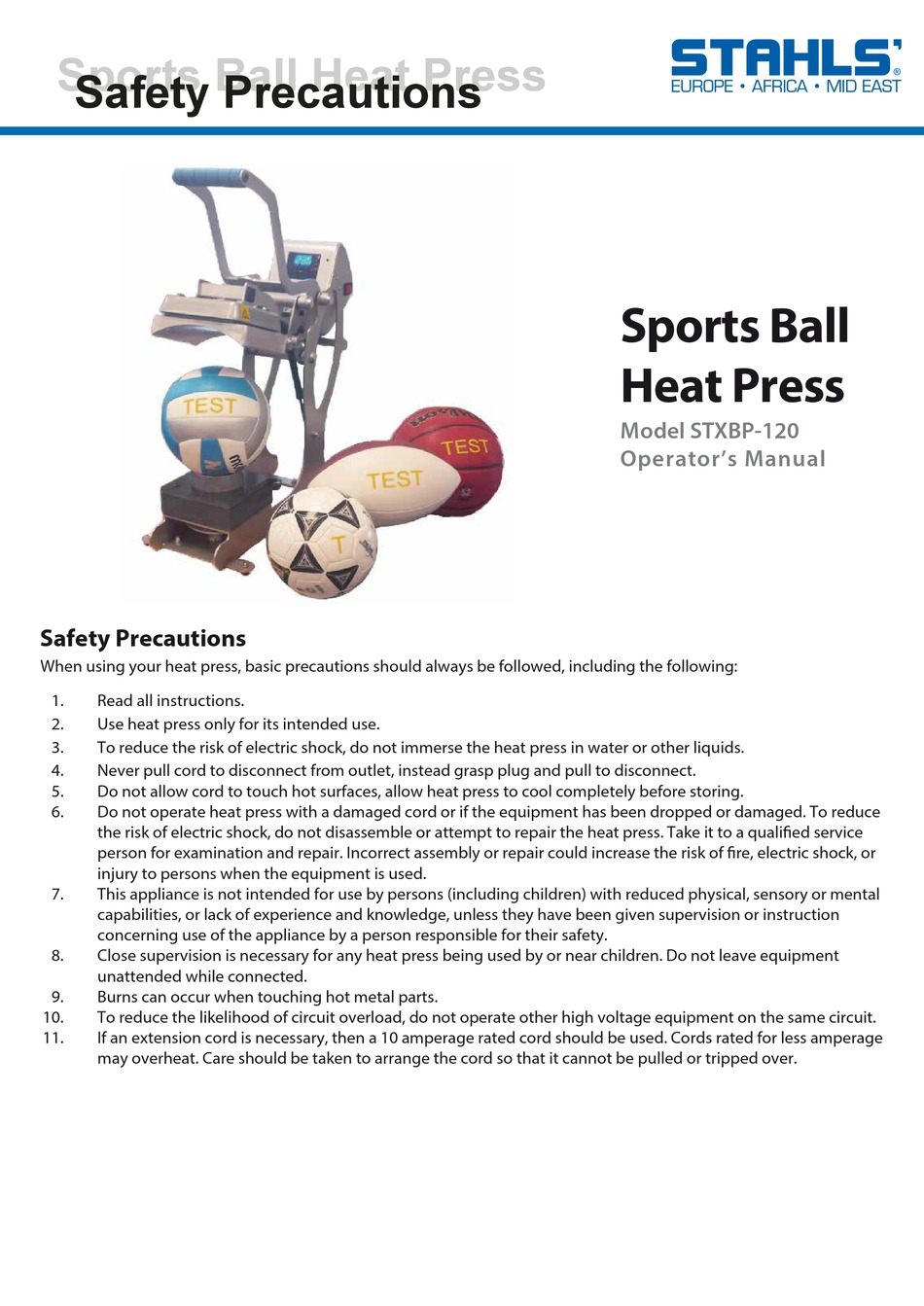

Stahls STXBP-120 Operator's Manual

Sports ball heat press

Advertisement

Quick Links

Sports Ball Heat Press
Safety Precautions
Safety Precautions
When using your heat press, basic precautions should always be followed, including the following:
1.
Read all instructions.
2.
Use heat press only for its intended use.
3.
To reduce the risk of electric shock, do not immerse the heat press in water or other liquids.
4.
Never pull cord to disconnect from outlet, instead grasp plug and pull to disconnect.
5.
Do not allow cord to touch hot surfaces, allow heat press to cool completely before storing.
6.
Do not operate heat press with a damaged cord or if the equipment has been dropped or damaged. To reduce
the risk of electric shock, do not disassemble or attempt to repair the heat press. Take it to a quali ed service
person for examination and repair. Incorrect assembly or repair could increase the risk of re, electric shock, or
injury to persons when the equipment is used.
7.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
8.
Close supervision is necessary for any heat press being used by or near children. Do not leave equipment
unattended while connected.
9.
Burns can occur when touching hot metal parts.
10.
To reduce the likelihood of circuit overload, do not operate other high voltage equipment on the same circuit.
11.
If an extension cord is necessary, then a 10 amperage rated cord should be used. Cords rated for less amperage
may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
Sports Ball
Heat Press
Model STXBP-120
Operator's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the STXBP-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stahls STXBP-120

  • Page 1 Sports Ball Heat Press Safety Precautions Sports Ball Heat Press Model STXBP-120 Operator’s Manual Safety Precautions When using your heat press, basic precautions should always be followed, including the following: Read all instructions. Use heat press only for its intended use.
  • Page 2 Sports Ball Heat Press Part Identification & Setup Part Identi cation Lift Handle (UP) Control Panel Power Switch Lift Handle (DOWN) Circuit Breaker Upper Platen (Heater) Ball Mount Power Inlet Adjustment Handle Initial Setup General Guidelines: • To avoid burns, do not touch the heated platen during use. •...
  • Page 3 Sports Ball Heat Press Adjusting your Press Adjusting Temperature, Time and Pressure Press the MODE button to cycle through setup modes (with the press ON and the Lift Handle in the UP position): • Displays current • Displays print temperature •...
  • Page 4 Sports Ball Heat Press Printing with your Press Printing with your Ball Press 1. Fully in ate Ball and position on 2. Lower the handle until the heater 3. Using the handle to raise or Ball Mount. Turn on press and touches the ball, then unlock the lower the Ball Mount will adjust enter recommended settings:...
  • Page 5 Sports Ball Heat Press Parts Location Guide & Replacement Parts List STX Housing PART# DESCRIPTION QTY. 4-1172-S Control Housing, STX 1-2018-1 Controller Overlay, STX 1-2105 Grommet, 9/32" ID 3/8" OD 3-1011-235 Screw, Sheet Metal #6 x 1/2" 2-1006-50 Nut, #6-32 Hex with Lockwasher 3-1011-130 Screw, Pan Phillips #4-40 x 1"...
  • Page 6 Sports Ball Heat Press Parts Location Guide & Replacement Parts List STX Ball Press Base PART# DESCRIPTION QTY. 1-2317 Circuit Breaker 5A (CAP 6x6) Kit 3-6910-2 Handle Assembly, STX Lowrider 1-2439 Shaft Collar, STX6LR Small 1-2085-3 Magnet Bracket, STX6 & Cap 1-1219 Proximity Magnet 2-1055-16...
  • Page 7 Sports Ball Heat Press Parts Location Guide & Replacement Parts List STX Ball Press Heater PART# DESCRIPTION QTY. Heater Arm, Ball Press 2-1055-26 Steel Pin, 1/2" x 6.45" 1-2441 Shaft Collar, STX6LR Long 2-1055-28 Steel Pin, 1/2" x 5.10" 1-2432 Shaft Collar, STX6LR 1-1945-1 Electromagnet...
  • Page 8: Electrical Schematic

    Sports Ball Heat Press Electrical Schematic...
  • Page 9 In an e ort to make such transaction as smooth to customers as is possible, and to ensure that all STAHLS’ heat presses are identi able, all heat press machines supplied by STAHLS’ Europe GmbH will have the logo/brand of STAHLS’...
  • Page 10: Terms Of Guarantee

    Any exchanged parts will be the property of STAHLS’ Europe GmbH. No charge will be made for any labour or components for any claim under the warranty. STAHLS’ Europe GmbH operates a “bring in”...
