Performance Verification

Performance Verification
The following procedure will confirm that the Test Set is functional.

Equipment Required

— Working LAN System
— PNA Network Analyzer with up to 26.5 GHz frequency range
— RF coaxial cables with 3.5 mm connectors

Equipment Setup

1. Configure PNA and Test Set as shown in
2. Turn On the PNA and Test Set.
3. Preset the PNA.
4. PNA frequency range: 10 MHz to 26.5 GHz.
5. Set the PNA to Measure S21, Scale to 5 dB/Div.

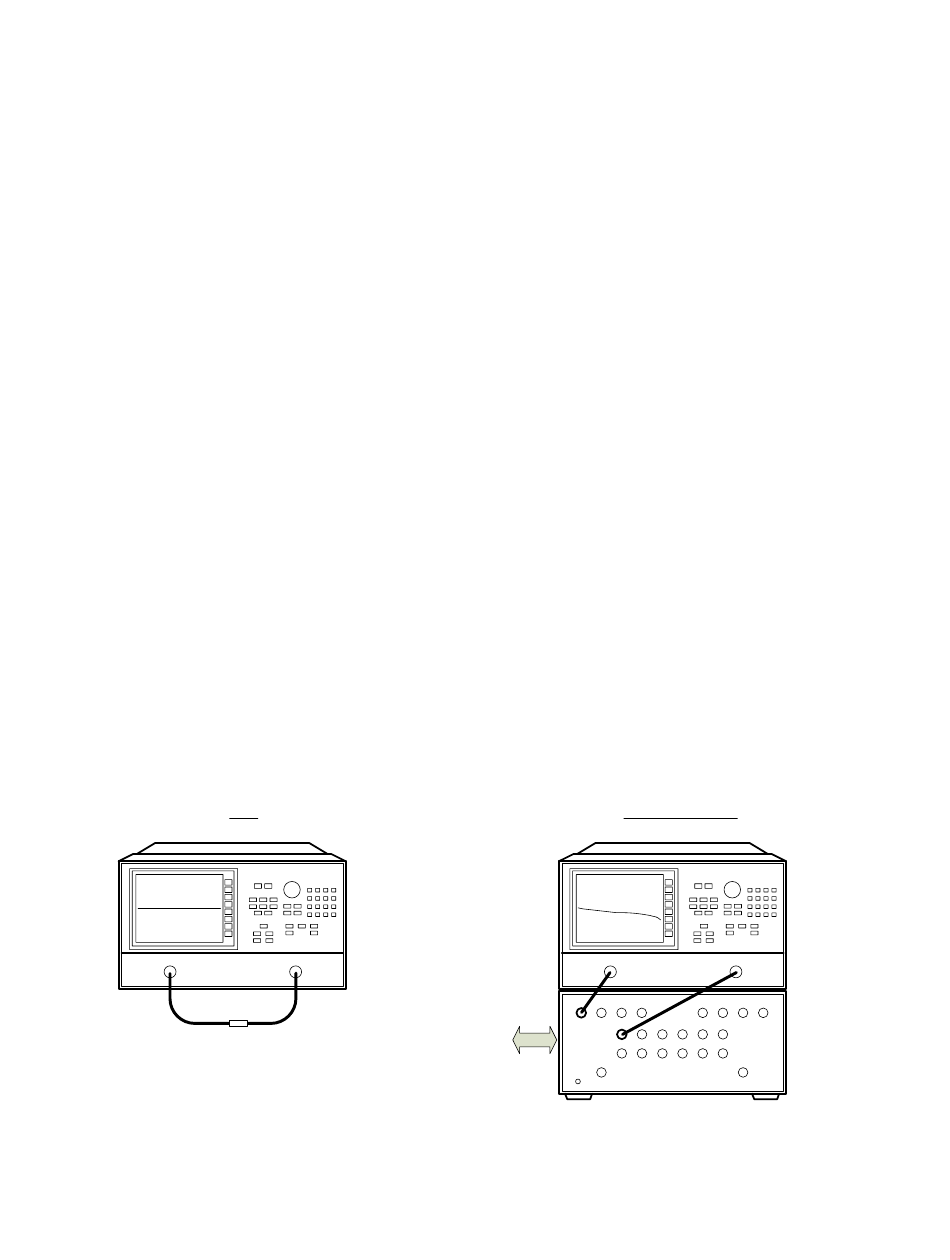

Figure 9 Equipment Setup
CAL
Port 1 Port 2
26
— The Test Set LED Indicators should indicate the following after
1 minute:
— ATTN - OFF
— LAN - ON
— PWR - ON
NWA
TO
INSTRUMENT
CONTROLLER
Figure 7.
MEASUREMENT
Port 1 Port 2
A-1
LAN
P1
Keysight U3020AS22 User's and Service Guide
NWA
Test Set
