Mikrotron TS3 Series Quick Start Manual

Equipment

Unpack the camera and assemble the following equipment:
1. TS3 camera
2. Camera power adapter with AC power cord, or charged battery inserted in the camera. (Battery is fully
charged when the TS3 is shipped from the factory.)
3. Lens

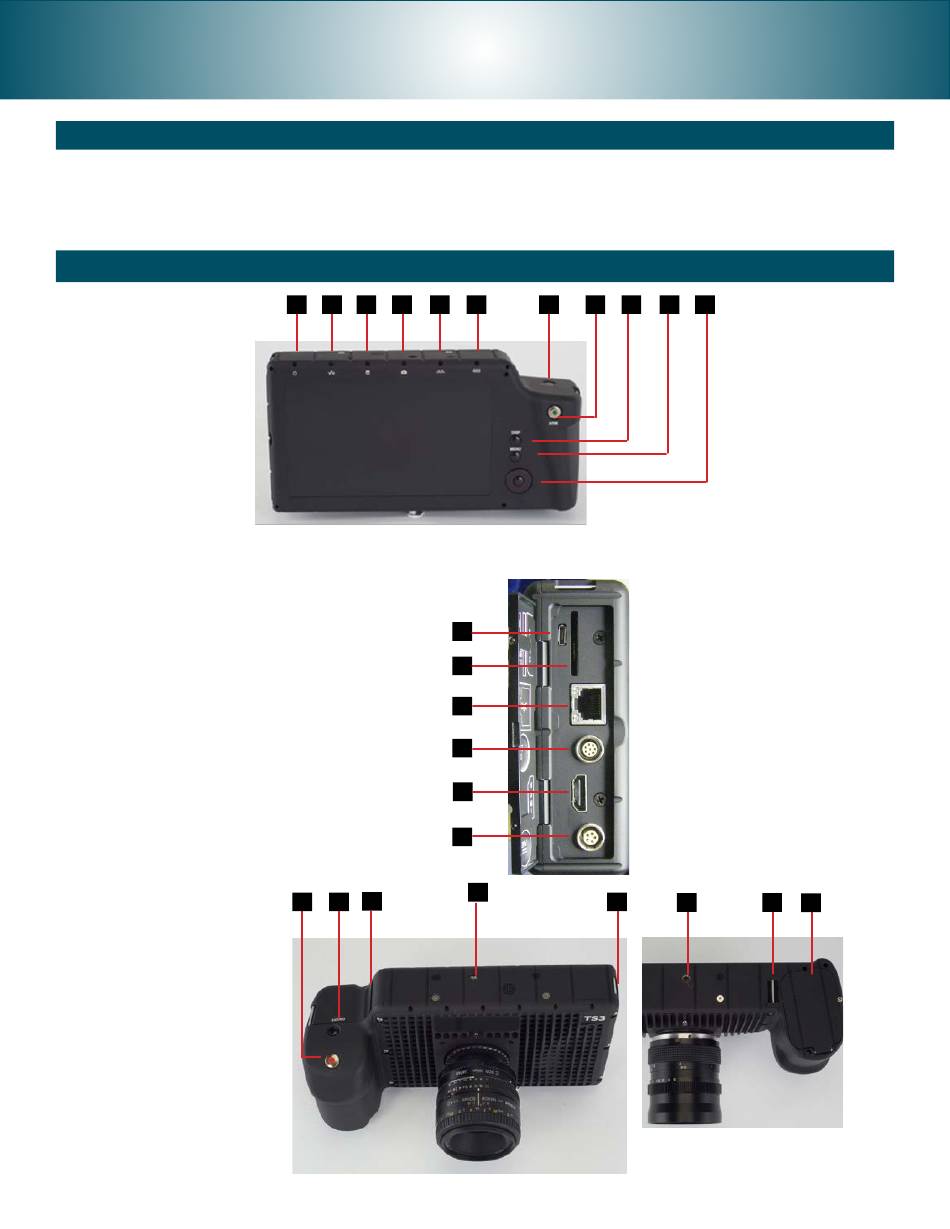

Figure 1: Camera Views
1. Power LED
2. Network Activity LED
3. Storage Activity LED
4. Camera Status LED
5. Sync Activity LED
6. Battery Status LED
7. Power ON/OFF Button
8. Arm Button
9. Display Button
10. Menu Button
11. D-Pad
1. USB OTG (Micro A/B connector)
2. SDHC (SD-Card slot)
3. GigE Port (RJ45 connector)
4. Sync I/O, Trigger (Lemo connector)*
5. HDMI Port (Type A connector)
6. DC Power In (Lemo connector)**
*Warning: LVTTL 3.3v maximum voltage
**10vdc to 26vdc
1. Trigger Button
2. Power Button
3. USB port
4. Top Mount 1/4 -20
5. Camera Strap Attachment
6. 1/4-20 Tripod Mount
7. Hand Strap Attachment Point
8. Battery Door
