Flow Meters
Model COIN®
User Manual
DPM-UM-00519-EN-04 (March 2016)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRESO COIN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Badger Meter PRESO COIN

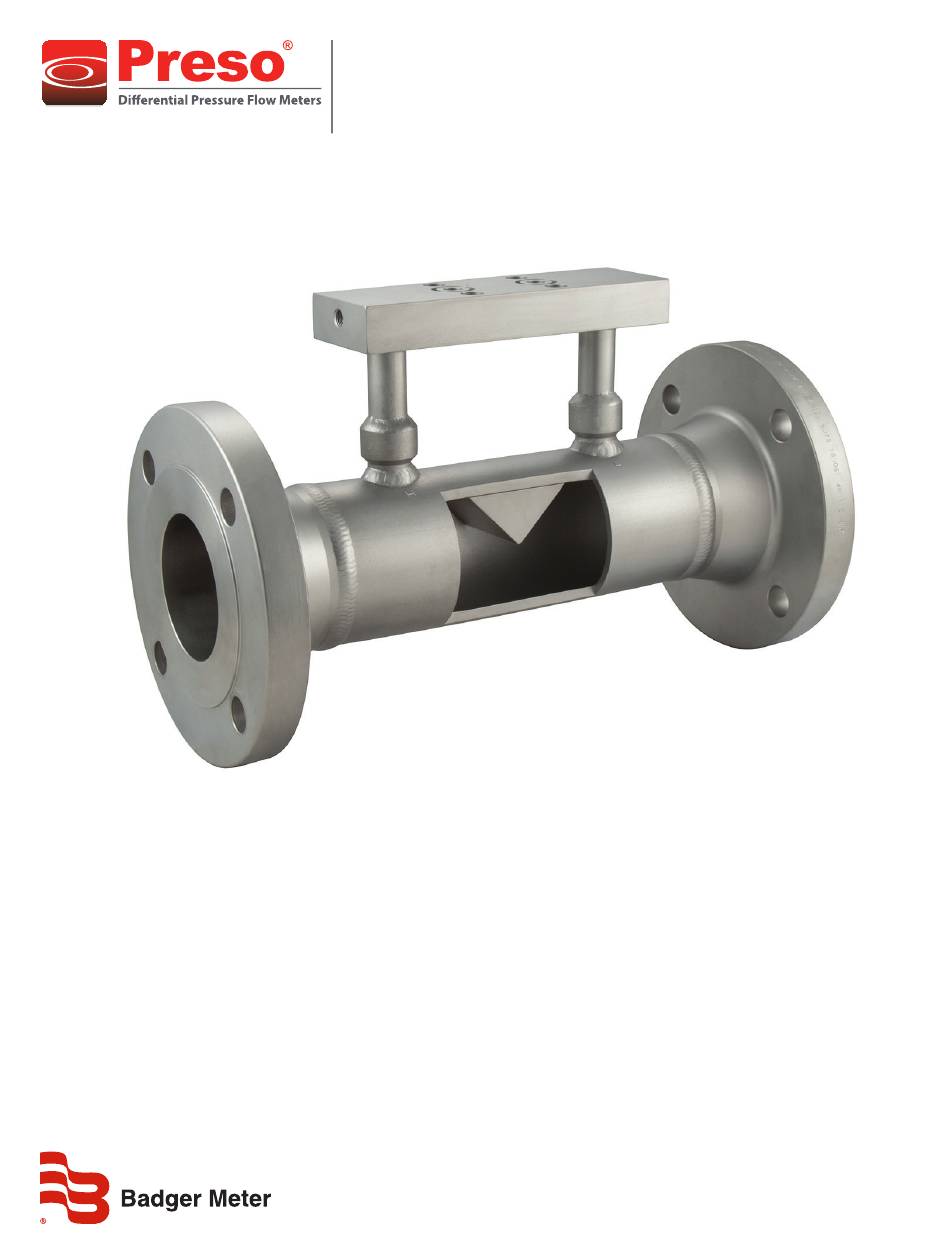

  • Page 1 Flow Meters Model COIN® User Manual DPM-UM-00519-EN-04 (March 2016)
  • Page 2 Flow Meters, Model COIN® Page ii DPM-UM-00519-EN-04 March 2016...
  • Page 3: Table Of Contents

    User Manual CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Scope of Manual .
  • Page 4 Flow Meters, Model COIN® Page iv DPM-UM-00519-EN-04 March 2016...
  • Page 5: Introduction

    INTRODUCTION The Preso COIN® flow meter accommodates most flows, even the most abrasive . Accuracy and reliability are achieved by its rugged construction, practical design and simple principle of operation . It stands alone in its ability to maintain the necessary square root relationship between flow rate and differential pressure for almost any type of flow .
  • Page 6: Straight Pipe Run Requirements

    Straight Pipe Run Requirements STRAIGHT PIPE RUN REQUIREMENTS Proper operation and performance is dependent on the required lengths of unrestricted upstream and downstream piping . The minimum length of the upstream side of the COIN Flow Element depends on the type of fitting at the start of the straight run, and the pipe configuration .
  • Page 7: Selecting A Mounting Location

    Selecting a Mounting Location SELECTING A MOUNTING LOCATION Install COIN elements horizontally, rotated 90° along the pipe center line, see Figure 2 . This method of mounting allows for free passage of solids and eliminates air entrapment at the transmitter connection . Other positions are acceptable provided there is proper venting of the transmitter and differences in lead line elevations are considered .
  • Page 8 Selecting a Mounting Location NOTES: 1. Φ =1 in./ft (80 mm/m) for water 2. Minimize all lead line lengths. Figure 5: Typical horizontal installation for gas Figure 6: Typical horizontal installation for steam Page 8 DPM-UM-00519-EN-04 March 2016...
  • Page 9 Selecting a Mounting Location Figure 7: Typical vertical installation for liquid Figure 8: Typical vertical installation for gas March 2016 DPM-UM-00519-EN-04 Page 9...
  • Page 10 Selecting a Mounting Location Figure 9: Typical vertical installation for steam NEVER EXCEED THE MAXIMUM PRESSURE OR TEMPERATURE RECOMMENDED FOR THE MEASURED PROCESS. EXCEEDING PROPER PRESSURE OR TEMPERATURE RATINGS CAN LEAD TO PERSONAL INJURY OR EQUIPMENT DAMAGE. THE PROCESS PIPING FLANGES SHOULD BE IDENTICAL TO THOSE ON THE COIN METER. THE PROCESS TEMPERATURE AND PRESSURE SHOULD NEVER EXCEED THAT FOR WHICH THE ELEMENT WAS DESIGNED.
  • Page 11: Line Installation

    The high pressure connection is always on the upstream side of the flow direction arrow and the Iow pressure connection on the downstream side . Fittings used must be able to withstand the process temperature and pressure conditions as well as provide proper corrosion resistance . Badger Meter offers three types of fittings, see “Typical Pressure Port Configurations” on page 12 .
  • Page 12: Typical Pressure Port Configurations

    The Americas | Badger Meter | 4545 West Brown Deer Rd | PO Box 245036 | Milwaukee, WI 53224-9536 | 800-876-3837 | 414-355-0400 México | Badger Meter de las Americas, S.A. de C.V. | Pedro Luis Ogazón N°32 | Esq. Angelina N°24 | Colonia Guadalupe Inn | CP 01050 | México, DF | México | +52-55-5662-0882...
