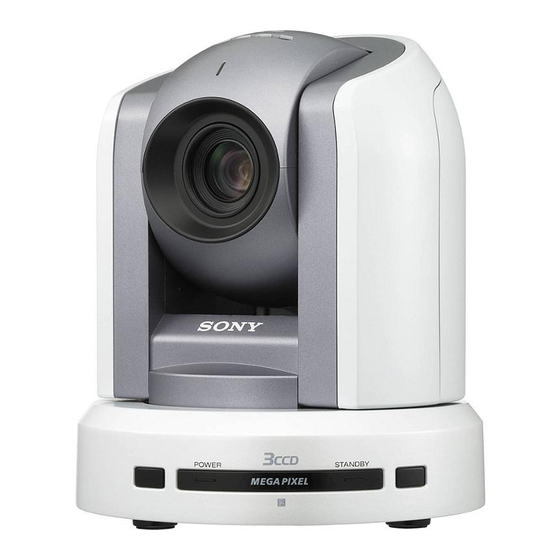

- Page 1 BRC-300/BRC-300P 3CCD Color Video Camera 3CCD Color Video Camera...
-
Page 2: Main Features
And when used with optional BRBK-303 Optical Multiplex Card and BRU-300 Optical Multiplex Unit, the BRC-300 is capable of being controlled from a long distance with a single fiber optic cable connection. The BRC-300 also comes equipped with a card slot that accepts optional interface cards, enabling the camera to be integrated into every kind of system from S-Video to RGB, i.LINK... - Page 3 • Fiber Optic: BRBK-303 (for use in conjunction with BRU-300 Optical Multiplex Unit only) Thanks to these convenient options, the Wider angle of view in 16:9 mode (BRC-300) BRC-300 truly functions as an all-in-one, compact robotic camera. * Can be installed into the both BRC-300 and BRU-300...
-
Page 4: Other Convenient Features
OTHER CONVENIENT FEATURES Ceiling or Desktop Mount Installation Thanks to Sony’s E:Flip function, the BRC-300 can be ceiling mounted using the supplied ceiling mount kit or can also be used on the desktop. Six Presets Various camera settings such as Pan/Tilt/Zoom and focus can be preset in up to six presets per camera. -
Page 5: System Configuration
SYSTEM CONFIGURATION Short-distance operation Composite Video S-Video BRBK-301 Component/RGB BRBK-302 SDI BRBK-304 DV i.LINK interface RS-232C / RS-422 BRC-300 Long-distance operation BRBK-303 BRC-300 Multiple camera operation from a remote location BRC-300 BRBK-303 CCFC-M100 Video Cassette Recorder RM-BR300 Composite Video S-Video... -
Page 6: Optional Accessories
Optical Multiplex Unit Remote Control Unit CCXC-9DBS/US VCL-0737W RGB/Component, VBS Cable Wide Conversion Lens (9-pin D-sub) REAR PANEL LAYOUT BRC-300 rear panel with the optional BRBK-302 BRBK-304 BRBK-303 DV i.LINK Interface Card Optical Multiplex Card CCFC-M100 CCMC-9DS Optical Fiber Cable... -
Page 7: Specifications
SPECIFICATIONS BRC-300 3CCD Color Video Camera Image device Three 1/4.7 type IT Advanced HAD CCD (x3), 1070000 pixels (gross) CCD effective pixels 4:3 mode 960 (H) x 720 (V) 16:9 mode 1,152 (H) x 648 (V) Effective pixels NTSC 768 (H) x 494 (V) - Page 8 Sony, Advanced HAD, VISCA, and Remote Commander are trademarks of Sony Corporation. i.LINK is a Sony trademark used only to designate that a product is equipped with an IEEE 1394 connector. All products with an i.LINK connector may not communicate with each other. Please refer to the documentation that comes with any device having an i.LINK connector for...
