Summary of Contents for Mirror Image LCD Starter Series

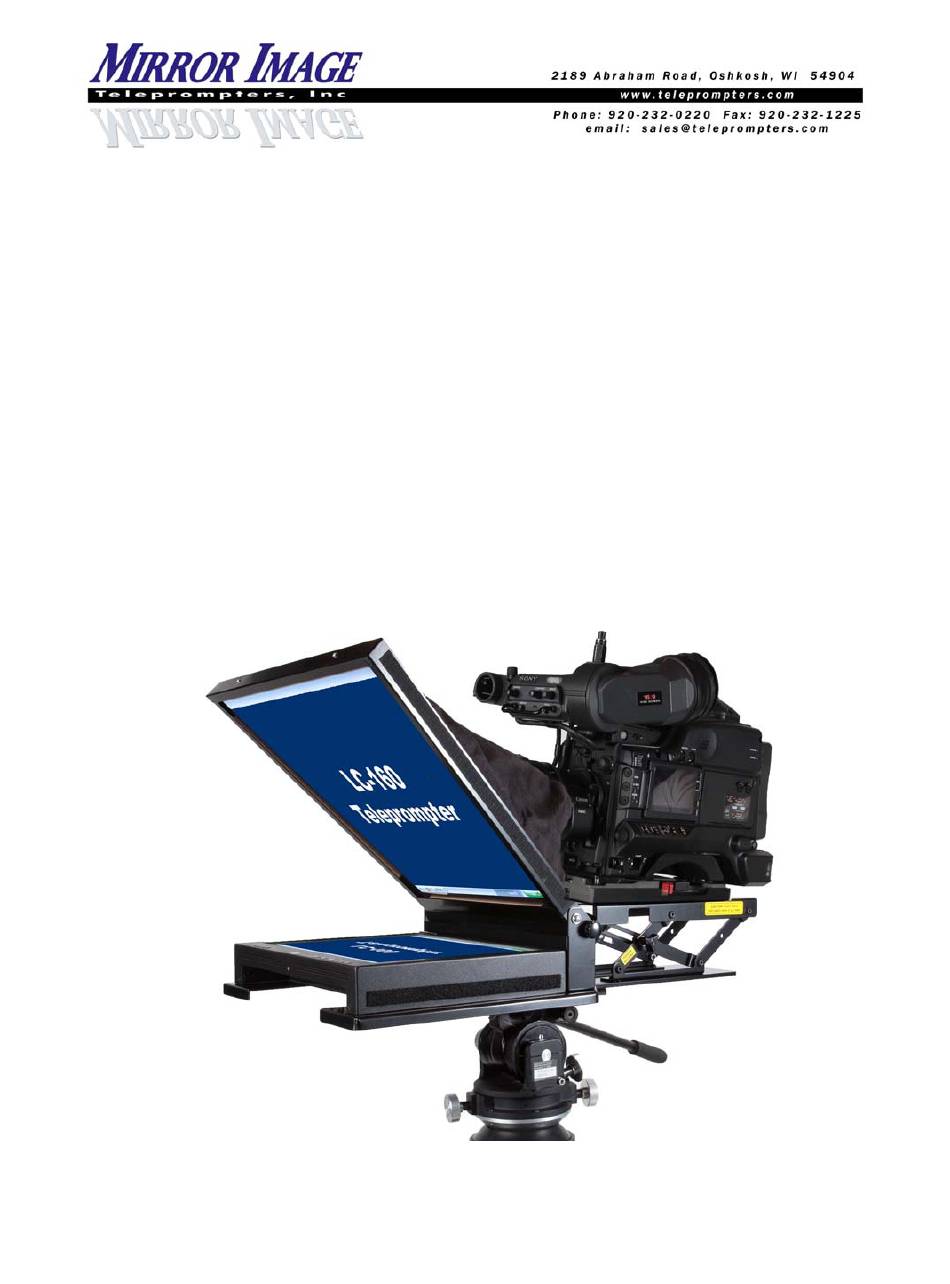

- Page 1 LCD Starter Series & LCD Pro Series Set-Up Instructions...
-
Page 2: Parts List
Teleprompter Parts Parts List: Mount Arm (1) T-Nut (1) Large Camera Knob (1) Small Camera Knob (1) Mirror Knob (2) Monitor/Mirror Assembly (1) - Page 3 (table, desk, etc) with anti-skid pads on top & tripod’s bolts pointing up. Set Mirror Image mount arm on top of the plate so that the camera bolts go thru the long slot in mount arm. Place Mirror Image T-Nut into the long slot so that it sits over the top of the tripod’s bolts (longer, flat surface of the T-Nut should be on top so that the protruding surface fits into the slot on the mount arm).
- Page 4 Step #2 Remove fou r plastic knobs on mount to reveal the bolts. Place the monitor/mirror assembly over the bolts & tighten the four plastic knobs back in place. tep #3A This teleprom pter features a telescoping adjustable height camera platform. Loosen the triangular knobs on the side of the riser and raise the camera platform.
- Page 5 18 pounds. If camera is heavier, contact Mirror Image for fixed height platform lways secure plastic knob bolts firmly. tep #3B Place round sa fety knobs on sides of adjustable height riser (one in front, one behind triangular...
- Page 6 #5 Do a final b alance check and adjust mount/head as needed. Plug in monitor & connect to computer. *Please contact Mirror Image Teleprompters with questions or requests for prompter parts**...
- Page 7 SET-UP FOR EZPROMPT DUAL SCREEN efore opening EZPrompt program (and while no other programs are running)… Open Control Panel / Display Properties / Settings Select Monitor 2 (if this option is available – i f not available, then your computer can not handle Dual Screen) Check the box labeled “Exten d my Windows desktop onto this monitor”...
- Page 8 THE CUSTOMER ($100.00 TO $200.00 DEPENDING ON SIZE) UNLESS DAMAGED IN THE INITIAL SHIPMENT. EPLACEMENT PARTS FOR ITEMS THAT ARE LOST OR DAMAGED DUE TO NORMAL WEAR CAN BE PURCHASED DIRECTLY FROM MIRROR IMAGE TELEPROMPTERS. USTOMERS SHOULD CONTACT MIRROR IMAGE DIRECTLY WITH OPERATION, WARRANTY, REPLACEMENT, OR REPAIR QUESTIONS.
