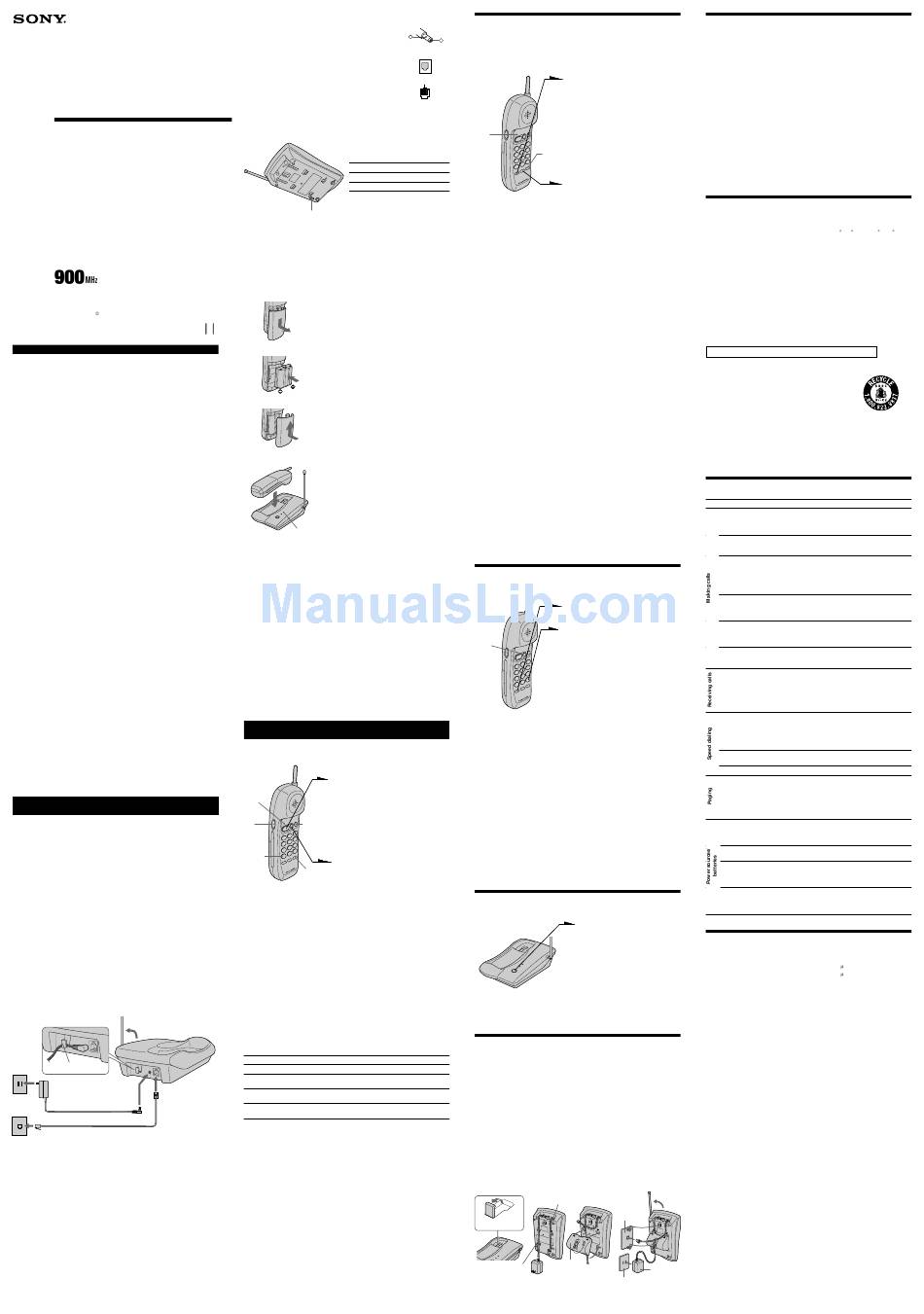

Sony SPP-901 Operating Instructions

3-866-265-21(1)
Cordless
Telephone
Operating Instructions
Mode d'emploi (au verso)
SPP-901
Sony Corporation 1999 Printed in China
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to
qualified personnel only.
INDUSTRY CANADA NOTICE
NOTICE: The Industry Canada label identifies certified equipment. This
certification means that the equipment meets certain telecommunications
network protective, operational and safety requirements as prescribed in the
appropriate Terminal Equipment Technical Requirements document(s). The
Department does not guarantee the equipment will operate to the user's
satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection.
The customer should be aware that compliance with the above conditions may
not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative
designated by the supplier. Any repairs or alterations made by the user to this
equipment, or equipment malfunctions may give the telecommunications
company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal meatallic water
pipe system, if present, are connected together. This precaution may be
particularly important in rural areas.
Caution: Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or electrician, as
appropriate.
NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal
device provides an indication of the maximum number of terminal allowed to be
connected to a telephone interface.
The termination on an interface may consist of any combination of devices
subject only to the requirement that the sum of the Ringer Equivalence Number
of all the devices does not exceed 5.
IMPORTANT INSTRUCTION TO USERS
Your model (SPP-901) has been approved by the Industry Canada.
Note
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Privacy of communications may not be ensured when using this telephone.
DIGITAL SECURITY CODE
Your SPP-901 has a random digital security code which automatically selects one
of over 65,000 digital security codes.
Setting up the phone
Choose the best location
Where you place the base unit affects the reception quality of the handset.
Place the base unit:
– near a central location and on a level surface
– away from television sets and other electronic equipment, a personal
computer, or a microwave oven
– away from noise sources, such as a window by a street with heavy traffic
– away from another cordless telephone
– away from heat sources, such as radiators, airducts, and sunlight
– away from excessive moisture, extremely low temperatures, dust, mechanical
vibration, or shock
CAUTION
• Should you experience intermittent loss of audio during a conversation, try
moving closer to the base or move base unit away from other noise sources.
• The cordless telephone operates at a frequency that may cause interference to
nearby TVs and VCRs; the base unit should not be placed near or on the top of
a TV or VCR; and if interference is experienced, moving the cordless telephone
farther away from the TV or VCR will often reduce or eliminate the
interference.
Connect the base unit
If you want to hang the base unit on the wall, see "Mounting the base unit on a
wall".
3
Hook the cord.
To DC IN 9V
To LINE
2
To AC
AC power adaptor
outlet
(supplied AC-T127)
1
Telephone line cord
(supplied)
To telephone
outlet
1
Connect the telephone line cord to the LINE jack, and to a telephone
outlet.
2
Connect the AC power adaptor to the DC IN 9V jack, and to an AC
outlet.
3
Raise the antenna vertically.
Notes
• Use only the supplied AC-T127 AC power adaptor. Do not use Polarity of the plug
any other AC power adaptor.
• Connect the AC power adaptor to a continuous power supply.
–
• Place the base unit close to the AC outlet so that you can unplug
the AC power adaptor easily.
Modular
Tips
• If your telephone outlet is not modular, contact your telephone
service company for assistance.
• If you have two phone lines on a single jack with the first phone
Center pair
line connected to a center pair of wires, and you need to connect
the second phone line (outer pair of wires), contact your
telephone company for rewiring.
Choose the dialing mode
For the telephone to work properly, select an appropriate dialing mode (tone or
pulse).
Depending on your dialing system, set
the DIAL MODE switch as follows:
If your dialing system is Set the switch to
Tone TONE
Pulse PULSE
DIAL MODE switch
If you aren't sure of your dialing system
Make a trial call with the DIAL MODE switch set to TONE. If the call connects,
leave the switch as is; otherwise, set to PULSE.
Charge the battery pack
Charge the battery pack for more than 10 hours before you start using your
phone.
1
1
Slide open the battery compartment lid of
the handset.
2
Insert the battery pack (with contacts facing
down) into the battery compartment.
3
Replace the battery compartment lid.
2
4
Place the handset on the base unit.
The CHARGE lamp lights up when the
handset is properly seated on the charge
terminals of the base unit. Charge the
3
battery pack for more than 10 hours so that
the battery is fully charged. The CHARGE
lamp remains lit even after charging is
complete.
Battery duration
A fully charged battery pack lasts for about:
4
• 7 hours when you use the handset
continuously.
• 6 days when the handset is in standby mode.
Notes
• The battery pack will gradually discharge over a
long period of time, even if not in use.
• If you leave the battery pack in the handset without
charging it, the battery pack will be completely
CHARGE lamp
discharged. It may require several times of charging
to recover its full capacity.
• When the battery pack is completely discharged and
place the handset on the base unit, the LINE lamp
on the base unit flashes for about three minutes.
When the LINE lamp goes off, the handset is ready
for use.
To obtain the best performance from battery
Do not place the handset on the base unit after each call. The battery works best
if the handset is returned to the base unit after two or three calls. However, do
not leave the handset off the base unit for a long period of time as this will
completely discharge the battery pack.
If the handset battery becomes weak
When not conversing with an outside caller, the TALK/BATT LOW lamp on the
handset flashes if the handset is not placed on the base unit. Replace the handset
to the base unit to recharge the battery for more than 10 hours.
When to purchase a new battery pack
If the battery lasts only a few minutes even after 10 hours of charging, the usable
life of the battery has expired and needs replacement. Contact your local Sony
authorized dealer or service center, and ask for a Sony BP-T23 rechargeable
battery pack.
Note
Battery life may vary depending on usage condition and ambient temperature.
Making and receiving calls
Making calls
1
Press (TALK/FLASH).
The dialing keys light up for five
seconds, and the TALK/BATT LOW
TALK/
lamp lights up. Then you'll hear a
BATT
dial tone. If you hear beeps, move
LOW lamp
closer to the base unit.
(CHANNEL)
VOL
switch
2
Dial the phone number.
(*TONE)
3
When you're done talking, press
(REDIAL)
(OFF) or replace the handset on the
base unit.
The TALK/BATT LOW lamp goes
off.
Receiving calls
1
When you hear the phone ring;
• Press (TALK/FLASH) (or any key except (OFF)).
or
• Pick up the handset from the base unit when the handset is placed
on the base unit.
The dialing keys light up for five seconds, and the TALK/BATT
LOW lamp lights up at the same time the LINE lamp on the base
unit lights up.
2
When you're done talking, press (OFF) or replace the handset on the
base unit.
The TALK/BATT LOW and LINE lamps go off.
Additional tasks
To
Do this
Select a better channel
Press (CHANNEL).
Adjust the ringer Set the VOL switch to H (high), M (medium) or L (low).
volume
Switch to tone dialing Press (*TONE) while using the telephone after you're
temporarily connected. The line remains in tone dialing until disconnected.
Switch to another call
Press (TALK/FLASH) to access the flash function.
("call waiting" service*) Press (TALK/FLASH) again to return to the first caller.
* Contact your telephone company to subscribe to this service.
Notes
• Before dialing, make sure you can hear the dial tone, otherwise you cannot dial correctly.
• When the TALK/BATT LOW lamp lights up by pressing (TALK/FLASH), the LINE lamp
on the base unit lights up simultaneously.
If the handset battery becomes weak during a call
You hear a beep every three seconds and the TALK/BATT LOW lamp on the
handset flashes.
The call will disconnect soon. Replace the handset on the base unit to charge.
Redialing
1
Press (TALK/FLASH).
The dialing keys light up for five seconds, and the TALK/BATT
LOW lamp lights up.
2
Press (REDIAL) to redial the number last dialed.
Note
If the number last dialed exceeds 16 digits, only the first 16 digits are dialed.
Speed dialing
You can dial with a touch of a few buttons by storing a phone number on a
+
dialing button. You can store up to 10 different phone numbers.
Storing phone numbers
1
Press (PGM).
The dialing keys light up. The
TALK/BATT LOW lamp flashes.
2
Press one of the dialing buttons ((0)
to (9)) for the phone number to be
stored.
TALK/
3
BATT LOW
Enter the phone number you want to
lamp
store.
(REDIAL)
You can enter up to 16 digits,
including a tone and a pause, each of
which is counted as one digit.
4
Press (SPEED DIAL).
You'll hear a long confirmation beep,
and the number is stored. The dialing
keys and the TALK/BATT LOW
lamp go off.
Notes
• In step 3, if you don't enter the phone number, the previously stored number will be
erased.
• Do not allow more than 30 seconds to elapse between each step of the procedure.
• Before storing phone numbers, make sure the handset is not in use.
Tips
• If you enter a wrong number, start from the beginning.
• Use the supplied directory to write down what you stored on the speed dialing
numbers.
To store the previous number dialed
Press (REDIAL) directly after step 2, then go to step 4.
To store a number to be dialed via Private Branch
Exchange (PBX)
Before entering a phone number in step 3, do as follows:
1
Enter the outside line access digit (e.g. 9).
2
Press and hold the number button down before the position where
the pause is to be inserted.
For example, 9, pause, 555-1234 would be programmed by pressing
and holding the 9 button until it beeps twice, then entering 5, 5, 5, 1,
2, 3, 4. The pause is two seconds in length. To enter a longer pause,
press and hold the button down until the handset beeps three or four
times. Each additional beep indicates an additional two second
pause.
Note
Each pause is counted as a digit.
To change a stored number
To store a new number, follow the instructions described previously.
Making calls with speed dialing
1
Press (TALK/FLASH).
The dialing keys light up for five seconds, and the TALK/BATT
LOW lamp lights up.
2
Press (SPEED DIAL).
3
Enter the desired speed dialing number ((0) to (9)).
The phone number stored in the speed dialing number will be dialed.
Setting the ringer type
You can select a ringer type from four types.
1
Press (PGM).
2
Press (#).
(OFF)
3
Press a number button, (1) to (4), to
select a ringer type.
4
Press (OFF).
Turning off the ringer
1
Press (PGM).
2
Press (#).
3
Press (5).
4
Press (OFF).
The ringer on the handset is turned off.
To turn the ringer on again
Follow the instructions described in "Setting the ringer type".
Checking the ringer type
1
Press (PGM).
2
Press (#).
3
Press (0).
The currently selected ringer sounds.
4
Press (OFF).
Note
If you hear no sound (only key beep), the ringer on the handset has been turned off.
Paging
You can page from the base unit to the handset.
Press (HANDSET LOCATOR).
The handset rings for one minute.
To end the page at the base unit,
press (HANDSET LOCATOR).
Note
If a call comes in during paging, paging is cancelled.
Tip
To end a page at the handset, press (OFF).
Mounting the base unit on a wall
1
Raise the hang-up tab.
2
Plug the telephone line cord to the LINE jack and the AC power
adaptor to the DC IN 9V jack, and hook the cords. Use the shorter
cord for mounting.
3
Attach the wall bracket to the center of the base unit. Align the f
marks of the wall bracket with those of the base unit.
4
Plug the telephone line cord to the telephone outlet, and hook the
base unit to the wall plate.
5
Plug the AC power adaptor to an AC outlet. Then raise the antenna
so that it points towards the ceiling.
1
2 3
Telephone
line cord
Hang-up tab
Wall
AC power
bracket
adaptor cord
AC outlet
Tip
To remove the wall bracket, press the lower tabs.
Maintenance
On handling
• Do not attempt to disassemble the casing. Refer servicing to qualified
personnel only.
• Do not put foreign objects into the base unit. Should any liquid or solid object
fall into the unit, unplug the unit and have it checked by qualified personnel
before operating the unit any further.
• Do not put anything in the DC IN 9V (external power input) jack.
• Do not drop the unit as a malfunction may result.
On cleaning
• Clean the cabinets with a soft cloth slightly moistened with water or a mild
detergent solution. Do not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine as they may damage the finish of the
cabinet.
• If the charge terminals of the base unit and handset are soiled, wipe them with
a soft cloth.
If you have any questions or problems concerning your phone, please consult
your nearest Sony dealer.
Notes on power sources
On battery pack
• Store the battery pack at a temperature between 41 F (5 C) and 95 F (35 C) for
best performance.
• If you do not use the handset for a long period of time, remove the battery
pack after charging for more than 10 hours.
• Keep the battery pack away from fire.
• Do not short-circuit the battery terminals.
• Do not disassemble the battery pack.
On the safety
• Do not unnaturally bend or crimp the cord, and do not place heavy objects on
it.
• If the cord or plug is damaged, do not continue to use it. Contact your local
Sony dealer for replacement.
On power failure
During a power interruption, you cannot make or receive calls.
For the customers in Canada
RECYCLING NICKEL-CADMIUM BATTERIES
Nickel-Cadmium batteries are recyclable. You can help preserve
our environment by returning your unwanted batteries to your
nearest point for collection, recycling or proper disposal.
Note: In some areas the disposal of nickel-cadmium batteries in
household or business trash may be prohibited.
RBRC (Rechargeable Battery Recycling Corporation) advises you about spent battery
collection by the following phone number.
Call toll free number: 1-800-822-8837 (United States and Canada only)
Caution: Do not handle damaged or leaking nickel-cadmium batteries.
Troubleshooting
Symptom Remedy
You hear four short error • Make sure you set up the base unit correctly.
beeps when you press • Move the handset closer to the base unit.
(TALK/FLASH). • Replace the handset to the base unit for a while to
recharge the battery pack.
You hear no dial tone. • Make sure the telephone line cord is securely
connected to the telephone outlet.
• Make sure the battery is fully charged.
The telephone always • Make sure the number you last dialed (including the
connects with the wrong tone and pause digits, if used) is 16 digits or less.
number or does not • Make sure the dialing mode is set correctly.
connect at all, even • Before dialing, make sure you can hear a dial tone.
though the number you
dial is correct.
The phone does not redial • Make sure the last dialed number is really the one you
correctly. want to dial.
• If the number last dialed exceeds 16 digits, only the
first 16 digits are dialed.
You hear interference • Move the handset closer to the base unit.
during conversation. • Press (CHANNEL) for a channel that gives better
reception.
• Place the base unit away from noise sources.
You hear a beep every • The battery is weak. Charge the battery for more than
three seconds during 10 hours.
the conversation.
The handset does not • The battery may be weak. Charge the battery for more
ring.
than 10 hours.
• Make sure you set up the base unit correctly.
• Move the handset closer to the base unit.
• Replace the handset to the base unit for a while to
recharge the battery pack.
• Make sure the ringer is turned on.
You cannot store a speed • Make sure you follow the procedure in storing the
dialing number. number correctly.
• When you hear four short error beeps, move the
handset closer to the base unit, or make sure you set
up the base unit correctly.
• Replace the handset to the base unit for a while.
You cannot make a speed • You pressed the number button to which no phone
dialing call. number has been stored.
Speed dialing is incorrect.
• Store a correct number.
The handset does not ring • The handset may be engaged in conversation.
when calling from the • The battery may have little or no power. Charge the
base unit. battery for more than 10 hours.
• Replace the handset to the base unit for a while.
• Raise the antenna of the base unit vertically.
• Move the handset closer to the base unit.
• Place the base unit away from noise sources.
The LINE lamp on the • If the battery pack is completely discharged, the LINE
base unit flashes when lamp on the base unit flashes for about three minutes
you place the handset on until the handset is ready for use.
the base unit.
You hear a low pitch beep • Make sure the battery pack is inserted into the battery
from the handset. compartment correctly.
The CHARGE lamp does
• Clean the terminal on the base unit and the handset
not light up when you with a dry, soft cloth.
place the handset on the
base unit.
The battery pack has a • The power was not continuously supplied to the base
shorter life. unit during charging.
• The battery pack was charged less than 10 hours (due
to power failure, etc.).
Specifications
General
Operating frequency Base unit: 902 - 905 MHz (310 W)
Handset : 925 - 928 MHz (400 W)
Dial signal Tone, 10 PPS (pulse) selectable
Supplied accessories AC power adaptor AC-T127
Telephone line cords (2)
Rechargeable battery pack BP-T23
Directory
Wall bracket
Handset
Power source Rechargeable battery pack BP-T23
Battery life Talk time : Approx. 7 hours
Standby:
Dimensions Approx. 56 x 183 x 43 mm (w/h/d), antenna excluded
(approx. 2 1
Antenna: Approx. 32 mm
1
(approx. 1
Mass Approx. 230 g (approx. 8 oz), battery included
Base unit
Power source DC 9 V from AC power adaptor
Battery charging time Approx. 10 hours
Dimensions Approx. 123 x 57 x 219 mm (w/h/d), antenna excluded
(approx. 4 7
Antenna : Approx. 120 mm
(approx. 4 3
Mass Approx. 350 g (approx. 12
Design and specifications are subject to change without notice.
4,5
Wall plate
AC power
adaptor
Approx. 6 days
/ x 7 1 / x 1 3 / inches)
4 4 4
/ inches)
4
/ x 2 1 / x 8 1 / inches)
8 2 2
/ inches )
4
1
/ oz)
3
