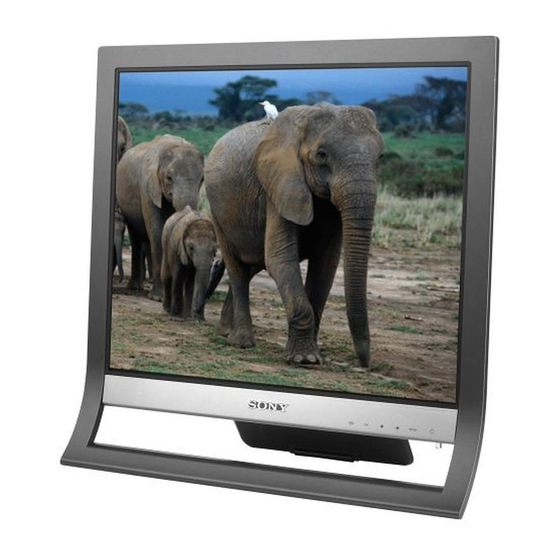

Sony SDM-HS75 Operating Instructions Manual

Tft lcd color computer display
Hide thumbs Also See for SDM-HS75:
Table of Contents

Advertisement

Quick Links

2-583-745-01(1)
TFT LCD Color
Computer Display
GB
Operating Instructions
SDM-HS75
SDM-HS95
© 2004 Sony Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony SDM-HS75

Summary of Contents for Sony SDM-HS75

  • Page 1 2-583-745-01(1) TFT LCD Color Computer Display Operating Instructions SDM-HS75 SDM-HS95 © 2004 Sony Corporation...
  • Page 2 Para prevenir cualquier mal funcionamiento y evitar daños, por favor, lea detalladamente este manual de instrucciones antes de conectar y operar este equipo. If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/ Declaration of Conformity Trade Name:...

  • Page 3: Table Of Contents

    Precautions..........4 Identifying parts and controls .

  • Page 4: Precautions

    Precautions Warning on power connections • Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply. For the customers in the U.S.A. If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

  • Page 5: Identifying Parts And Controls

    Identifying parts and controls See the pages in parentheses for further details. The 1 (power) switch and the control buttons are on the lower right part of the front of the monitor. Front of the display MENU Rear of the display 1 1 (Power) switch and indicator (pages 9, 16) To turn the display on or off, press the 1 (power) switch upward.
  • Page 6 Rear of the display Remove the back cover. 7 Back cover (page 8) Remove this cover when you connect/disconnect cables or cords. 8 AC IN connector (page 8) Connect the power cord (supplied). 9 HD15 input connector (analog RGB) (page 7) This connector inputs analog RGB video signals (0.7 Vp-p, positive) and SYNC signals.

  • Page 7: Setup

    Setup Before using your monitor, check that the following items are included in your carton: • LCD display • Power cord • HD15-HD15 video signal cable (analog RGB) • Cord strap • CD-ROM (utility software for Windows/Macintosh, Operating Instructions, etc.) •...

  • Page 8: Step 3: Connect The Power Cord

    Step 3: Connect the power cord With the monitor and computer switched off, first connect the power cord to the monitor, then connect it to a power outlet. to AC IN to a power outlet power cord (supplied) Step 4: Secure the cords and replace the back cover Bundle the cables and cords.

  • Page 9: Step 5: Turn On The Monitor And Computer

    Step 5: Turn on the monitor and computer Press the 1 (power) switch upward. The 1 (power) indicator of the monitor lights up in green. Turn on the computer. The installation of your monitor is complete. If necessary, use the monitor’s controls to adjust the picture.

  • Page 10: Customizing Your Monitor

    Customizing Your Monitor Before making adjustments Connect the monitor and the computer, and turn them on. Wait for at least 30 minutes before making adjustments for the best result. You can make numerous adjustments to your monitor using the on-screen menu. Adjusting to the desired brightness Pressing the...

  • Page 11: Adjusting The Backlight (Backlight)

    8 MENU POSITION M E N U P O S T O N (page 14) Select the MENU POSITION to change the on- screen menu position. 1 2 8 0 9 LANGUAGE (page 15) L A N G UAG E Select LANGUAGE to change the language used on menus or messages.

  • Page 12: Adjusting The Contrast (Contrast)

    Adjusting the contrast (CONTRAST) Adjust the picture contrast. Note The contrast cannot be adjusted when the MIDDLE, or LOW (page 10). Press the MENU button. The main menu appears on the screen. Press the m/M buttons to select 6 (CONTRAST) and press the OK button.

  • Page 13: Adjusting The Color Temperature (Color)

    Adjust so that the horizontal stripes are at a minimum. Press the OK button. Return to the SCREEN menu. If vertical stripes are observed over the entire screen, adjust pitch by the following steps. Press the m/M buttons to select PITCH and press the OK button.

  • Page 14: Changing The Gamma Setting (Gamma)

    Fine tuning the color temperature (USER ADJUSTMENT) U S E R A D J U S T M E N T 1 2 8 1 2 8 1 2 8 1 2 8 0 1 0 2 4 6 0 H z E X I T Press the m/M buttons to select ADJUST and press the OK button.

  • Page 15: Selecting The On-Screen Menu Language (Language)

    Selecting the on-screen menu language (LANGUAGE) You can change the language used on menus or messages displayed on this monitor. Press the MENU button. The main menu appears on the screen. Keep pressing the m button until the icon of the desired option item appears.

  • Page 16: Technical Features

    Technical Features Power saving function This monitor meets the power-saving guidelines set by VESA, NERGY TAR, and NUTEK. If the monitor is connected to a computer or video graphics board that is DPMS (Display Power Management Standard) compliant, the monitor will automatically reduce power consumption as shown below.

  • Page 17: Troubleshooting

    Troubleshooting Before contacting technical support, refer to this section. On-screen messages If there is something wrong with the input signal, one of the following messages appears on the screen. To solve the problem, see “Trouble symptoms and remedies” on page 18. If OUT OF RANGE appears on the screen This indicates that the input signal is not supported by the monitor’s specifications.

  • Page 18: Trouble Symptoms And Remedies

    • If you replaced an old monitor with this monitor, reconnect the old monitor and do the following. Select “SONY” from the “Manufacturers” list and select “SDM-HS75” or “SDM-HS95” from the “Models” list in the Windows device selection screen. If the model name of this monitor does not appear in the “Models”...
  • Page 19 • Depending on the graphics board setting, the resolution displayed on the menu screen may not coincide with the one set on the computer. If any problem persists, call your authorized Sony dealer and give the following information: • Model name: SDM-HS75 or SDM-HS95 •...

  • Page 20: Specifications

    Specifications SDM-HS75 LCD panel Panel type: a-Si TFT Active Matrix Picture size: 17.0 inch Input signal format RGB operating frequency* Horizontal: 28–80 kHz Vertical: 48–75 Hz Resolution Horizontal: Max.1280 dots Vertical: Max.1024 lines Input signal levels Analog RGB video signal 0.7 Vp-p, 75 Ω, positive SYNC signal TTL level, 2.2 kΩ,...
