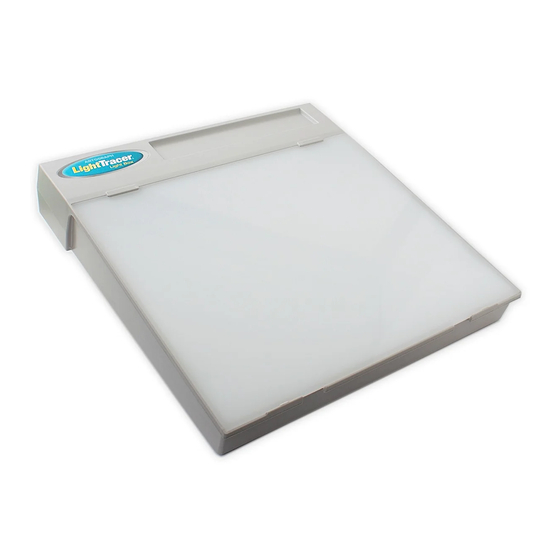

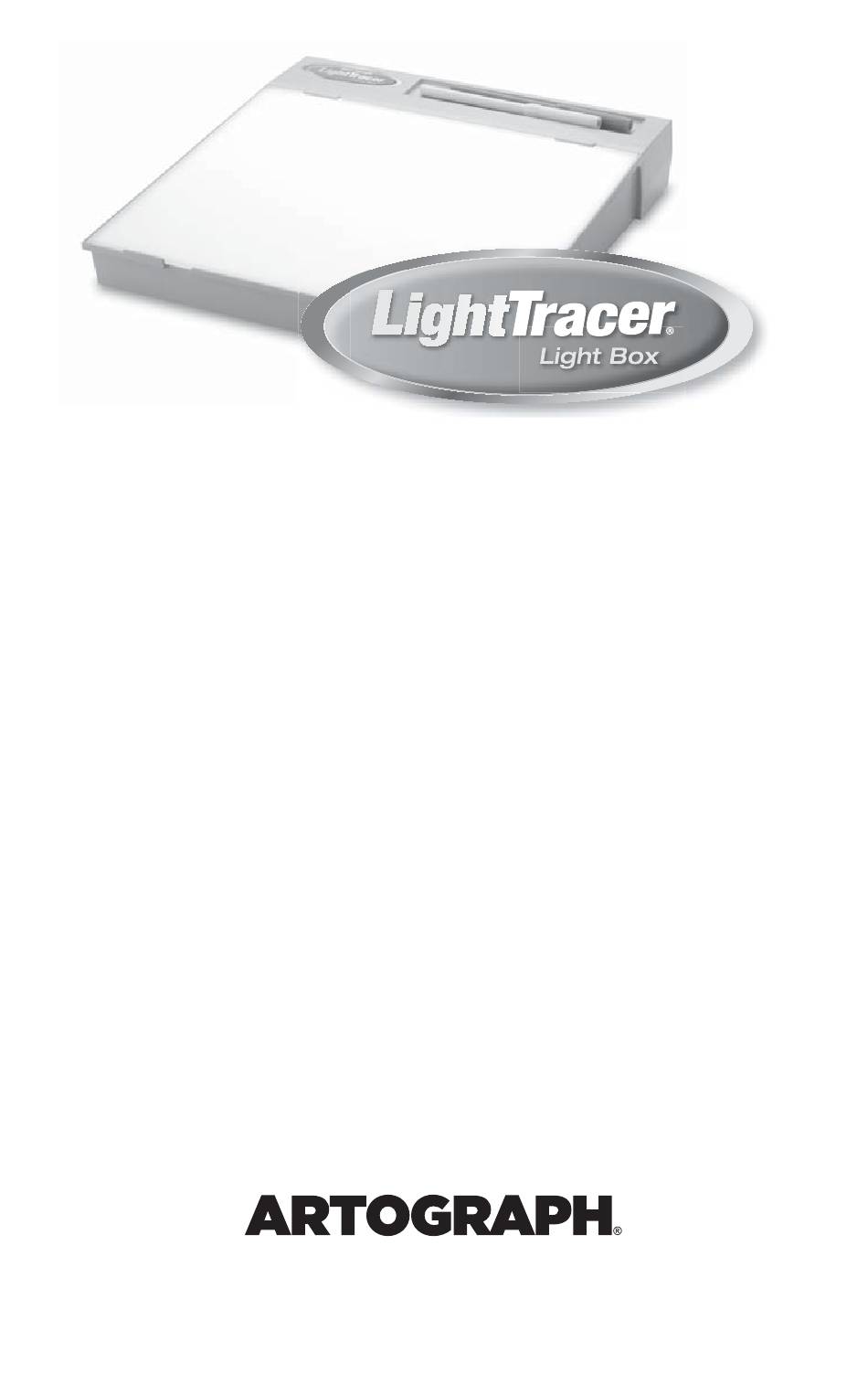

The LightTracer
Important Saftey Instructions
When using this light box, always follow basic safety
precautions, including the following:
I. Read and understand all instructions before operating.
2. Supervision is necessary when used by or near children. Do not leave
unattended while in use.
3. Do not operate this equipment with a damaged cord, or if it has
been dropped or otherwise damaged, until it has been examined
by a qualifi ed electrician.
4. If an extension cord is necessary, be sure it has a suitable current rating,
Cords rated for less amperage than this equipment may overheat. Be
careful to arrange the cord so that it will not be tripped over or pulled,
5. Always unplug from the electrical outlet when not in use. Disconnect
by grasping and pulling the plug from the outlet; never yank the cord to
disconnect the plug.
6. Do not immerse in water. If the unit receives water damage, do not use
until inspected by a qualifi ed electrician.
2838 Vicksburg Lane North, Plymouth, MN 55447-1878 U.S.A.
3/09RP
by Artograph
www.artograph.com
Phone: 763-553-1112 Fax: 763-553-1262
Toll-Free: 888-975-9555
TM
306-152
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for artograph LightTracer
Summary of Contents for artograph LightTracer
- Page 1 The LightTracer by Artograph Important Saftey Instructions When using this light box, always follow basic safety precautions, including the following: I. Read and understand all instructions before operating. 2. Supervision is necessary when used by or near children. Do not leave unattended while in use.
-
Page 2: Maintenance
Inc., 2838 Vicksburg Lane North, Plymouth, Lamp Replacement MN 55447, Toll-Free: (888) 975-9555 (See diagram below) Light box Model #225-365 Caution: Be certain that the LightTracer Replacement Lamp. is unplugged before replacing the lamp. Part#106-049, F8T5 daylight fl uorescent. Warranty Be sure to fi... -
Page 3: Instrucciones Importantes De Seguridad
The LightTracer por Artograph Instrucciones Importantes De Seguridad Cuando use este proyector, siempre siga las precauciones básicas de seguridad, que incluyen lo siguiente: 1. Lea y entienda todas las instrucciones antes de la operación. 2. Es necesaria la supervisión cuando se usa por niños o cerca de ellos. No lo deje sin vigilancia mientras está... -
Page 4: Mantenimiento
Mantenimiento Para comprar un reemplazo de lámpara, contacte a una tienda de ferretería o a Artograph, Inc., 2838 Limpieza: Limpie la superfi cie de plástico con una Vicksburg Lane North, Plymouth, MN 55447, tela suave y un limpiador no abrasivo. No aplique el Toll-Free: (888) 975-9555 limpiador directamente al acrílico, pues se puede colar... -
Page 5: Instructions De Sécurité Importantes
LightTracer Table lumineuse d’Artograph Instructions De Sécurité Importantes L’utilisation de cette table lumineuse est soumise au respect des précautions de sécurité de base, y compris les suivantes: 1. Lire et assimiler toutes les instructions avant utilisation. 2. Surveiller les enfants lorsqu’ils utilisent l’équipement ou si celui-ci est utilisé... -
Page 6: Entretien
Remarque : ne jamais couper d’objets sur la Pour acheter une lampe de rechange, contacter un surface plastique. revendeur de matériel local ou Artograph, Inc. 2838 Vicksburg Lane North, Plymouth, MN 55447, Entretien appel gratuit: (888) 975-9555 Nettoyage: Nettoyer la surface plastique avec un chiffon doux et un produit de nettoyage non abrasif. -
Page 7: Istruzioni Importanti Per La Sicurezza
The LightTracer by Artograph Istruzioni Importanti Per La Sicurezza Durante l’utilizzo del piano luminoso Lightracer Artograph, è necessario attenersi alle norme di sicurezza di base, tra le quali ricordiamo: I. Prima di utilizzare l’apparecchio, leggere le istruzioni e assicuratersi di averle ben recepite. -
Page 8: Funzionamento
Pulizia: Pulire la superfi cie di plastica con un Per acquistare le lampade di ricambio, contattare il panno morbido e un detersivo non abrasivo. Non distributore locale oppure direttamente Artograph, Inc. versare direttamente il detersivo sulla superfi cie 2838 Vicksburg Lane North, Plymouth, MN 55447, acrilica, perchè... -
Page 9: Wichtige Sicherheitsanweisungen
Der LightTracer von Artograph Wichtige Sicherheitsanweisungen Befolgen bei Verwendung dieses Lichtkastens immer grundlegende Sicherheitsvorkehrungen einschließlich der folgenden: 1. Lesen und verstehen Sie vor Inbetriebnahme alle Anweisungen. 2. Es ist eine Aufsicht erforderlich, wenn er von oder nahe von Kindern verwendet wird. Während der Verwendung nicht unbeaufsichtigt lassen! 3. -
Page 10: Bedienung
Potete inoltre registrare il vostro LightTracer online all’indirizzo www.artograph.com I proiettori Artograph sono garantiti, per tutti i difetti di matierale o di lavorazione, per cinque anni dalla data di acquisto del primo acquirente. Qualunque parte dello strumento che risulti difettosa durante la normale installazione o uso sarà... -
Page 11: Belangrijke Veiligheidsinstructies
The LightTracer door Artograph Belangrijke Veiligheidsinstructies Bij het gebruik van deze lichtbak, altijd de voorzorgsmaatregelen voor de basisveiligheid opvolgen, inclusief de volgende: I. U dient alle instructies te lezen en te begrijpen voor u het apparaat gebruikt. 2. Supervisie is noodzakelijk wanneer het apparaat gebruikt wordt door of bij kinderen. -
Page 12: Vervangen Van De Lamp
Lichtbak Model #225-365 Vervangen Van De Lamp Vervangingslamp (Zie onderstaande tekening ) Onderdeel#106-049, F8T5 daglicht TL. Let op: Wees er van overtuigd dat de LightTracer Garantie ontkoppeld is van de wandcontactdoos voor u de lamp vervangt. Vergeet niet om de ingesloten garantieregistratiekaart in te vullen en te versturen.
Need help?
Do you have a question about the LightTracer and is the answer not in the manual?
Questions and answers

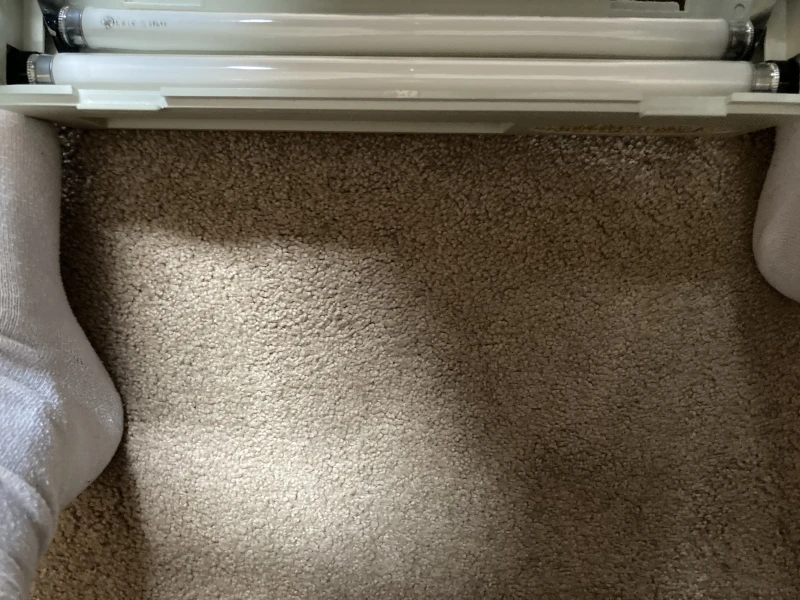

I can’t remove the lamp bulb out to replace it! It just turns and does not come out.
To remove the lamp bulb from the Artograph LightTracer for replacement:
1. Unplug the LightTracer from the electrical outlet.
2. Lift the front edge of the plastic surface using leverage.
3. Slide fingers behind one side of the bulb and lift it out of the socket.
4. Push the bulb away from you while keeping it close to the bottom of the plastic surface.
5. Lift one end of the bulb up and free the other side to remove it completely.
This answer is automatically generated
How do I lift the top off the tracer to get to the bulb? I tried doing what manual says with a screwdriver, but I can’t get underneath to pry it up. Please help.
