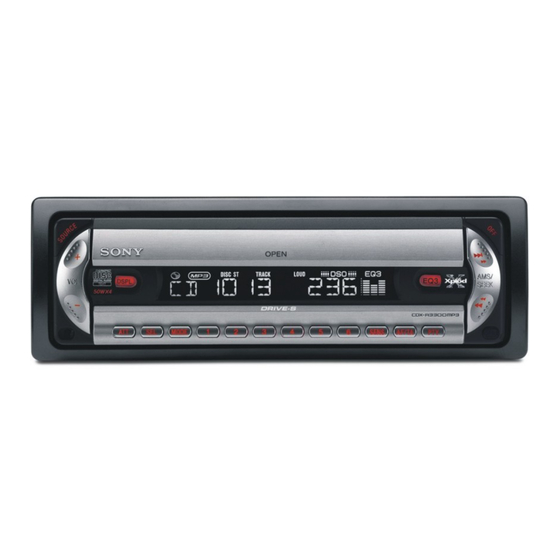

Sony CDX-R3300EE Operating Instructions Manual

Fm/am compact disc player
Hide thumbs Also See for CDX-R3300EE:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual See also: Service Manual
FM/AM
Compact Disc Player

Operating Instructions

Инструкция по эксплуатации
For installation and connections, see the supplied installation/connections manual.
Перед установкой и подсоединениями прочитайте прилагаемую инструкцию по
установке и подсоединению.
CDX-R3300EE
© 2004 Sony Corporation
3-263-513-11 (1)
GB
RU

Advertisement

Table of Contents
loading

Related Manuals for Sony CDX-R3300EE

Summary of Contents for Sony CDX-R3300EE

  • Page 1: Operating Instructions

    FM/AM Compact Disc Player Operating Instructions Инструкция по эксплуатации For installation and connections, see the supplied installation/connections manual. Перед установкой и подсоединениями прочитайте прилагаемую инструкцию по установке и подсоединению. CDX-R3300EE © 2004 Sony Corporation 3-263-513-11 (1)
  • Page 2 Welcome ! Thank you for purchasing this Sony Compact Disc Player. You can enjoy its various features even more with: • MP3 file playback. • CD-R/CD-RW which can have a session added can be played (page 7). • Discs recorded in Multi Session can be played, depending on the recording method (page 7).

  • Page 3: Table Of Contents

    Setting the clock ..... 10 CD Player Playing a disc......11 Display items .

  • Page 4: Location Of Controls

    To select items. m RESET button (located on the front side of the unit, behind the front panel) 9 – ALBUM + SHUF CDX-R3300EE n Number buttons 17 Radio: To store the desired station on each number button. MP3 files: (1): ALBUM –...

  • Page 5: Source Button

    Card remote commander RM-X114 (optional) DSPL MODE PRESET DISC SOURCE – SEEK SEEK – DISC PRESET – – The corresponding buttons of the card remote commander control the same functions as those on this unit. a DSPL button b MENU button* c SOURCE button d SEEK (–/+) buttons e SOUND button...

  • Page 6: Precautions

    If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer. Moisture condensation On a rainy day or in a very damp area, moisture condensation may occur inside the lenses and display of the unit.

  • Page 7: About Mp3 Files

    • A CD-R/CD-RW to which a session can be added can be played. * A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player. About MP3 files MP3 (MPEG 1 Audio Layer-3) is a standard technology and format for compressing a sound sequence.
  • Page 8 Notes • With formats other than ISO 9660 level 1 and level 2, folder names or file names may not be displayed correctly. • When naming, be sure to add the file extension “.MP3” to the file name. • If you put the extension “.MP3” to a file other than MP3, the unit cannot recognize the file properly and will generate random noise that could damage your speakers.

  • Page 9: Getting Started

    Getting Started Resetting the unit Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Remove the front panel and press the RESET button with a pointed object, such as a ballpoint pen.

  • Page 10: Setting The Clock

    Attaching the front panel Attach part A of the front panel to part B of the unit as illustrated and push the left side into position until it clicks. Note Do not put anything on the inner surface of the front panel.

  • Page 11: Cd Player

    CD Player Playing a disc Open the shutter. Insert the disc labelled side up. Playback starts automatically. Close the shutter. If a disc is already inserted, press (SOURCE) repeatedly until “CD” appears to start playback. Press (OFF) Stop playback (SEEK) (–/+) Skip tracks –...

  • Page 12: Display Items

    Display items When the disc/album/track changes, any prerecorded title* of the new disc/album/track is automatically displayed (if A.SCRL (Auto Scroll) is set to “ON,” names exceeding 8 characters will be scrolled (page 16)). Source Displayable items • Track number/Elapsed playing time •...

  • Page 13: Radio

    Radio The unit can store up to 6 stations per band (FM1, FM2, FM3*, AM1 and AM2). Caution When tuning in stations while driving, use Best Tuning Memory to prevent accidents. * FM3 tuning range is 65 to 74 MHz (at 30kHz step). Storing stations automatically —...

  • Page 14: Storing Only The Desired Stations

    Storing only the desired stations You can manually preset the desired stations on any chosen number button. Press (SOURCE) repeatedly to select the radio. Press (MODE) repeatedly to select the band. Press (SEEK) (+) or (SEEK) (–) to tune in the station that you want to store. Press the desired number button ((1) to (6)) for 2 seconds until “MEM”...
  • Page 15 By rotating the control SEEK/AMS control Rotate and release to: – Skip tracks. To continuously skip tracks, rotate once and rotate again within 1 second and hold the control. – Tune in stations automatically. Rotate, hold, and release to: – Fast-forward/reverse a track. –...

  • Page 16: Adjusting The Sound Characteristics

    Adjusting the sound characteristics You can adjust the balance, fader, low pass filter and subwoofer volume. Press (SEL) repeatedly until “BAL,” “FAD,” “LPF” or “SUB” appears. Each time you press (SEL), the item changes as follows: t MID* t HI* LOW* BAL (left-right) t FAD (front-rear) t LPF (low pass filter)*...

  • Page 17: Setting The Equalizer (Eq3)

    Switching the REAR/SUB Press (SEL) and then press the volume + (REAR) or – (SUB) button. After 3 seconds, the display returns to normal play mode. Selecting the desired item Press (SEL) and the desired button simultaneously. (SEL) + (3): A.SCRL* (SEL) + (4): DEMO* (SEL) + (6): BEEP (SEL) + (DSPL): DIM...

  • Page 18: Additional Information

    If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer. Warning Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit.

  • Page 19: Removing The Unit

    Replacing the lithium battery Under normal conditions, battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery.
  • Page 20 Remove the unit. 1 Insert both release keys together until they click. 2 Pull the release keys to unseat the unit. 3 Slide the unit out of the mounting. Face the hook inwards.

  • Page 21: Specifications

    Specifications CD Player section Signal-to-noise ratio 120 dB Frequency response 10 – 20,000 Hz Wow and flutter Below measurable limit Tuner section Tuning range FM1/FM2: 87.5 – 108 MHz (at 50 kHz step) FM3: 65 – 74 MHz (at 30 kHz step)

  • Page 22: Troubleshooting

    Troubleshooting The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures. General No sound. • Press the volume + button to adjust the volume. •...

  • Page 23: Error Displays/Messages

    The local seek mode is on during automatic tuning (page 13). “ ” or “ ” You have reached the beginning or the end of the disc and you cannot go any further. If these solutions do not help improve the situation, consult your nearest Sony dealer.
  • Page 24 Сделано в Таиланде Этa этикeткa нaxодитcя в нижнeй чacти шaccи.
  • Page 26 DSPL SOURCE MODE 11, 13 10, 12 – ALBUM + SHUF CDX-R3300EE После выключения зажигания обязательно нажмите кнопку (OFF) на аппарате и удерживайте ее нажатой, пока не погаснет дисплей. SEEK SENS SCRL 15, 16...
  • Page 27 Пульт дистанционного управления RM-X114 (дополнительный) DSPL MODE PRESET DISC SOURCE – SEEK SEEK – DISC PRESET – – Примечание (OFF) Совет (SEEK) (SOURCE) (SEEK)
  • Page 30 Примечания • • • • Будьте осторожны при воспроизведении диска, записанного в режиме Multi Session. • •...
  • Page 31 Примечания • • • • Совет...
  • Page 32 (OFF) Примечание (OFF) (OFF) Примечания • • • Совет...
  • Page 33 (DSPL) (SEL) Примечание (DSPL)
  • Page 34 (OFF) (SEEK) . > (SEEK) (SEEK) (SEEK) (SOURCE)
  • Page 35 Примечания • • • • • (SEEK) (SEEK) • • Совет • • • • (DSPL) (SCRL) (DSPL) (DSPL)
  • Page 36 Примечания • • • Примечания относительно файлов MP3 • • • Советы • •...
  • Page 37 (SOURCE) (MODE) (BTM) Примечания • • (SOURCE) (MODE) (SEEK) (SEEK) (SENS) (SENS) Примечание (SENS) Совет (SEEK) (SEEK) (SEEK) (SEEK)
  • Page 38 (SENS) (SEEK) Примечание (SENS) (SOURCE) (MODE) (SEEK) (SOURCE) D S P L S E L M O D E M O D E S E L D S P L (ATT) (SEL) (MODE) (DSPL) (OFF)
  • Page 39 Нажмите Цель кнопку (SOURCE) Смена источника (радио/компакт-диск)/ Питание вкл (MODE) Смена диапазона радиочастот (ATT) Приглушение звука (OFF)* Остановка воспроизведения или приема радиопрограмм/ Питание выкл (SEL) Настройка и выбор (DSPL) Смена индикации на дисплее Посредством вращения регулятора Регулятор SEEK/AMS Поверните и отпустите, чтобы: –...
  • Page 40 (SEL) (SEL) (SEL) Примечание...
  • Page 41 (ATT) — (ATT) Совет — — —...
  • Page 42 (SEL) (SEL) (SEL) (SEL) (SEL) (DSPL) Когда аппарат выключен. Когда компакт-диск не воспроизводится, эта индикация отображаться не будет. (SEL) (SEL) (SOURCE) (EQ3) (EQ3)
  • Page 43 (SOURCE) (EQ3) (SEL) (SEL) (SEL) Примечание Нельзя настроить кривую эквалайзера, если для EQ3 установлено значение “OFF” .
  • Page 44 Примечания • •...
  • Page 46 × × × × ×...
  • Page 47 (SOURCE) (OFF) (OFF)
  • Page 52 • Lead-free solder is used for soldering certain parts. • Halogenated flame retardants are not used in the certain printed wiring boards. • Halogenated flame retardants are not used in cabinets. • Paper is used for the packaging cushions. Sony Corporation Printed in Thailand...
