MicroBT WhatsMiner M3 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

WhatsMiner M3 Operating Guide
V1.1
Shenzhen MicroBT Electronics Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WhatsMiner M3 and is the answer not in the manual?

Questions and answers

Peggy
February 21, 2025

where is monitor

User image 67b7f7d9f0914
0
1 comments:
Mr. Anderson
February 21, 2025

The MicroBT WhatsMiner M3 can be monitored using the Awesome Miner software solution.

This answer is automatically generated

1

Related Manuals for MicroBT WhatsMiner M3

Summary of Contents for MicroBT WhatsMiner M3

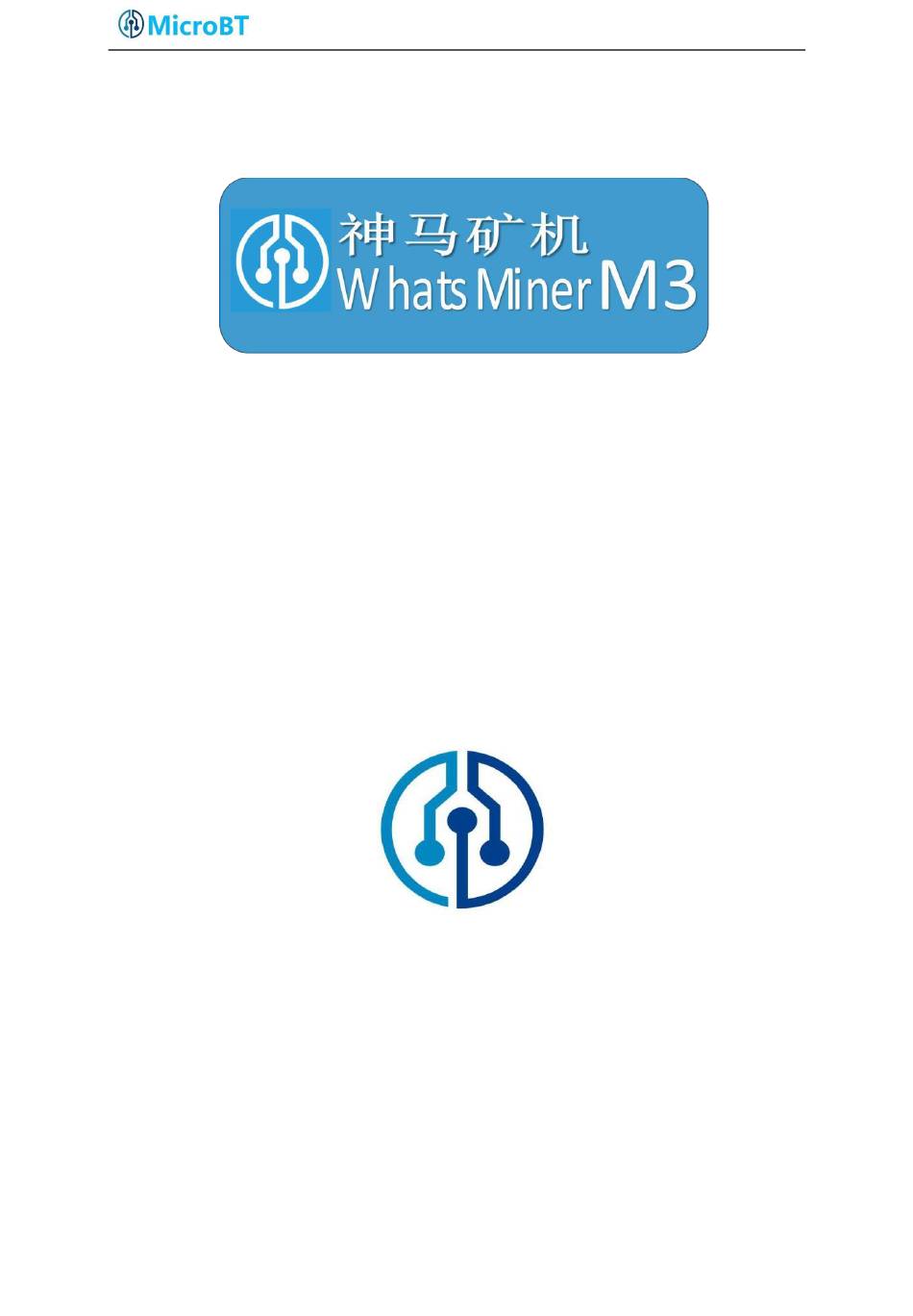

  • Page 1 WhatsMiner M3 Operating Guide V1.1 Shenzhen MicroBT Electronics Technology Co., Ltd.

  • Page 2: Table Of Contents

    Contents 1. Operational safety warning......................3 1.1. Matters needing attention of the miner's wiring............3 1.1.1. Control board 12V power cable connection precautions........3 1.1.2. Connection of power control cable..............4 1.1.3. Fan cable connection check.................. 4 1.1.4. Data cable connection check................5 1.1.5.

  • Page 3: Operational Safety Warning

    1. Operational safety warning 1.1. Matters needing attention of the miner's wiring WhatsMiner M3's 12V power cable, power control cable, fan cable, data cable must be properly connected, if the connection error, lead to control board, hash board, such as burn, the whole machine and board will not belong to the scope of warranty! 1.1.1.

  • Page 4: Connection Of Power Control Cable

    1.1.2. Connection of power control cable The power control cable is 3pin red and black yellow line, 3 small orientations, and slot relative insertion: 1.1.3. Fan cable connection check The fan cable is 4pin blue and yellow red black line, with 4 small orientations, and the slot is inserted in relative position，and reliable connections。...

  • Page 5: Data Cable Connection Check

    1.1.4. Data cable connection check The hash board data cable is connected with the control board, Connect the plug and socket correctly，and reliable connections. 1.1.5. Connect the power cable of the hash board When connecting the power cable of the hash board, the buckle of the power cable plug and the socket of the hash board must be corresponding.

  • Page 6: Final Check

    The incorrect connection of the power cable plug and socket: 1.1.6. Final check After all connections are completed, check again to make sure all connections are correct. Notes: (1) The miner before wiring and power up, according to the warning signs on the side of the miner, shake miner, make sure no heat sink or other devices off, Otherwise, it will burn the hash board and control board when it is on power.

  • Page 7: Notes For Handling Of The Miner

    1.2. Notes for handling of the miner It is strictly forbidden to carry the power cable, data cable, power control cable and fan cable as the load-carrying handle of the miner and power supply in the process of moving and installing the miner. Otherwise, the connection will be damaged, the cable is loose, and the control board is physically damaged beyond the endurance.

  • Page 8: Reference Network Diagram Of Miner

    2.2. Reference network diagram of miner 3. Miner data configuration (configuration on webpage) 4.1. Query the dynamic IP address obtained by the miner 4.1.1. Run the WhatsMinerTools software First run whatsminertools software on the PC (PC and miner must be in the same network segment), choose "detect IP"...

  • Page 9: Check The Ip Address Of The Miner

    4.1.2. Check the IP address of the miner. (1) The Miner is powered on after about 30s, the yellow light of the network port is always on and the green light is flashing under normal circumstances. Press the IPFOUND button on the panel of the control board (long button) for 5s or more, The two LEDs on the right side will flash several times to indicate that the miner has broadcast the IP and MAC addresses to the network.

  • Page 10: Configure Static Ip (Optional)

    panel affixed with mac address bar code), the corresponding miner power off, and then re-install the control board to ensure that the control board buttons and lights are exposed in the hole, did not get stuck. 4.2. Configure static ip (optional) Change the miner's dynamic IP address to a planned static IP address.
  • Page 11 (2) After logging in the miner, select: Configuration-> interfaces, and into the network interface. (3) In "Interfaces", click "Edit" (4) In “Common Configuration”, the protocol chooses "Static address", then click "Switch protocol".

  • Page 12: Configure Ntp Server Address And Mine Pool & Miner Data

    (5) In the static address configuration interface, modify the IP address, mask, gateway, broadcast address, and DNS address to the actual planned addresses of the miner. Click "Save & Apply" in the lower right corner. Note: After save &apply, you need to enter the newly set static IP address to log in the miner.

  • Page 13: Mine Pools & Miner Configuration

    (2) In the cgminer configuration interface, miner factory default configuration of the four ntp server address, according to the mining farm situation, modify or add ntp server address for the local ntp server address. The default NTP server configuration is: -p 3.asia.pool.ntp.org -p 2.cn.pool.ntp.org -p 1.cn.pool.ntp.org -p0.cn.pool.ntp.org.
  • Page 14 Note: After the mine pool configuration is modified, the cgminer process must be restarted or the control board is restarted before the modified configuration becomes effective. (3) Restart cgminer to check whether the configuration changes take effect. In the miner interface, select: Status- > CGMinerStatus to enter the CGMiner's running state interface.

  • Page 15: Check The Running Status Of The Miner

    (4) After the configuration is saved, if cgminer is not restarted, you can reboot the control board to make the configuration take effect. In the system interface, click “Reboot”. In the reboot interface, click "Perform reboot" to confirm reboot. About half a minute after rebooting the miner, the miner system is running, the browser will automatically jump to the login screen.
  • Page 16 In/Out fan speed Total hash rate Hash rate of each hash board Effective chips of The highest temperature of each hash board each hash board Mine pool connection status Notes: (1) The order of the fan and hash board in the miner. In fan Out fan...
  • Page 17 (2) When the miner's wiring is correct and the network is normal, after the miner's power is on, the miner will start to automatically search the frequency. The frequency search test takes about 15 minutes and the formal mining will be conducted, this time is normal hash rate.

  • Page 18: Configure Miner In Batches, Check Status, Upgrade Firmware

    6. Configure miner in batches, check status, upgrade firmware You can use WhatsMinerTool software batch configuration, status checking, firmware upgrade, detailed operation, see "WhatsMinerTool Operating Guide"...
