83-2052 LENS (ONLY)
12
18
ITEM PART
NO.
NO.
DESCRIPTION
1
20-3699
SOC. HD. CAP SCREW,
●
10-24 x 1 IN. LONG
2
20-4456
LOCKNUT .......................................... 1
3
33-190
PIN,
1/8 IN. x 1/2 IN. LONG
♦
4
72-337
NUT, SWIVEL ..................................... 1
5
73-50
NIPPLE D.M. ...................................... 1
6
83-1355
GAUGE,
5–100 PSI
7
84-40
CONNECTOR ..................................... 1
8
84-321
BONNET ............................................ 1
9
84-322
SCREW .............................................. 1
♦
10
84-323
WASHER ........................................... 1
♦
11
84-324
STEM ................................................. 1
♦
12
84-325
STEM ASSEMBLY .............................. 1
♦
13
84-326
FOLLOWER ....................................... 1
♦
14
84-603 †
DISC ................................................... 2
15
84-330 †
DIAPHRAGM ..................................... 1
Tighten all flange screws securely BEFORE installing regulator.
●
For remote control only. Not furnished. Please order separately.
Remove from regulator when converting from manual to remote control.
♦
†
Also available in Repair Kit 6-529. Please order separately.

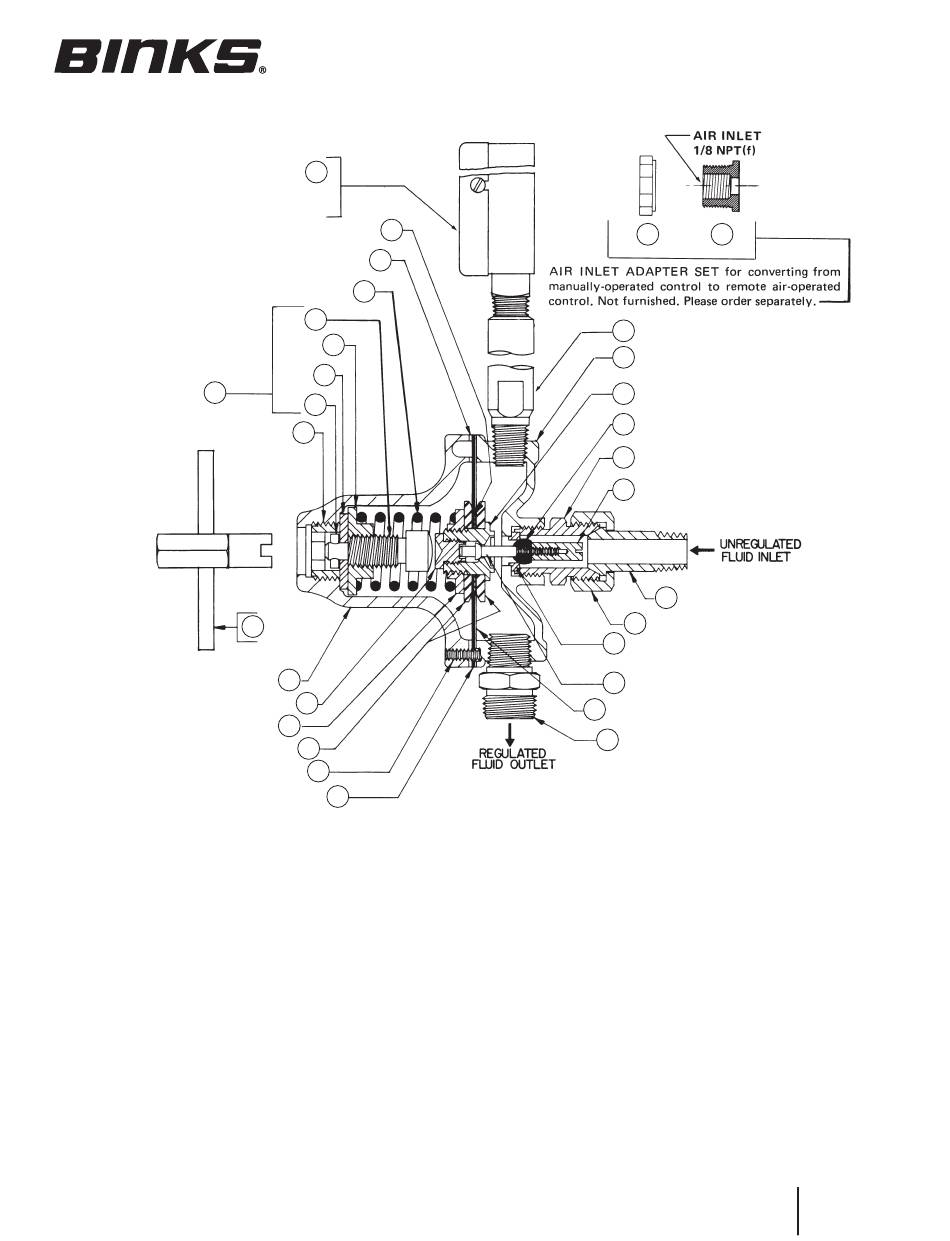

Binks Model 84-411
Fluid RegulatoR
6
22
**
27
25
11
13
10
3
9
8
21
16
14
**
1
*
15
**
PARTS LIST
When ordering, please specify Part No.
QTY.
............................. 6
..................... 1
............................... 1
(
5 – 100 PSi)
2
7
19
28
**
30
20
31
17
4
29
23
24
**
5
ITEM PART
NO.
NO.
DESCRIPTION
16
84-331
NUT ................................................... 1
17
84-338
TAILPIECE .......................................... 1
18
84-340
KEY ................................................... 1
♦
19
84-344
BODY ................................................ 1
20
84-347
INLET ................................................. 1
21
84-354
SOCKET ............................................. 1
22
84-388 †
GASKET ............................................. 1
23
84-395
ROD ................................................... 1
24
84-399 †
DIAPHRAGM ..................................... 1
25
84-452
SPRING .............................................. 1
♦
26
84-460
BODY ................................................ 1
27
84-463 †
GASKET ............................................. 1
28
84-467 †
RETAINER .......................................... 1
29
84-468 †
SEAT .................................................. 1
30
84-469 †
VALVE ............................................... 1
31
84-470
CAP ................................................... 1
26
* Item to be torqued to
35–45 in-lbs
** Items to be torqued to
150–160 in-lbs
QTY.
Replaces
Part
Part Sheet
Sheet
77-2011R-3
77-2011R-4
