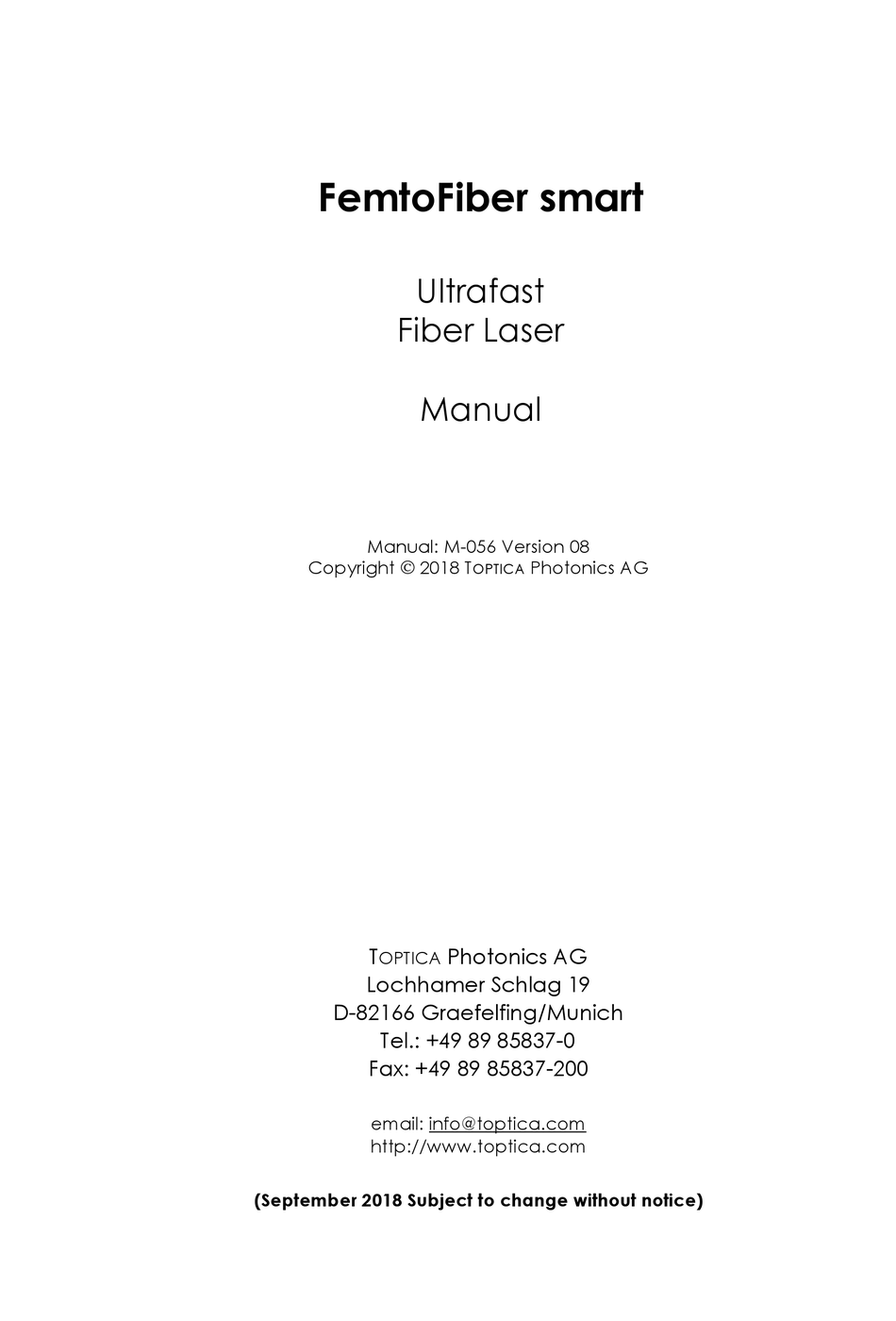

FemtoFiber smart
Fiber Laser
Manual: M-056 Version 08
Copyright
T
OPTICA
Lochhamer Schlag 19
D-82166 Graefelfing/Munich
Tel.: +49 89 85837-0
Fax: +49 89 85837-200
email: info@toptica.com
http://www.toptica.com
(September 2018 Subject to change without notice)
Ultrafast
Manual
2018 T
Photonics AG
OPTICA
Photonics AG
