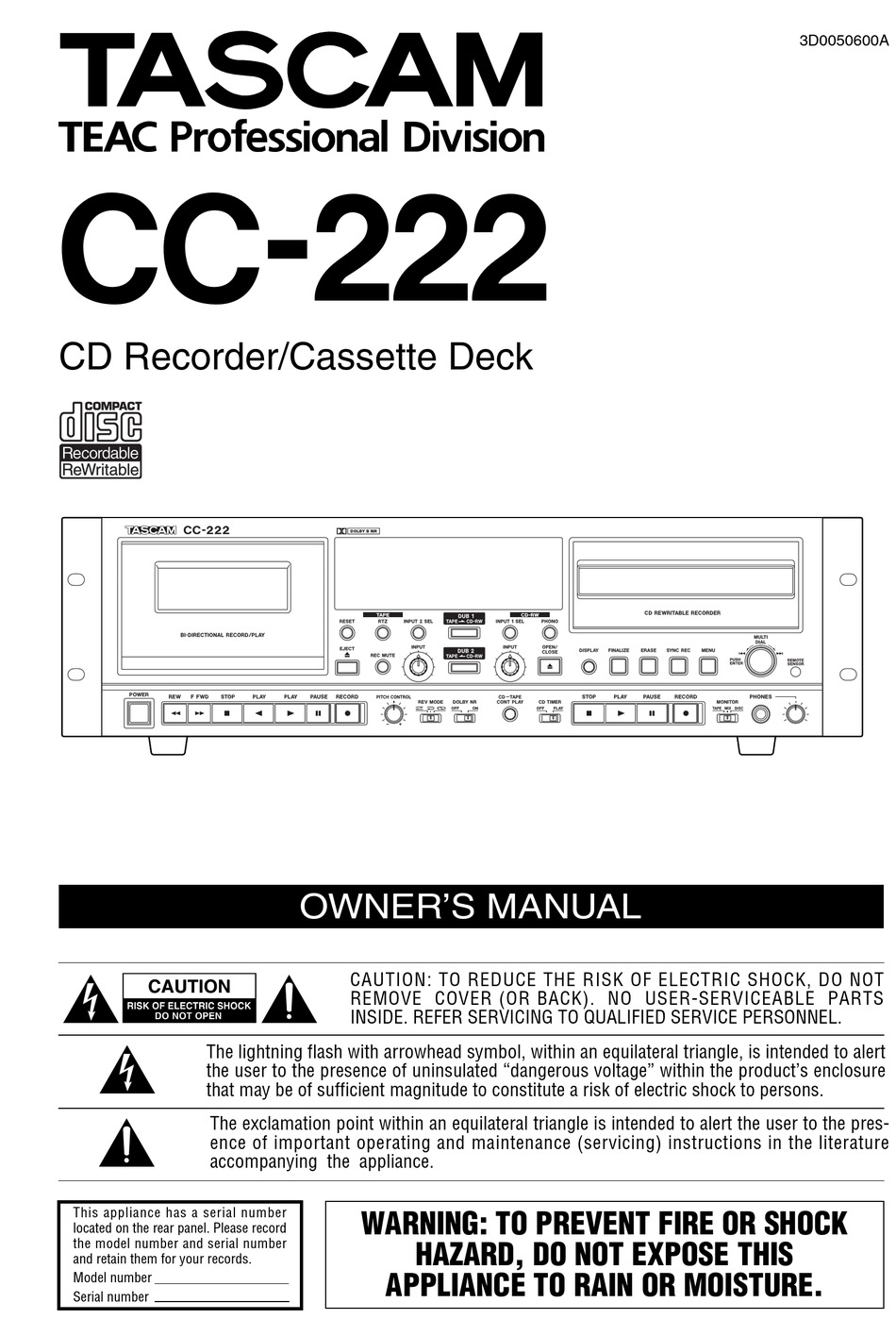

CC-222
CD Recorder/Cassette Deck
Ü
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
ÿ
the user to the presence of uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the pres-
Ÿ
ence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
This appliance has a serial number
located on the rear panel. Please record
the model number and serial number
and retain them for your records.
Model number
Serial number
OWNER'S MANUAL
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
3D0050600A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tascam CC-222
Summary of Contents for Tascam CC-222
- Page 1 CC-222 CD Recorder/Cassette Deck Ü The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert ÿ the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
-
Page 2: Important Safety Precautions
QUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND. TASCAM CC-222 Owner’s Manual For U.S.A TO THE USER This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Important Safety Instructions
24) Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. TASCAM CC-222 Owner’s Manual ANTENNA LEAD IN WIRE... -
Page 4: Safety Information
RESULT IN HAZARDOUS RADIATION EXPOSURE. - IF THIS PRODUCT DEVELOPS TROUBLE, CONTACT YOUR NEAREST QUALIFIED SERVICE PERSONNEL, AND DO NOT USE THE PRODUCT IN ITS DAMAGED STATE. TASCAM CC-222 Owner’s Manual Optical pickup: Type : KRS-202A or KRS-220B Manufacturer : SONY Corporation Laser output : Less than 0.1 mW (Play) and 32 mW... -
Page 5: Table Of Contents
Specifications ... 39 CD recorder section ... 39 Cassette recorder section ... 39 Phono input and headphones ... 40 Dimensional drawing ... 41 Tape maintenance ... 41 Cleaning the tape path ... 41 Demagnetizing heads ... 41 TASCAM CC-222 Owner’s Manual... -
Page 6: Introduction
222 remote control unit packed with the unit. Only use this remote control unit with the CC-222. Some notes and precautions Treat the CC-222 as you would any other piece of precision equipment. Avoid exposing it to extremes of temperature and humidity and avoid mechanical shocks and vibration. -
Page 7: Rack-Mounting The Unit
When transporting the unit, always use the original packing materials. For this reason, we strongly recom- mend that you save all the packing materials that came with the CC-222, in case you need to transport it in the future. In addition, when transporting the unit, you should tape the disc tray closed, using an adhesive tape that will not spoil the finish of the unit. -
Page 8: About Cd-R And Cd-Rw Discs
CD-RW disc may not play back satisfactorily on every audio CD player. It will, naturally, be play- able on the CC-222. This is in no way a limitation of the CC-222 itself, but of the difference between the different types of media and the methods used to read them. -
Page 9: Handling Of Compact Discs
LP cleaning fluid, as these will damage the disc. • If you are in any doubt as to the care and handling of a CD-R disc, read the precautions supplied with the disc, or contact the disc manufacturer directly. TASCAM CC-222 Owner’s Manual... -
Page 10: Recommended Media
Never use a disc that has had a stabilizer mounted to it. The residual adhesive may cause the disc to stick to the mechanism of the CC-222. If it sticks to the mechanism, you will need a technician to get it out. - Page 11 Note that it has no effect during automatic tape-to-disc dubbing if the menu item bypassing the volume during dubbing is set to “through”. TASCAM CC-222 Owner’s Manual Returns the tape to the zero position. Repeated presses of this , and >...
-
Page 12: 2 - Features And Controls-Rear Panel Features
This three-position switch allows the choice of single-side or bidirec- Rear panel features The CC-222 line analog inputs and outputs all oper- ate at the –10dBV level. For details of input and out- TASCAM CC-222 Owner’s Manual tional playback and recording (Ä or Ê), or (ä) continuous playback only (not recording). -
Page 13: Remote Control Features
RIAA PHONO INPUT (L, R) and GND terminal Use these connectors to connect a record deck to the CC-222. The destination of the signal is determined by a menu item. Connect the earth (grounding) wire of the record deck to the... - Page 14 MULTI DIAL L Number keys (0 through 10, +10, and CLEAR) Used for entering track numbers for disc playback. TASCAM CC-222 Owner’s Manual M SEARCH keys Used for “fast forward” and “fast reverse” through a disc. N SKIP keys Perform the same functions as...
-
Page 15: Cassette Operations
(the disc will not be heard through these out- puts). Disc playback is always through the LINE OUTPUTS 1 jacks. TASCAM CC-222 Owner’s Manual key to open the cassette EJECT key to start playback. -
Page 16: Recording Operations
21). Leave the disc in stop mode when you have finished programming the order. Press the key. DUB 2 TASCAM CC-222 Owner’s Manual Set the Dolby NR system on or off. other pub- Press the record pause mode (the display indicators light). -
Page 17: Dubbing To Tape From The Middle Of A Cd
(or press the Start playback of the record. on the ENTER Start recording with either the PLAY or PAUSE key. TASCAM CC-222 Owner’s Manual key of the cassette deck or the CD key. Playback starts on the DUB 2 . The indica-... -
Page 18: Other Recording Features
(higher pitch) and turning it to the left of the center position results in slower tape TASCAM CC-222 Owner’s Manual tape is not loaded or the tape is write-protected (the phono to tape function is disabled with no recordable tape inserted), or the tape is not either stopped or in record ready mode. -
Page 19: Fast Forward And Rewind
Also note that this function can be “confused” by the presence of longer quiet or select passages in programs (e.g. spoken word drama or classical music). TASCAM CC-222 Owner’s Manual... -
Page 20: Cd Player
4 – CD player The CC-222 can be used to play back CDs (including CD-R and CD-RW discs that have been recorded and finalized on other types of recorder), as well as CD-R Simple playback operations 1 Press the key to open the disc OPEN/CLOSE tray. -
Page 21: Playback Modes
STOP If the key is used, when playback is restarted, STOP it starts from the first program step. TASCAM CC-222 Owner’s Manual display indicator lights RANDOM (see “Programmed order playback” display indi- PROGRAM... -
Page 22: Repeat Play
The first 10 seconds of each track on the disc will be played. Press to stop this play- STOP back process. TASCAM CC-222 Owner’s Manual until the The programmed play order is not memorized when power is turned off. STOP... -
Page 23: Auto Spacing
If you press the AUTO SPACE key while playback is taking place, and the auto space function is enabled, the auto space function is then cancelled. TASCAM CC-222 Owner’s Manual... -
Page 24: Recording Cds
RECORD Frequency conversion The sampling frequency for CDs is 44.1 kHz. The CC-222 will always record (and play back) CDs at this frequency. TASCAM CC-222 Owner’s Manual • You can add tracks to an unfinalized recordable disc. -
Page 25: Basic Recording
(more than 1% away from the stan- dard), the CC-222’s internal frequency converter will automatically convert the incoming frequency to 44.1 kHz. Basic recording NOTE According to the “Red Book” (the specification for... -
Page 26: Playing Back Tracks
5 – Recording CDs—Basic recording Playing back tracks Although an unfinalized disc cannot be played back on an ordinary CD player, the CC-222 can play back tracks that have been recorded. Time display while recording While a recordable disc is being played back, the four time display modes available in normal play- back as described in , “Time display modes”:... -
Page 27: Dubbing From Tape To Disc
If the display does not show , turn the MULTI DIAL keys on the remote control) until it does SKIP and press the MULTI DIAL TASCAM CC-222 Owner’s Manual and use the INPUT 1 (or press the on the ENTER... -
Page 28: Advanced Recording
(-60, -66 and -72 are only for digital). Low numerical values of this setting (towards –24) mean that it takes a louder signal to trigger the start TASCAM CC-222 Owner’s Manual RECORD key, which can therefore not be used for manual track increments (“Manual track division” on page 26). -
Page 29: Using The Trigger Level
“noise floor” (the base level of hiss, pops and crackles which may come from an older vinyl recording, for example). TASCAM CC-222 Owner’s Manual CD stop REC pause seconds... -
Page 30: Synchronized Recording
When recording in sync mode, you may notice a slight starts delay between starting the source, and the CC-222 responding. This is due to the way in which the unit works, storing the data in a memory buffer before writ- ing it to the disc. -
Page 31: Automatic Track Division
When the final track of the first album has been keys to SKIP recorded, the unit automatically performs the PMA writing procedure and enters stop mode. TASCAM CC-222 Owner’s Manual Track incremented time Long "pause" in signal, but track is not... -
Page 32: Digital Direct
5 – Recording CDs—Advanced recording Digital direct As mentioned earlier, the digital direct mode bypasses some of the input circuitry of the CC-222 (the frequency convertor and the digital level control) to write directly to the disc. To enable or disable digital direct recording:... -
Page 33: Copy-Protection
The fade-in and fade-out times can be reset to new values while recording is in progress. Copy-protection The CC-222 allows copy-protection to be applied to the discs produced. Naturally, the copy-protection applies only to digital-to-digital copies. There are three settings: •... -
Page 34: After Recording
“refresh” a disc. TASCAM CC-222 Owner’s Manual can be “unfinalized” using the CC-222, that is, their TOC can be deleted, and if there is space, further material can be recorded on them. Even if the disc is full, tracks can be erased following the unfinalize process, and new material can be recorded. -
Page 35: Erasing Tracks
Turn the until the display shows To refresh the disc, press the ENTER TASCAM CC-222 Owner’s Manual or the MULTI DIAL flashes on the display, and the appears briefly on the display, flashes on the display, and the... - Page 36 If the refresh operation has been selected, the words are shown on the TASCAM CC-222 Owner’s Manual display, and the timer starts counting down At the end of the countdown period, the word appears briefly on the display,...
-
Page 37: Reference And Specifications
Appears only with CD-R discs. The OPC area is full, and no further recording is possible on this disc. Finalize the disc. Seen when a CD-RW disc OPC area is full, and the CC-222 automatically cleans up the OPC area for further recording. -
Page 38: Menu Items
RESET RESET TASCAM CC-222 Owner’s Manual Possible cause and remedy Error in the CD tray mechanism. Error in the CD drive mechanism. Turn the... -
Page 39: Specifications
4.76 cm/s (1 7/8 ips) DC servo motor (x 1) 0.19% (W. RMS) 50Hz — 12.5kHz ±3dB (high position) 50Hz — 10kHz ±3dB (normal) 46dB (Dolby NR off) 52dB (Dolby NR on) About 120 seconds (C-60) TASCAM CC-222 Owner’s Manual... -
Page 40: Line Inputs
Voltage requirements Power consumption Applicable electromagnetic environment Peak inrush current Dimensions Weight Operating temperature Supplied accessories TASCAM CC-222 Owner’s Manual Unbalanced RCA Nominal input level 0.28V (–11 dBV) 50 kΩ Unbalanced RCA 0.46V (–6.7 dBV) 50 kΩ Unbalanced RCA (with ground) MM (moving magnet) 5.6mV... -
Page 41: Dimensional Drawing
270 mm (10.6") For details of its use, read the instructions supplied with the demagnetizer and make sure you understand them thoroughly before attempting this operation. Pinch Roller Capstan Erase Head Record/Play Head TASCAM CC-222 Owner’s Manual 10 m (0.4... - Page 42 Phone: (03) 9672-2400 Facsimile: (03)9672-2249 TEAC ITALIANA S.p.A. Phone: 02-66010500 » CC-222 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Campesinos No. 184, Colonia Granjes Esmeralda, Delegaacion Iztapalapa CP 09810, Mexico DF 5 Marlin House, Croxley Business Park, Watford, Hertfordshire. WD1 8TE, U.K.
