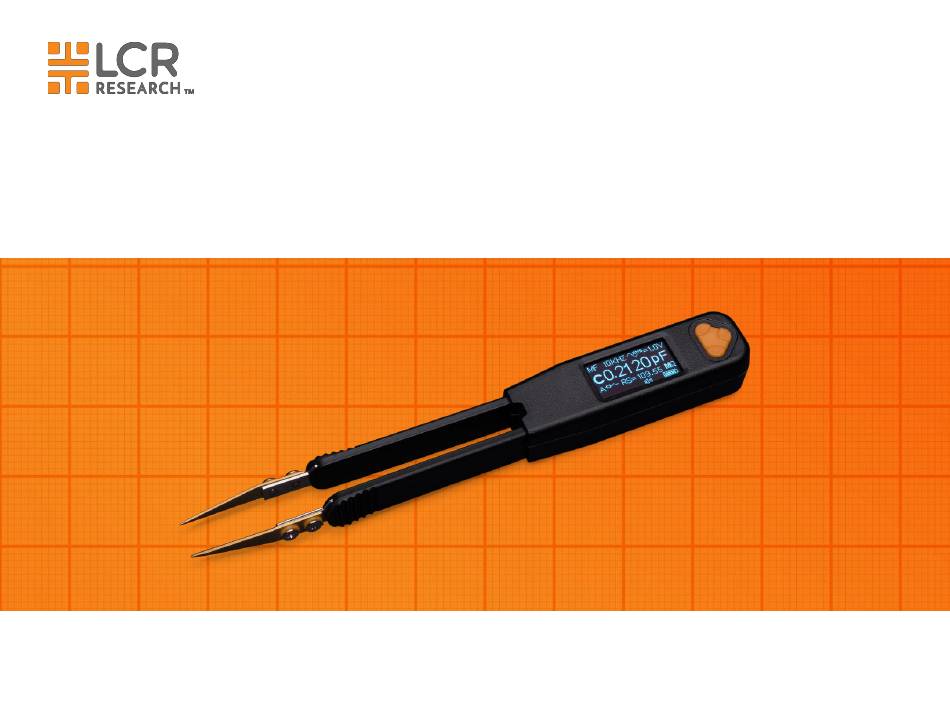

- Page 1 LCR Pro1 / LCR Pro1 Plus Introduction and Application Guide Made in Canada rev1.6...
- Page 2 A Highly Integrated Device The LCR Pro1 integrates a pair of tweezers like probes and a LCR meter into one compact, lightweight, battery powered device. It is an all-in- one miniature device that provides a simple and efficient solution for not only measuring SMD components, but also making in-circuit debugging.
- Page 3 • Wide measurement range –R: 20mΩ to 10MΩ; C: 0.2pF to 10mF; L: 10nH to 1H (for Pro1) –R: 20mΩ to 10MΩ; C: 0.2pF to 10mF; L: 1nH to 1H (for Pro1 Plus) • 5 test frequencies – 100Hz, 120Hz, 1kHz, 10kHz, 100kHz •...
- Page 4 Pro1 Plus Key Features • Automatic LED testing – Display LED polarity, voltage and current • Ultra sensitivity to very small inductors – Be able to sense inductors down to 1nH. • All Pro1 features – Please see page 3 for details.
- Page 5 A Breakthrough in Accuracy The Pro1 delivers high accuracy once found only in high-end desktop LCR meters. It provides basic accuracy 0.1% for resistance and 0.2% for capacitance and inductance with 5-digit resolution. Each device is fully calibrated on production and shipped with NIST (National Institute of Standards and Technology) traceable calibration certificate.
- Page 6 • Significantly improves the accuracy for very small inductors, which are from a Pro1 measures couple of nHs to hundreds of nHs. – This is a very important advantage of the Pro1 100nH inductor: as these small inductors are widely used in Accuracy: 1.3%...
- Page 7 Ultra-Precise Tips The redesigned gold-plated tips are more precise than ever. You can use them to pick up and measure SMD components quickly and reliably, even for the most tiny parts with 01005 size. Thanks to the sharp tips, you can easily reach the component under test without touching the adjacent components during in-circuit troubleshooting even in a very...
- Page 8 Handy Shortcuts The Pro1 is full of handy shortcuts to help you switch all kinds of parameters faster and easier. During the measurement, you can quickly select Up button different settings by single clicking, double clicking or holding the navigation button.
- Page 9 PC Communication The Pro1 is able to make measurement and charge battery simultaneously when it connects to PC via the LCR Link1, a USB dongle style communication module. The Link1 is built with a fully integrated isolation technology for delivering power and data safely and blocking the noise from PC effectively.
- Page 10 The LCR Data Logger is an easy-to-use Windows based software that is downloadable for free from our website. It provides an intuitive user interface on PC to remote control the Pro1 that is connected to PC via the LCR Link1. It configures the Pro1 parameters and logs the measurement results to an Excel spreadsheet.
- Page 11 How it works: Visual measurement is a unique feature that indicates the test points on the picture of the board you are testing. When running visual measurement, LCR Data Logger displays both GUI and PCB picture. It can: Automatically set up device parameters for each component for testing.
- Page 12 PCB View in LCR Visual Measurement Component has already been tested: • Filled with green color indicates the result is PASS (red if FAIL). • Component designator (R10) is also display. Component hasn’t been tested yet: • Filled with yellow color indicates this component hasn’t been tested yet.
- Page 13 GUI View in LCR Visual Measurement DataView table: • Record PASS or FAIL. • Record test parameters (designator, reference value, test voltage, test frequency, etc). •Record test results. Test results for current component: • Showing PASS or FAIL. • Showing results (actual reading, reference value, error percentage).
- Page 14 Compare Pro1 Plus, Pro1 and Elite1 rev1.6...
- Page 15 Where to Follow-up? LCR Product List: • LCR Pro1: high end LCR meter • LCR Elite1: low end LCR meter • LCR Link1: PC communication dongle • LCR Data Logger: Windows-based software for data logging and programming To learn a little more about our products, please check out our website www.lcrresearch.com...
