Summary of Contents for AJA OG-UDC

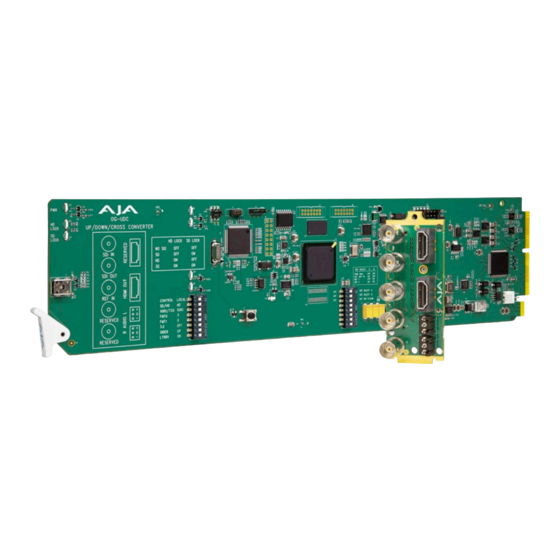

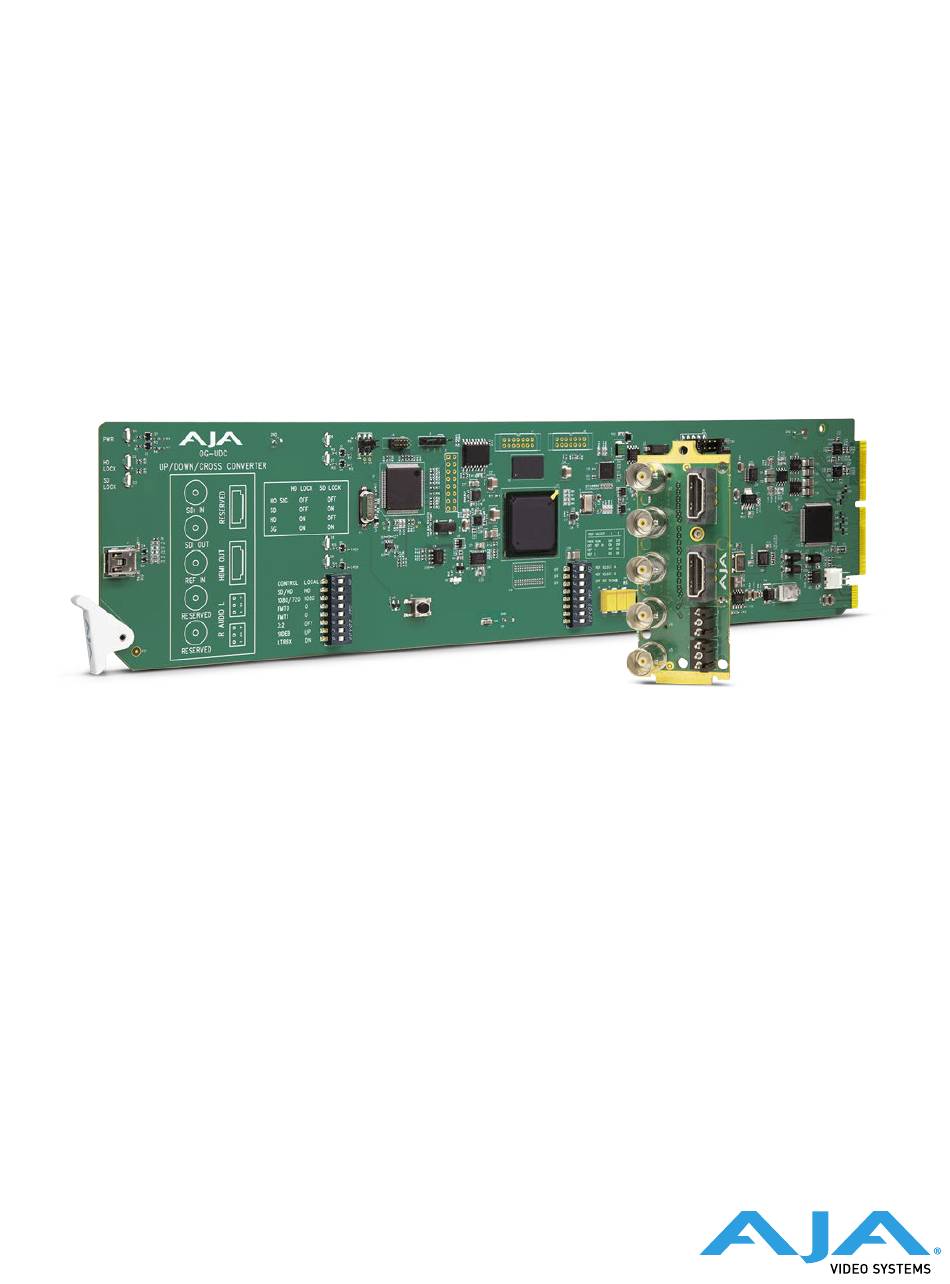

- Page 1 OG-UDC 3G-SDI Up, Down, Cross-Converter Installation and Operation Guide Version 1.0 Published July 10, 2018...
-
Page 2: Notices
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. -
Page 3: Table Of Contents
OG-UDC Tech Specs........29... -
Page 4: Chapter 1 - Introduction
PC or local network. Video Formats The OG-UDC does not convert frame rates—it works with the input frame rate. The only exception is a 3:2 function where 23.98 is converted to 29.97 (and 24 is converted to 30). If a reference is provided, it must be in the same frame rate hierarchy as the input video (e.g., 23.98/29.97/59.94, 25/50, or 24/30/60). -
Page 5: Block Diagram
• Rear I/O Card Included • Use with openGear 2RU frames including AJA's OG-3-FR frame • Five year warranety NOTE: OG-UDC converts 3G-A formats only. It does not input or output 3G-B. Block Diagram Figure 1. OG-UDC, Simplified Block Diagram... -
Page 6: I/O Connections
Each 3-pin analog audio connector carries one channel of analog audio output. Signal Indicators on the OG-UDC Card Located at the upper front area of the OG-UDC card, the HD Lock and SD Lock LEDs work in combination to indicate the type of signal detected. - Page 7 Card State and a green Signal State under the Status tab. The SDI Signal Type is also indicated (for example, "3G-SDI"). NOTE: Alarms always show the highest priority alarm first. When that alarm condition is resolved, the next alarm/warning condition will display, etc. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
-
Page 8: Conversion Mode Discussion And Examples
Conversion Mode Discussion and Examples Upconvert Mode The OG-UDC allows you to select the type of Upconversion performed on an SD source input. This mode is in effect only when the input is SD (525i or 625i) and the selected output format is HD (720p, 1080i, or 1080p). -
Page 9: Downconvert Mode
Downconversion examples. This mode is in effect only when the input is HD (720p, 1080i, or 1080p) and the selected output format is SD (525i or 625i). Figure 5. Downconvert Mode Example Downconvert Illustrations 16:9 Downconverts To These displays on 4:3 Letterbox Crop Anamorphic 14:9 OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com... -
Page 10: Sd Aspect Ratio Convert
In the OG-UDC Downconverter, the AFD code on the video input can be used to guide the Downconverter in choosing which mode to use to best display the important content of the16:9 HD input video on the 4:3 SD output. -
Page 11: User Controls
• 14:9–Converts 16:9 Anamorphic video to 14:9 Cropped video. User Controls The OG-UDC can be inserted right out of the box into an openGear frame and immediately be used for many applications, since it is designed to recognize inputs and perform standard actions automatically. However, you can also manually configure the OG-UDC using either of two methods: •... -
Page 12: Dip Switches
• Install the Rear Panel onto the back of the frame corresponding to the slot pair you will be using for the OG-UDC card. • Insert the OG-UDC card into the frame in the right (even numbered) slot of the pair. -
Page 13: Rear Og-Udc Card Installation
2. Locate the card frame slot on the rear of the openGear frame into which you wish to install the openGear card. NOTE: An OG-UDC card occupies two slots in the frame. 3. Using a Phillips screwdriver, unscrew the top screw from the desired blank rear plate and remove the rear plate. -
Page 14: Front Og-Udc Card Installation
The slots are numbered starting from the left-most slot when facing the frame front. IMPORTANT: OG-UDC cards are installed into the right (even numbered) slot of the pair in order to connect with the rear panel. 4. Fully insert the card into the frame until the card is properly seated in the Rear Card. - Page 15 3. After you have secured the wiring for each WECO mating audio connector, connect them to the audio output connectors on the rear panel of the OG-UDC. 4. Add tie wraps around the audio connectors for strain relief. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
-
Page 16: Chapter 2 - Operation
PC or Mac networked to an openGear frame. Using DIP Switches to Control the OG-UDC The OG-UDC has two sets of DIP switches. The first set is used for general configuration. The second set is used only for Reference selection. See... -
Page 17: Reference Selection Dip Switches
Right Right 1080p 23.98/24/25/29.97/30 Left Right Left 720p 50/59.94/60 Left Right Right Right 525i/625i Reference Selection DIP Switches The Reference DIP switch module located on the right is used only for Reference selection. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com... -
Page 18: Using The Dashboard Control System
• Ethernet connection betweeen the controlling computer and the openGear frame NOTE: The openGear frame ships from AJA with the MFC-8322-S Frame Controller card for controlling the new AJA DashBoard cards. The openGear frame also supports the MFC-0G3-N Advanced Networking Frame Controller card, which can be used to control compatible OG cards. -
Page 19: Card Tab Screen
Figure 14. Main Sections of the DashBoard User Interface Basic Tree View of Card Information Parameter Frames and Cards and Status Controls Card Tab Screen Figure 15. OG-UDC Card Tab Screen in DashBoard OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com... -
Page 20: Status Tab Screen
Status tab screen report their current setting. Video Tab Screen Figure 17. OG-UDC Video Tab Screen in DashBoard The Video tab screen is where you can configure OG-UDC video inputs and outputs. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0... - Page 21 Determines the mode when converting from HD input video to an SD output video format. Note that this selection is only used when the OG-UDC module is in Remote mode (DIP switch #1). In Local mode, the upconvert mode is determined by DIP switch #8.
-
Page 22: Hdmi Tab Screen
Determines what action is taken when input video is lost. These are the choices: Black (default) - The output goes to black. Freeze - The output freezes on the last good frame. HDMI Tab Screen Figure 18. OG-UDC HDMI Tab Screen in DashBoard OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com... - Page 23 The OG-UDC automatically selects the mode based on getting the attached HDMI device's EDID information. This is the recommended setting. SMPTE - The OG-UDC scales the output video level to 8-bit range 16 - 235 (10-bit 64 - 940) regardless of the attached device's EDID. Full Range - The OG-UDC scales the output video level to 8-bit range 0 - 255 (10- bit 0 - 1023) regardless of the attached device's EDID.
-
Page 24: Audio Tab Screen
Audio Tab Screen Figure 19. OG-UDC Audio Tab Screen in DashBoard The Audio Tab Screen is where you can configure OG-UDC HDMI and analog (RCA-style) audio output channels. There is no DIP switch equivalent for these controls. The setting is saved in nonvolatile memory in the module and used for all subsequent operation. -
Page 25: Setup Tab Screen
Figure 20. OG-UDC Setup Tab Screen in DashBoard Card Name By default, this field is pre-populated with the card name OG-UDC. You can change the card name by editing the text in the Card Name field. Reference Source Select which source you want to use for Reference. -
Page 26: Upload Screen
Upload Screen To Upload New Software 1. Check the AJA website for new software for your OG-UDC. If new software is found, download it and uncompress the file archive (zip). 2. Click the Upload button in the lower panel of the DashBoard Control System to open the Upload Software Wizard. -
Page 27: Rebooting
"Complete," click OK. 7. To verify the version of software or firmware currently installed on your card, select the Card tab from the center panel of DashBoard. Figure 23. OG-UDC Card Tab Screen in DashBoard indicating the currently installed software version. Rebooting Rebooting is a standard function built in to the DashBoard Control System, and should only be performed if the board has become unresponsive. - Page 28 The card will be offline for a few seconds, and any current conversion operations will be interrupted. 3. Following a Reboot operation, the board configuration will return to the settings that were in place at the time of rebooting. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
-
Page 29: Appendix A - Specifications
• (HD) 720p 59.94 (for 23.98, 59.94 video inputs) • (HD) 720p 60 (for 24, 30, or 60 video inputs) • (SD) 625i 50 (for 25 or 50 fps video inputs) • (SD) 525i 59.94 (for 23.98 or 59.94 video inputs) OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com... - Page 30 • Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet) OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
-
Page 31: Appendix B - Safety And Compliance
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com... - Page 32 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
- Page 33 Translated Warning and Caution Messages The following caution statements, warning conventions, and warning messages apply to this product and manual. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
- Page 34 (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
- Page 35 Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo, esta deve manter-se prontamente acessível e funcional. Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
- Page 36 Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é utilizado durante longos períodos de tempo. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore, quali il treppiedi e l'esoscheletro. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
- Page 37 Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
- Page 38 Cuidado! Para atender aos regulamentos de segurança para correntes de fuga, conecte as fontes duplas a circuitos elétricos separados. Attenzione! Per soddisfare le norme di sicurezza sulla corrente di perdita, collegare i doppi alimentatori a circuiti derivati separati. OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
- Page 39 Para reducir el riesgo de descarga eléctrica, desconecte ambos cables de alimentación antes de dar servicio al equipo. Caution! The OG-UDC front fan door is heavy. Remove with Caution. Attention! La porte du ventilateur avant OG- 3 - FR est lourd. Retirer avec précaution.
-
Page 40: Warranty And Liability Information
AJA Video, with shipping charges prepaid. AJA Video shall pay to return the product to Customer but only if to a location within the country in which the AJA Video service center is located. -
Page 41: Limitation Of Liability
No amendment to or modification of this warranty will be binding unless in writing and signed by AJA Video. The laws of the State of California, USA will govern this warranty and any dispute arising from it. Any translation of this... -
Page 42: Index
HDMI Tab Screen 22 Installation 12 Cabling 14 Front Card Installation 14 Rear Card Installation 13 WECO audio mating connectors I/O Connections 6 Loss of Input 22 openGear and AJA 5 Operation 16 OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 www.aja.com...
