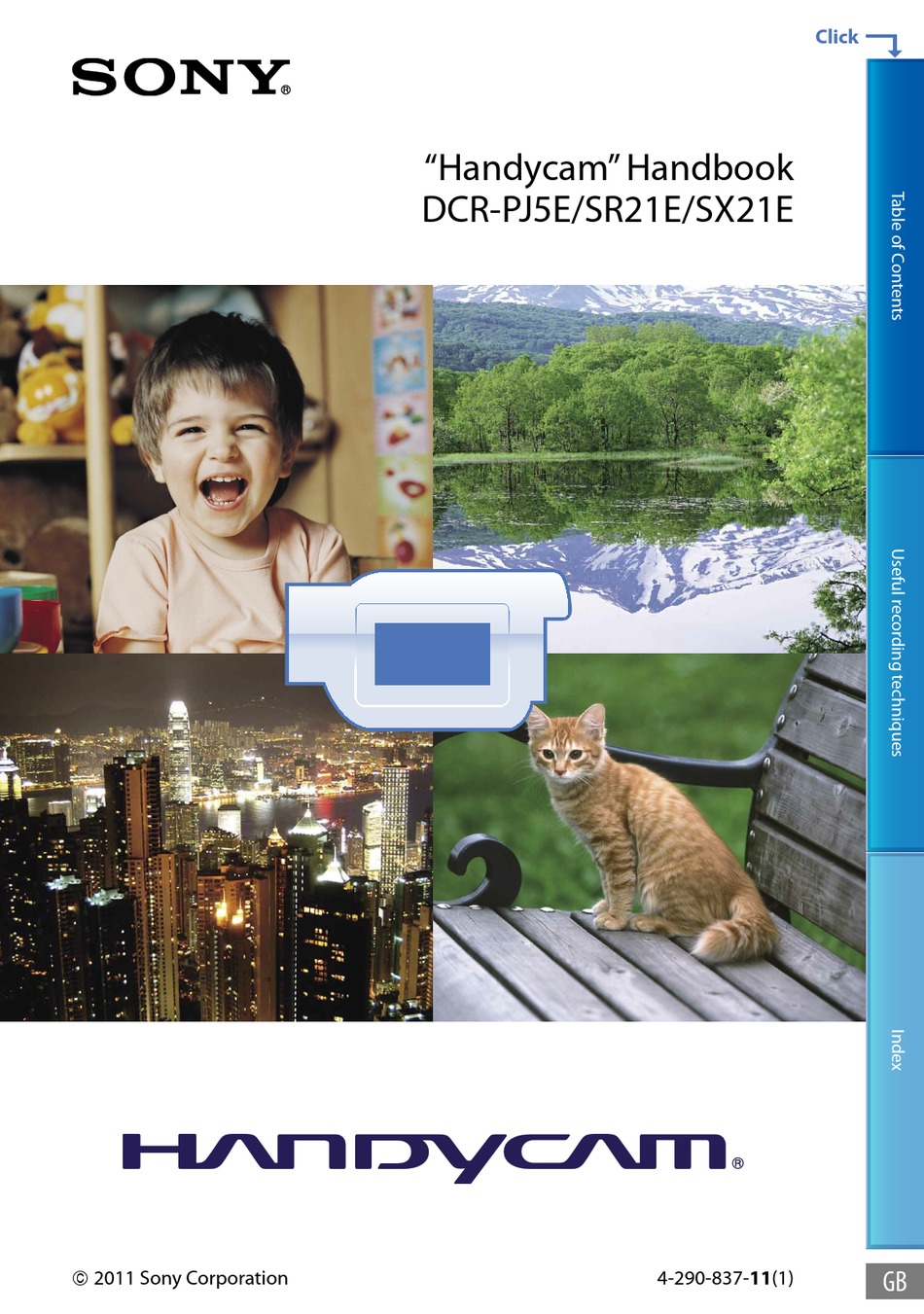

Using the “Handycam” Handbook You will find information on using your camcorder to its fullest in this “Handycam” Handbook. Read the “Handycam” Handbook in addition to the Operating Guide (a separate volume). Information on using your camcorder connected to a computer will also be found in the Operating Guide and the “PMB Help”...
See page 19 for the memory card you can use with this camcorder. Using the camcorder Do not hold the camcorder by the following parts, and also do not hold the camcorder by the jack covers. LCD screen Battery pack The camcorder is not dustproofed, dripproofed ...
FORMAT] (under [MANAGE MEDIA] category) the desired medium (DCR-SR21E) [YES] [YES] Notes on optional accessories We recommend using genuine Sony accessories. Availability of such products is subject to country/region. About images, illustrations, and screen...
When using a shoulder belt (sold separately), do not crash the camcorder against an object. Do not use your camcorder in very loud areas (DCR-SR21E). On the drop sensor (DCR-SR21E) To protect the internal hard disk from shock ...
Expected recording time (MEDIA INFO, p. 73) Shooting photos p. 23 Playing movies and photos Playback on the camcorder p. 28 Playing images on a TV p. 36 Saving images Saving movies and photos with a computer Saving movies and photos in external media ...
Advice for successful recording To get good results in recording Stabilizing your camcorder When you hold the camcorder, keep your upper body upright, and hold your arms close to your body. The SteadyShot function is effective against camera-shake, however, it is essential that you not move the camcorder.
Page 8
Useful recording techniques Capturing images beautifully without troublesome setting INTELLIGENT AUTO (25) Flowers in close-up PORTRAIT (65) TELE MACRO (67) Checking your golf swing SPORTS (65) Recording in a dimly-lit room VIDEO LIGHT (26) Capturing fireworks, or a sunset in all its splendor FIREWORKS (65) SUNRISE&SUNSET (65)
Step 1: Charging the battery pack DCR-SR21E Battery pack CHG (charge) lamp DCR-PJ5E/SX21E Battery pack You can charge the “InfoLITHIUM” battery pack (V series) after attaching it to your camcorder. DC IN jack DC plug AC Adaptor CHG (charge) lamp DC IN jack DC plug...
Page 13
See page 85 on recording and playing time. When your camcorder is on, you can check the approximate amount of remaining battery power with the remaining battery indicator at the upper left on the LCD screen. Charging time Approximate time (min.) required when you fully charge a fully discharged battery pack.
Remove the battery pack from your camcorder and put it in a cool place. In the default setting, the power turns off automatically if you leave your camcorder without any operation for about 5 minutes, to save battery power ([A.SHUT OFF], p. 75).
Step 2: Turning the power on, and setting the date and time Open the LCD screen of your camcorder. Your camcorder turns on. Select the desired geographical area by selecting multi-selector, keep pressing the center of the multi-selector until the desired geographical area is turned on a light.
Page 16
Select [NEXT] with of the multi-selector, then press the center of the multi-selector. Set the date and time by repeating the procedure below. Highlight the desired item with / of the multi-selector. Select the setting value with / of the multi selector, and press the center of the multi- selector.
Using the Multi-selector Multi-selector Turn the desired button on a light with /// of the multi-selector. Press the center of the multi-selector to confirm your selection. Changing the language setting You can change the on-screen displays to show messages in a specified language. (MENU) ...
Step 3: Preparing the recording media The recording media that can be used differs depending on your camcorder. The following icons are displayed on the screen of your camcorder. DCR-PJE/SX1E: Memory card DCR-SR1E: Internal hard disk In the default setting, both movies and photos are recorded on this recording media. You can perform recording, playback and editing operations on the selected medium.
Images recorded on SDXC memory cards cannot be played back or imported on non-exFAT * -compatible computers, AV components, etc., connected to this camcorder by USB cable. Check that the connected devices are compatible with exFAT beforehand. If you connect a device that is not compatible with exFAT, the screen for initialization may appear.
Page 20
Size of memory cards that can be used with your camcorder Only “Memory Stick Duo” media that is about a half the size of the standard “Memory Stick” media, and standard-sized SD memory cards can be used. Do not attach a label, etc., to a memory card or memory card adaptor. Doing so may cause a malfunction.
Recording/Playback Recording In the default setting, movies are recorded on the following recording media. DCR-PJ5E/SX21E: Memory card DCR-SR21E: Internal hard disk Tips See page 18 on changing the recording media (DCR-SR21E). To open the lens cover Slide the LENS COVER switch to open. Tips ...
The icons and indicators on the LCD panel will be displayed for about 3 seconds, then disappear after turning on your camcorder or switching the recording (movie/photo)/playback modes. To display the icons and indicators again, press the multi-selector. MODE button...
[ON] (p. 68), and record images using the outer frame displayed on the screen as a guide. STEADYSHOT] is set to [ON] in the default setting. To adjust the angle of the LCD panel, first open the LCD panel 90 degrees to the camcorder (), and then adjust the angle ().
Page 24
Press MODE until the The LCD screen display switches for photo recording mode, and the screen aspect ratio becomes 4:3. (Photo): When shooting a photo Press PHOTO lightly to adjust the focus, then press it fully. Tips See page 86 on the recordable number of photos.
(INTELLIGENT AUTO) By pressing , you can record images using the INTELLIGENT AUTO function. When you turn the camcorder toward the subject, recording will use the optimum combination of the face detection and the scene detection modes. When the...
[FOCUS] [TELE MACRO] STEADYSHOT] [BACK LIGHT] [FACE DETECTION] Notes INTELLIGENT AUTO is set to [OFF] when you set [ STEADYSHOT] to [OFF]. STEADYSHOT] is set to [ON] when you set INTELLIGENT AUTO to [ON]. Other items listed above are reset to their defaults.
In this case, press LIGHT repeatedly to select Recording in mirror mode Open the LCD panel 90 degrees to the camcorder (), then rotate it 180 degrees to the lens side (). Tips A mirror-image of the subject appears on the ...
DCR-SR21E: Internal hard disk Tips See page 18 on changing the recording media (DCR-SR21E). Open the LCD screen of your camcorder. Your camcorder turns on. Press (VIEW IMAGES). The VISUAL INDEX screen appears after some seconds. (Movie) () a desired movie () to play back a movie.
movie or photo with , you can continue playback from the previous time. ( appears on the photo recorded on a memory card.) Playing movies Your camcorder starts playing the selected movie. Volume adjustment Previous To stop To fast-reverse Tips ...
Page 30
Tips When viewing photos recorded on a memory card, (playback folder) appears on the screen. ...
Useful functions for playing movies and photos Searching for desired images by date (Date Index) You can search for desired images by date efficiently. Notes You cannot use the Date Index function for photos on the memory card. Press (VIEW IMAGES).
Select to select the desired movie. Select to search for the desired scene, then select the scene you want to play back. Playback starts from the selected scene. Tips You can also display the Film Roll Index by ...
Playing back a series of photos (Slide show) Select on the photo playback screen. The slide show begins from the selected photo. To stop the slide show Select To restart the slide show Select again. Tips You can set continuous slide show playback ...
To watch images recorded on other devices, using the projector Select (MENU) [Show others] [PROJECTOR] (under category). Select [SOURCE] [PROJECTOR INPUT] Connect the camcorder to other device with the A/V connecting cable. [OTHERS]...
Page 35
become hot while in use. Using the projector shortens battery life. If you connect the camcorder to a TV and use the projector function, sound will be output from the TV; however, no image will be output.
Playing images on a TV Connect your camcorder to the input jack of a TV or VCR using the A/V connecting cable (supplied). Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor for this operation (p. 14). Refer also to the instruction manuals supplied with the devices to be connected.
Page 37
When your TV is monaural (When your TV has only one audio input jack) Connect the yellow plug of the A/V connecting cable to the video input jack and connect the white (left channel) or red (right channel) plug to the audio input jack of your TV or VCR. If your TV/VCR has a 21-pin adaptor (EUROCONNECTOR) Use a 21-pin adaptor (sold separately) to view playback pictures.
Making good use of your camcorder Deleting movies and photos You can free media space by deleting movies and photos from recording media. Notes You cannot restore images once they are deleted. Save important movies and photos in advance.
Page 39
To delete all the movies/photos recorded on the same day at one time Notes You cannot delete photos on memory card by recording date. In step 2, select [ DELETE] DELETE by date]. To delete all photos on the same day at one ...
Protecting recorded movies and photos (Protect) Protect movies and photos to avoid deleting them by mistake. Tips You can protect movies and photos on the playback screen from OPTION MENU. (MENU) [Show Select others] [PROTECT] (under [EDIT] category).
A slight difference may occur from the point where you select point, as your camcorder selects the dividing point based on about half-second increments. If you divide the original movie, the movie ...
Capturing a photo from a movie (DCR- SR21E) (MENU) [Show Select others] [PHOTO CAPTURE] (under [EDIT] category). The [PHOTO CAPTURE] screen appears. Select the movie to be captured. The selected movie starts playback. Select at the point where you want to capture.
(MENU) [Show others] by selecting [REPAIR IMG.DB F.] (under MEDIA] category) [MEMORY CARD]. Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor to prevent your camcorder from running out of power during dubbing.
MEDIA SET] and play them back (p. 18). Copying photos You can copy photos from the internal recording media of the camcorder to memory card. Insert a memory card into your camcorder before the operation. Notes Connect your camcorder to the wall outlet ...
Notes Do not remove the battery pack or the AC Adaptor from your camcorder while adding movies to the Playlist. It may damage the recording media. Also, do not eject the memory card while editing movies on the memory card.
Page 46
Movies added to the Playlist appear. Select the movie you want to play back. The Playlist is played back from the selected movie to the end, then the screen returns to the Playlist screen. To erase unnecessary movies from the Playlist ...
Install “PMB” beforehand, however, do not start “PMB. ” Connect your camcorder to the wall outlet (wall socket) using the AC Adaptor supplied for this operation (p. 14). With One Touch Disc Burn function on your ...
Movies and photos recorded on your camcorder can be imported to a computer. Turn on the computer beforehand. Notes Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor for this operation (p. 14). Refer to “PMB Help” for details.
Creating a disc You can create a disc by selecting movies previously imported to your computer (p. 48). Turn on your computer, and place an unused disc on the DVD drive. If any other software than “PMB” starts automatically, shut it down. Start “PMB”.
“PMB Portable”. Starting up “PMB Portable” (Windows) Turn on your camcorder, then connect it to a computer with the USB cable. The [USB SELECT] screen appears on the LCD of your camcorder.
the Sony server. Access to certain websites may not be possible due to server maintenance, etc. In the event that a Sony server is to be terminated, notification ahead of time will be placed on the Sony website, etc.
socket) using the supplied AC Adaptor (p. 14). Refer to the instruction manual supplied with the external media. Refer to the Sony support page for your country/region for details on external media that can be used. Tips ...
Page 53
Select [Copy.] on the camcorder screen. DCR-SR21E: Movies and photos in the internal recording media of the camcorder that have not yet been saved on to external media can be saved. DCR-PJ5E/SX21E: Movies and photos that have not yet been saved on to external media can be saved.
Page 54
connected to your camcorder (p. 36). Notes The Date Index of photos cannot be displayed. If your camcorder does not recognize the external media, try the following operations. Reconnect the USB Adaptor Cable to your camcorder If the external media has the AC power cable, ...
(sold separately). Refer also to the instruction manual supplied with the DVD writer. Notes Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor for this operation (p. 14). Only unused discs of the following types can ...
Page 56
To play back a disc on the DVD writer Connect the AC Adaptor and the power cord (mains lead) to the DC IN jack of your camcorder and the wall outlet (wall socket) (p. 14). Turn on your camcorder, and connect the DVD writer to the ...
DVDirect Express, with the USB cable. Refer also to the instruction manuals supplied with the devices to be connected. Notes Sony DVD writer may not be available in some countries/regions. Connect your camcorder to the wall outlet (wall ...
Notes Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor for this operation (p. 14). Sony DVD writer may not be available in some countries/regions. A/V OUT jack Input VIDEO...
Page 59
When you connect a monaural device, connect the yellow plug of the A/V connecting cable to the video input jack, and the white (left channel) or the red (right channel) plug to the audio input jack on the device.
Using the menus, you can perform useful functions and change various settings. If you make good use of menu operations, you can enjoy using your camcorder. The camcorder has various menu items under each of eight menu categories. MANUAL SETTINGS (Items to adjust for scene condition) p. 65 SHOOTING SET (Items for customized shooting) ...
Grayed out menu items or settings are not available. Tips Depending on the menu items being changed, your camcorder switches between playback mode and recording mode (movie/photo). Using [MY MENU] You can use the menu items more easily by registering the menu items you use most often on [MY MENU].
When the item you want is not on the screen, select another tab. (There may be no tab.) The tabs and items that appear on the screen depend on the recording/playback status of your camcorder at the time.
Menu lists (MANUAL SETTINGS) category SCENE SELECTION FADER WHITE BAL. EXPOSURE FOCUS TELE MACRO (SHOOTING SET) category REC MODE GUIDEFRAME STEADYSHOT AUTO SLW SHUTTR FACE DETECTION AUDIO REC SET BLT-IN ZOOM MIC MICREF LEVEL OTHER REC SET DIGITAL ZOOM BACK LIGHT WIDE SELECT (PHOTO SETTINGS) category SELF-TIMER...
Page 64
DISPLAY SET OUTPUT SETTINGS TV TYPE DISP OUTPUT CLOCK/ LANG CLOCK SET AREA SET SUMMERTIME LANGUAGE SET POWER SETTINGS A.SHUT OFF OTHER SETTINGS DEMO MODE USB LUN SETTING DROP SENSOR* DCR-SR21E DCR-PJ5E...
Shoots distant subjects clearly. This setting also prevents your camcorder from focusing on glass or metal mesh in windows between the camcorder and the subject. PORTRAIT (Soft portrait) Brings out the subject such as people or flowers while creating a soft background.
Page 66
[AUTO] was selected, or taken your camcorder outdoors after inside use (or vice versa), aim your camcorder at a nearby white object for about 10 seconds for better color balance adjustment. When the white balance has been set with ...
Page 67
When you set [FOCUS] to [MANUAL], appears. The minimum possible distance between camcorder and subject while maintaining sharp focus is about 1 cm (about 13/32 in.) for wide angle and about 150 cm (about 59 1/8 in.) for telephoto. Tips ...
Does not detect faces. Notes Faces may not be detected depending on recording conditions, subject conditions, and the setting of your camcorder. [FACE DETECTION] may not function properly depending on recording conditions. Set [FACE DETECTION] to [OFF] in this case.
Page 69
Up to 67× zoom is performed optically. 1800× Up to 67× zoom is performed, and after that, up to 1800× zoom is performed digitally. BACK LIGHT Your camcorder adjusts the exposure for backlit subjects. OFF Does not adjust the exposure for backlight subjects.
PHOTO SETTINGS (Items for recording photos) See “Using menus” (p. 60) on the operation. The default settings are marked with . SELF-TIMER Press PHOTO to start the count down. A photo is recorded after about 10 seconds. OFF Cancels the self-timer. ON ( ) Starts the self-timer recording.
Gain Shutter speed Aperture value Exposure Tips The data code is displayed on the TV screen if you connect your camcorder to a TV. Depending on the recording media condition, bars [--:--:--] appear.
EDIT (Items for editing) See “Using menus” (p. 60) on the operation. DELETE See page 38. PROTECT See page 40. DIVIDE See page 41. PHOTO CAPTURE (DCR-SR21E) See page 42. MOVIE DUB (DCR-SR21E) See page 43. PHOTO COPY (DCR-SR21E) See page 44. PLAYLIST EDIT See page 45.
Select [YES] [YES] DCR-SR21E: Select the recording media to be formatted. Notes Connect your camcorder to the wall outlet (wall socket) using AC Adaptor supplied for this operation (p. 14). To avoid the loss of important images, you ...
NORMAL Standard brightness. BRIGHT Brightens the LCD screen. Notes When you connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor, [BRIGHT] is automatically selected for the setting. When you select [BRIGHT], battery life is ...
Page 75
(simplified English) for when you cannot find your native tongue among the options. POWER SETTINGS A.SHUT OFF (Auto shut off ) You can set your camcorder to turn off automatically when you do not operate your camcorder for more than about 5 minutes.
OTHER SETTINGS DEMO MODE When your camcorder is connected to a wall outlet (wall socket), a demonstration movie appear about 10 minutes after the (Movie) icon appears by pressing MODE. ON The demonstration appears. The demonstration does not appear.
If you press RESET, all settings, including the clock setting, are reset. Contact your Sony dealer or local authorized Sony service facility. Your camcorder may be required to initialize or change the current internal recording media of your camcorder, depending on the problem.
Page 78
correctly (p. 12). If the problem persists, disconnect the AC Adaptor from the wall outlet (wall socket) and contact your Sony dealer. The battery pack may be damaged. The remaining battery time indicator does not indicate the correct time.
Page 79
The temperature of your camcorder is extremely low. Turn off your camcorder and take it to a warm place. Leave the camcorder there for a while, then turn on the camcorder. The access lamp remains lit or flashing even if recording was stopped.
Page 80
This is not a malfunction. [LCD BL LEVEL] cannot be adjusted. You cannot adjust [LCD BL LEVEL] when: The LCD panel is closed on your camcorder with the LCD screen facing out. The power is supplied from the AC Adaptor.
Page 81
No image is projected. The temperature of the projector may be high. Turn off the camcorder, and leave it for a while. Playing back images stored on memory card on other devices Images cannot be played back or the memory card is not recognized.
If the problem persists even after you have tried to fix a couple of times, contact your Sony dealer or local authorized Sony service facility. In this case, when you contact them, give them all the numbers of the error code beginning with C or E.
The internal recording media of the camcorder is set differently from the default format. Performing [MEDIA FORMAT] (p. 73) may enable you to use your camcorder. This will delete all data in the internal recording media. Data error. An error occurred during reading or writing ...
Page 84
You cannot record because the drop sensor senses a drop of the camcorder repeatedly. If you are at risk of dropping the camcorder constantly, set [DROP SENSOR] to [OFF], and you may be able to record the image again (p.
recommended. The recording and playback time will be shorter when you use your camcorder in low temperatures. The recording and playback time will be shorter depending on the conditions under which you use your camcorder.
16GB (205) (205) 32GB (415) (415) Notes Recording time when using a Sony memory card. The recordable time may vary depending on the recording and subject conditions, [ MODE] (p. 68). The number in ( ) is the minimum recordable ...
AC 100 V to 240 V, 50 Hz/60 Hz range. On TV color systems Your camcorder is a PAL-system-based camcorder. If you want to view the playback image on a TV, it must be a PAL-system- based TV with an AUDIO/VIDEO input jack.
Page 88
Setting to the local time You can easily set the clock to the local time by setting a time difference when using your camcorder abroad. Select [GENERAL SET] category) [AREA SET] and [SUMMERTIME] (p. 75). World time difference Time-zone...
Note that improper use may cause a malfunction. On image data compatibility Image data files recorded on memory card by your camcorder conform to the “Design rule for Camera File system” universal standard established by the JEITA (Japan Electronics and Information Technology Industries Association).
If any solid object or liquid gets inside the casing, unplug your camcorder and have it checked by a Sony dealer before operating it any further. Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping or stepping on the product.
Do not exert excessive pressure on the LCD screen, as it may cause uneven color and other damage. If your camcorder is used in a cold place, a residual image may appear on the LCD screen. This is not a malfunction.
, ” “Memory Stick Micro, ” “MagicGate, ” “ “MagicGate Memory Stick” and “MagicGate Memory Stick Duo” are trademarks or registered trademarks of Sony Corporation. “InfoLITHIUM” is a trademark of Sony Corporation. “DVDirect” is a trademark of Sony ...
Page 94
Source code is provided on the web. Use the following URL to download it. When downloading the source code, select DCR-SX43 as the model for your camcorder. http://www.sony.net/Products/Linux/ We would prefer you do not contact us about the contents of source code.
Indicators and their positions are approximate and may differ from what you actually see. Some indicators may not appear, depending on your camcorder model. Meaning Estimated recording remaining time FADER (65) Drop sensor off (76) Drop sensor activated (76)
Parts and controls Figures in ( ) are reference pages. DCR-SR21E Lens LENS COVER switch Built-in microphone LED VIDEO LIGHT (26) DCR-PJ5E/SX21E Speaker (DCR-PJ5E) Lens LENS COVER switch Built-in microphone LED VIDEO LIGHT (26) DCR-SR21E/SX21E ...
Page 97
Hook for a shoulder belt Access lamp (memory card) (19) While the lamp is lit or flashing, the camcorder is reading or writing data. BATT (battery) release lever (14) Tripod receptacle Attach a tripod (sold separately) to the...
Page 98
DC IN jack (12) Access lamp (memory card) (19) While the lamp is lit or flashing, the camcorder is reading or writing data. BATT (battery) release lever (14) Tripod receptacle Attach a tripod (sold separately) to the...
Index Symbols 16:9 ...36 4:3 ...36 A.SHUT OFF ...75 A/V connecting cable...36, 58 Abroad ...87 Altitude ...5 AREA SET ...75 AUDIO REC SET ...69 AUTO SLW SHUTTR ...68 BACK LIGHT ...69, 82 BATTERY INFO ...72 Battery pack ...12 BEACH ...65 BEEP...74 BLACK FADER ...66 BLT-IN ZOOM MIC ...69...
Page 100
PHOTO SETTINGS ...70 PLAYBACK ...71 Playback ...28 PLAYBACK SET ...71 Playlist ...45 PLAYLIST EDIT ...72 PMB Portable ...50 PORTRAIT ...65 Power on ...15 POWER SETTINGS ...75 Precautions ...89 Projector ...34 PROTECT ...40 REC MODE ...26 Recording ...22 Recording media...18 Recording time of movies/ number of recordable photos ...85 Repair ...77 REPAIR IMG.DB F.
Page 101
Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website. http://www.sony.net/...
