Binks 84-346 Service Manual

SERVICE MANUAL
BINKS LOW PRESSURE DIAPHRAGM
FLUID REGULATORS
WITH ZINC BODY
84-346 KEY OPERATED
84-415 REMOTE CONTROL (OBSOLETE)
29

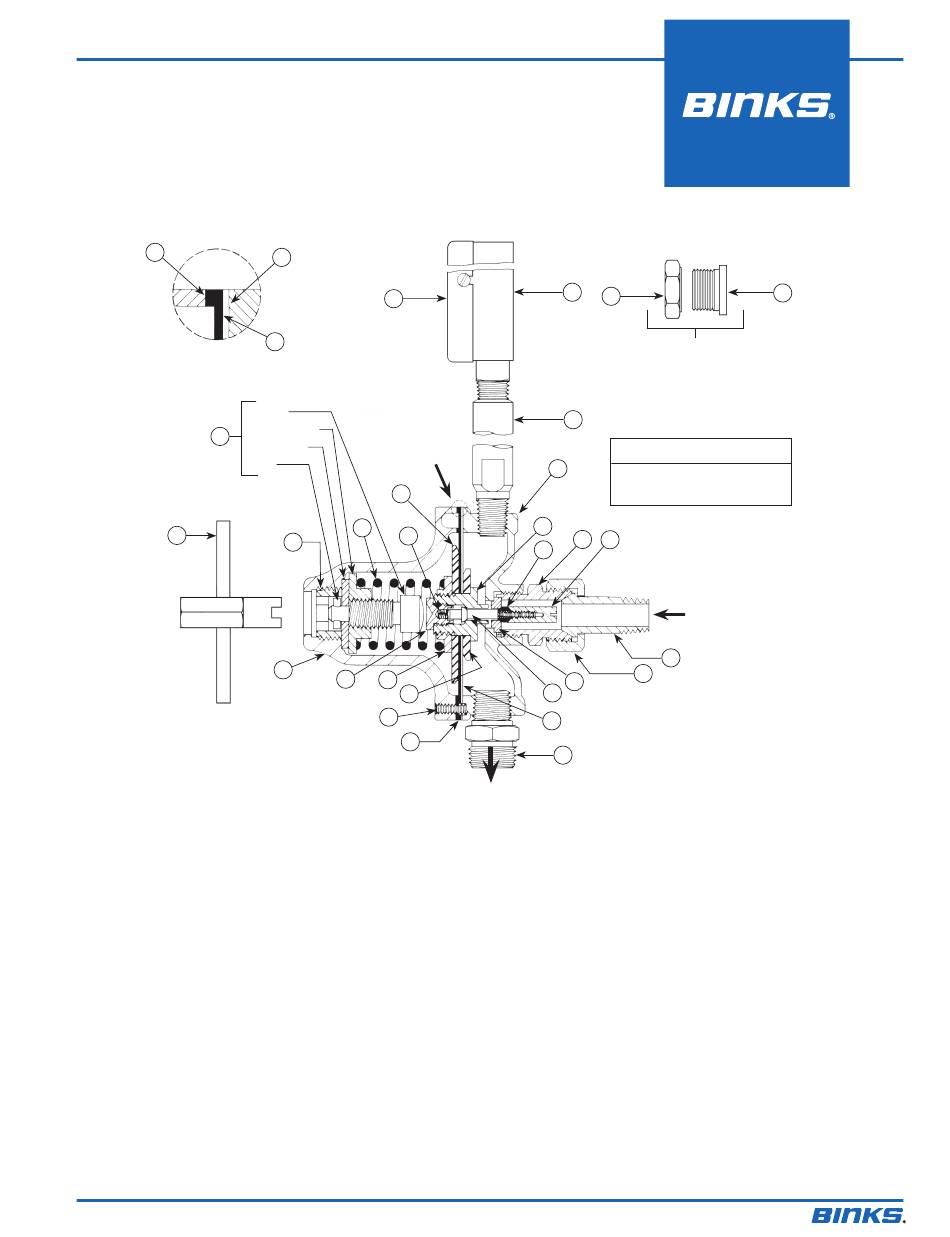

DETAIL "A"
STEM
FOLLOWER
10
WASHER
PIN
16
ITEM PART
NO. NO. DESCRIPTION
1 20-3699◆ SOC. HD. CAP SCREW
2 20-4456 LOCKNUT
3 72-337 SWIVEL NUT ................................. 1
4 73-50 D. M. NIPPLE ................................ 1
5 83-1636 GAUGE
6 83-2052 GAUGE LENS
7 84-40 CONNECTOR ................................ 1
8 84-321 BONNET ........................................ 1
9 84-322* SCREW .......................................... 1
10 84-325* STEM ASSEMBLY .......................... 1
11 84-328 DISC .............................................. 1
12 84-329 DIAPHRAGM ................................ 1
▲■
13 84-331 NUT ............................................... 1
14 84-335 VALVE ........................................... 1
▲
15 84-338 TAIL PIECE .................................... 1
16 84-340* KEY ............................................... 1
77-1758-R10.2 (11/2015)
26
6
12
See
Detail
"A"
25
17
21
9
8
23
13
11
Item #1 screws: Tighten
1
to 35 –45 inch-pounds.
12
PARTS LIST
When ordering, please specify Part No.
.... 6
10-24 x 1"
.......................... 1
(84-415)
........................... 1
(0 - 15 PSI)
............ 1
(Replacement)
5
2
7
19
Pre-assemble items 11, 12, 13, 18,
18
20 22
14
27
24
26
4
REGULATED FLUID OUTLET
ITEM PART
QTY. NO. NO. DESCRIPTION
17 84-341* SPRING .......................................... 1
▲
18 84-342 RETAINER ..................................... 1
19 84-344 BODY ............................................ 1
20 84-347 INLET ............................................ 1
21 84-353 SPRING .......................................... 1
▲
22 84-355 CAP ............................................... 1
23 84-393 SOCKET ......................................... 1
24 84-395 ROD .............................................. 1
▲
25 84-398 DISC .............................................. 1
26 84-399 DIAPHRAGM ................................ 1
▲■
27 84-450 SEAT .............................................. 1
▲
28 84-460 BODY
29 84-463 GASKET ........................................ 1
▲■
* Parts used only on Model 84-346 Regulator.
◆ Before installing regulator, tighten all 6 flange screws securely.
▲ Part of Repair Kit No. 84-591.
■ Part of Seal Kit Part No. 84-592.
1 / 4
28
FOR MODEL 84-415
REGULATOR
NOTE
25 and 26 and tighten to
120 – 150 inch-pounds.
UNREGULATED
FLUID INLET
15
3
................................ 1
(84-415)
EN
QTY.
