Hood Camera
WEATHERPROOF

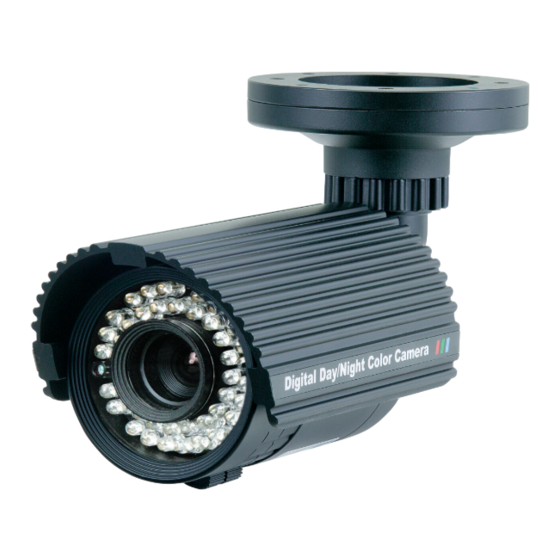

High Digital Hood Color IR Day/Night Camera High Digital Hood Color IR Day/Night Camera
Built-in 20-power infrared LEDs with CDS sensor
Camera OSD Control by External Wired Remote Controller
OSD
1/3"
Minimum
Sensitivity Up
Illumination
0.00006Lux
CCD 2 x~128 x
Auto White
Auto
DAY & NIGHT Balance Gain
Control
Specification
MODEL
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency NTSC=15.734KHz(H) / 59.94Hz(V) / PAL=15.625KHz(H) / 50.00Hz(V)
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
White Balance
Gamma Characteristic
Video Output
Electronic Shutter Speed NTSC=Auto/Manual(1/60sec~1/120,000sec) / PAL=Auto/Manual(1/50sec~1/120,000sec)
OSD
BLC
AGC
DNR
Day&Night(Color)
Sharpness
Privacy
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight
1/3" SONY SUPER HAD
560TV Lines
DC Auto iris Varifocal
Lens(4mm-9mm)
IR Day/Night Capability
560
BLC High Speed
Shutter
Backlight Motion DC/VIDEO Horizontal
Compensation Detection OSD LENS Resolution
QSB520SR
1/3" SONY SUPER HAD CCD 1/3" SONY SUPER HAD CCD
NTSC,PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
2:1 Interlace
Internal
560TV Lines
CDS OFF : 0.1Lux / CDS ON : 0.00006Lux
More than 50dB
ATW/AWBC/MANUAL(1800'K ~ 10,500'K)
0.45
CVBS : 1.0Vp-p 75ohm
Built-in
Low,Middle,High,Off Selectable
Low,Middle,High,Off Selectable
Low,Middle,High,Off Selectable
On/Auto Selectable (Electrical)
On/Off (Level Adjustable)
On/Off (4 Programmable Zone)
DC 12V (AC 24V Option)
CDS ON:350mA Max
DC Auto Iris Varifocal Lens(4mm-9mm)
-10 ~ +50 Deg C. RH 95% Max.
-20 ~ +60 Deg C. RH 95% Max.
100mm(W) * 125mm(H) * 216mm(D)
1500g
* INSTALLATION
Dimension & Cable Connection
SIDE
Digital Day/Night Color Camera
W W
IP65
Weather
Registant
Function
FRONT
Built-in 35pcs IR LEDs, it can capture clear
images as far as 30~50m away even completely darkness.
OUTDOOR
0M 10M 20M 30M

* How to Install

CDS Sensor
DC Auto Iris Varifocal Lens
(4mm-9mm)
* SETTINGS
Settings can be made using the 5 buttons
located on the side of the camera.
216mm
155mm
UP
360˚
180˚ OSD REMOTE CONTROL
360˚
120mm
100mm
CAMERA OPERATION (
LENS (selection)
LEFT RIGHT SHUTTER
(condition and speed control)
UP DOWN
WHITE BALANCE control
SET-UP
BACKLIGHT
74mm
(Backlight compensation)
AGC (Auto Gain control)
OSD REMOTE CONTROL
DNR
(Digital noise reduction)
SENS-UP (Low illuminance)
SPECIAL
INDOOR
EXIT
40M 50M 60M 70M 80M 90M 100M
Base
Sunshield
Bracket
Case
Focus Control
IR LED
LEFT RIGHT
DC DC
SHUTTER SPEED ELC
WHITE BAL ATW
DOWN
BLC HIGH
AGC OFF
SET-UP
DNR LOW
SENS-UP OFF
SPECIAL
EXIT
OSD
)
SET-UP SET-UP UP UP DOWN LEFT DOWN LEFT RIGHT RIGHT
* MANUAL * DC / VIDEO
* ESC * MANUAL * FLK
* ATW * AWC * MANUAL
* OFF * LOW * MIDDLE
* HIGH
* OFF * LOW * MIDDLE
* HIGH
* OFF * LOW * MIDDLE
* HIGH
* OFF * AUTO
* CAMERA ID * COLOR
* SYNC * MOTION DETECTION
* PRIVACY * MIRROR
* SHARPNESS * RESET
* RETURN * AUTO
Power (+) Video Signal
Power (-) Video GND
Cable
Power jack Video Jack
Cable Connection

* Camera Adjustment

① Connect Video & Power Line
(12V DC Regulated Power)
② Please set the position where you
want to connect the camera.
③ Loosen the locking screws and
adjusting camera angle.
④ Combine each camera parts and lock
& tight the each locking screws.
