Solid Setup Pty Ltd
www.solidsetup.com
KING3301 User Guide
Introduction
Overview

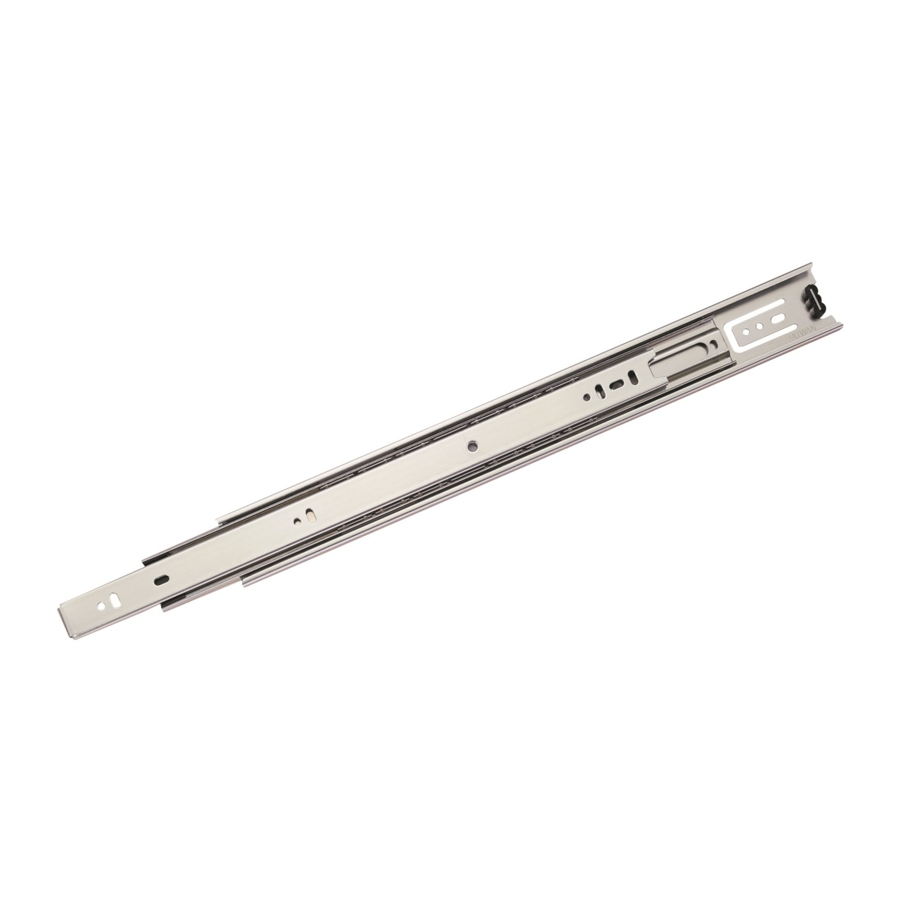

The 'Kingslide 3301 Package' from Solid Setup adds the Kingslide 3301 runners to Cabinet Vision Solid.
•
It provides drilling in the drawer/rollout sides and cabinet ends for CNC output.
•
The runners are added as a separate parts and materials for reporting purposes.
•
All material descriptions contain the Kingslide order number after the # symbol.
•
Included in This Package
Drawer Guide Schedule:
Kingslide 3301
•
Drawer Guide Materials:
User Created Standards
The Following UCS's are provided
{ DRAWS } -- Kingslide 3301 Runners
•
Kingslide 3301 User Guide.
Adds the drawer box drilling intellij and drawer side dado.
Page 1 of 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kingslide 3301
Summary of Contents for Kingslide 3301
- Page 1 KING3301 User Guide Kingslide 3301 User Guide. Introduction Overview The ‘Kingslide 3301 Package’ from Solid Setup adds the Kingslide 3301 runners to Cabinet Vision Solid. • It provides drilling in the drawer/rollout sides and cabinet ends for CNC output. •...
- Page 2 = Distance to the front Hole in the sides of the Drawer or Rollout. Package Exclusions Some of the drawer drilling shown in various images contained in this document are not included in the Kingslide 3301 Visual Package, but come from other packages which are sold separately.
