HP MSM775 zl Installation Manual page 13
Software version 6.6.2.0
Table of Contents
8.

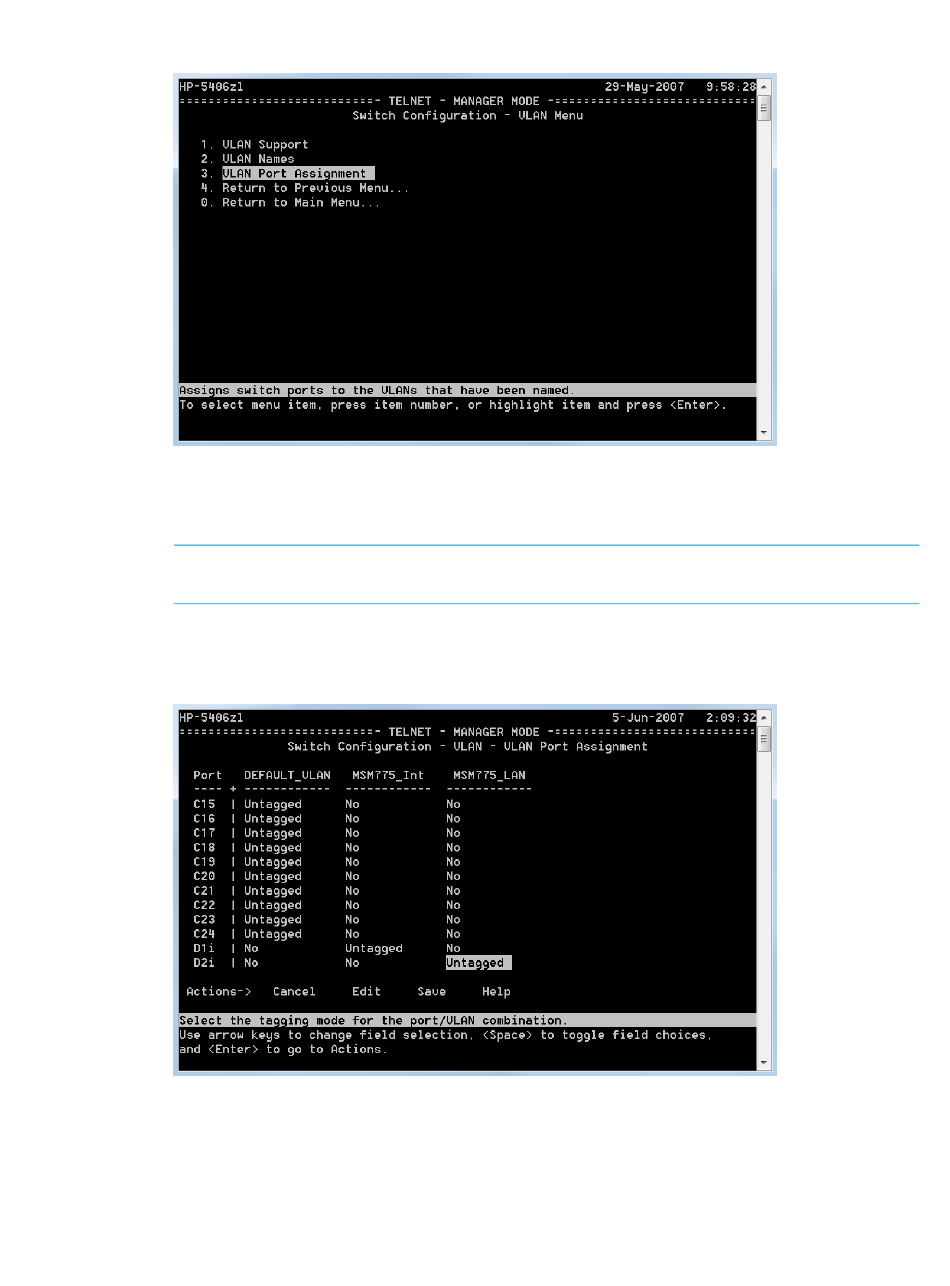

Select VLAN Port Assignment.
9.
Select Edit, and then use the arrow keys to select the DEFAULT_VLAN column of port D1i.
(Ports D1i and D2i respectively define the VLAN assignment for the controller Internet and
LAN ports.)
NOTE:
In addition to DEFAULT_VLAN, columns are now present for the two VLAN names
(MSM775_Int and MSM775_LAN) defined in the previous steps.
10. Use the space bar to change values and the arrow keys to move between items. Moving from
left to right, set port D1i to No, Untagged, No. Set port D2i to No, No, Untagged. Ports D1i
and D2i should now look like this:
Configure the switch for the controller
13
