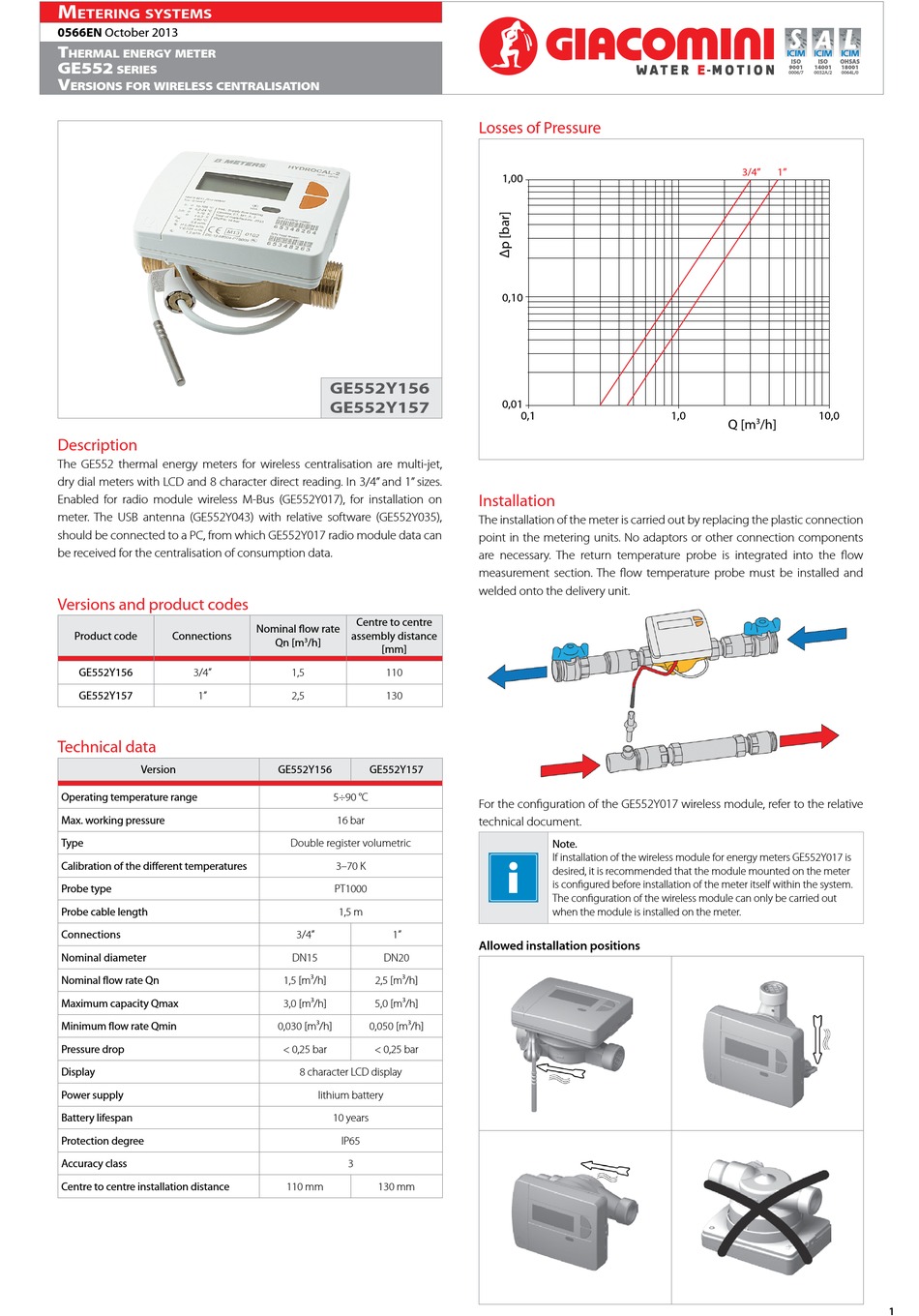

M
etering systeMs
0566EN October 2013
T
hermal energy meTer
ge552
series
V
ersions for wireless cenTralisaTion
Description
The GE552 thermal energy meters for wireless centralisation are multi-jet,
dry dial meters with LCD and 8 character direct reading. In 3/4" and 1" sizes.
Enabled for radio module wireless M-Bus (GE552Y017), for installation on
meter. The USB antenna (GE552Y043) with relative software (GE552Y035),
should be connected to a PC, from which GE552Y017 radio module data can
be received for the centralisation of consumption data.
Versions and product codes
Product code Connections
GE552Y156 3/4"
GE552Y157
1"

Technical data

Version
Operating temperature range
Max. working pressure
Type
Calibration of the different temperatures
Probe type
Probe cable length
Connections
Nominal diameter
Nominal flow rate Qn
Maximum capacity Qmax
Minimum flow rate Qmin
Pressure drop
Display
Power supply
Battery lifespan
Protection degree
Accuracy class
Centre to centre installation distance
GE552Y156
GE552Y157
Centre to centre
Nominal flow rate
assembly distance
Qn [m /h]
3
[mm]
1,5 110
2,5 130
GE552Y156 GE552Y157
5÷90 °C
16 bar
Double register volumetric
3–70 K
PT1000
1,5 m
3/4" 1"
DN15 DN20
1,5 [m³/h] 2,5 [m³/h]
3,0 [m³/h] 5,0 [m³/h]
0,030 [m³/h] 0,050 [m³/h]
< 0,25 bar < 0,25 bar
8 character LCD display
lithium battery
10 years
IP65
3
110 mm 130 mm
Losses of Pressure
1,00
0,10
0,01
0,1
Installation
The installation of the meter is carried out by replacing the plastic connection
point in the metering units. No adaptors or other connection components
are necessary. The return temperature probe is integrated into the flow
measurement section. The flow temperature probe must be installed and
welded onto the delivery unit.
For the configuration of the GE552Y017 wireless module, refer to the relative
technical document.
Note.
If installation of the wireless module for energy meters GE552Y017 is
desired, it is recommended that the module mounted on the meter
is configured before installation of the meter itself within the system.
The configuration of the wireless module can only be carried out
when the module is installed on the meter.
Allowed installation positions
ISO ISO OHSAS
9001 14001 18001
0006/7 0032A/2 0064L/0
3/4" 1"
1,0 10,0
Q [m /h]
3
1
