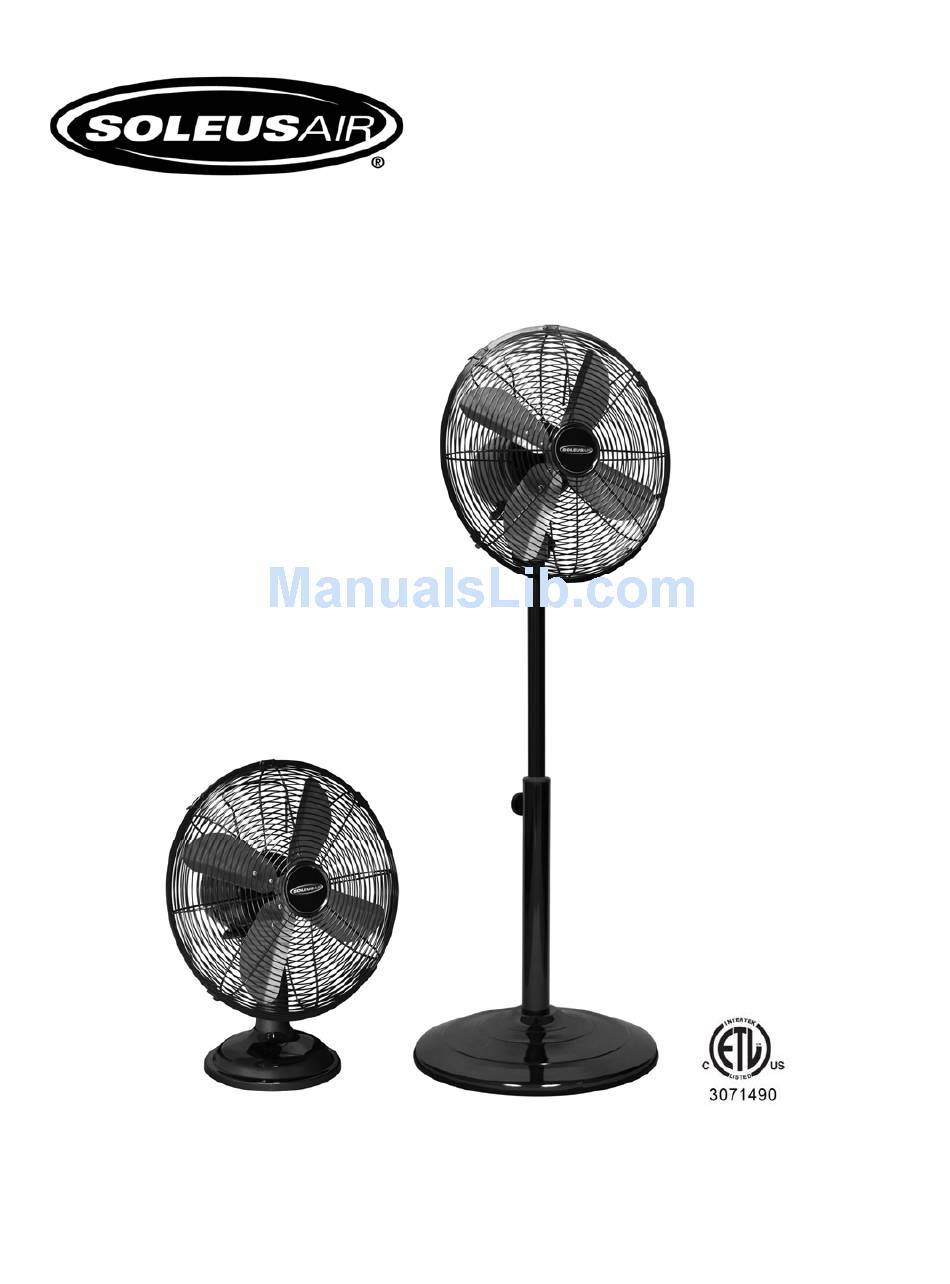

- Page 1 12 IN. OSCILLATING CONVERTIBLE STAND/TABLE FAN OWNER’S MANUAL Model # FCM-30 PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 12 IN. OSCILLATING CONVERTIBLE STAND/TABLE FAN Thank you for choosing a Soleus Air fan. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new fan.
-
Page 3: Technical Specifications
12) To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. 13) To disconnect, grip plug and pull from wall outlet. Never pull on the cord to unplug. -
Page 4: Product Diagram
E) Back Grill F) Carrying Handle G) Motor Shaft H) Speed Control Knob I) Oscillation Knob J) Motor Housing K) Fan Head Neck L) Pole M) Adjustable Height Knob N) Stand Fan Base O) Black Weight P) Washer Q) Locking Lever... - Page 5 5) On the neck of the fan head, remove the securing knob, carriage bolt and adjustable tilt knob. Loosen the range of motion screw. 6) Slide the fan head neck over the top of the pole so that the range of motion screw aligns with the range of motion hole.
- Page 6 1) On the neck of the fan head, remove the securing knob, carriage bolt and adjustable tilt knob. Loosen the range of motion screw. 2) Remove the fan head from the old base and slide over the new base so that the range of motion screw aligns with the range of motion hole.
-
Page 7: Cleaning & Maintenance
Never use abrasive cleaning agents or solvents. This may cause damage or deterioration to the surface of the unit. • Do not immerse the fan in any form of liquid. Do not allow water to drip on or into the fan motor housing. Fan Blade Cleaning: 1) Make certain the fan is unplugged. - Page 8 Do not plug the fan into an electrical outlet until it is fully reassembled. STORAGE When not in use, store the fan in a cool, dry location. To prevent dust and dirt build-up, use the old packaging to repack the unit. Printed in China...
- Page 9 WARRANTY One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air FCM-30 to be free from defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States or Canada.
