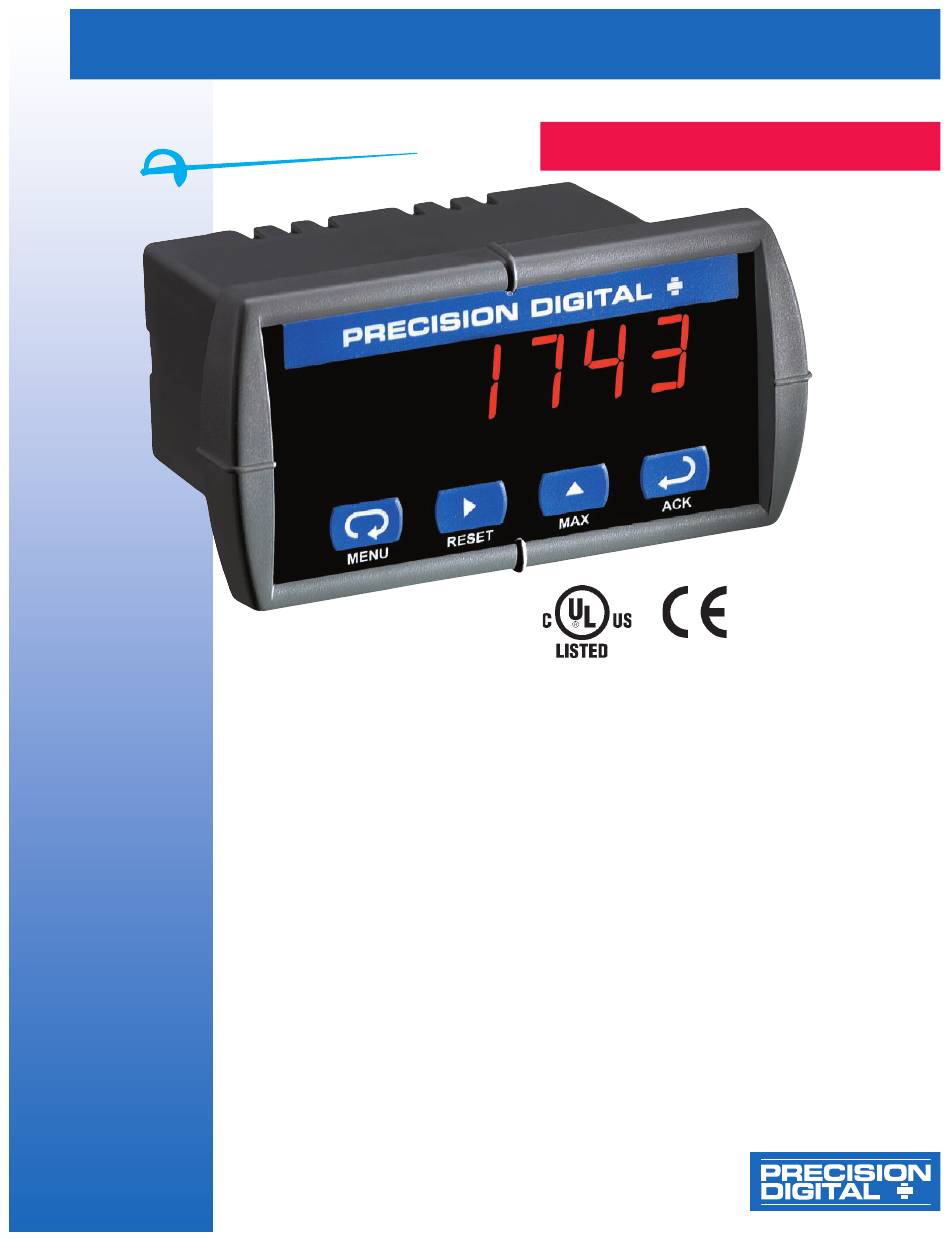

LOW-COST OEM TEMPERATURE METER
Sabre Series
Precision Digital corPoration
•
J, K, T, E Thermocouple & 100 Ω Pt RTD
•
Pre-Calibrated for All Input Types
•
NEMA 4X, IP65 Front
•
Shallow Depth 1/8 DIN Case 3.2" Behind Panel
•
4 Digit Display, 0.56" (14 mm) High, Red LEDs
•
Easy Front Panel Programming
•
Maximum/Minimum Display
•
Universal Power Supply 85-265 VAC
•
12-36 VDC/12-24 VAC Power Option
•
Sabre T
Model PD743
www.predig.com
