SOMO 650 User Manual

Socket handheld computer user's guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

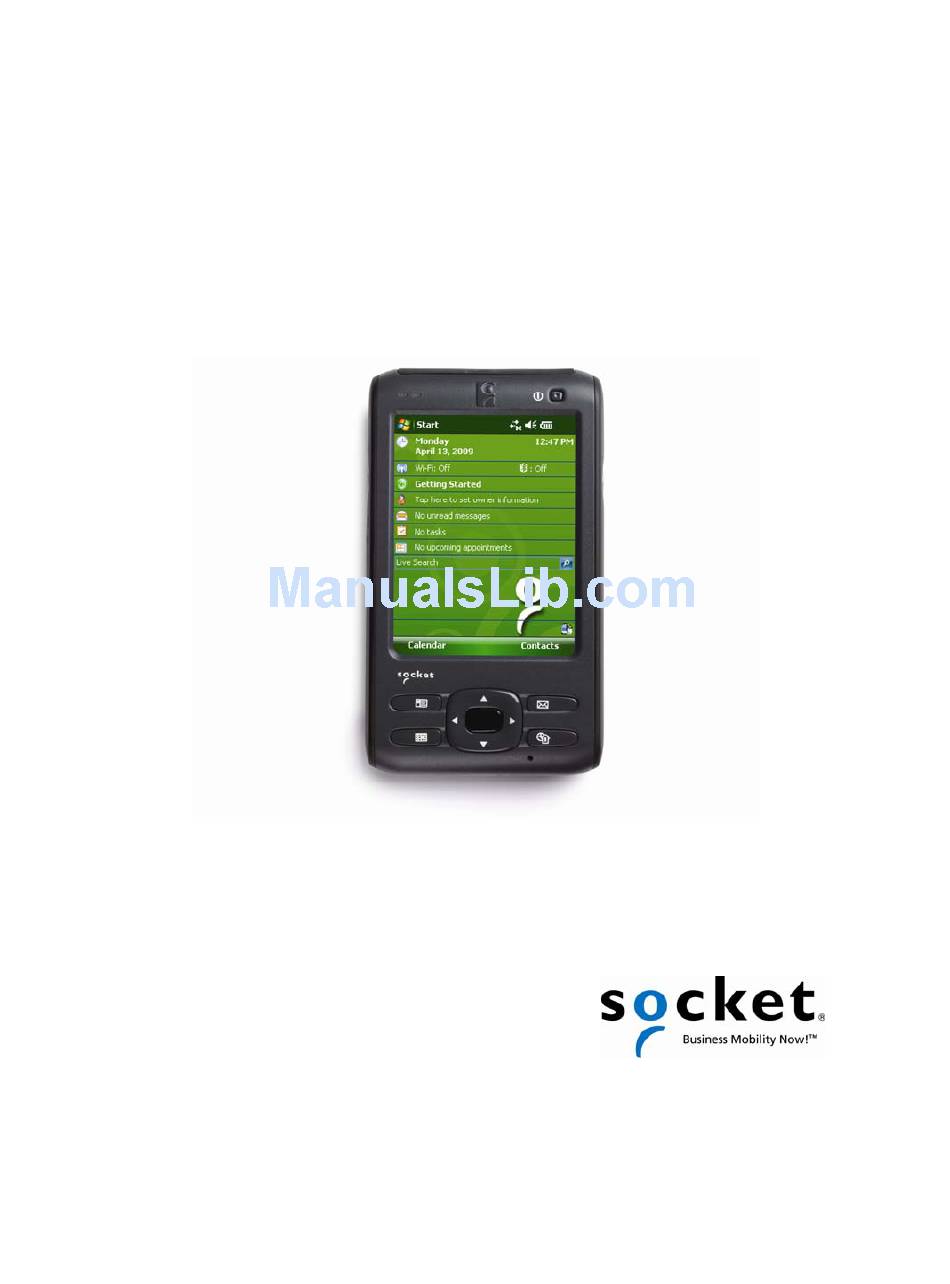

SoMo
650
Handheld Computer
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SoMo 650 and is the answer not in the manual?

Questions and answers

Related Manuals for SOMO SoMo 650

Summary of Contents for SOMO SoMo 650

  • Page 1 ® SoMo Handheld Computer User’s Guide...

  • Page 2: Copyright Notice

    Other than the above, Socket Mobile can assume no responsibility for anything resulting from the application of information contained in this manual. Please refrain from any applications of the SoMo 650 that are not described in this manual. Please refrain from disassembling the SoMo 650. Disassembly of this device will void the product warranty.

  • Page 3: Important Safety Instructions

    MPORTANT AFETY NSTRUCTIONS Please read and follow these safety instructions before using your device for the first time, and save them for future reference. • Keep away from extremely hot, cold or humid conditions. • Avoid using in dusty environments. •...

  • Page 4: Table Of Contents

    4: I NSTALL YNCHRONIZATION 5: C ONNECT THE O TO 6: S ET UP EVICE ARTNERSHIP ETTING TARTED IZARDS 3 | USING THE SOMO 650 TYLUS OLD SWITCH TART NLINE IRELESS ADIO ANAGER 650 P OWER ATTERY ACKLIGHT AND OWER...
  • Page 5 7 | SOMO 650 BACK PACK SOFTWARE 1: C ONFIGURE A ODEM 2: P REPARE THE ARDWARE 3: C ONNECT TO ETWORK APPENDICES A SPECIFICATIONS B CARE AND MAINTENANCE C RESETTING THE SOMO 650 D UPGRADING THE ROM IMAGE E TROUBLESHOOTING...

  • Page 6: Introduction

    Radio-free (No Bluetooth or Wi-Fi) EADY TO USTOMIZE The SoMo 650 can be deployed out the box with a wide range of Socket or third- party peripherals, because it comes pre-loaded with the following software: Socket/Third-Party Peripheral Socket CHS v3 Bluetooth barcode scanners...

  • Page 7: Package Contents

    STAR products from UIC and SocketSerial. YNCHRONIZATION OFTWARE Before you start using your new SoMo 650, you should have a host PC with the correct synchronization software installed. OS on Host PC OS on SoMo...

  • Page 8: Hardware Features

    ARDWARE EATURES Front 1. Wireless Status LED (Blue/Green) – indicates Bluetooth®, Wi-Fi® 2. Battery Status/Alarm LED (Red/Green) 3. 3.5" TFT LCD touch screen 4. Calendar shortcut button 5. Messaging shortcut button Besides the power button, you can turn on the SoMo by pressing the Calendar, Messaging, Today or Contacts button. Wireless Status LED LED Behavior Flashing blue...
  • Page 9 Back 1. Battery cover 2. Battery cover release 3. Speaker Left 1. Hands-free (headset/microphone) connector (lift rubber cover to access) 2. Left programmable application button (launches Voice Notes voice recording utility by default) 3. Hold switch (disables screen and all configure the hold switch, see Chapter 2.
  • Page 10 Top (with card slot cover open) 1. Stylus holder and stylus 2. SD (Secure Digital)/SDIO/MMC (MultiMedia Card) slot (lift rubber cover to access) 3. CF (CompactFlash) slot (lift rubber cover to access) Bottom USB synchronization/host cable connector Soft reset button SoMo Behavior Under Low Battery Conditions Low Battery Alert in title bar of Today screen and...
  • Page 11 HARGING RADLE With two USB ports, the cradle can act as a hub to connect a keyboard, mouse or other device. There is a compartment for charging a spare battery, which can be charged at the same as a SoMo. Front 26-pin docking connector...

  • Page 12: Getting Started

    1: I NSTALL THE ATTERY 1. Remove the battery cover of the SoMo 650. Press the release button on the bottom of the battery cover with your thumb and slide the battery cover off with your other hand. 2. Place the included battery into the battery compartment, so that the battery’s barcode label is face up, near the bottom of the device.

  • Page 13: Step 2: Charge The Battery

    SoMo 650. Plug the AC adapter into a suitable wall socket. The SoMo 650 should be charged for 4 hours before first use. Afterwards, charge the device as needed according to its battery level. While charging, the power LED of the SoMo will be red. After charging is complete, it will change to green.

  • Page 14: Step 3: Set Up Your S O M O 650

    ET UP YOUR NOTE: Make sure the SoMo 650 is fully charged before proceeding. Slide the hold switch on the left side of your SoMo 650 up to the unlocked position. IMPORTANT! SLIDE THE SWITCH UP, OR THE DEVICE WILL NOT WORK! Turn on your SoMo 650 by pressing the small power button on the front (top right-hand corner).

  • Page 15: Step 4: Install Synchronization Software On Host Pc

    4: I NSTALL YNCHRONIZATION Do not connect your SoMo 650 to your host PC until the synchronization software has been installed on the PC. Windows 7/Vista 1. Download the Windows Mobile Device Center software from: http://www.microsoft.com/windowsmobile/en-us/downloads/microsoft/device- center-download.mspx 2. Follow the instructions on the webpage to install the software.

  • Page 16: Step 5: Connect The S O M O To Host Pc

    5: C ONNECT THE O TO Connect with the Sync Cable 1. Plug the USB sync cable into the connector on the bottom of your SoMo 650. 2. Plug the other end of the cable into a USB port of your PC. It is recommended that you also connect the AC adapter.
  • Page 17 Connect with the Cradle 1. Insert the SoMo 650 into the cradle. 2. Use the USB sync cable to connect the cradle to a host computer. 3. Plug the other end of the cable into a USB port of your PC.

  • Page 18: Step 6: Set Up Your Device Partnership

    ET UP EVICE Windows 7/Vista 1. When you connect your SoMo 650 to your computer for the first time, the Windows Mobile Device Center should automatically start. 2. Click Set up your device. 3. Select the information you want to synchronize and click Next.

  • Page 19: Getting Started Wizards

    1. In the Today screen, tap Getting Started. 2. A list of wizards will appear. Some are generic for Windows Mobile 6.1, but some are specifically for the SoMo 650: The following list shows some of the latest wizards included with Windows Mobile 6 Service Pack 8.
  • Page 20 Registered users benefit from update notifications and expedited service and support. 1. In the list of Getting Started wizards, tap Register SoMo 650. 2. In the next screen, tap on the link. 3. The registration wizard will begin. Make sure the SoMo has Internet...
  • Page 21 Install Microsoft Windows Mobile Updates In most cases, you will not need to use this utility. 1. In the list of Getting Started wizards, tap Install Microsoft Windows Mobile Updates. 2. Tap on the links for the updates you wish to install. •...
  • Page 22 Set up Enhanced Wi-Fi Companion (e-WFC) By default, the SoMo has Wi-Fi Companion (WFC) installed. For SoMo devices running Windows Mobile 6 Service Pack 4 or later, Enhanced Wi-Fi Companion (e-WFC) is also pre-loaded but must be manually installed. Enhanced Wi-Fi Companion offers many benefits, including advanced authentication (including PEAP-GTC, EAP-TTLS, LEAP, EAP-FAST);...
  • Page 23 Set up SocketScan 10 SocketScan 10 software is for Socket CHS Series 7 v3 barcode scanners. 1. In the list of Getting Started wizards, tap Set up SocketScan 10. 2. To install the application, tap on the link. 3. Follow the remaining screens to install the software. CHAPTER 2: GETTING STARTED...
  • Page 24 Configure hold switch The Hold Switch Utility lets you change the default behavior of the hold switch. ROM v1.1 and later includes the utility. For previous ROMs, download the http://www.socketmobile.com/support/downloads/ utility from: handheld-computer/somo-650/ When the hold switch is activated, any connections or programs running on the SoMo will remain active.
  • Page 25 3. Use the utility to configure your settings. • Leave screen enabled: Select to keep the screen on when the hold switch is activated. A dialog will confirm the hold switch is activated. Tapping ok or deactivating the hold switch will close the dialog. When the SoMo is reset, this option is automatically re-enabled.
  • Page 26 Set up Connect!Agent Connect!Agent software is compatible with the Socket CHS Series 7 v1 or v2 and the Socket CRS Series 9. 1. In the list of Getting Started wizards, scroll down and tap Set up Connect!Agent. 2. Tap on the link. Follow the on-screen instructions to install the software. Sprite Backup Trial SoMo devices running Windows Mobile 6 Service Pack 5 or later include a free 10-day trial of Sprite Backup software.
  • Page 27 For instructions on how to set up data capture triggers for Socket barcode scanners or RFID readers, please refer to Chapter 6. Set up WAN Connections For instructions on how to set up WAN Connections with the SoMo 650 Back Pack wireless broadband ExpressCard adapter (sold separately), please refer to Chapter 7.
  • Page 28 Configure CF/SD slots In most cases, you will not need to use this utility. If you insert a memory card into the SoMo and cannot access data from the card after the device suspends/ resumes, you can use the utility to leave the card slot enabled even when the device has suspended.

  • Page 29: Using The Somo 650

    OLD SWITCH The hold switch on the left side of the SoMo 650 can be used to prevent accidental input by disabling all buttons and the screen. Any applications or wireless connections running on the device will remain active.

  • Page 30: Start Menu

    From the Start menu, you can access programs, settings and Help topics. The Start menu can be accessed by tapping NLINE Your SoMo 650 contains online help files. These can be accessed in two main ways: 1. Tap > Help > Contents for a list of Help topics.

  • Page 31: Wireless Radio Manager

    Radio Manager will appear instead (see next page). 1. Open the Microsoft Wireless Manager. Press the button on the right side of the SoMo 650. Alternatively, tap the Wi-Fi and Bluetooth status line in the Today screen. 2. In the Wireless Manager, an “x” appears next to the Wi-Fi or Bluetooth icon when the radio is off.
  • Page 32 1. Open the Socket Radio Manager. Press the button on the right side of the SoMo 650. Alternatively, tap the Wi-Fi and Bluetooth status line in the Today screen. 2. In the Radio Manager, a red “x” appears on the Bluetooth or Wi-Fi button when the radio is off.

  • Page 33: S O M O 650 Power Plus Battery Friendly ® Utility

    650 P OWER This utility provides advanced power management and monitoring and is available on SoMo devices running Windows Mobile 6 Service Pack 6 or later. With MCU firmware 2.7 or later, the utility provides detailed information on SoMo performance . To determine your MCU version, tap Start | Settings | System tab | System info | OS Version.
  • Page 34 After a suspend/resume, it can take up to 30 seconds for the applet to make a reasonable determination of time remaining. If a battery is changed and the SoMo reset, it may take several minutes to report the battery current usage and estimated time remaining. 3.

  • Page 35: Backlight And Power Settings

    OWER ETTINGS You may want to adjust the backlight and power settings to maximize the battery life of your SoMo 650. 1. Tap > Settings > System tab > Backlight. 2. The Backlight utility will appear. Adjust the settings as desired and tap ok.

  • Page 36: Cpu Performance Utility

    CPU P ERFORMANCE TILITY The CPU Performance utility allows you to choose a fixed processor speed based on your own criteria of performance versus battery life. This utility is available with SoMo devices running Windows Mobile 6 Service Pack 6 or later.

  • Page 37: Voice Recorder

    USB K DDING A EYBOARD If you are using the SoMo 650-M, you can enter information by docking the SoMo in the cradle and using the cradle’s two USB ports to connect a keyboard and/or mouse. Socket also offers an optional USB host cable and Y cable, sold separately http://ww1.socketmobile.com/products/handheld-...

  • Page 38: Wi-Fi Companion

    DDITIONAL OCUMENTATION This chapter covers basic instructions for using Wi-Fi Companion on the SoMo 650. For detailed instructions, please refer to the User’s Guide available in the CD and online at: http://www.socketmobile.com/support/downloads/ SEFUL INKS Registered users can download software updates free after logging into: http://support.socketmobile.com...

  • Page 39: Turning On The W I -F I Radio

    URNING ON THE ADIO Wi-Fi Companion automatically launches after you turn on the Wi-Fi radio. 1. Open the Radio Manager. Press the button on the right side of the SoMo 650. Alternatively, you can tap on the Wi-Fi and Bluetooth status line in the Today screen.
  • Page 40 3. The Wi-Fi status icon will appear at the top of the screen. The icon varies based on your connection status. Tap on the icon to view the main screen of Wi-Fi Companion. To view the different versions of the icon, please refer to the chart on the next page.

  • Page 41: Main Screen Of W I -F I Companion

    CREEN OF OMPANION The screen content varies depending on your connection status. Your device properties. • Device name • IP address • Packets sent and received The icon always appears regardless of connection status. Tap to view more IP addresses or access the radio manager.

  • Page 42: W I -F I Finder

    INDER The Wi-Fi Finder displays a list of WLAN networks found in range. To access the Wi-Fi Finder, tap on the large tower icon in the bottom right corner of the main screen of Wi-Fi Companion. Tap to filter the list by type.

  • Page 43: Finding And Connecting To Awlan

    INDING AND ONNECTING TO A Ask your network administrator for the necessary security settings for your WLAN. If the WLAN uses 802.1x, WPA or WPA2, you need to install authentication certificate(s) before you can connect. Refer to the Wi-Fi Companion User’s Guide for instructions on the Socket certificate utility. 1.
  • Page 44 For Wi-Fi Companion, the Microsoft profile editor (Wireless Zero Config) will launch. For Enhanced Wi-Fi Companion, a Socket profile editor will launch with dynamic configuration and advanced security options. 4. If your WLAN does not have a profile (i.e., no folder icon is shown next to it), tap and hold your stylus on the WLAN in the list.

  • Page 45: Socketscan 10 For Chs Series 7 Barcode Scanners

    Bluetooth HID instructions, please refer to your CHS manual. DDITIONAL OCUMENTATION This chapter covers basic instructions for using SocketScan 10 on the SoMo 650 with a CHS v3. For detailed instructions, please refer to the appropriate User’s Guide for your type of CHS: •...

  • Page 46: Step 1: Charge The Chs

    10 I OCKET CONS The icon indicates whether SocketScan 10 is connected to your CHS and ready to read data. The icon appears at the bottom of the Today screen. Icon CHS not connected. CHS connected and ready to scan barcodes 1: C HARGE THE Refer to your CHS manual for hardware preparation instructions.

  • Page 47: Step 3: Pair The Chs With The S O Mo

    3: P AIR THE WITH THE 1. Tap Start | Programs | SocketScan 10 folder | SocketScan 10 2. In the Today screen, tap on the SocketScan 10 icon the pop-up menu, tap SocketScan 10 Settings. 3. Make sure an available COM port is selected. Tap ok. 4.

  • Page 48: Step 4: Start Application

    a. If you have a 1D scanner, the CHS will disconnect from the SoMo, indicated by 2 beeps. The CHS will then reconnect to the SoMo, indicated by a beep. 4: S TART PPLICATION Start the application that you want to enter data into (e.g., Excel Mobile). From the Today screen, tap Start | Programs and select your program.

  • Page 49: Socketscan For Plug-In Scanners And Readers

    CAN FOR SocketScan software sends data from your Socket barcode scanner, RFID reader or magnetic stripe reader into any application running on the SoMo 650. This lets you use Socket data collection peripherals without having to program custom applications. The software comes pre-loaded on the SoMo 650.

  • Page 50: Step 1: Assign A Trigger Button

    1: A SSIGN A RIGGER This step is NOT required for the CF Mag Stripe Reader Card. Method 1: This method is for the SD Scan Card, CF Scan Card or CF RFID Reader Card 6E with any version of Windows Mobile. 1.

  • Page 51: Step 2: Start Socket Scan

    2. In the list, tap Set up Data Capture triggers. 3. In the next screen, tap either LEFT or RIGHT in the appropriate section to select the button you want to use to trigger your device. 4. The SoMo will automatically set up the trigger button and send a confirmation message to your inbox.

  • Page 52: Step 3: Insert The Card

    3: I NSERT THE 1. Open the slot cover at the top of the SoMo 650, then insert the card into the appropriate slot. Do not insert the card backwards or force the card in too hard. 2. When SocketScan is running, an icon will appear at the bottom of the Today screen.

  • Page 53: Step 4: Start Application

    Mag Stripe: Swipe a magnetic stripe card through the slot, with the magnetic stripe facing the SoMo 650. 2. When data is read, it should appear in your document. Depending on which scanner/reader you have, it may also beep, or the LED may change colors to indicate a successful scan.
  • Page 54 7 | S 650 B The SoMo 650 Back Pack is a wireless broadband ExpressCard adapter that enables you to add a Novatel ExpressCard modem card to access data anytime anywhere. Back Pack software is pre-installed in SoMo devices running Windows Mobile 6 Service Pack 4 or later.
  • Page 55 1: C ONFIGURE A ODEM ONNECTION 1. In the Today screen, tap Getting Started. 2. In the list, tap Set up WAN Connections. 3. In the next screen, tap on your WAN modem card. 4. The SoMo will automatically set up a connection for your card. CHAPTER 6: SOCKETSCAN FOR PLUG-INS...

  • Page 56: Prepare The Hardware

    2: P REPARE THE ARDWARE Install the SoMo 650 Back Pack and insert your Novatel WAN modem card, as shown in the Quick Start Guide included with the SoMo 650 Back Pack. If desired, also install the hand strap. 3: C...

  • Page 57: Specifications

    White LED backlight Audio Headset Jack: 2.5mm, 4-ring type, support for both Voice & Stereo music 0.5W speaker Omni-directional microphone Connectors SoMo 650: DC-in (5V, 1A) USB synchronization/host cable connector Cradle: Docking connector DC-in (5V, 3A) USB synchronization cable connector USB v2...
  • Page 58 +/- 8kV air discharge, +/- 8kV direct discharge Operating Systems Microsoft Windows Mobile 6 Classic Available Note: If you have a SoMo 650 running Windows Mobile 5.0, an upgrade DVD for Windows Mobile 6 is available, SKU# SW1241-893 Pre-Loaded Socket...

  • Page 59: Care And Maintenance

    For important safety and usage instructions, please refer to page 3. Cleaning the SoMo 650 or SoMo 650DX: • With the device switched off, clean the SoMo 650 by wiping it with a soft, clean cloth that is lint-free and slightly moistened. Do not allow the earpiece, microphone, speaker, card slots, sync/charging port or other metal surfaces to get wet.
  • Page 60 PPENDIX ESETTING THE The SoMo 650 supports the three levels of reset defined by Microsoft for Windows Mobile powered devices: • Soft Reset - sometimes called a “warm” reset • Hard Reset - sometimes called a “cold” reset • Clean Reset - sometimes called a “clean boot”...

  • Page 61: Soft Reset

    To perform a soft reset: Using the tip of your stylus, lightly press the Soft Reset button inside the hole on the bottom of your SoMo 650 and then release. APPENDIX C: RESETTING THE SOMO 650...

  • Page 62: Hard Reset

    Press and hold the Calendar and Contacts shortcut buttons on your SoMo 650. While holding the two buttons, using the tip of your stylus, lightly press the Reset button inside the hole on the bottom of your SoMo 650. Release the Calendar and Contacts shortcut buttons.
  • Page 63 RESTORED TO THEIR FACTORY DEFAULTS. ALL DATA, RECORDS AND ENTRIES, EXCEPT THOSE STORED IN ROM, WILL BE ERASED. If you set a security password on the SoMo 650 and forget it, a clean reset will remove the password setting. To perform a clean reset: Press and hold the Left Programmable Application Button, the Calendar and Contacts shortcut buttons on your SoMo 650.
  • Page 64 Reset button inside the hole on the bottom of your SoMo 650 and then release. It is recommended that you hold the SoMo 650 in your left hand. Press the left programmable action button with your left thumb and the two shortcut buttons with your left index and middle finger.
  • Page 65 Keep pressing all three buttons until a splash screen appears with the Socket logo and then disappears. After the Socket Splash Screen disappears, release the three buttons and follow the onscreen instructions. APPENDIX C: RESETTING THE SOMO 650...

  • Page 66: Upgrading The Rom Image

    STEP 2: Back up Data on the Device If you have any data on the SoMo 650, please back it up before you run the update. STEP 3: Transfer Files using a Memory Card IMPORTANT! It is not recommended to transfer the files using ActiveSync or...
  • Page 67 Contacts shortcut buttons on your SoMo 650. While holding the three buttons, use the stylus to quickly press the Reset button inside the hole on the bottom of your SoMo 650. Keep holding the Right programmable application button. Reset button...
  • Page 68 The SoMo 650 will begin to download and update the ROM image. After the installation reports, “Update completed!” the Socket splash screen will appear for about 30 seconds. The Windows Mobile splash screen will appear for about 30 seconds. The Windows Welcome wizard will prompt you to set up Windows Mobile.

  • Page 69: Troubleshooting

    PPENDIX ROUBLESHOOTING SYMPTOM When I press the power button, the SoMo does not turn on. POSSIBLE REASON The SoMo battery does not have adequate charge. The SoMo hold switch is on. SYMPTOM I connected the SoMo to a PC via the USB cable, but the SoMo does not charge. POSSIBLE REASON Your SoMo runs Windows Mobile 6 Service Pack 7 or later and has USB charging...

  • Page 70: Technical Support

    PPENDIX ECHNICAL UPPORT If you have trouble installing or using the SoMo 650, Socket has different support options to help you. Online Knowledge Base: Search for articles, Frequently Asked Questions or Hot Topics any time, day or night. http://support.socketmobile.com/EU_S1a.asp Online Requests: Register your product and submit a question to our Technical Support Team.

  • Page 71: Limited Warranty

    IMITED ARRANTY Socket Mobile Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.

  • Page 72: Warranty

    ISCLAIMER EXCEPT TO THE EXTENT EXPRESSLY WARRANTED BY SOCKET COMMUNICATIONS, INC, THIS PRODUCT IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. EXCEPT TO THE EXTENT REQUIRED BY LAW, SOCKET DOES NOT ASSUME ANY PRODUCT LIABILITY ARISING OUT OF, OR IN CONNECTION WITH, THE APPLICATION OR USE OF ANY PRODUCT OR APPLICATION DESCRIBED HEREIN.

  • Page 73: Regulatory Compliance

    EGULATORY 1 7 B FCC: Part 15, Class B Industry Canada CE: EN TELEC NOM, COFETEL RoHS and WEEE compliant Electrical Safety EN60950, UL, CUL EMI/RFI Wi-Fi Alliance Certification Bluetooth Certification (BQB test), Bluetooth QD ID B012762 USB IF Test Microsoft Windows Mobile 5.0, 6.1 Logo Test Certification EU/International: EN301 489-1, -17 EN61000-4-2: 1995, ESD ±...

  • Page 74: Industry Canada Statement

    MAINTAIN COMPLIANCE WITH FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, PLEASE FOLLOW OPERATION INSTRUCTIONS AS DOCUMENTED IN THIS MANUAL. This PDA has been tested and demonstrated compliance when Bluetooth and WLAN are transmitting simultaneously. This PDA must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 75 8/2011 Printed in U.S.A.
