Introduction to the Product

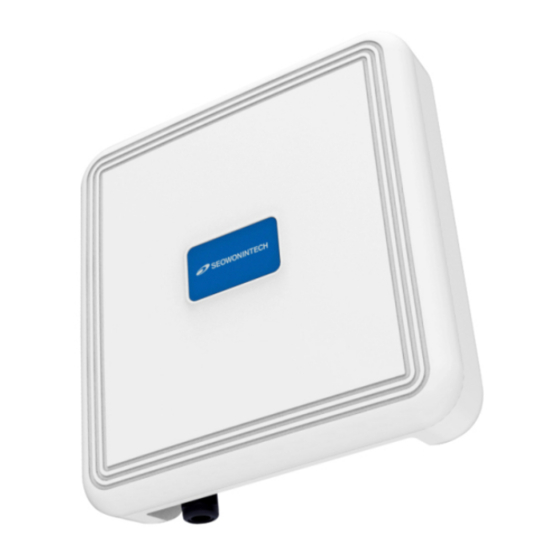

Thank you for choosing SLC-120T42OGA, Outdoor CPE.
SLC-120T42OGA is offers better performance over Outdoor CPE given
that LTE reception is not impeded.
It offers easy installation, reliable network connection, advanced
security & authentication features, and more.
Please read this User Manual carefully to learn about the SLC-120T42OGA.
It will help you to meet your diverse communication needs, at home
and at the office.

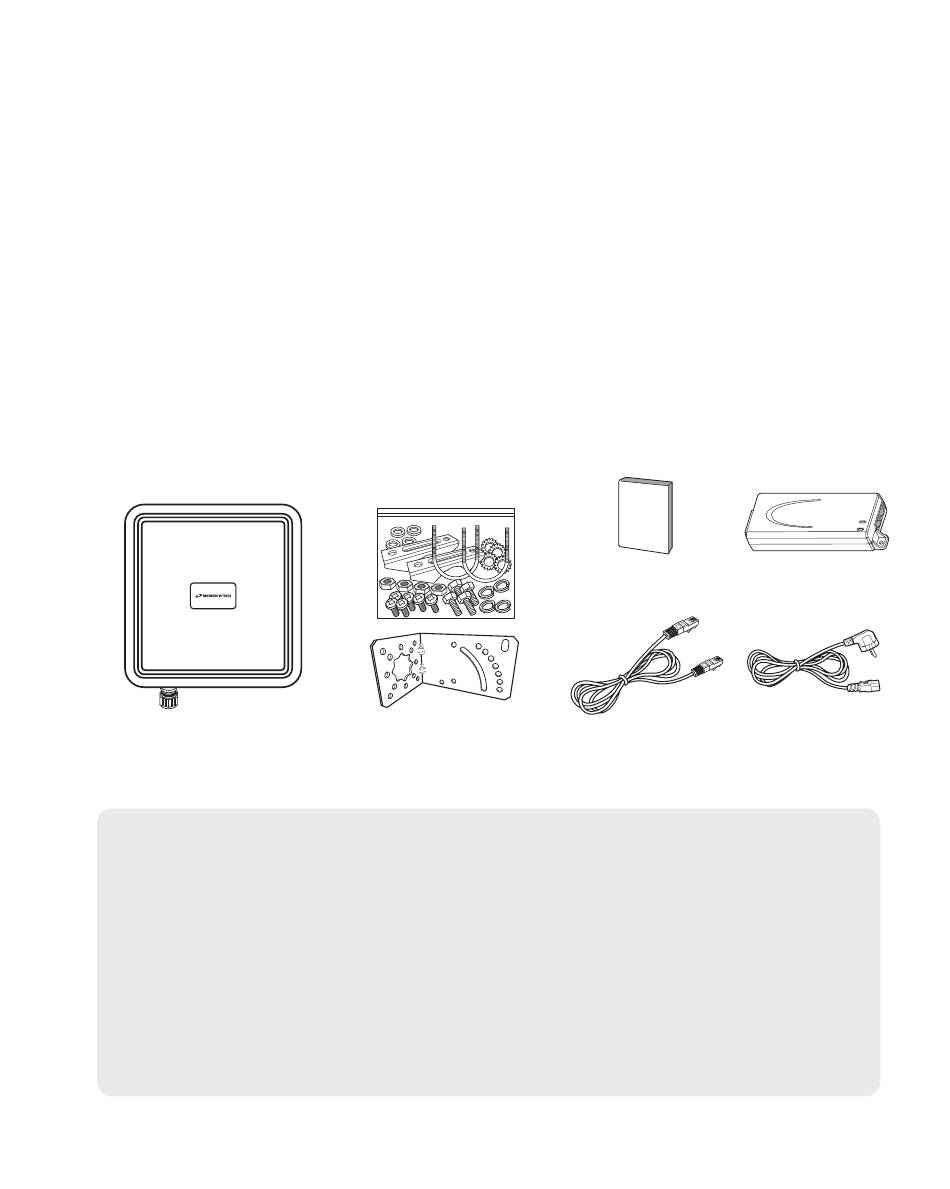

1. Package Contents

Main Unit
Note :
- Please note that it performs the best with the accessories which are contained
in the package, and the manufacturer will not be responsible for defects/
damage or shortened product life resulting from the use of product in
conjunction or connection with accessories, products, or ancillary/peripheral
equipment not approved by the manufacturer.
- Please use the product with accessories which are contained in the package.
- The components, appearance of the product, specifications and etc. are subject
to change without prior notice for performance improvement.
Mounting Kits
User Manual
LAN Cable
(100~240V)
PoE
AC Code
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLC-120T42OGA and is the answer not in the manual?

Questions and answers

Related Manuals for SEOWON INTECH SLC-120T42OGA

Summary of Contents for SEOWON INTECH SLC-120T42OGA

  • Page 1: Package Contents

    It offers easy installation, reliable network connection, advanced security & authentication features, and more. Please read this User Manual carefully to learn about the SLC-120T42OGA. It will help you to meet your diverse communication needs, at home and at the office.

  • Page 2: Functional Features

    2. Functional Features Function Features Model Name SLC-120T42OGA LTE 3GPP Release 12, Category 15, TDD Configuration 2 Technical Standard DL : 580Mbps (4x4 MIMO-2Layer, 4CA, 256QAM), UL : 30Mbps (2CA, 64QAM) Frequency Band 43(3650 ~3700MHz) Max. Transmit Power 23dBm (+3, -4dB) Antenna Internal Patch Antenna, 4x4 MIMO, 10.59dBi Gain...

  • Page 3: Mounting Configuration

    4. Mounting Configuration Package List You need the following : One Bracket Mounting Bar(2ea) Mounting U-Bolt(2ea) Bolts(4ea) Toothed lock washer(4ea) Bolt M3(6ea) Nuts(4ea) Spring Washers(4ea) Washer(4ea) 5. Assembly sequence optimization Step 1 Remove the two Bolt M3 from the outdoor CPE. * Remaining 6 screws are enclosed in the mounting kits as (2ea)
  • Page 4 Step 2 (Installing USIM Card) Carefully insert the USIM Card into USIM slot. USIM card CAUTION : The surface of IC(metal) should be facing downward from the USIM card. USIM card Step 3 Remove the cap by turning. Then follow the next steps as shown below. 1.
  • Page 5 Step 4 Assemble the Aluminum plate and outdoor CPE using the screws Bolt M3(8ea). (8ea) Cable line Step 5 Attach item 1 to the back side of the device using item 4 as shown. (Insert item 5 into item 4 before installing) Step 6 Install the device to pole using item 2 and 3, tighten the bracket by using item 7, 8 and 9.
  • Page 6 Step 7 Adjust the device, using the different position on the bracket. Check the LED light (1~5). RESET Button(When the device turned On) - Press the reset button once : Device reboot - Press and hold the reset button 5sec : Factory reset Turn left: Open Turn right: Closed RESET Button...

  • Page 7: Network Configuration

    Configuration 1. Network Configuration External Network Data IN LAN Cable for PC or WiFi Access Point AC Code 100~240V PoE Injector Internet AC IN Cable Data & Power Out Outdoor CPE Safety precaution : Do not allow the PSE adapter to get wet. Keep it inside of the building.
  • Page 8 2. PC Configuration(Windows 7) Most computers already have TCP/IP configuration enabled. For your com- puter to support CPE, please verify that the IP address and DNS settings are automatically generated in the Local Area connection of your Internet Proto- col (TCP/IP) properties. •...

  • Page 9: How To Check Your Ip Address

    3. How to check your IP address • Open the Command Prompt window by clicking the “Start” button and selecting “Run”. Enter “cmd”, and click the “OK” button. <Run cmd> • When the Command Prompt window opens, enter the “ipconfig” command to verify the IP address, Subnet mask, and Gateway, which are automatically assigned to your PC.
  • Page 10 Log-in to Web Interface The Web Browser allows you to manage the Device and to view. In the Address Bar : • Go to WEB “http://192.168.1.1” then press ENTER to access the login screen. • The default one is “user” for both User Name and Password. •...
  • Page 11 Setup on the web page 1. Dashboard • Select “Dashboard” from the left menu. • You can see the Mobile Network, LTE, Network, Firewall, Monitoring and Firmware Information.

  • Page 12: Connection Mode

    2. Connection Mode • Select “Connection Mode” from the left menu. • You can select operation mode Auto or Manual. • You can see the status of Connect Manager. • Start LTE Connection by clicking “Connect” or stop by clicking “Disconnect”...
  • Page 13 3. Status 3.1 LTE • Select “Status” → “LTE” from the left menu. • You can see the LTE Information, Status and Statistics by clicking each tab.
  • Page 14 3.2 Network • Select “Status” → “Network” from the left menu. • You can see the WAN, LAN status and Lease Status Table.
  • Page 15 3.3 Device Details • Select “Status” → “Device Details” from the left menu. • You can see the device time and device information.
  • Page 16 3.4 Device Performance • Select “Status” → “Device Performance” from the left menu. • You can see the system performance such as CPU, memory, UL/DL data rate and firewall status.
  • Page 17 4. Settings 4.1 LTE 4.1.1 Cell Selection • Select “Settings” → “LTE” → “Cell Selection” from the left menu. • You can change the mode “Full Band” or “Frequency”. • You can see the status of band and you can change the band. •...
  • Page 18 4.1.2 Cell Lock • Select “Settings” → “LTE” → “Cell Lock” from the left menu. • You can add current cell to lock or delete cell to unlock in the list. • You can manually add cell by clicking “Add+” button. •...
  • Page 19 4.1.3 SIM Management • Select “Settings” → “LTE” → “SIM Management” from the left menu. • You can see the current status of SIM. • Only the button operation is enabled to match the current status. - If you SIM card is locked, PIN Status shows “PIN ENABLED NOT VERIFIED”. - Then you should enter the PIN code and click the “Verify”...
  • Page 20 4.1.4 Default PDN • Select “Settings” → “LTE” → “Default PDN” from the left menu. • You can set the PDN data such as APN, Authentication Type and PDN type(IPv4, IPv6). • Put in the data to box then click “Apply” button. •...
  • Page 21 4.1.5 Multiple PDN • Select “Settings” → “LTE” → “Multiple PDN” from the left menu. • You can set the multiple PDN data for IMS, admin, App service. • Select “Cid”, check “Enable”, put in the data to box then click “Apply” button.
  • Page 22 4.1.6 Internet MTU • Select “Settings” → “LTE” → “Internet MTU” from the left menu. • You can change the internet MTU size. • Put in the data to box then click “Apply” button.
  • Page 23 4.1.7 IPv6 Settings • Select “Settings” → “LTE” → “IPv6 Setup” from the left menu. • You can Enable or Disable IPv6 function by selecting the list. • You can set DHCPv6 Auto-configuration mode by selecting the list. • You can set DNS Server Address Mode to “Auto” or “Manual”. •...
  • Page 24 4.2 Network 4.2.1 Switch • Select “Settings” → “Network” → “Switch” from the left menu. • You can select Switch Mode to “NAT” or “BRIDGE”. • Finish setup by clicking the “Apply” button.
  • Page 25 4.2.2 DHCP Server • Select “Settings” → “Network” → “DHCP Server” from the left menu. • Configure DHCP Server Setting. - IP address is used in the LAN cable that the device manages. - Setup IP address in “Gateway IP Address/ Gateway Subnet Mask” text boxes. - Initial Value is “192.168.1.1/255.255.255.0”...
  • Page 26 4.2.3 Port Management : DMZ/Port Forwarding/Port Triggering • Select “Settings” → “Network” → “DMZ” from the left menu. • Configure DMZ(Demilitarized Zone) - Select whether or not to enable the DMZ function. - You can set “Redirect ICMP To The Host” and “Exclude Web Server Port”. - Set the IP address to have all ports opened in “Private LAN IP Address”...
  • Page 27 • Select “Settings” → “Network” → “Port Forwarding” from the left menu. • Configure Port Forwarding - Enter the Name. - Select one of the listed Protocols (BOTH, TCP, UDP). - Enter Start Port, End Port, Destination IP and Destination Port. - Click the “Add”...
  • Page 28 • Select “Settings” → “Network” → “Port Triggering” from the left menu. • Configure Port Triggering - Enter the Name. - Select one of the Port Type(RANGE or SINGLE). - Select Trigger Protocol and Open Protocol(ALL, TCP, UDP) - Enter Trigger Port Range and Open Port Range. - Click the “Add”...
  • Page 29 4.2.4 VPN Configuration • Select “Settings” → “Network” → “VPN Configuration” from the left menu. • You can set VPN mode by selecting “GRE”, “L2TP” or “PPTP”. • After selecting the mode, put in the data to all boxes. • Then click “Add” button. •...
  • Page 30 4.2.5 VPN Passthrough • Select “Settings” → “Network” → “VPN Passthrough” from the left menu. • The device support 2 types of service : PPTP Service, L2TP/IPSEC Service. • Select the type(s) of VPN pass-through to use with the checkboxes. •...
  • Page 31 4.2.6 UPnP • Select “Settings” → “Network” → “UPnP” from the left menu. • Select whether or not to Enable the Universal Plug & Play function. • Finish setup by clicking the “Apply” button. • When UPnP Client is connecting, it will appear on the Client List.
  • Page 32 4.2.7 QoS • Select “Settings” → “Network” → “QoS” from the left menu. • To set the QOS, check “Shaping”. The desirable service quality class can be set. - Setup download speed in “Download(kbps)” text box. - By selecting “Upload” and “Download” in the list, you can adjust each speed. - Setup IP address/mask, protocol, port and rate.
  • Page 33 4.2.8 DDNS • Select “Settings” → “Network” → “DDNS” from the left menu. • Set the DDNS environment - If you want to set the DDNS, check “Enable” in the checkbox to enter necessary inputs. - After entering all the necessary information for DDNS Setting, finally, click the “Apply”...
  • Page 34 4.3 Firewall 4.3.1 Basic • Select “Settings” → “Firewall” → “Basic” from the left menu. • If you want to use the default Firewall function, check the “Enable” checkbox. • You can set other firewall rules as Ping, HTTP, HTTPS login and Multicast Filter.
  • Page 35 4.4 User Management 4.4.1 Account • Select “Settings” → “User Management” → “Account” from the left menu. • Set the password to be given to the administrator who manages the device. • Enter the new password. • Finish setup by clicking the “Apply” button.
  • Page 36 4.4.2 Language • Select “Settings” → “User Management” → “Language” from the left menu. • Select the Language. • Finish setup by clicking the “Apply” button.
  • Page 37 4.4.3 Restore Default • Select “Settings” → “User Management” → “Restore Default” from the left menu. • To initialize all configurations the device, click “Apply” button. • If you want to save, remove or reset this configuration click the button. •...
  • Page 38 4.4.4 Reboot • Select “Settings” → “User Management” → “Reboot” from the left menu. • To reboot by software, click “Apply” button. • The device will reboot automatically and it takes about 60 seconds.
  • Page 39 4.4.5 Date and Time • Select “Settings” → “User Management” → “Date and Time” from the left menu. • Configure Time Zone. - If you want to set the NTP Client, select “Enable”. - Set the “Time Server”. - Select the “Time Zone Select”. - If you want to set the “Daylight Saving”, check “Enable Daylight Saving”.
  • Page 40 4.4.6 Remote Management • Select “Settings” → “User Management” → “Remote Management” from the left menu. • You can set HTTP Server port and HTTPS Server port. • If you want to set https server, check “Enable” and type Port Number. •...
  • Page 41 4.5 Firmware Management 4.5.1 Software • Select “Settings” → “Firmware Management” → “Software” from the left menu. • Select the firmware file by clicking the “Browse…” button. • To start the firmware update, click “Update” button. • The device will be restart automatically.
  • Page 42 4.6 Monitoring 4.6.1 Iperf • Select “Settings” → “Monitoring” → “Iperf” from the left menu. • You can use iperf by clicking the “Enable” button. • Set the all data in the field. • Finish setup by clicking the “Apply” button. •...
  • Page 43 4.6.2 Diagnostic • Select “Settings” → “Monitoring” → “Diagnostic” from the left menu. • Configure the Ping. - If you want to test ping, enter IP Address to “IP Address (URL)”. - Set the all data in the field. - Click the “Apply” button to test. - The results come out below.
  • Page 44 • Configure the Trace route. - If you want to test trace route, enter IP Address to “IP Address (URL)”. - Select the “Set Maximum TTL” and “Set the number of queries at each TTL”. - If you want to see report consisting of IP Address, check the “Report IP Address Only”.
  • Page 45 4.6.3 Log • Select “Settings” → “Monitoring” → “Log” from the left menu. • The device support 2 types of log : System log and Kernel log. • Configure System log. - Check “Enable” in “System log Enable/Disable”. - Check “System log” in “View System Log”. - Click “Refresh”...
  • Page 46 • Configure Kernel log. - Check “Kernel log” in “View System Log”. - Check “Detailed” or “Simple” in below. - Click “Refresh” button or “Clear” button for each action. - If you want to download the log to your PC, click “Download” button. Restrictions on the operation of base and fixed stations.
  • Page 47 SEOWON INTECH.CO.,LTD. R&D Center 69, LS-ro 115beon-gil, Gunpo-si, Gyeonggi-do, Korea 15809 TEL +82-31-428-9531/ FAX +82-31-428-9537 / E-mail sales@seowonintech.co.kr / www.seowonintech.co.kr/en The content in this document can be modified without prior notice for improving performance or function of deviec. copyright © 2018 by SEOWONINTECH ALL Pictures cannot be copied without permission.
