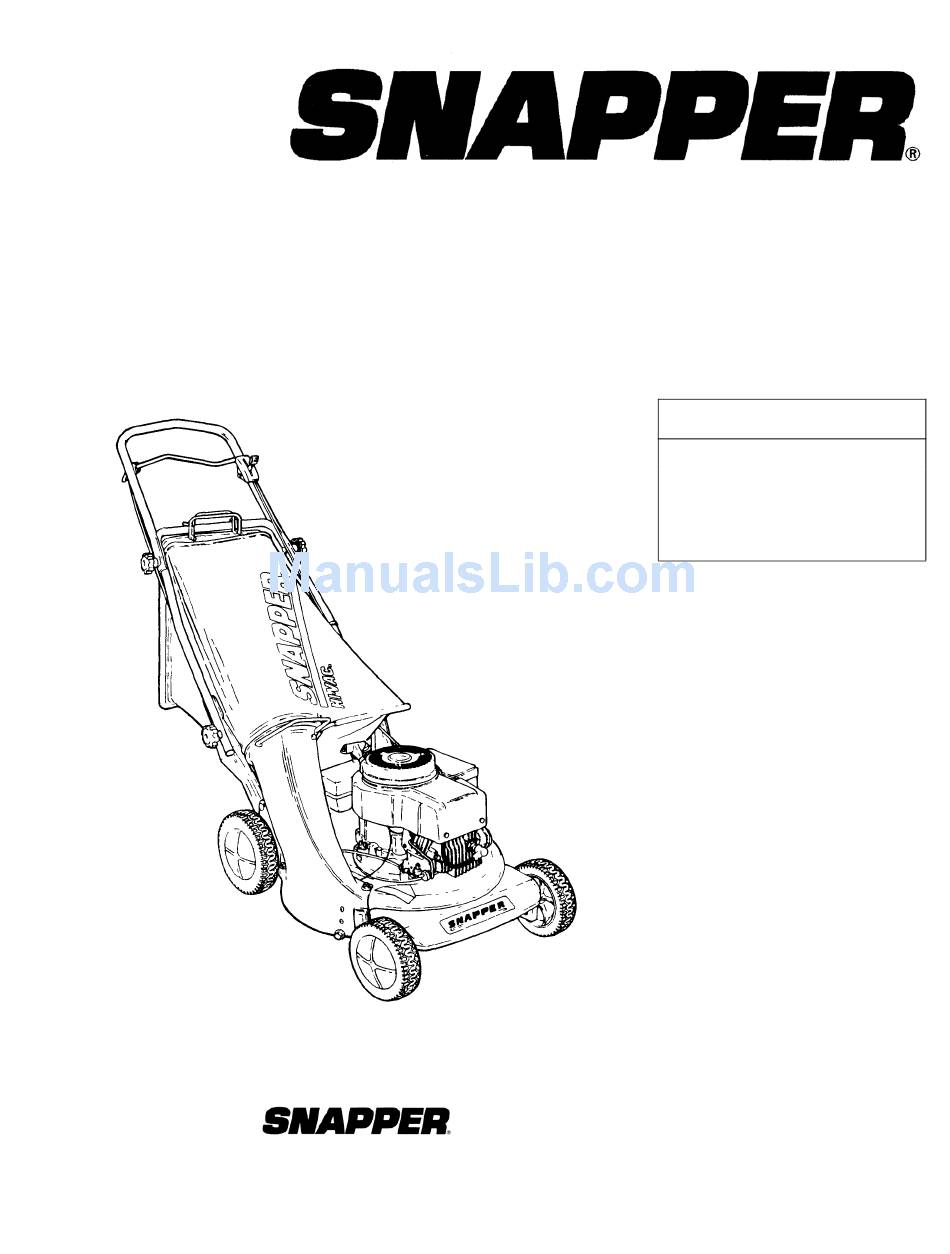

- Page 1 20" STEEL DECK LIGHT WEIGHT (Standard & OPP) WALK BEHIND MOWERS COPYRIGHT © 2005 SNAPPER PRODUCTS, INC. ALL RIGHTS RESERVED. Parts Manual for McDonough, GA, 30253 U.S.A. Revision 1, 9/22/2005 SERIES 0 MODEL D20380 EDLW400R2 ELW400 R20400 Manual No. 7006040...
-
Page 3: Table Of Contents
PAGE GROUP Handles & Controls Cutting Deck, Blade, Interlock Cutting Deck, Blade, Interlock (OPP Models Only) Wheels, Guards, Axles Wheels, Guards, Axles (OPP Models Only) Decals Accessory - Grass Bag Accessory - Side Chute, Adapter Accessory - Snapperizer Accessory - Recycling Kits 20"... -
Page 4: Handles & Controls
Handles & Controls Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 5 Handles & Controls Item Part No Description 7074384 HANDLE, Upper 7033477 HANDLE, Upper 7036350 HANDLE, Middle 7033406 HANDLE, Middle 7046502 HANDLE, Lower Left Hand 7035342 HANDLE, Lower Right Hand 7017072 CONTROL, Blade 7033904 CLIP, Blade Control 7023765 CABLE, Blade Control (Briggs & Robin 4-Cycle) 7027475 CABLE, Blade Control (Robin 2-Cycle) 7014343...
-
Page 6: Cutting Deck, Blade, Interlock
Cutting Deck, Blade, Interlock Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 7 Cutting Deck, Blade, Interlock Item Part No Description 7057662 DECK, Mower 7057662 ASSEMBLY, Tall Mower Deck 7017031 BLADE, Cutter 7017167 BLADE, Cutter 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5) 7012063 WASHER, Cone 7013847 RETAINER, 3/8 Bolt 7015626 HUB, Drive Blade 7033408 SPRING, Interlock...
-
Page 8: Cutting Deck, Blade, Interlock (Opp Models Only
Cutting Deck, Blade, Interlock (OPP Models Only) Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 9 Cutting Deck, Blade, Interlock (OPP Models Only) Item Part No Description 7057662 DECK, Mower 7022396 BLADE, Cutter 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5) 7012063 WASHER, Cone 7022390 HUB, Blade Drive (Tecumseh 2-Cycle) 7033408 SPRING, Interlock 7012048 INSULATOR, Interlock 7090385 WASHER, #8 Tab...
-
Page 10: Wheels, Guards, Axles
Wheels, Guards, Axles Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 11 Wheels, Guards, Axles Item Part No Description 7022259 WHEEL, Front 7 x 1.75 7013024 HUB-CAP, Wheel 7013320 BUSHING, Height Adjustment 7013307 SPRING, Front Axle 7090122 WASHER, 3/8" Flat 7034357 AXLE, 3/8 x 19-3/8" 7022260 WHEEL, Rear 8 x 2.00 7032118 CLIP, Rear Guard 7013027 SPRING, Rear Guard...
-
Page 12: Wheels, Guards, Axles (Opp Models Only
Wheels, Guards, Axles (OPP Models Only) Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 13 Wheels, Guards, Axles (OPP Models Only) Item Part No Description 7022795 WHEEL, Front 7 x 1.75 7022374 WHEEL, Rear 8 x 2.00 7024280 GUARD, Rear Foot 7024086 SUPPORT, Foot Guard 7090913 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) 7091142 SCREW, 3/8-16 x 3-1/8"...
-
Page 14: Decals
Decals Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 15 DECAL, Noise Control 23010 DECAL, Spark Plug 7024379 DECAL, Blank (Small) 7024458 DECAL, 4 HP Robin 7024204 DECAL, Snapper (3.38 Dia.) 24279 DECAL, Snapper (2.50 Dia.) 7024220 DECAL, Light Weight 7026382 DECAL, Mulcher Convertible Footnotes: 20" STEEL DECK LIGHT WEIGHT...
-
Page 16: Accessory - Grass Bag
Accessory - Grass Bag Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 17 Accessory - Grass Bag Item Part No Description 7061918 KIT, Grass Bag 7059322 KIT, Grass Bag 7059322 ASSEMBLY, Grass Bag (Door Type) 7017069 BAG, KWIK-N-EZY 7051906 ASSEMBLY, Bag Wire 7042489 CONNECTOR, Grass Bag 7053681 ADAPTER, Bag 7024169 DECAL, Hi-Vac/Foot Probe (Red) Footnotes: 20"...
-
Page 18: Accessory - Side Chute, Adapter
Accessory - Side Chute, Adapter Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 19 Accessory - Side Chute, Adapter Item Part No Description 7053681 ADAPTER, Bag 7035771 CHUTE, Side 7090799 BOLT, 5/16-18 x 5/8" Short Neck Carriage 7024085 NUT, 5/16-18 Wing 7011791 RETAINER, 5/16 Bolt 7091076 WASHER, 5/16 Flat 7024169 DECAL, Hi-Vac / Foot Probe (Red) 7024263 DECAL, Hi-Vac / Foot Probe (Green) 7017169...
-
Page 20: Accessory - Snapperizer
Accessory - Snapperizer Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 21 Accessory - Snapperizer Item Part No Description 7060450 KIT, Snapperizer 7051246 ASSEMBLY, Screen Fastener 7039762 RING, Bottom 7091297 NUT, 5/16-24 Hex 7090187 WASHER, 5/16 Split Lock 7012587 SPRING Footnotes: 20" STEEL DECK LIGHT WEIGHT SERIES 0 Note (Includes Items 1 Thru 5) Was 90223 Manual No.
-
Page 22: Accessory - Recycling Kits
Accessory - Recycling Kits Manual No. 7006040 20" STEEL DECK LIGHT WEIGHT TP 400-5103-1-WB-N SERIES 0... - Page 23 Accessory - Recycling Kits Item Part No Description 7061029 KIT, Recycling Cover 7017167 BLADE, 19" Recycling 7017169 COVER 7061033 KIT, Recycling Plug 7017167 BLADE, 19" Recycling 7016814 PLUG, Chute Adapter 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5) 7012063 WASHER, Cone 7024076...
- Page 26 20" STEEL DECK LIGHT WEIGHT (Standard & OPP) WALK BEHIND MOWE SERIES 0 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
