Please read the operating instructions carefully before use and keep for further reference!
APPLICATION

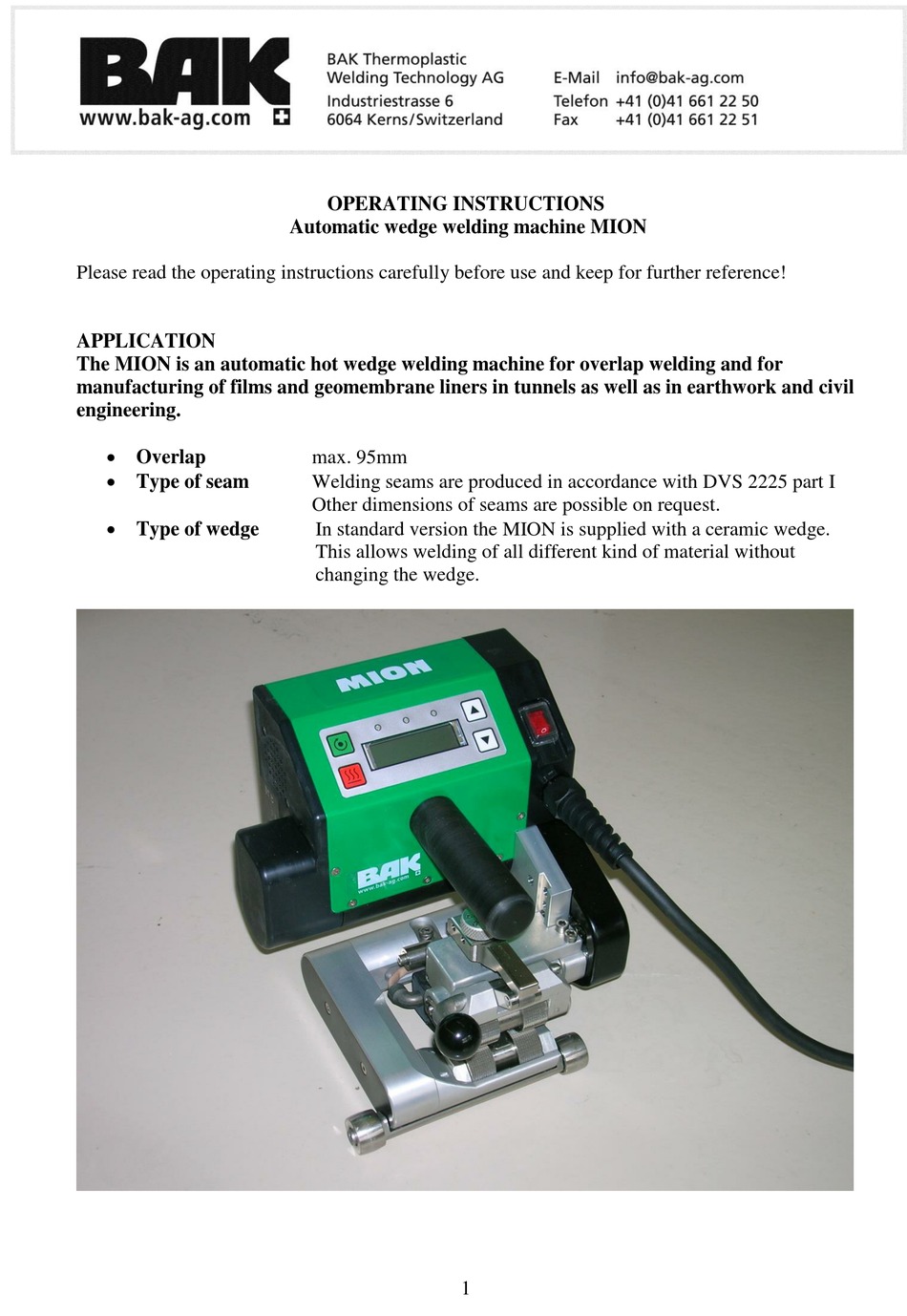

The MION is an automatic hot wedge welding machine for overlap welding and for
manufacturing of films and geomembrane liners in tunnels as well as in earthwork and civil
engineering.
 Overlap
 Type of seam
 Type of wedge
OPERATING INSTRUCTIONS
Automatic wedge welding machine MION
max. 95mm
Welding seams are produced in accordance with DVS 2225 part I
Other dimensions of seams are possible on request.
In standard version the MION is supplied with a ceramic wedge.
This allows welding of all different kind of material without
changing the wedge.
1
