Chapter 2

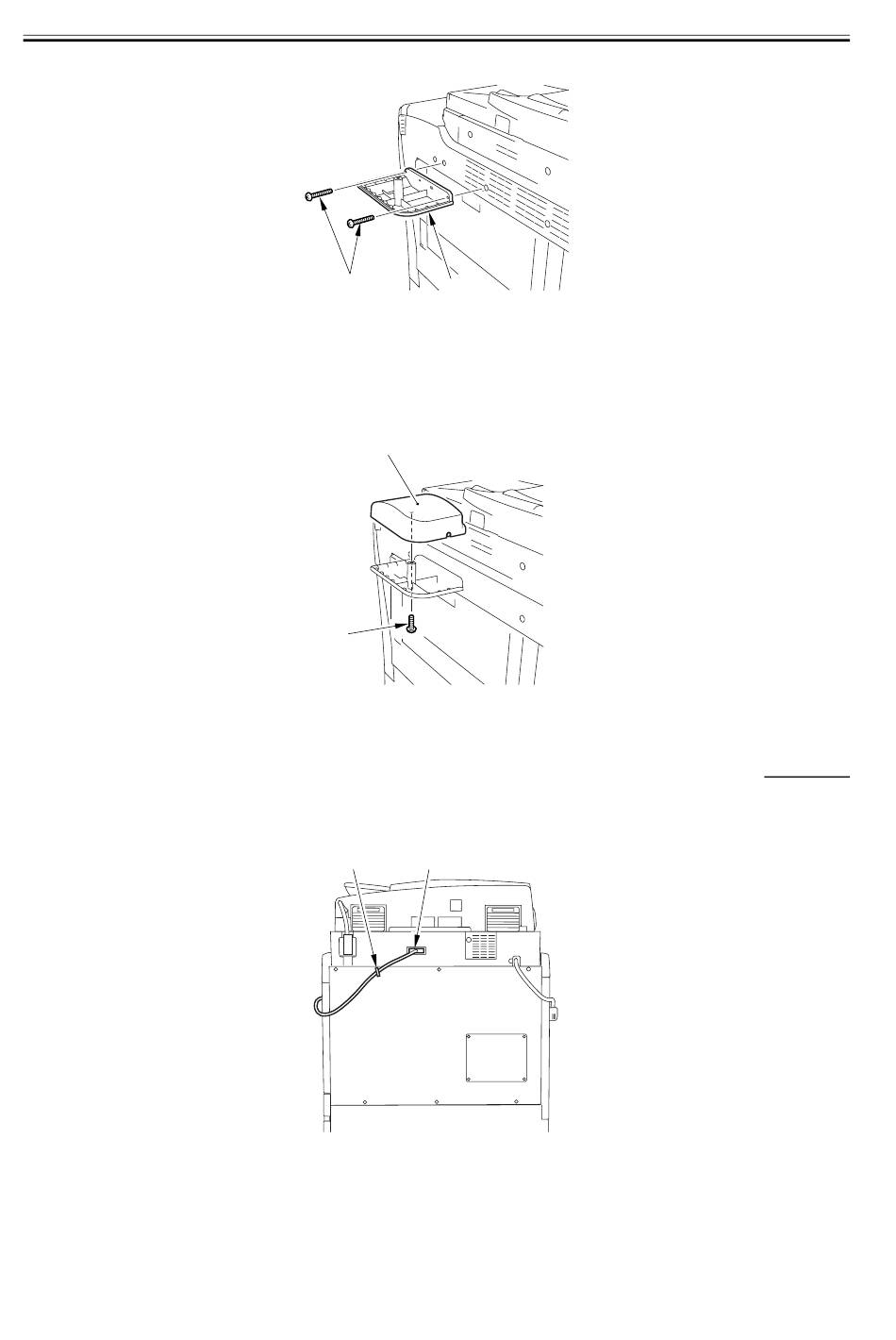

2) Mount the speaker unit upper cover [1] to the speaker unit lower cover you mounted in step 1); then, secure it in
place from under with the included screw (M4X6) [2].

2.3.3 Mounting the Voice Board

1) Open the cable clamp [1], and disconnect the reader communications cable [2].
2) Remove the 6 screws [1], and detach the upper rear cover [2].
2-4
[2]
[1]
F-2-3
[1]
[2]
F-2-4
[1] [2]
F-2-5
0009-3381
