Snapper RD2140 (2690774) Parts Manual

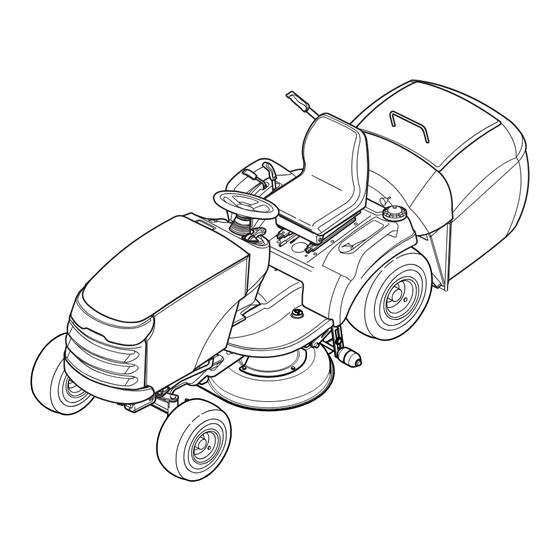

Lawn tractor electric clutch hydro drive 4wd rmo & acs "rd" lt300 series
Hide thumbs Also See for RD2140 (2690774):
Table of Contents

Advertisement

Quick Links

Parts Manual for
LAWN TRACTOR ELECTRIC CLUTCH
HYDRO DRIVE 4WD RMO & ACS "RD"
LT300 SERIES
MODEL
RD2140 (2690774)
Briggs & Stratton Yard Power Products Group
535 Macon Road
Manual No.
7006271
McDonough, GA, 30253 U.S.A.
800-935-2967
Revision IR,
10/15/2008
TP 400-5419-IR-TC-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD2140 (2690774) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snapper RD2140 (2690774)

Summary of Contents for Snapper RD2140 (2690774)

  • Page 1 Parts Manual for LAWN TRACTOR ELECTRIC CLUTCH HYDRO DRIVE 4WD RMO & ACS "RD" LT300 SERIES MODEL RD2140 (2690774) Briggs & Stratton Yard Power Products Group 535 Macon Road Manual No. 7006271 McDonough, GA, 30253 U.S.A. 800-935-2967 Revision IR, 10/15/2008 TP 400-5419-IR-TC-N...

  • Page 3: Table Of Contents

    PAGE GROUP Wheels & Tires Group Hood, Grille & Dash Group Steering Group - Power Steering Frame & Front Axle Group - 4WD Controls Group Cruise Control Group Transmission Group - Tuff Torq K-4664 Seat Deck & Fuel Tank Group Engine &...
  • Page 4 Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...

  • Page 5: Wheels & Tires Group

    Wheels & Tires Group Item Part No Description 1732202 WHEEL & TIRE ASSEMBLY, Front 1733882 TIRE, 15 x 6, Super Turf 1664090 TUBE, Tire, Front, 4.10/3.50 1717056 BEARING, Ball 1722837 WHEEL, 4-1/2” x 6” 2172353 VALVE STEM & CAP ASSEMBLY 1722726A WASHER, Special, (As Required) 1919394...

  • Page 6: Hood, Grille & Dash Group

    Hood, Grille & Dash Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 7 Hood, Grille & Dash Group Item Part No Description 1728031D HOOD, W/Scoop 1721804D PANEL, R.H. Side 1721803D PANEL, L.H. Side 1721810 HEADLIGHT ASSEMBLY 1721802D GRILLE 1930641 NUT, Hex Flange 1/4-20 Whiz Lock 1726827 DASHBOARD 1726894 DASHBOARD, W/Hydraulic Lift Slot 1721808A HINGE, Hood L.H.

  • Page 8: Steering Group - Power Steering

    Steering Group - Power Steering Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...

  • Page 9: Steering Wheel

    Steering Group - Power Steering Item Part No Description 1733363 STEERING WHEEL 1724685A PLATE, Steering Mounting 1960655 CARRIAGE BOLT, 5/16-18 x 1-1/4 G5 1725294 ADAPTER, Tilt 1723898 SPACER 1933988 NUT, Push Pal 1960636 NUT, Hex Keps 5/16-18 1733790 STEERING UNIT, Tilt 1686970 BELLOWS, Tilt Steering Unit w/Slot 1725024...
  • Page 10 Frame & Front Axle Group - 4WD Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...

  • Page 11: Frame & Front Axle Group - 4Wd

    Frame & Front Axle Group - 4WD Item Part No Description 1734731A FRAME ASSEMBLY, Front & Rear 4WD 1733139A TOWER & SUPPORT ASSEMBLY 1723528A SUPPORT, Seat Deck 1722602A SUPPORT, Drawbar 1733918A BRACKET ASSEMBLY, Steering 4WD 1721805A BUMPER, 4GA 1733480 AXLE ASSEMBLY, Front 1734241A PIVOT ASSEMBLY, Axle w/Bushings 1960755...
  • Page 12 Frame & Front Axle Group - 4WD Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 13 Frame & Front Axle Group - 4WD Item Part No Description 1733402 FITTING, Bulkhead Union 13/16-16 1931333 CARRIAGE BOLT, 5/16-18 x 3/4 G5 1960636 NUT, Hex KEPS, 5/16-18 1733947 NUT, Jam 13/16-16 1960103 WASHER, 3/8 1931355 CARRIAGE BOLT, 3/8-16 x 2-1/4 G5 1733044A SUPPORT, Steering Unit 7GA 1924856...

  • Page 14: Controls Group

    Controls Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 15 Controls Group Item Part No Description 1721353 ROD, Brake 1721891 KNOB, Push On, Red 1930591 CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4 1960687 NUT, Hex Flange, 3/8-16 ESNA 1721134 PULLEY ASSEMBLY, 3 OD, W/Bearing 1667811 SPACER 1922755 WASHER, 3/8 1710545 PULLEY, Idler 4 OD 1960315...
  • Page 16 Controls Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 17 Controls Group Item Part No Description 1722083A ACTUATOR, Switch 1921333 CAPSCREW, Hex Head, 5/16-18 x 1 1722070A PEDAL, Forward 1721675 PAD, Foot Pedal Forward 1721674 PAD, Foot Pedal Reverse 1722071A PEDAL, Reverse 1931333 CARRIAGE BOLT, 5/16-18 x 3/4 1931348 CARRIAGE BOLT, 3/8-16 x 3/4 1726087A SUPPORT, Idler Footnotes:...

  • Page 18: Cruise Control Group

    Cruise Control Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 19 Cruise Control Group Item Part No Description 1960666 CAPSCREW, Torx Socket Head, 1/4-20 x 7/8 1722303 KNOB, Cruise 1920397 NUT, Hex ESNA Lock, 1/4-20 1723258 LEVER & BRACKET ASSEMBLY, Cruise 1960103 WASHER 1931333 CARRIAGE BOLT, 5/16-18 x 3/4 926192 WASHER, 9/16 x 1-1/4 x 1/8 1709043 SPACER 1931342...

  • Page 20: Transmission Group - Tuff Torq K-4664

    Transmission Group - Tuff Torq K-4664 Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 21 Transmission Group - Tuff Torq K-4664 Item Part No Description 1735070 TRANSMISSION ASSEMBLY, Tuff Torq K664 1719911 V-BELT, 117.0" EL HA 1727552 SHAFT & ARMS ASSEMBLY, Control 1734956 STRAP. Torque 1919326 WASHER, 5/16 1919326 NUT, Hex, CON, Lock, 5/16-18 1666697 SPACER, Powered Metal 1722460 PIN, Quick...
  • Page 22 Transmission Group - Tuff Torq K-4664 Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 23 Transmission Group - Tuff Torq K-4664 Item Part No Description 1960315 BOLT, Carriage, 3/8-16 x 2 1719968 NUT, Flange, Nylock, M10 1921333 CAPSCREW, Hex Head, 5/16-18 x 1 G5 1727215A ACTUATOR, Switch 1960684 NUT, Hex KEPS, 5/16-18 Conical Washer 1734980A DRAWBAR 1931353 CARRIAGE BOLT, 3/8-16 x 1-3/4 G5...

  • Page 24: Seat Deck & Fuel Tank Group

    Seat Deck & Fuel Tank Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 25 Seat Deck & Fuel Tank Group Item Part No Description 1722129A BRACKET, Seat 1725019 SEAT, 15” Back, Snapper Logo 1722128A SUPPORT, Seat 2172434 CLIP, Wire 1709256A WASHER, Spring 1714263 SPRING, Compression 1919438 NUT, Hex Lock ESNA, 5/16-18 1717051 SPRING, Compression...
  • Page 26 Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...

  • Page 27: Engine & Electric Clutch Group - 21Hp Briggs & Stratton, Vanguard

    Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard Item Part No Description 1723165 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings * ENGINE, 21HP B&S Vanguard Twin, Mod. 385777-0119-G1 1722388A BULKHEAD 1925003 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black 1734506 CONTROL, Throttle Double 39"...

  • Page 28: Decals Group

    Decals Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 29 Decals Group Item Part No Description 1725128 DECAL, RD2140 1725240 DECAL, RD1840 1725065 DECAL, Hood Stripe, Snapper, LH 1727713 DECAL, Belt & Blade 1722806 DECAL, Ignition Switch 1723713 DECAL, Crusie / Lift 1723310 DECAL, Hopper Lever 1725061 DECAL, Snapper 1724680...
  • Page 30 40" Mower Deck - Housing, Arbors & Blade Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...

  • Page 31: Mower Deck - Housing, Arbors & Blade

    40" Mower Deck - Housing, Arbors & Blade Item Part No Description 1733079D HOUSING ASSEMBLY, 40" Red 1664847 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 2830584 CAPSCREW, Hex Head 7/16-14 x 2-3/4 G8 1933263 WASHER, 7/16 1656916 WASHER, Spring 1732123 PULLEY 1719862...
  • Page 32 40" Mower Deck - Belt, Idle Arm & Hitch Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...

  • Page 33: Mower Deck - Belt, Idle Arm & Hitch

    40" Mower Deck - Belt, Idle Arm & Hitch Item Part No Description 1734495 IDLER ARM ASSEMBLY, w/Bushings 1731414 ROD, Latch 1715435 SPRING, Extension 1657242 SPACER 1960615 CARRIAGE BOLT, 3/8-16 x 2-1/2 1922755 WASHER 1960614 CAPSCREW, Hex Head, 3/8-16 x 3, G8 1933263 WASHER 2101096...
  • Page 34 40" Mower Deck - Height Adjustment & Roller Bar Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...

  • Page 35: Mower Deck - Height Adjustment & Roller Bar

    40" Mower Deck - Height Adjustment & Roller Bar Item Part No Description 1921977 CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5 1960044 WASHER, 5/16 1733899A BRACKET, Flat Mounting 1921333 CAPSCREW, Hex Head 5/16-18 x 1 G5 1960686 NUT, Hex Flange 5/16-18 Esna 1960116 PIN, Clevis 1960170...
  • Page 36 40" Mower Deck - Height Adjustment & Roller Bar Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 37 40" Mower Deck - Height Adjustment & Roller Bar Item Part No Description 1960703 WASHER, 5/8 1919438 NUT, Hex Lock Esna Light 5/6-18 2108512 PIVOT, 3/4 Hex & 3/8 1918447 PIN, Cotter 3/4 1723409A BRACKET, Adjusting 1666697 SPACER 1720704 ROD & WASHER ASSEMBLY 1651820 GRIP 1917421...

  • Page 38: Hopper Group

    Hopper Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 39 Hopper Group Item Part No Description 1727486A ROD & TABS ASSEMBLY, Bagger Front 1960685 NUT, Hex KEPS Conical Washer, 1/4-20 1960353 WASHER, 1/4 1931320 CARRIAGE BOLT, 1/4-20 x 1-1/4 1921333 CAPSCREW, Hex Head, 5/16-18 x 1 G5 1917356 LOCKWASHER, Spring 5/16 1919326 WASHER, 5/16 1931317...
  • Page 40 Hopper Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...

  • Page 41: Backplate Assembly

    Hopper Group Item Part No Description 1724652 ROD, Foot Pedal Bagger Release, 11.66 Long, 2 Bends 1919438 NUT, Hex Lock ESNA Light, 5/16-18 NC-3B 1727580A PIVOT ASSEMBLY, Latch 1928352 NUT, Hex Flange Whiz Lock, 3/8-16 Large 1921965 CAPSCREW, Hex Head, 3/8-16 x 3/4 G5 1727419A BACKPLATE ASSEMBLY 1723182A...

  • Page 42: Electrical Group

    Electrical Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 43 Electrical Group Item Part No Description 1721810 HEADLIGHT ASSEMBLY, 4 Bulb 1722669 HARNESS, Headlight 1722887 SWITCH, PTO Push/Pull w/Symbols 1921959 CAPSCREW, Hex Head, 1/4 x 5/8 1722739 SOLENOID 1726556 MODULE, RMO 1726557 KEY, RMO Module Plastic 1727185 KEY, w/Hang Tag for RMO Module 1722611 PLUG, Hole Black 1665237...
  • Page 44 Electrical Group Manual No. 7006271 LAWN TRACTOR ELECTRIC CLUTCH TP 400-5419-IR-TC-N LT300 SERIES...
  • Page 45 Electrical Group Item Part No Description 1960607 PIN, Clevis 1960221 CLIP, Hair Pin 1727427 SUPPORT, Actuator 14GA, E-Coat 1960536 SCREW, Hex Washer Head Plastite, 1/4 x 1/2 1716368 SWITCH, Operator Presents, Seat NC 1929000 SCREW, Hex Washer Head Taptite, 1/4-20 x 3/8 1726810A BRACKET, Switch Mounting, RMO 1704379...
  • Page 48 IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 www.snapper.com Copyright © 2008 Briggs & Stratton Corporation Milwaukee, WI USA. All Rights Reserved Manual No. 7006271...
