Anthro FCCzz/xx3 Series Assembly Instructions

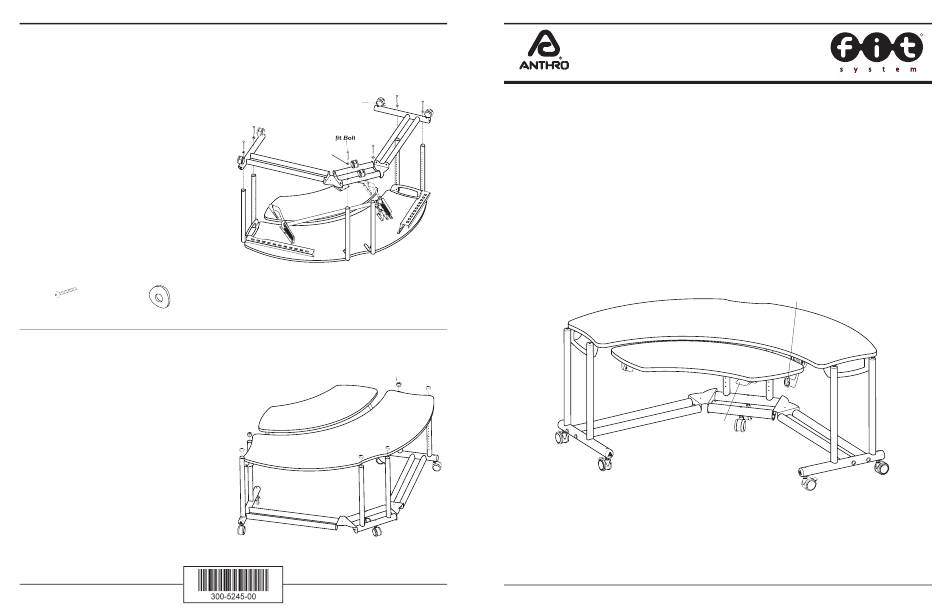

Step 15
Begin by placing the Base Tube Assembly (Locking Casters
as shown) onto the Vertical Legs.
Attach the Base Tubes to each Leg by inserting a fit
Bolt through a Tube Washer, then insert the fit Bolt
through the Base Tube and carefully thread into
each Vertical Leg.
Tighten all fit Bolts and Cap Screws.
( 5 / -18 X 3.5") fit Bolt fit Tube Washer
16
325-5194-00 225-2050-00 or 225-3522-00
Step 16
(uses the / " Hex Key)
1
8
Carefully rotate your Console Unit onto the Casters.
Pop the six Small End Caps into the Leg ends.
Congratulations! Your assembly is complete.
Questions?
Locking Casters
fit Tube Washer fit Tube Washer
Small End Caps
1-800-325-3841
Console Unit
Assembly Instructions
Hello! Thank you for choosing Anthro.
Before beginning assembly of your Console Unit, take a moment to review the parts listed on the next page
to verify that your shipment is complete. Please review the assembly instructions of all Anthro products you
purchased and are planning to include in this installation, prior to beginning this assembly.
Your Console Unit is heavy! A second person will be needed for this assembly procedure.
To make the assembly of your Console Unit even easier, we have included all of the required tools. The handy
Hex Driver Bit can be used in your electric drill in place of the Hex Driver.
Hex Driver 5 / "............................................................ 375-5000-00
32
Hex Driver Bit 5 / " ..................................................... 375-5003-00
32
Hex Key 5 / "................................................................. 375-5016-00
32
Hex Key / " .................................................................. 375-5024-00
1
4
3-Way Wrench ............................................................. 225-5196-03
8 oz. Rubber Mallet ..................................................... 375-5022-00
Adjusting your Console Caddy
Adjust the Caddy Shelf height by:
1. Squeezing and holding the Paddle.
2. Reposition the Caddy to the desired location.
3. Release the Paddle.
Anthro Corporation Technology Furniture ® 10450 SW Manhasset Drive Tualatin, Oregon 97062
SAVE THESE INSTRUCTIONS!
1-800-325-3841
Rotate Knob to
adjust Caddy
angle. angle.
Squeeze Paddle
to adjust Caddy
height.
Adjust the Caddy Shelf angle by:
1. Rotating the Knob counterclockwise.
2. Reposition the Caddy to the desired angle.
3. Rotate the Knob clockwise.
