Page 1: Walk Behind Mowers

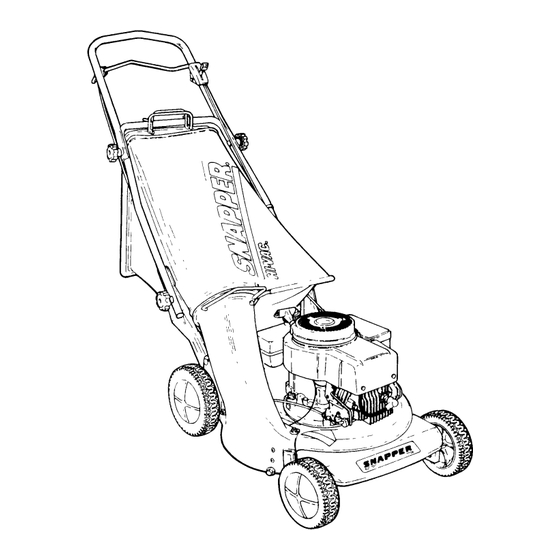

19" LIGHT WEIGHT (STANDARD & OPP) COPYRIGHT © 2005 SNAPPER PRODUCTS, INC. ALL RIGHTS RESERVED. Parts Manual for WALK BEHIND MOWERS McDonough, GA, 30253 U.S.A. Revision 1, 9/16/2005 SERIES 9 MODEL DLW359T DLW409R2 LW359T LW359T2 ODLW309T RLW359T Manual No. 7006039... -
Page 3: Table Of Contents
PAGE GROUP Handles & Controls Cutting Deck, Blade, Interlock Cutting Deck, Blade, Interlock (OPP Models Only) Wheels, Guards, Axles Wheels, Guards, Axles (OPP Models Only) Decals Accessory - Grass Bag Accessory - Side Chute, Adapter Accessory - Recycling Kits Accessory - Snapperizer 19"... -
Page 4: Handles & Controls
Handles & Controls Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 5 Handles & Controls Item Part No Description 7074384 HANDLE, Upper 7033477 HANDLE, Upper 7036350 HANDLE, Middle 7033406 HANDLE, Middle 7033985 HANDLE, Lower Left Hand 7033986 HANDLE, Lower Right Hand 7017072 CONTROL, Blade 7033904 CLIP, Blade Control 7022379 CABLE, Blade Control (Tecumseh 4-Cycle) 7024143 CABLE, Blade Control (Tecumseh 2-Cycle) 7027475...
-
Page 6: Cutting Deck, Blade, Interlock
Cutting Deck, Blade, Interlock Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 7 Cutting Deck, Blade, Interlock Item Part No Description 7057662 DECK, Mower 7019795 BLADE, Cutter 7017167 BLADE, Cutter 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5) 7012063 WASHER, Cone 7010783 KEY, Hi-Pro (Tecumseh 2-Cycle) 7012927 HUB, Blade Drive (Tecumseh 2-Cycle) 7015626 HUB, Drive Blade (Tecumseh 4-Cycle &...
-
Page 8: Cutting Deck, Blade, Interlock (Opp Models Only
Cutting Deck, Blade, Interlock (OPP Models Only) Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 9 Cutting Deck, Blade, Interlock (OPP Models Only) Item Part No Description 7057662 DECK, Mower 7022396 BLADE, Cutter 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5) 7012063 WASHER, Cone 7022390 HUB, Blade Drive (Tecumseh 2-Cycle) 7033408 SPRING, Interlock 7012048 INSULATOR, Interlock 7090385 WASHER, #8 Tab...
-
Page 10: Wheels, Guards, Axles
Wheels, Guards, Axles Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 11 Wheels, Guards, Axles Item Part No Description 7022259 WHEEL, Front 7 x 1.75 7013024 HUB-CAP, Wheel 7013320 BUSHING, Height Adjustment 7013307 SPRING, Front Axle 7090122 WASHER, 3/8" Flat 7034357 AXLE, 3/8 x 19-3/8" 7022260 WHEEL, Rear 8 x 2.00 7032118 CLIP, Rear Guard 7013027 SPRING, Rear Guard...
-
Page 12: Wheels, Guards, Axles (Opp Models Only
Wheels, Guards, Axles (OPP Models Only) Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 13 Wheels, Guards, Axles (OPP Models Only) Item Part No Description 7022795 WHEEL, Front 7 x 1.75 (2) 7022374 WHEEL, Rear 8 x 2.00 (2) 7024280 GUARD, Rear Foot 7024086 SUPPORT, Foot Guard 7090913 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) 7091142 SCREW, 3/8-16 x 3-1/8"...
-
Page 14: Decals
Decals Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 15 DECAL, Mulching Chamber/Foot Probe 7024088 DECAL, Blade Control 7013312 DECAL, Caution 7013010 DECAL, Danger 7024220 DECAL, SNAPPER 7024169 DECAL, Hi-Vac/Foot Probe 7024214 DECAL, SNAPPER (Recycling) Footnotes: 19" LIGHT WEIGHT (STANDARD & OPP) SERIES 9 Note Manual No. 7006039 TP 400-5096-1-WB-N...
-
Page 16: Accessory - Grass Bag
Accessory - Grass Bag Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 17 Accessory - Grass Bag Item Part No Description 7061918 KIT, Grass Bag 7059322 KIT, Grass Bag 7059322 ASSEMBLY, Grass Bag (Door Type) 7017069 BAG, KWIK-N-EZY 7051906 ASSEMBLY, Bag Wire 7042489 CONNECTOR, Grass Bag 7016050 ADAPTER, Bag Footnotes: 19" LIGHT WEIGHT (STANDARD & OPP) SERIES 9 Note Was 60934 (Includes 1 thru 5)
-
Page 18: Accessory - Side Chute, Adapter
Accessory - Side Chute, Adapter Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 19 Accessory - Side Chute, Adapter Item Part No Description 7053681 ADAPTER, Bag 7035771 CHUTE, Side 7090799 BOLT, 5/16-18 x 5/8" Short Neck Carriage 7024085 NUT, 5/16-18 Wing 7011791 RETAINER, 5/16 Bolt 7091076 WASHER, 5/16 Flat Footnotes: 19" LIGHT WEIGHT (STANDARD & OPP) SERIES 9 Note Was 16088...
-
Page 20: Accessory - Recycling Kits
Accessory - Recycling Kits Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 21 Accessory - Recycling Kits Item Part No Description 7061029 KIT, Recycling Cover 7017167 BLADE, 19" Recycling 7017169 COVER 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5) 7012063 WASHER, Cone 7061033 KIT, Recycling Plug 7017167 BLADE, 19" Recycling 7016814 PLUG, Chute Adapter 7090167 SCREW, 3/8-24 x 2"...
-
Page 22: Accessory - Snapperizer
Accessory - Snapperizer Manual No. 7006039 19" LIGHT WEIGHT (STANDARD & OPP) TP 400-5096-1-WB-N SERIES 9... - Page 23 Accessory - Snapperizer Item Part No Description 7060450 KIT, Snapperizer 7051246 ASSEMBLY, Screen Fastener 7039762 RING, Bottom 7091297 NUT, 5/16-24 Hex 7090187 WASHER, 5/16 Split Lock 7012587 SPRING Footnotes: 19" LIGHT WEIGHT (STANDARD & OPP) SERIES 9 Note (Includes items 1 thru 5) Was 90223 Manual No.
- Page 26 19" LIGHT WEIGHT (STANDARD & OPP) WALK BEHIND MOWERS SERIES 9 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
