DEALER SET-UP INSTRUCTIONS & PRE-SALE CHECKLIST for
INTRODUCTION:
Snapper LT (One Piece Frame) Tractors are shipped with the steering wheel and seat
cushions removed. The following steps are required for set-up. Complete all items on the Dealer Pre-Sale
Checklist at time of purchase.

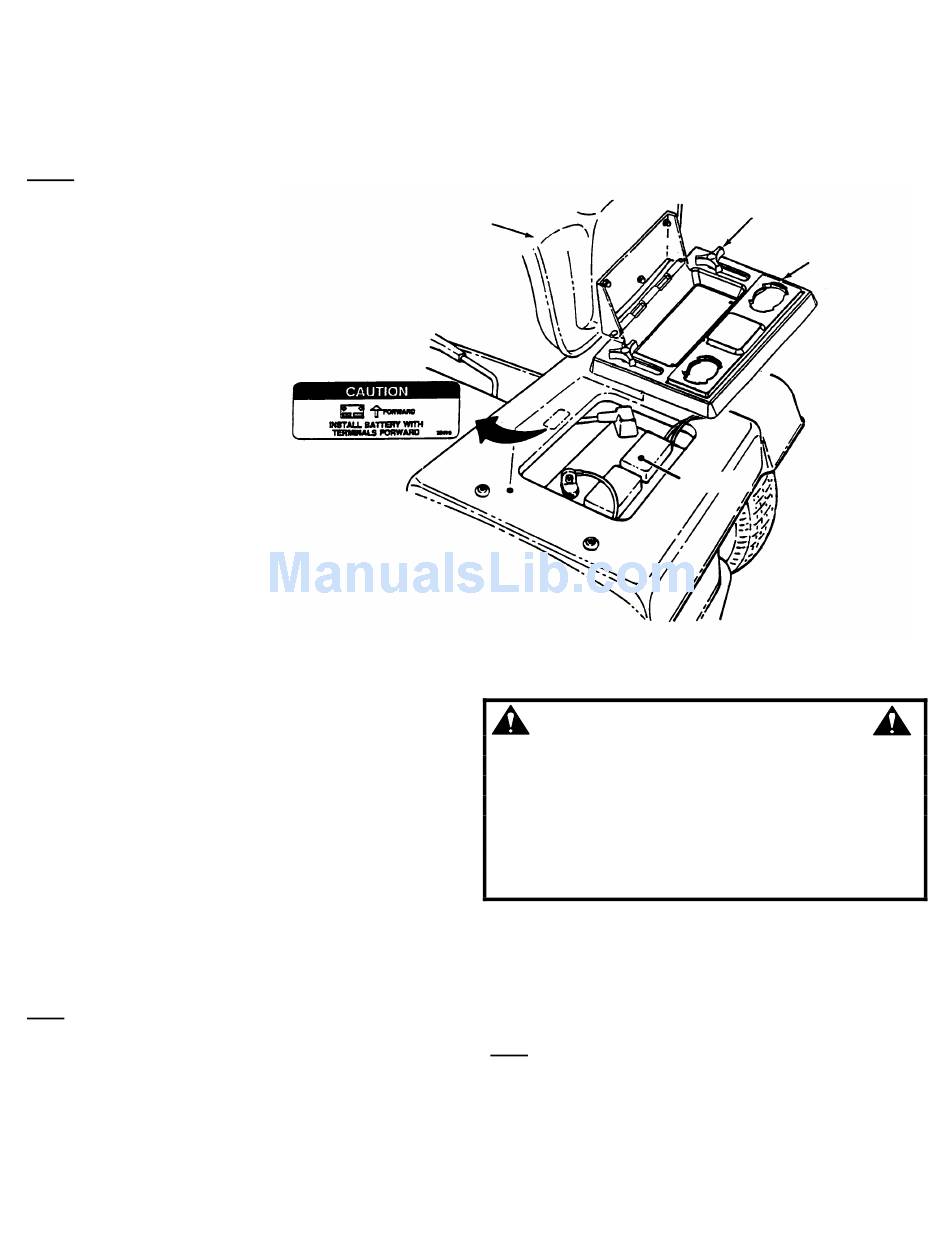

NOTE: Figure 1 shows the seat assembled to the seat
pedestal assembly. Some models are shipped
with the seat loose and will require installation.
ACTIVATE BATTERY
The battery is not installed and is shipped dry.
sufficient time for charging and installing the battery
before operating the tractor. Pay close attention to the
precautionary statements on the battery and in these
instructions.
Electrolyte must be purchased separately
from your local dealer or retailer. You will also need an
automotive type battery charger to activate the battery for
use.
STEP 1: SEAT/PEDESTAL ASEMBLY REMOVAL
1. Remove the seat/pedestal assembly by removing the
two seat knobs that secure it to rear fender. See
Figure 1.
Note: The seat switch wires are still connected, so be
careful.
2. Move the seat/pedestal assembly forward and out of
the way.
STEP 2: ACTIVATING AND CHARGING BATTERY
1. Remove battery from carton.
2. Place battery in a well ventilated area on a level
surface.
INSTRUCTION No. 7-4375 (I.R. 2/15/01)
EUROPEAN SNAPPER LT SERIES TRACTORS
SEAT
The electrolyte (acid) produces a highly explosive
Allow
gas. Keep all sparks, flame and fire away from area
when charging battery or when handling electrolyte
or battery.
Electrolyte (acid) is a highly corrosive
liquid. Wear eye protection.
immediately after having eye or skin contact with
electrolyte (acid). Flush with clear water and neutralize
with baking soda. DO NOT OVER FILL!
3. Remove battery cell caps. Fill cells as required with
electrolyte (purchased separately) to proper level.
Fill to 3/16" above cell plates. Filling battery with
electrolyte will bring the battery to 80% charged
state.
Note: 3/16" above cell plates is the recommended level.
DO NOT place anything in battery other than
specified electrolyte.
1
SEAT KNOB
SEAT/PEDESTAL
ASSEMBLY
BATTERY
FIGURE 1
WARNING
Wash affected areas
(OVER)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7-4375 and is the answer not in the manual?

Questions and answers

Summary of Contents for Snapper 7-4375

  • Page 1 EUROPEAN SNAPPER LT SERIES TRACTORS INTRODUCTION: Snapper LT (One Piece Frame) Tractors are shipped with the steering wheel and seat cushions removed. The following steps are required for set-up. Complete all items on the Dealer Pre-Sale Checklist at time of purchase.
  • Page 2 4. With cell caps removed, connect battery charger to battery terminals; RED to positive (+) and BLACK to negative (-) terminal. 5. If time allows, slow charge at 1 amp for 10 hours, or as an alternative, fast charge at not more than 2.5 amps for 4 hours to bring the battery to full charge.
  • Page 3 INSERT HAIR PIN INTO HINGE ROD BETWEEN HINGE PLATE AND SEAT PEDESTAL. FIGURE 4 SEAT KNOB SEAT/PEDESTAL ASSEMBLY FIGURE 5 Step 7: CHECK INTERLOCK SYSTEM The interlock system includes a seat switch, a clutch HINGE PLATE switch and a mower blade (PTO) switch. The system functions in the following way: A.
  • Page 4 IMPORTANT: This form is to be retained by the Dealer for future reference regarding Warranty, proof of purchase, traceability for product recall or service, etc. Complete the SNAPPER Product Registration Card immediately and mail to: Snapper’s Product Registration Center, P.O. Box 1379, McDonough, Georgia 30253.
