Simplicity 1691525 Operator's Manual

Simplicity 1691525 Operator's Manual

Mower driven vacuum collector 36/42/48” blower assembly cart collector
Hide thumbs

Advertisement

Quick Links

Download this manual

Table of Contents

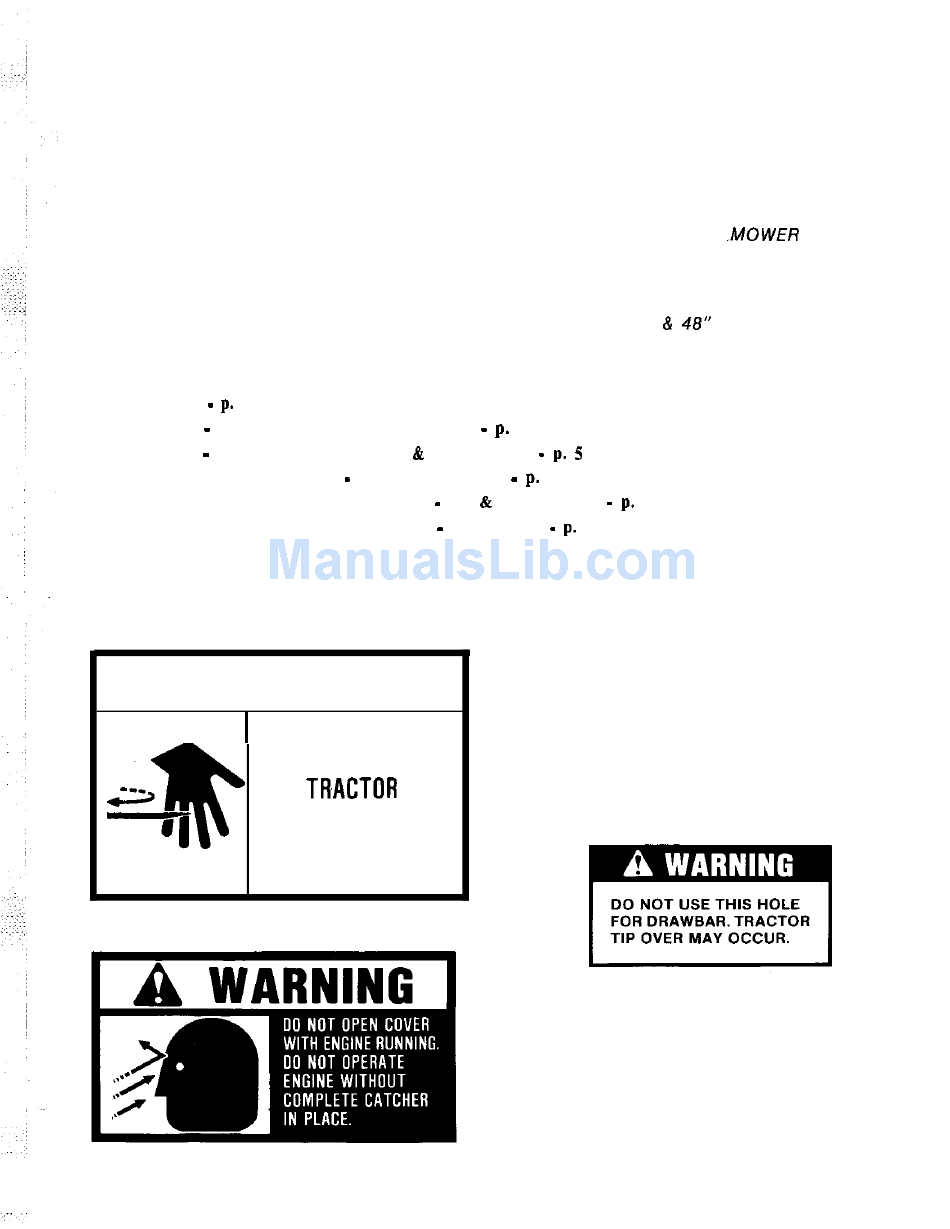

DECALS
DECALS
A
DANGER
S H U T O F F M O W E R
A N 0 TR.ACTOR
B E F O R E S E R V I C I N G
OR CLEANING BLOWER
A N D M O W E R .
Part No. 1700259. Located on Blower
Part No. 1676923. Located on Collection System,
VACUUM
36" BLOWER ASSEMBLY
42" & 48" BLOWER ASSEMBLY
Part No. 1700346. Located on Bracket on Some
Models (Installed During Setup).
OPERATOR'S
MANUAL
D R I V E N
COLLECTOR
MFG. NO. 1691356
MFG. NO. 1691260
CART
COLLECTOR
MFG. NO. 1691525
FORM 1701929-03
PRINTED
IN
U.S.A.
8 8 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1691525 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simplicity 1691525

Summary of Contents for Simplicity 1691525

  • Page 1: Table Of Contents

    VACUUM 36” BLOWER ASSEMBLY MFG. NO. 1691356 42” & 48” BLOWER ASSEMBLY MFG. NO. 1691260 CART MFG. NO. 1691525 Part No. 1700346. Located on Bracket on Some Models (Installed During Setup). D R I V E N COLLECTOR COLLECTOR FORM 1701929-03 PRINTED U.S.A.

  • Page 2: Safety Rules

    Safety Rules Read these safety rules and the safety rules in your Operator’s Manual and follow them closely. Failure to obey these rules could result in loss of control of vehicle, severe personal injury to yourself, or damage to property or equipment. The triangle A in thetext signifies important cautions or warnings which must be followed.

  • Page 3: Installation - Blower Assembly, 36" Mower

    INSTALLATION - BLOWER ASSEMBLY, 36” MOWER I. Remove the mower deflector by rerpoving carriage bolts, lockwashers and nuts. Save this hardware for use when blower is removed for side discharge. 2. Install strap (A, figure I) as follows: a. Drill a 9132” hole for large spacer (B). Use the supplied template on the last page.
  • Page 4 6. Install wing nut (G, figure I) assembly as follows. Insert 5/ 16-18 x2-1/2&p&w and 5/ i6flat washer from inside the deck. Place the cup (H) onto the capscrew and install S/ 16 lockwasher and 5/ 16 nut. (Figure 12 shows correct position ofcup.)Thread the wingnut (A, figure 6) onto capscrew and install the 5/ 16 locknut (D) flush with end of screen.

  • Page 5: Installation - Blower Assembly, 42" & 48" Mowers

    INSTALLATION - BLOWER ASSEMBLY, 42” & 48” MOWER 1. Remove the right-hand arbor cover (A, figure 7) by removing bolts, washers and nuts in front that hold cover to deck. Also, remove nut (9) and washers that secure rear tab to arbor. 2.
  • Page 6 7 . Install new arbor pulley(D, figure 8) with hubdown. Use new 7/ 16-14 x 2-l/4 capscrew and washers removed in step 2. Torque to 55 to 60 ft. Ibs. Use wood block to prevent blade from turning. It may be necessary to add washer(s) (two provided) under- neath the new pulley to properly align brake pad and bottom groove.
  • Page 7 Figure A. Blower Housing B. Arbor Cover C. Hook D. Clip E. Capscrew F. Washer, 5/l 6 G. Washer. 5/l 6 H. Spacer I. Lockwasher, 5/l 6 J. Nut. 5/16 K. Washer, 5/16 L. Washer, 5/16 M. Locknut, 5/16 N. Wing Nut Figure 12.

  • Page 8: Installation And Operation - Cart Collector

    INSTALLATION AND OPERATION - CART COLLECTOR ASSEMBLY 1. Remove all parts from inside the cart’s box. Open the bag of parts and sort the fasteners into groups for of the cart (figure 16). easier assembly 2. Turn cart box’on one side. a.
  • Page 9 BRACKET INSTALLATION The Cart Collector attaches to a mounting bracket, which is bolted to the tractor’s back plate. The same bracket is used on the riding mowers and the lawn tractors. Once bolted in place, the bracket never needs to be removed.
  • Page 10 3. The support rod and frame rod must be inserted into the cover (A, figure 21) as follows. a. The frame rod (C, figure 21) must be inserted through the bottom sleeve of the cover so that the two bent endsextend out openings, which are next to the cord loops (D).

  • Page 11: Maintenance

    Figure 24. A. Frame Rod ~C. Clip 8. Frame D. Support Maintenance WARNING The cart cover is subject to wear and deterioration. Check the cover frequently. Use a” approved replacement cover. The cover can be rinsed with a hose when dirty. A dirty cover will inhibit the fast flow of grass clippings into the cover.

  • Page 12: Operating Without Collection System - 42" & 48" Mowers

    1. Attaching: a. Attach the cart to the tractor by aligning the two ends of the H-frame to the holes in the bracket (figure 26). Use the holes that will make the cart level, Secure the cart to the bracket with twoclevis pins and hairpin totters.

  • Page 13: Operating Without Collection System - 36" Mower

    Figure 28. A. Nut B. Washer C. Nut Figure 29. A. Cover 6. Hook OPERATING WITHOUT COLLECTION SYSTEM - 36” MOWERS To remove the blower assembly, first loosen the front wing nut. To provide belt slack, push the belt retainer(B, figure Slip the belt off the pulley.
  • Page 14 . , , . , ,...
  • Page 15 EDGE OF DECK - Align with deflector mounting holes. - TEMPLATE FOR DRILLING MOUNTING HOLE FOR 36” TURBO VAC. LDrill g/32” Dia. Hole...
  • Page 16 :‘~ ,‘,“:...
