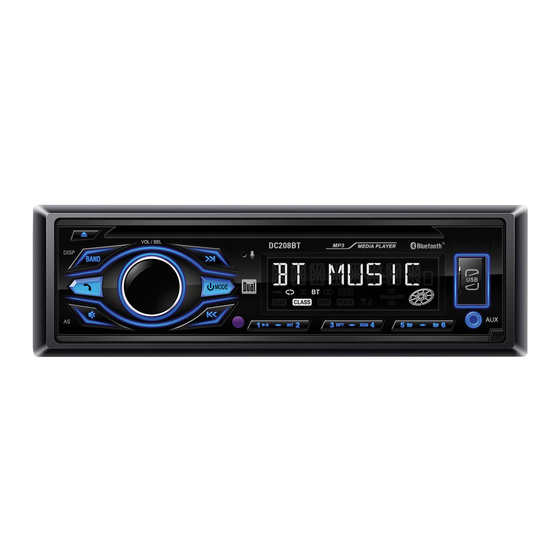

Dual DC208BT Installation And Owner's Manual

Am/fm/cd receiver
Hide thumbs Also See for DC208BT:

Advertisement

Quick Links

Download this manual
DC208BT
INSTALLATION/OWNER'S MANUAL
AM/FM/CD Receiver

Advertisement

loading
Need help?

Need help?

Do you have a question about the DC208BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dual DC208BT

Summary of Contents for Dual DC208BT

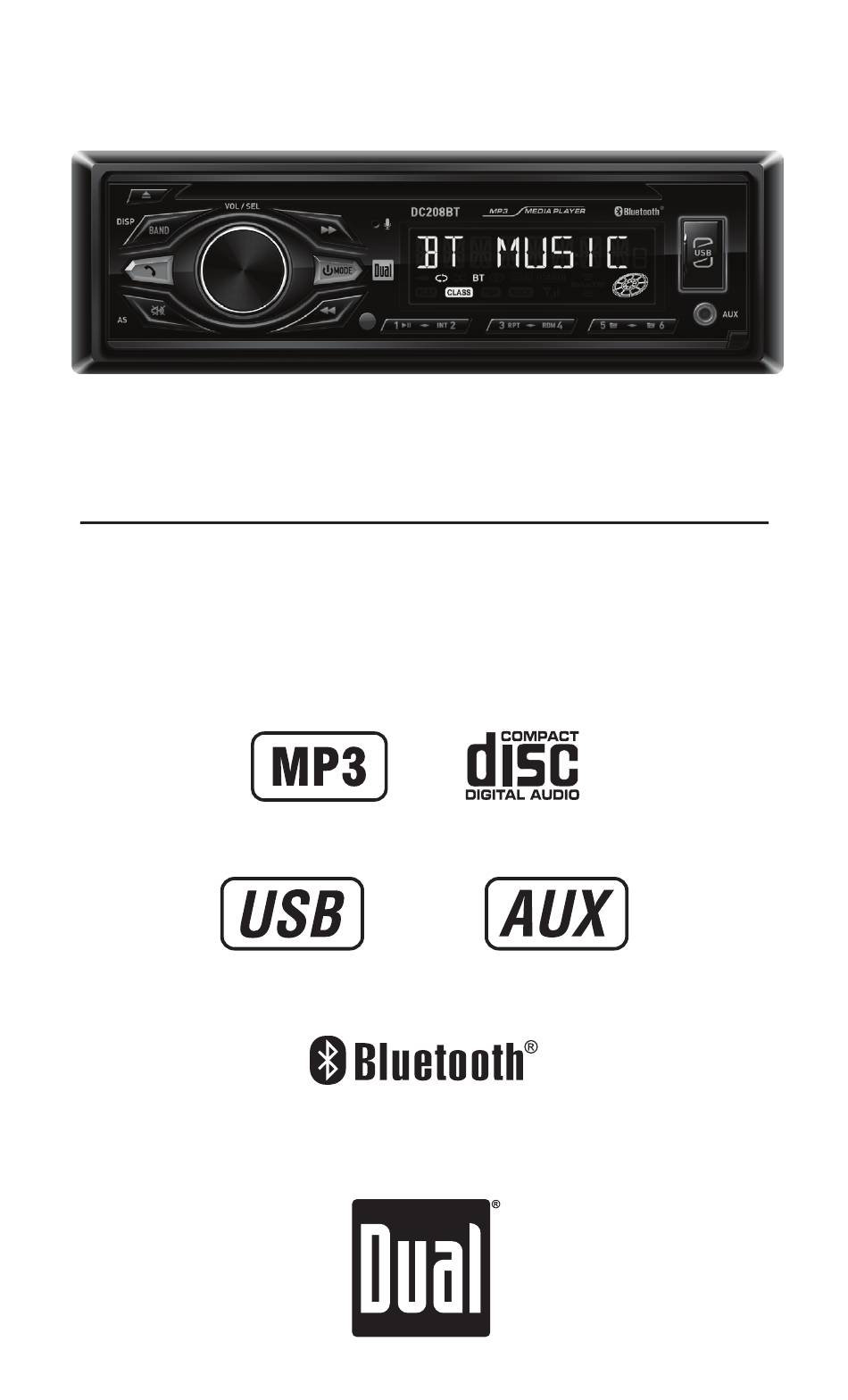

  • Page 1 DC208BT INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver...
  • Page 2 DC208BT INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
  • Page 3 DC208BT INSTALLATION Wiring Diagram Violet Violet/Black FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. DC208BT uses one 10 amp ATM fuse located beside the wiring connector.
  • Page 4 DC208BT OPERATION Control Locations Eject Preset 5 / Folder Down Band / Display Preset 4 / Random Bluetooth Talk Preset 3 / Repeat Volume Knob / Select Preset 2 / Intro Tune / Track Up Preset 1 / Play/Pause Power / Mode...
  • Page 5 DC208BT OPERATION Remote Control Mode Preset 6 / Folder Up Volume Up Mute Power AS/PS Audio Preset 5 / Folder Down Tune / Track Up Preset 4 / Random Volume Down Preset 1 / Play/Pause Band Bluetooth Talk Preset 3 / Repeat...
  • Page 6 Auxiliary Input The DC208BT offers a 3.5 mm auxiliary input port on the front panel of the unit for connecting an audio device, MP3 player, etc. Press MODE to select auxiliary input mode.
  • Page 7 DC208BT OPERATION General Operation - Setup Menu Menu Function Options Action Programs the unit to turn on at a specific volume selected by VOL ADJ the user. Turn On Volume Programs the unit to turn on at the volume selected at the time VOL LAST the unit was last powered off.
  • Page 8 DC208BT OPERATION General Operation Press SELECT momentarily to select between Bass, Treble, Audio Balance, Fader, EQ, Loudness and Dimmer. Press SELECT until BASS appears, then rotate volume knob Bass left/right to adjust ( -7 minimum / +7 maximum). Press SELECT until TRE appears, then rotate volume knob Treble left/right to adjust ( -7 minimum / +7 maximum).
  • Page 9 DC208BT OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE  momentarily to seek to the next strong station. Manual Tuning Press and hold TUNE or TUNE  until "MANUAL" appears, then press TUNE or TUNE  momentarily to change radio frequency up or down one step at a time.
  • Page 10 DC208BT OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation. If the disc is not removed within 10 seconds, the unit will reload the disc.
  • Page 11 DC208BT OPERATION CD Player Operation - MP3 Files Playing an MP3 CD When an MP3 encoded disc is first inserted, “LOAD" will appear in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to select between file name, song title, artist, album, track number and clock/elapsed time.
  • Page 12 DC208BT OPERATION CD Player Operation - MP3 Files Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data The following types of discs/files are not compatible: • Discs recorded with Track At Once or packet writing • MP3 PRO format •...
  • Page 13 DC208BT OPERATION CD Player Operation - MP3 Files Additional  An internal buffer provides ESP (Electronic Skip Protection) MP3Information to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3 files, the unit will play the MP3 files only.
  • Page 14 DC208BT OPERATION USB Operation  Connecting a USB Device To play MP3 files from most USB mass storage devices, line (sold separately) up the USB connector and insert the USB device into the unit's USB port. Playing Music When a USB device is first connected, playback will begin momentarily.
  • Page 15 DC208BT OPERATION USB Operation  Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select beween file, folder, track number and elapsed time. Repeat Press RPT to enter the Repeat menu, then turn the volume knob to select one of the following options: •...
  • Page 16 DC208BT OPERATION USB Operation Character Support Maximum character display information • Track name – 36 character maximum • Directory name – 11 character maximum • *Song title – 30 character maximum • *Artist name – 30 character maximum • *Album name – 30 character maximum *Song title, artist name and album name will only be displayed if included with the MP3 file.
  • Page 17 DC208BT OPERATION USB Operation  Additional  Only MP3 files with filename extension (.mp3) can be MP3Information played. Do not attempt to play non-MP3 files with the MP3 extension. Sampling Frequency  Rates 8kHz ~ 48kHz Transfer Bit rates 32kbps ~ 320kbps constant Variable bit rates Note: Some files may not play or be displayed correctly, depending on sampling rates and bit rates.
  • Page 18 DC208BT OPERATION Bluetooth  Operation ® Before you can use a Bluetooth device, it must be paired and Pairing a New Device connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. The unit broadcasts the pairing signal constantly when no devices are currently connected.
  • Page 19 DC208BT OPERATION Bluetooth  Operation ® Streaming Audio Operation The unit supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).
  • Page 20 2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original...

  • Page 21: Troubleshooting

    DC208BT OPERATION Troubleshooting  Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on  voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse...

  • Page 22: Specifications

    DC208BT OPERATION Specifications CD Player Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >60dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz...
  • Page 23 DC208BT OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 24 Dual Electronics Corp. Toll Free: 1-866-382-5476 9AM-5PM EST, Monday-Friday www.dualav.com ©2018 Dual Electronics Corp. All rights reserved. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. NSC1018-V01...
