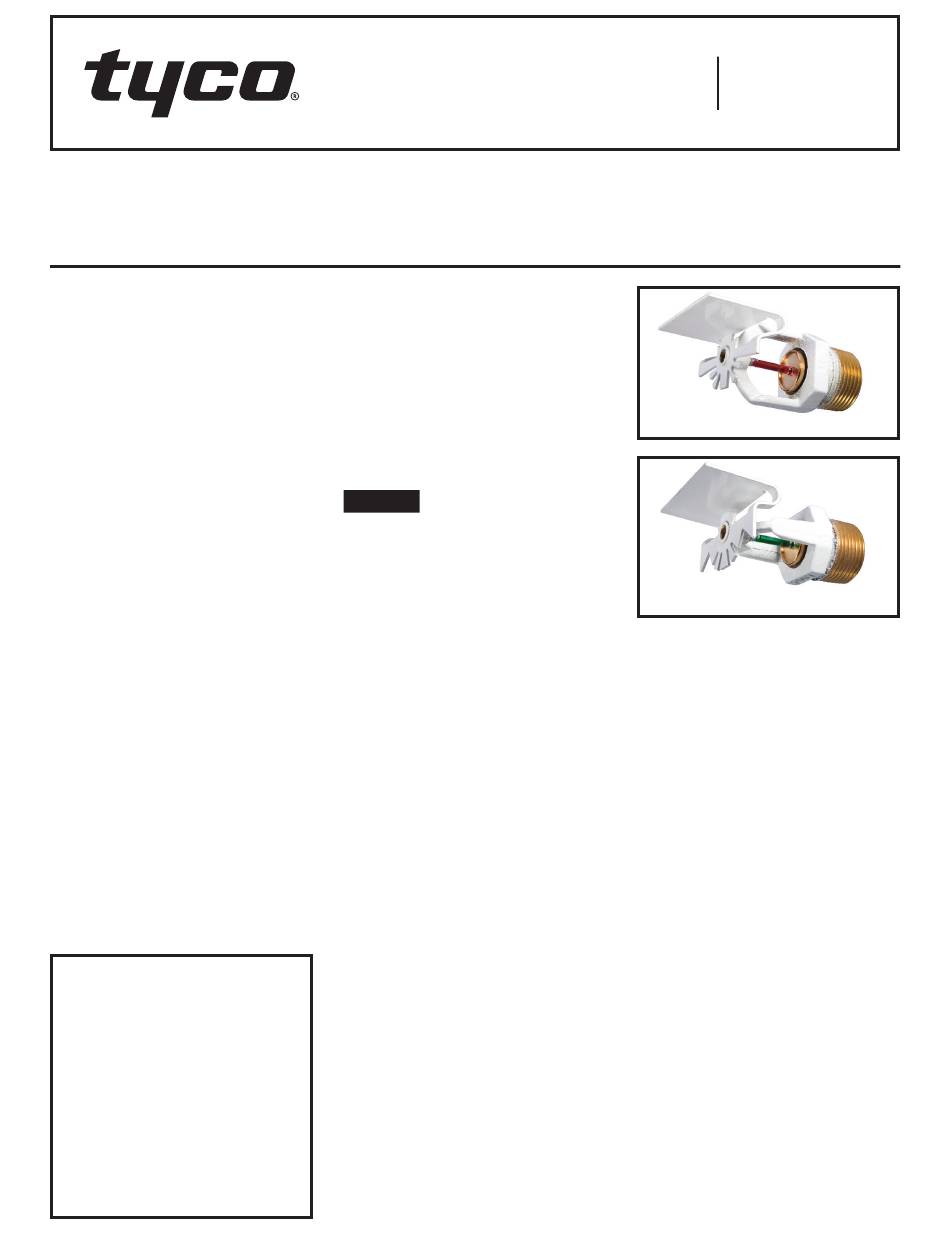

Tyco SW-20 User Manual

Model SW-20 and SW-24 — 11.2 K-factor
Extended Coverage Ordinary Hazard
Horizontal Sidewall Sprinklers (Standard Response)
General
Description
The TYCO Model SW-20 and SW-24,
11.2 K-factor, Extended Coverage Ordi-
nary Hazard (ECOH) Horizontal Side-
wall Sprinklers, Standard Response
are decorative glass bulb sprinklers
designed for use in ordinary hazard
occupancies per NFPA 13.
The SW-20 provides protection of cov-
erage areas up to 16 ft x 20 ft (320 ft
whereas the SW-24 provides protec-
tion of coverage areas up to 16 ft x 24
ft (384 ft 2 ), as compared to standard
coverage horizontal sidewall sprinklers
having a maximum coverage area of 10
ft x 10 ft (100 ft 2 ) for ordi nary hazard
occupancies.
Horizontal sidewall sprinklers are
designed for installation along a wall
or the side of a beam and are com-
monly used instead of pendent or
upright sprinklers due to aesthetics or
building construction considerations,
where piping across the ceiling is not
desirable.
Corrosion resistant coatings, where
applicable, are utilized to extend the life
of copper alloy sprinklers beyond that
which would otherwise be obtained
when exposed to corrosive atmo-
spheres. Although corrosion resistant
coated sprinklers have passed the
standard corrosion tests of the appli-
cable approval agencies, the testing is
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
not representative of all possible cor-
rosive atmospheres. Consequently,
it is recommended that the end user
be consulted with respect to the suit-
ability of these corrosion resistant
coatings for any given corrosive envi-
ronment. The effects of ambient tem-
perature, concentration of chemicals,
and gas/chemical velocity, should be
con sidered, as a minimum, along with
the corrosive nature of the chemical to
which the sprinklers will be exposed.
2 ),
NOTICE
The Model SW-20 and SW-24 Sprin-
klers described herein must be installed
and maintained in compliance with this
document and with the applicable stan-
dards of the National Fire Protection
Association, in addition to the stan-
dards of any authorities having juris-
diction. Failure to do so may impair the
performance of these devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted with
any questions.
Sprinkler
Identification
Number (SIN)
TY5332 - SW-20
TY5337 - SW-24
TY5332 is a re-designation for C5332
TY5337 is a re-designation for C5337
Technical
Data
Approvals
UL and C-UL Listed
(Refer to the Design Criteria Section)
Polyester coated sprinklers are UL and
C-UL Listed as Corrosion Resistant
Sprinklers
NYC under MEA 177-03-E
AUGUST 2018
Worldwide
www.tyco-fire.com
Contacts
SW-20
SW-24
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
K= 11.2 GPM/psi (161,3 LPM/bar
½
Temperature Rating
SW-20: 155°F (68°C) & 200°F (93°C)
SW-24: 200°F (93°C)
Finishes
Refer to Table B
Physical Characteristics:
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Sealing Assembly . . . . . . . . . . . . . . . . Beryllium
Nickel w/ TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw . . . . . . . . . . . . . . . . . Brass
Deflector. . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
)
½
