Page 1: Walk Behind Mowers

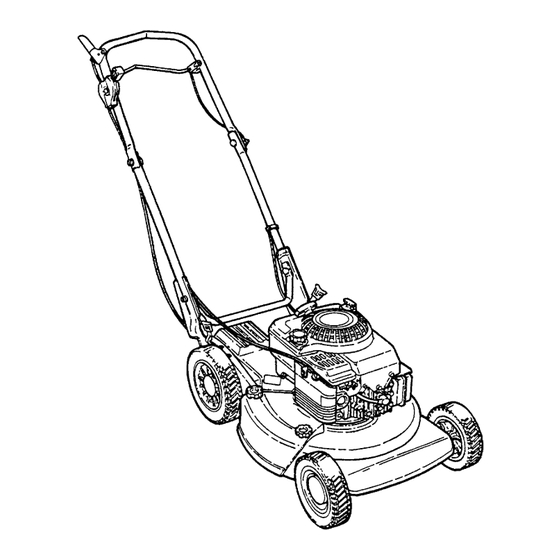

20" STEEL DECK 5 HP PUSH & PROPELLED WALK BEHIND MOWERS SERIES 0 PUSH MODELS PROPELLED MODELS NR20500 NRP20500 R20500 RP20500 McDonough, GA, 30253 U.S.A. COPYRIGHT © 2005 Manual No. 7006055 SNAPPER PRODUCTS, INC. Revision 1, 9/22/2005 TP 400-5104-1-WB-N ALL RIGHTS RESERVED. -
Page 3: Table Of Contents
PAGE GROUP Handles & Controls (Push Models) Handles & Controls (Self-Propelled Models) Engine, Cutting Deck, Blade, Interlock (Push Models) Engine, Cutting Deck, Blade, Interlock (Self-Propelled Models) Wheels, Guards, Axle, Transmission Side Chute, Adapter Decals 20" STEEL DECK 5 HP PUSH & PROPELLED SERIES 0 Table Of Contents Manual No. -
Page 4: Handles & Controls (Push Models
Handles & Controls (Push Models) Manual No. 7006055 20" STEEL DECK 5 HP PUSH & PROPELLED TP 400-5104-1-WB-N SERIES 0... - Page 5 Handles & Controls (Push Models) Item Part No Description 7074384 HANDLE, Upper 7036350 HANDLE, Middle 7046502 HANDLE, Lower (Left Hand) 7035342 HANDLE, Lower (Right Hand) 7017072 CONTROL, Blade 7033904 CLIP, Blade Control 7023765 CABLE, Blade Control 7014343 BUSHING 7023813 CLIP, Wiring Harness 7028481 CONTROL, Throttle 7090095...
-
Page 6: Handles & Controls (Self-Propelled Models
Handles & Controls (Self-Propelled Models) Manual No. 7006055 20" STEEL DECK 5 HP PUSH & PROPELLED TP 400-5104-1-WB-N SERIES 0... - Page 7 Handles & Controls (Self-Propelled Models) Item Part No Description 7074384 HANDLE, Upper 7024211 DECAL, Blade Control 7017072 CONTROL, Blade 7023792 PIN, .250 Dia. x 1 1/2" 7014307 GRIP, Wheel Drive 7041728 HANDLE, Wheel Drive 7014343 BUSHING 7033904 CLIP, Blade Control 7090112 SCREW, 1/4-28 x 2"...
-
Page 8: Engine, Cutting Deck, Blade, Interlock (Push Models
Engine, Cutting Deck, Blade, Interlock (Push Models) Manual No. 7006055 20" STEEL DECK 5 HP PUSH & PROPELLED TP 400-5104-1-WB-N SERIES 0... - Page 9 SCREW, 5/16-18 x 1/2" Pan Head Torx, Self-Tapping 7090913 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) 7034363 PLATE, Deck Front 7029659 DECAL, "Whipper" SNAPPER 7090167 SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5 7012063 WASHER, Cone 7017167 BLADE, Mulching...
-
Page 10: Engine, Cutting Deck, Blade, Interlock (Self-Propelled Models
Engine, Cutting Deck, Blade, Interlock (Self-Propelled Models) Manual No. 7006055 20" STEEL DECK 5 HP PUSH & PROPELLED TP 400-5104-1-WB-N SERIES 0... - Page 11 SCREW, 5/16-18 x 1/2" Pan Head Torx, Self-Tapping 7090913 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) 7034363 PLATE, Deck Front 7029659 DECAL, "Whipper" SNAPPER 7090167 SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5 7012063 WASHER, Cone 7017167 BLADE, Mulching...
-
Page 12: Wheels, Guards, Axle, Transmission
Wheels, Guards, Axle, Transmission Manual No. 7006055 20" STEEL DECK 5 HP PUSH & PROPELLED TP 400-5104-1-WB-N SERIES 0... - Page 13 Wheels, Guards, Axle, Transmission Item Part No Description 7029622 COVER, Belt 7090372 NUT, 1/4-20 Hex Cap Lock 7090071 SCREW, 1/4-20 x 1/2" H.H.C. 7028382 BELT, Drive 7029344 ASSEMBLY, Transmission 7028379 SPRING, Tension 7014341 RING, Retaining 7013320 BUSHING, Height Adjustment 7013307 SPRING, Front Axle 7090122 WASHER, 3/8"...
- Page 14 Wheels, Guards, Axle, Transmission Manual No. 7006055 20" STEEL DECK 5 HP PUSH & PROPELLED TP 400-5104-1-WB-N SERIES 0...
- Page 15 Wheels, Guards, Axle, Transmission Item Part No Description 7018444 GUARD, Rear Foot Footnotes: 20" STEEL DECK 5 HP PUSH & PROPELLED SERIES 0 Note (For Push Models) Manual No. 7006055 TP 400-5104-1-WB-N...
-
Page 16: Side Chute, Adapter
Side Chute, Adapter Manual No. 7006055 20" STEEL DECK 5 HP PUSH & PROPELLED TP 400-5104-1-WB-N SERIES 0... - Page 17 Side Chute, Adapter Item Part No Description 7053680 ASSEMBLY, 7029700 KNOB, Fluted, 5/16-18 Thread 7091508 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5 7029630 COVER, Recycling 7017169 COVER, Recycling 7091076 WASHER, 5/16 Flat 7024085 WING-NUT, 5/16-18 Nyloc Footnotes: 20" STEEL DECK 5 HP PUSH & PROPELLED SERIES 0 Note Side Chute/Adapter...
-
Page 18: Decals
Decals Manual No. 7006055 20" STEEL DECK 5 HP PUSH & PROPELLED TP 400-5104-1-WB-N SERIES 0... - Page 19 DECAL, DANGER (Keep Hands & Feet Away) 7024379 DECAL, WARNING (Serial No. Blank) 7024211 DECAL, Blade Control 7029657 DECAL, SNAPPER 5HP Quantum XM Footnotes: 20" STEEL DECK 5 HP PUSH & PROPELLED SERIES 0 Note Manual No. 7006055 TP 400-5104-1-WB-N...
- Page 22 20" STEEL DECK 5 HP PUSH & PROPELLED WALK BEHIND MOWERS SERIES 0 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
