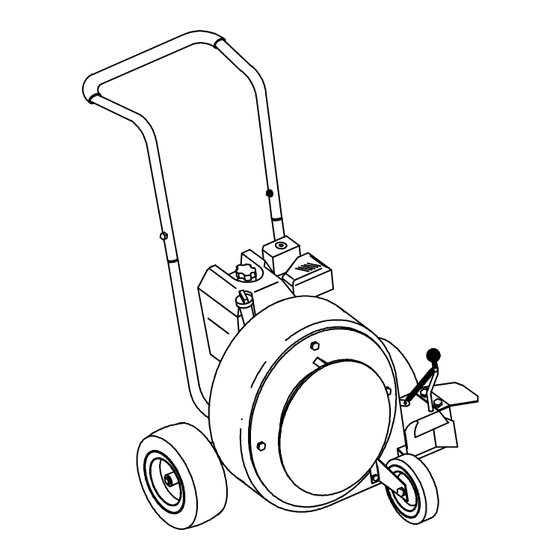

- Page 1 ASSEMBLY INSTRUCTIONS OPERATOR’S MANUAL PARTS LIST Actual product may differ slightly from product pictured above Walk-Behind Leaf Blower Models covered: SLB55150BV (Part #3070131)
-
Page 2: Model Number
You have just purchased one of the finest pieces of outdoor power equipment on the market today. If properly cared for, your new blower will provide years of dependable service. Please read and follow this instruction manual carefully in order to get the most out of your new equipment. -
Page 3: Slope Operation
• Do not operate in reverse unless absolutely necessary. Always look down and behind before and while traveling in reverse. • Be aware of the blower discharge direction and do not point it at anyone. Do not operate the blower without deflectors in place. -
Page 4: Maintenance And Storage
The operator could lose footing or balance or blower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in. • Do not operate on slopes with wet grass. Reduced footing or traction could cause sliding. -
Page 5: Front Wheel Assembly
Attach front caster wheel assembly (#19-23) to unit by butting outward bends in mounting brackets of assembly against front lower corner of unit (next to blower discharge door), making sure mounting holes in both parts are aligned. Note: Angled edge of mounting brackets should be upwards, with holes toward bottom. -
Page 6: Starting The Engine
unit operation STARTING THE ENGINE IMPORTANT NOTE: The procedures outlined within this section are general guidelines, and are in no way meant to replace or supercede engine manufacturer’s operating instructions. In order to obtain optimum performance from your engine, refer to your engine manual. WARNING! IMPELLER IS MOUNTED DIRECTLY TO ENGINE SHAFT –... -
Page 7: Blower Operation
BLOWER OPERATION DANGER! DO NOT PASS BY OR STAND ON THE AIR DISCHARGE SIDE OF ANY LEAF BLOWER WITH THE ENGINE RUNNING. HIGH VELOCITY DISCHARGE CAN EASILY TURN HARMLESS DEBRIS INTO FLYING PROJECTILES. DANGER! NEVER INSERT ANY BODY PART OR FOREIGN OBJECT INTO ANY OPENING WHILE UNIT IS RUNNING. - Page 8 For operator ease and maneuverability, push down on the upper handle while walking so that the machine balances on the rear wheels. • When blowing dry debris, set blower discharge to lower rate; when blowing wet or frozen debris, increase discharge rate. maintenance BEFORE MAKING ANY ADJUSTMENTS, STOP ENGINE AND DISCONNECT SPARK PLUG WIRE TO PREVENT INADVERTENT STARTING OF UNIT.
-
Page 9: Troubleshooting
LUBRICATION: • The pneumatic tires on your blower contain bearings that should be lubricated on a weekly basis using a high-performance, automotive quality grease to ensure long life and minimal wear. TROUBLESHOOTING: •... - Page 10 Walk-Behind Blower Model SLB55150BV R0703.1 22 25...
- Page 11 Washer, flat, heavy duty – 7/16” 3031795 Key, impeller shaft – 1/4” x 2-1/8” 3020234 Baffle, intake 3079263 Decal, ‘Snapper’ Logo (applied to intake baffle) 3031016 Bolt, hex head - 5/16-18 x 5/8” 3031003 Washer, split lock - 5/16 3024507...
- Page 12 McDonough, GA 30253 U.S.A.
