Page 1: Table Of Contents

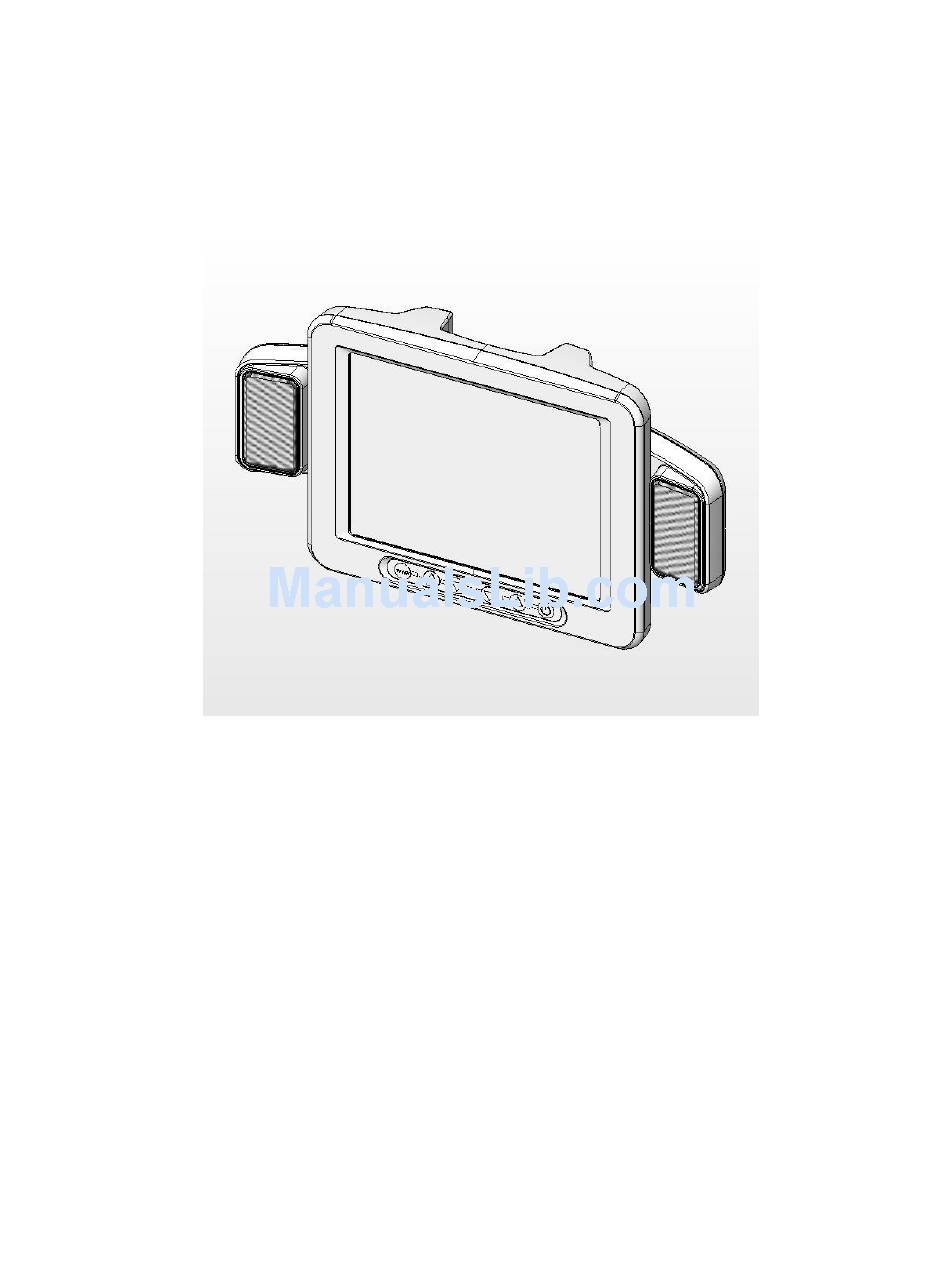

15” TFT LCD MONITOR USER MANUAL Model: GMTV15 CONTENT: 1. Unpacking 2. Specification 3. Important Safety Instructions 4. Installation and Connection 5. Front Panel Controls 6. OSD Controls 7. Trouble Shooting...
Page 2: Unpacking
Our 15” LCD TV shall be content with following items. Make sure you get all there set ready, otherwise please contact with your dealer or the store where you purchased from. And if it still doesn’t work, please feel free to contact us. Please keep the packing parts ( such as the box and the foam…) precisely, that would provide protection just for once if you need to send the fault product back for repairing.
Page 3 15” TFT LCD TV Power Cord ADAPTER TECH External Universal AC Adapter (100v-240v, 50/60Hz) User Manual Signal and power in integrated box (This parts only for Momentum T3, T5, T7 serials and T480 serials ) M5 × 10mm bolt 2pcs For fix both extra speaker Extra Speaker (option)
Page 4: Specification
LCD Panel Type Viewing Angle Contrast Ratio Response Time Display colors Pixels H × × × × V Pixel Pitch Input Signals Video in ANT* Connector Video in Audio in ANT* Power Power Voltage Consumption Power saving mode Speaker User Interface LED Indicator Operating Condition Temperature...
Page 5: Important Safety Instructions
Important Safety Instructions 1. Read instructions – Please make sure the instruction has been read and understood before starting using. 2. Keep this manual precisely – Please keep the manual well just for once if you need it as future reference. 3.
Page 6: Installation And Connection
Installation and Connection Type A: 1. Use pill. driver and 5mm allen wrench move out both L and R ahead fix on treadmill parts. 4. Pull two cable then connect on the input signal and power box then use original 2 bolts to fix. Type B: 1.
Page 7 TV install: 1. Attachment cable and installation both speakers with M5×10 2 bolts. (Optional) 2. Then put TFT TV bracket on support base with M6×10 2 bolts. 3. Connect DC in, TV cable, Video, Audio L and R. 4. Plug the power cord into the wall outlet, and the other end of the power cable into the Adapter AC socket then plug the other end of Adapter the power input of the back of LCD monitor.
Page 8: Front Panel Controls
Front Panel Controls Power Switch: To switch on/off device. Power LED: To display DC power in. Channel up and down: To select TV program channel. Volume up and down: To adjust speaker or earphone volume. Remote: To receive remote control signal. TV/AV: To select TV channel and AV input.
Page 9: Osd Controls
Main Menu: To enter / to select item. Adjust (decrease/down): To adjust the decreasing value / to adjust decreasing item. Adjust (increase/up): To adjust the increasing value / to adjust increasing item. OSD Controls OSD Operation:...
Page 10 1. Display OSD information: Press SELECT button to show main menu, use + and – to select, then press SELECT button to enter. 2. Brightness: Use + and – button adjust the brightness then press SELECT button to execute and exit. 3.
Page 11: Trouble Shooting
1. No picture and sound : Is the power cable plugged? Confirm the connection of SPEAKER or AUDIO cable. Components connection status checking. 2. Picture only, no sound : Confirm the connection of AUDIO cable. Confirm the volume. 3. No power : Please confirm the device is correctly connected to the AV power cable.
