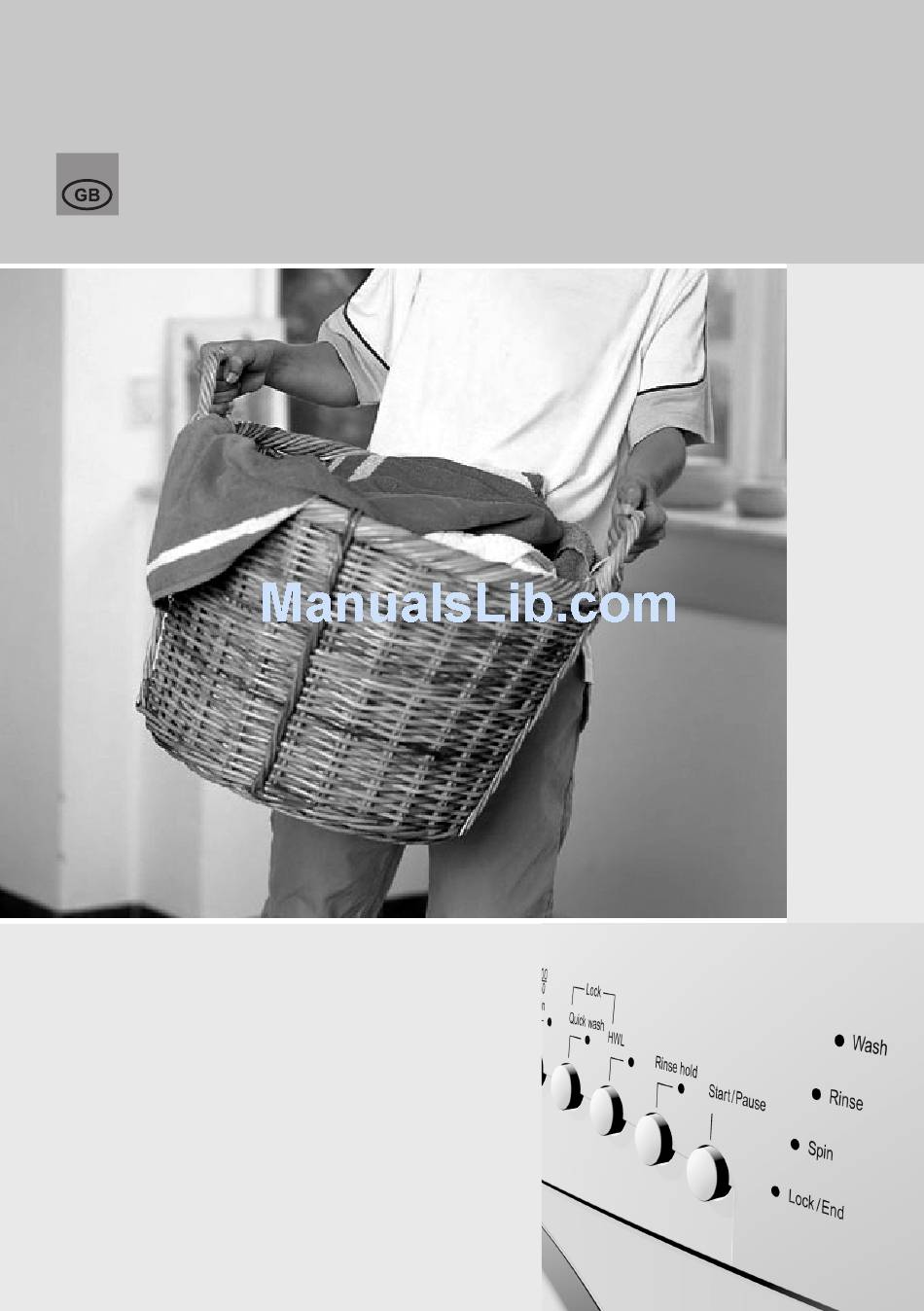

- Page 1 Instructions for Use Washing machine...
-
Page 2: Table Of Contents
Thank you for your confidence in purchasing our washing machine, and congratulations on the excellent choice. Your new washing machine meets the requirements of modern treatment of laundry. It is rational in the consumption of energy, water and washing agents. Our appliances are friendly to the environment. -
Page 3: Description Of Washing Machine
Description of washing machine 1. Front panel 2. Detergent dispenser 3. Door 4. Filter lid Technical information 5. Adjustable legs 6. Water outlet hose 7. Water inlet hose 8. Mains power cable Dimensions (w x d x h): 600 mm x 600 mm x 850 mm Depth with door open: 106 cm Weight (net): 90 kg Nominal voltage: 30 V, 50 Hz... -
Page 4: Cautions
Cautions • Be sure to remove transport brackets prior first use of the appliance. Attempted operation of the blocked machine may result in irreparable damage which is not covered by the manufacturer’s warranty! • When connecting your washing machine to water supply, be sure to use brand new water inlet hose and appropriate sealing gaskets (attached). - Page 5 Before connecting the appliance read these instructions carefully. Repairing the failure arising from inappropriate connections or use of the appliance is not covered by the guarantee. The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
-
Page 6: Installation And Connection
Installation and connection Package removal Removal of transport brackets In removing the wrapping be careful not to damage the appliance with a sharp object. Before connecting the appliance, let it warm up to room temperature (wait for two hours). • Our appliances are packed in environmentally friendly materials which may be recycled, deposited or decomposed without any threat to... - Page 7 Leveling the appliance Water inlet connection • Put the appliance in horizontal position by turning the adjustable legs. The legs are adjustable up to +/- 1 cm. After the adjustment tighten the nuts firmly (A) - towards the bottom of the machine! Vibrations, moving of the appliance and loud operation due to incorrect setting of the adjustable feet shall not be covered by this...
- Page 8 Water outlet connection Connect the appliance to the mains supply Partial Aqua-stop (water stop system) In case of damage on the interior pipe, leaking is prevented by automatic closing system which stops water inlet to the machine. In such cases display A turns red.
- Page 9 The wall socket must be accessible at all times and must be equipped with an earth lead (in accordance with the local safety regulations). The permanent connection must be fitted by an authorized personnel only. Damaged mains power cable may be replaced only by the producer or his authorized personnel.
-
Page 10: Operation
Operation A - program selector B - Spin - reduced spinning key- switch C - Quick wash D - Higher water level - HWL E - Rinse hold button F - START/PAUSE button Signal LED’s: - washing program stages • wash •... - Page 11 Washing procedure Washing procedure • Open the door of the machine. • Load the laundry into the drum. • Close the door. • Open the water inlet faucet. • Select the program. • Add washing and treatment agents (detergent and softener).
- Page 12 Washing machine Washing machine operation operation Pay attention to the labels on the clothes, indicating the recommending washing mode (see table of textile treatment symbols on the last page of these instructions). Program is selected by turning the program selector (A) from the “0”...
- Page 13 creased at the end of washing, use easy ironing program. Synthetic Normally stained shirts, blouses and other polyester and polyamide garments, or a mixture of these fabrics with cotton. For heavily soil permanent press use program with pre-wash. Delicate This is a program for delicate fabrics (dresses, skirts, blouses) and curtains.
- Page 14 Select the particular function after the selection of the basic program, but prior pressing the START/PAUSE button (F). Reduced spin RPM • Reduction of spin RPM depends on program selection and maximum RPM for particular type of machine. Basic programs max.
- Page 15 - Selection of partial programs These are independent programs and may be used when you do not need the entire washing program. In case you would like to use more additional programs in a sequence, you must turn off the appliance prior any new program selection (turn the program selector to “0”...
- Page 16 Start the operation Start the operation - Adding washing and softening agents (see Tips for washing and energy saving) • pre-wash compartment • main wash compartment • softener compartment If you do not apply the program which includes the pre-wash feature, you may add washing detergent directly into the drum, using the measuring vessel.
- Page 17 Interruptions Interruptions Upon switching OFF, all additional pre- selected functions are deleted; therefore they must be switched-ON again. - End of operation Flashing LED’s for washing stages indicate that the program was completed. • Sound signal indicates that you may now open the door of the machine.
- Page 18 Special functions Special functions interrupted, and when the power is restored the program is automatically resumed. If a power failure occurs when the drum is still full of water, be careful not to open the door before you pump the water out. •...
-
Page 19: Tips For Washing And Energy Saving
Tips for washing and energy saving • Before washing sort out the laundry according to the type, degree of dirtiness and color resistance. • Prior selecting the washing program consult the sewn tab with information on a particular piece of laundry (see Maintenance Chart on the last page). - Page 20 Hardness Degree of hardness scale °dH(°N) 1 - Soft 2 - Medium 7-14 3 - Hard 14-21 4 - Extra hard >1 In case of hard water add detergent according to the Chart for degree 1 and add appropriate quantity of water softener (see manufacturer’s instructions).
-
Page 21: Cleaning And Maintenance
Cleaning and maintenance Disconnect the washing machine from the mains before cleaning! • The casing should be cleaned with soft cloth and mild detergent. • The interior of the drum and the door gasket is cleaned by washing at 60°C without laundry and adding half quantity of detergent. - Page 22 • Wash it under running water using a brush, and dry it. Remove any leftover dried detergent from the bottom of the casing. • Clean the entire rinsing area of the washing machine with a brush, especially the nozzles on the upper side of the rinsing chamber.
- Page 23 • Turn it anti-clockwise, pull it out and clean under running water. • Insert the filter back as shown on the picture (arrow and pointer), and tighten by turning it in clockwise direction. To ensure good sealing the gasket surface (A) must be dirt free.
-
Page 24: Failures
Failures The washing machine automatically monitors the execution of particular functions during the operation, and reports any detected failures. In such cases signal LED’s start flashing in certain sequence, accompanied by the audible signal, sounding in the same sequence as the indicator LED’s flash. The flashing sequence changes in accordance with the nature of the detected failure. - Page 25 Failure Possible cause The machine does not Machine is not powered. work (indicator LED’s are not illuminated). Washing program Door is not properly closed. does not start (washing stage LED is flashing). Water does not enter Disturbed water inlet. the machine (after approx.
- Page 26 Failure Possible cause Greasy wads appear Too little detergent (laundry was on the laundry. very greasy). Laundry is stained You used liquid detergent or after washing. detergent for colored laundry which does not contain whitener. White powdery It is not the consequence of bad residues on the rinsing, but because of neo- laundry.
-
Page 27: Tables
Tables Program chart Basic programs Cotton Cotton Cotton + prewash Cotton - heavy soil * Cotton Cotton - easy ironing Synthetic Synthetic Delicate Delicate Wool Wool Hand wash Mixed Partial programs Rinse Softener Drain Spin 1400 1000 1000 1000 1400 * Testing program by EN 60456 with the selection of max. -
Page 28: Additional Functions
Program chart/ Additional functions Program Basic programs Cotton Cotton with prewash Cotton heavy Cotton - easy ironing Synthetics with prewash Synthetic Delicate Wool Hand wash Mixed Partial programs Rinse Softening Pumping water Spinning possibility ... -
Page 29: Maintenance Chart
Maintenance chart Normal wash Max. washing temp. 95°C Delicate wash Whitening Whitening in cold water Ironing Hot iron max. 200°C Dry cleaning Dry cleaning in all solvents Drying Place on flat surface Max. Max. Max. washing washing washing temp. temp. temp.
