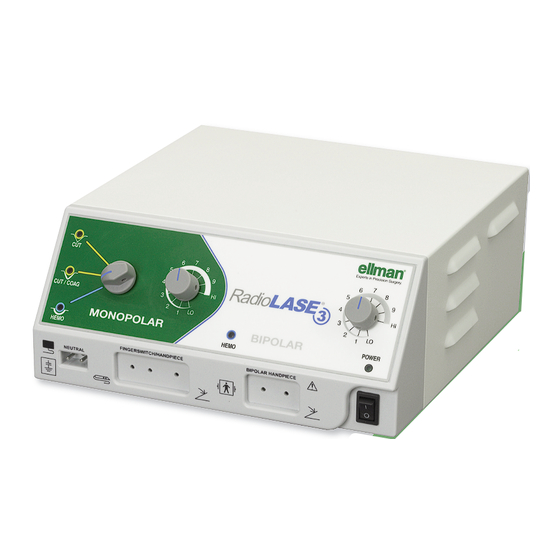

Cynosure, Inc. RadioLASE 3 Instruction Manual
  1. Manuals
  2. Brands
  3. Cynosure, Inc. Manuals
  4. Inverter
  5. RadioLASE 3
  6. Instruction manual

Cynosure, Inc. RadioLASE 3 Instruction Manual

Hide thumbs

Advertisement

Table of Contents

Instruction Manual
(English-English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RadioLASE 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cynosure, Inc. RadioLASE 3

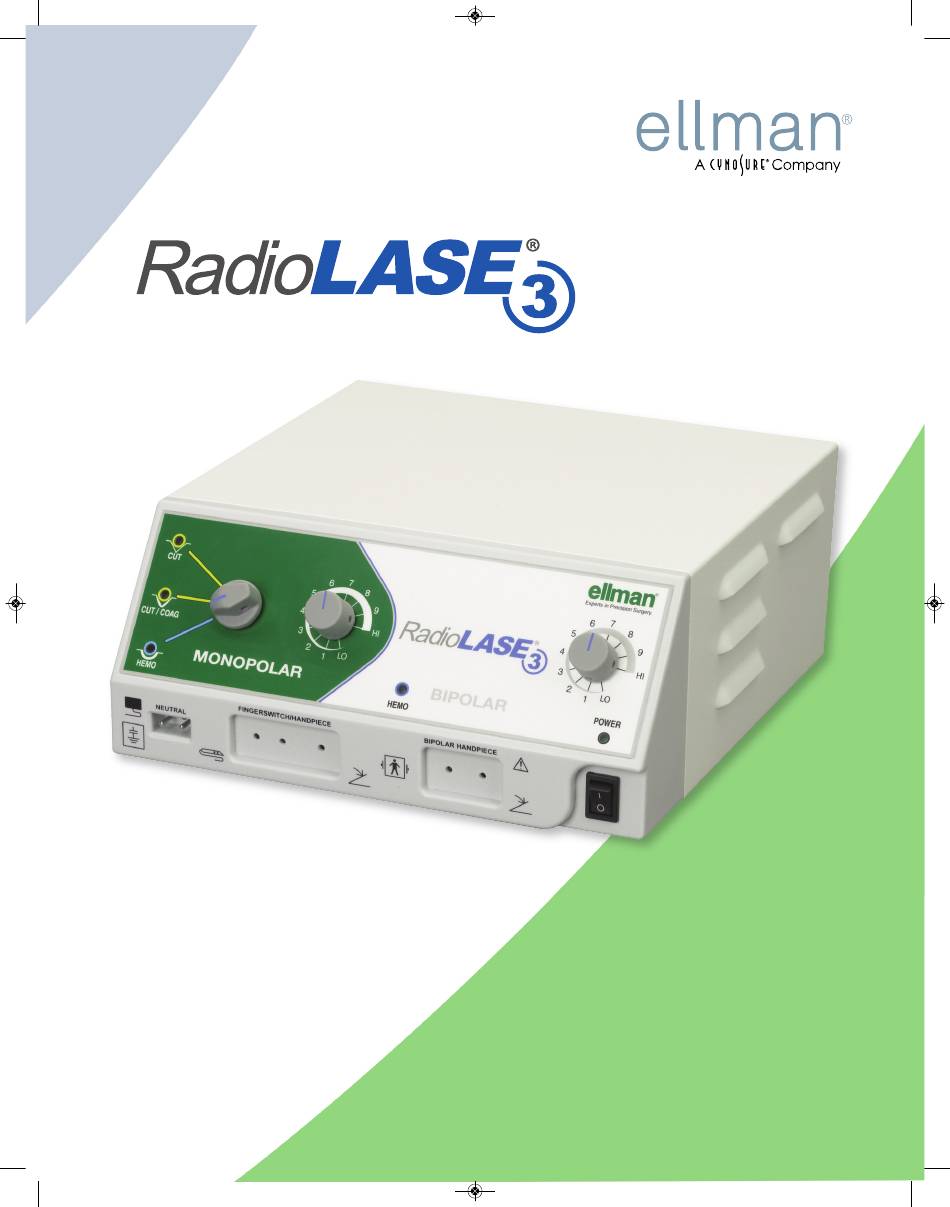

  • Page 1 Instruction Manual (English-English)
  • Page 2 Copyright Information ©2014 Cynosure, Inc. Cynosure, Ellman and RadioLase are registered trademarks of Cynosure, Inc. Caution Federal law restricts this device to sale by or on the order of a Physician...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION Page 4 SAFETY Page 4 III. TECHNICAL INFORMATION Page 7 DESCRIPTION OF CONTROL ELEMENTS Page 7 PREPARATION FOR USE Page 12 SURGICAL DESCRIPTION AND USE Page 12 VII. POWER OUTPUT CHARACTERISTICS Page 14 VIII. TECHNICAL SPECIFICATIONS Page 17...

  • Page 4: Introduction

    I. INTRODUCTION INTRODUCTION TO RADIOSURGERY ® Radiosurgery with the Radiolase 3 High Frequency Radio surgical Generator (Generator) is an ® ® excellent method of cutting and coagulating soft tissue. With four waveforms (3 monopolar and 1 bipolar) and a wide selection of electrode tips, the user can easily configure the system for a wide array of applications.
  • Page 5 PRECAUTIONS 2.1.1 General 2.1.1.1 Interference caused by the Generator could adversely affect the operation of other electronic equipment. 2.1.1.2 Electrical shock hazard. Do not remove cover. Refer to authorized personnel for service. 2.1.1.3 Generator may present a hazard to patients with pacemakers. Consult qualified medical personnel.

  • Page 6: Technical Information

    2.1.3 Flammable Environment 2.1.3.1 Some materials, for example cotton, wool, and gauze when saturated with oxygen may be ignited by sparks produced in normal use of the equipment. 2.1.3.2 Do not use the Generator in the presence of flammable anesthetics or other flammable gases, flammable liquids, or flammable objects.

  • Page 7: Description Of Control Elements

    IV. DESCRIPTION OF CONTROL ELEMENTS INTERFACE ACCESORIES 4.0.1 Two Pedal Footswitch Footswitch for CUT (yellow) and COAG (blue) modes is supplied. The footswitch may be used with any handpiece compatible with the RF Generator. 4.0.2 Handpieces A variety of handpieces are available. When using a fingerswitch handpiece, the depressed button will activate monopolar energy in the mode and power level selected on the front panel.
  • Page 8 REAR PANEL CONTROL ELEMENTS Figure 4.1 Rear Panel Cynosure, Inc. dba Ellman HF RADIO SURGICAL GENERATOR MODEL Operating Frequency 4 MHz FOOT POWER OUTPUT SWITCH MONOPOLAR BIPOLAR 500 OHM LOAD 200 OHM LOAD 0413 50 WATTS VOLUME CUT/COAG 50 WATTS HEMO 35 WATTS 35 WATTS...
  • Page 9 FRONT PANEL CONTROL ELEMENTS Figure 4.2 Front Panel FINGERSWITCH/HANDPIECE BIPOLAR HANDPIECE NEUTRAL ON / OFF NEUTRAL MONOPOLAR BIPOLAR FINGERSWITCH HANDPIECE HANDPIECE OR CABLE Power Switch: 1 = ON 0 = OFF...
  • Page 10 Power On Indicator: Neutral Pad Receptacle: Bipolar Cord Receptacle: Fingerswitch/Handpiece Receptacle: Yellow Light (Monopolar Cut Energized) Indicator: The indicator illuminates the Monopolar when Cut function is selected and has been selected and energized. Yellow Light (Monopolar Cut/Coag Energized) Indicator: The indicator illuminates when the Monopolar Cut/Coag function is selected and has been energized.
  • Page 11 4.3.1 Type BF defibrillator protection 4.3.2 Refer to manual 4.3.3 Protective earth connection 4.3.4 Neutral electrode floating at high frequency 4.3.5 Fingerswitch control 4.3.6 Footswitch control 4.3.7 Neutral Pad 4.3.8 Non-Ionization radiation 4.3.9 Equipotential Symbol...

  • Page 12: Preparation For Use

    V. PREPARATION FOR USE PREPARATION FOR USE 5.0.1 On the Generator check to make sure that the power switch is in the OFF position. 5.0.2 Connect the power cord to a 3-wire ground AC power receptacle. 5.0.3 Insert the Neutral Pad plug into the receptacle on the front panel marked “Neutral”. 5.0.4 The Neutral Pad should be reliably attached as per Section 2.1.2.
  • Page 13 PRE-OPERATIVE CUTTING PRACTICE Prepare the Generator for operations as described in Section 5- PREPARATION FOR USE, then follow the steps below. Select a piece of fresh, lean beef containing very little fat. Allow meat to reach room temperature. Note: Do not use veal because it does not change color when cut with an electrode. Place the meat on a Neutral Pad.

  • Page 14: Power Output Characteristics

    VII. POWER OUTPUT CHARACTERISTICS Figure 7.0 Typical Nominal Plot Power Output vs. Dial Setting Monopolar: 500 Ohm load Bipolar: 200 Ohm Load Figure 7.1 Typical Nominal Plot Monopolar Cut Power Output vs. Resistive Load...
  • Page 15 Figure 7.2 Typical Nominal Plot Monopolar Cut/Coag Power Output vs. Resistive Load Figure 7.3 Typical Nominal Plot Monopolar Hemo Power Output vs. Resistive Load...
  • Page 16 Figure 7.4 Typical Nominal Plot Bipolar Hemo Power Output vs. Resistive Load Figure 7.5 Typical Nominal Plot Voltage Output vs. Dial Setting (Open Circuit)

  • Page 17: Technical Specifications

    VIII. TECHNICAL SPECIFICATIONS OUTPUT CHARACTERISTICS Mode/ Output Nominal Power Output Power Output Activation Character Waveform Output Power vs. Setting vs. Load Resistance 4.0 MHz See Figure 7.0 See Figure 7.1 via footswitch or sinusoid @ 500 Ω fingerswitch Cut/Coag 4.0 MHz with See Figure 7.0 See Figure 7.2 via footswitch or...
  • Page 18 SAFETY FEATURES 8.2.1 Standard Compliance IEC60601-1 IEC60601-1-2 IEC60601-2-2 8.2.2 Electrical Safety Electric Shock: Class I Defibrillator Protection Type BF 8.2.3 Neutral Pad Earthed at HF 8.2.9 Defined duty cycle protection 20 sec. ON / 30 sec. OFF 8.2.10 Ingress of water Ordinary equipment.
  • Page 20 Cynosure, Inc. dba Ellman, 400 Karin Lane, Hicksville, N.Y. 11801 U.S.A. Tel: 800 835-5355 • 516 594-3333 • Fax: 516 279-4483 • www.ellman.com DIM-50-54 REV E 8 December 2015...
